Label:Yes
3.Comprehensive Circuit Protection:Stable various protective functions for charging and discharging, such as overcharge , over-discharge and short circuit . This Battery Board is committed to providing optimized performance by managing the battery discharge and ensuring the battery capacity reaches its optimal state.

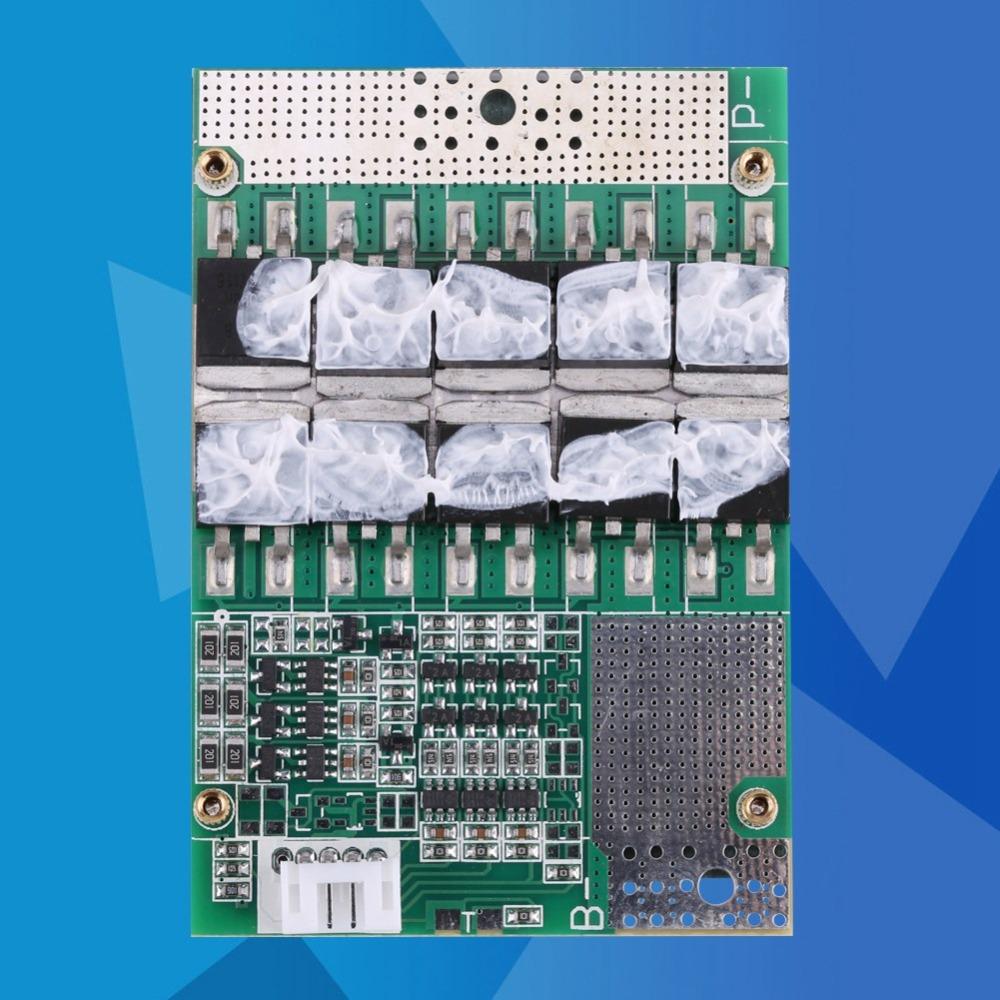

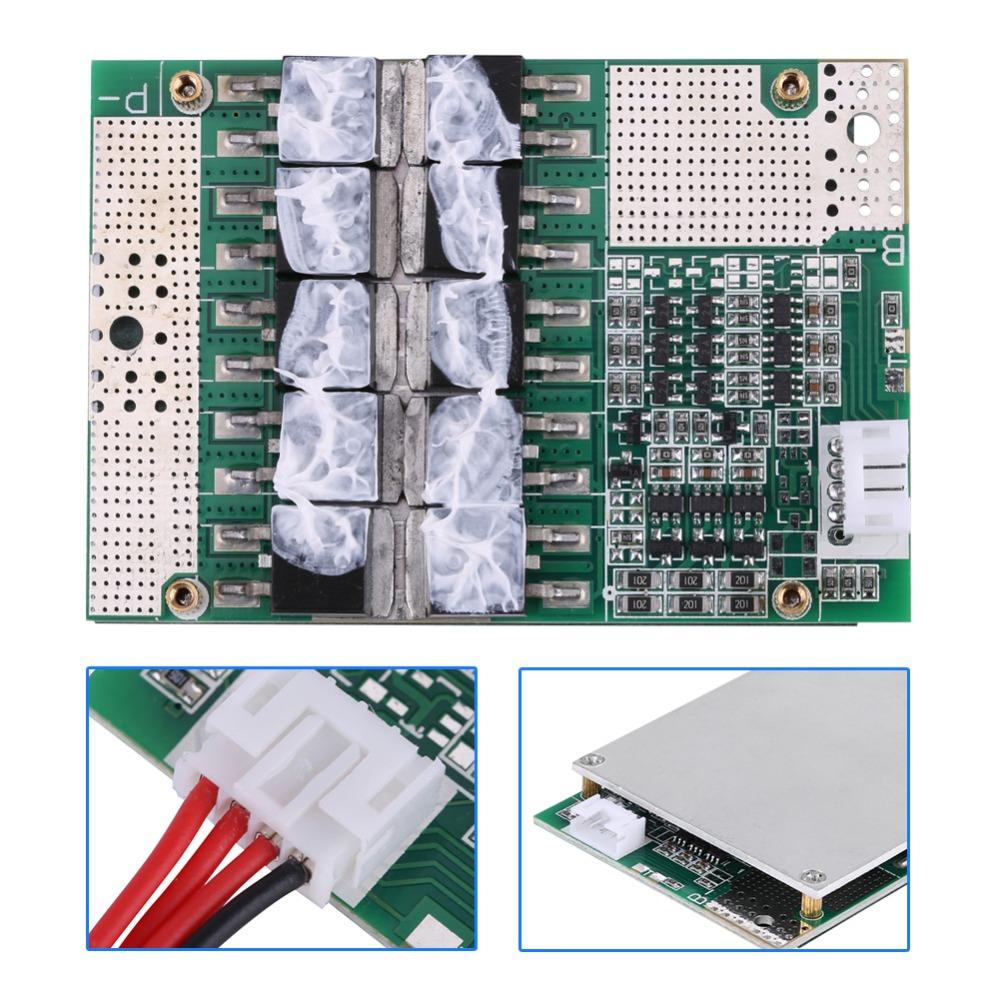

1.Compatible with 3S Li-ion Batteries:This protection board is designed for 3-series cell Li-ion batteries, including ternary lithium, lithium manganese oxide, and lithium cobalt oxide types.
4.Integrated Cell Balancing Function:The built-in balance function helps ensure that all battery cells in the series are charged uniformly, which can contribute to the overall health of the battery pack.

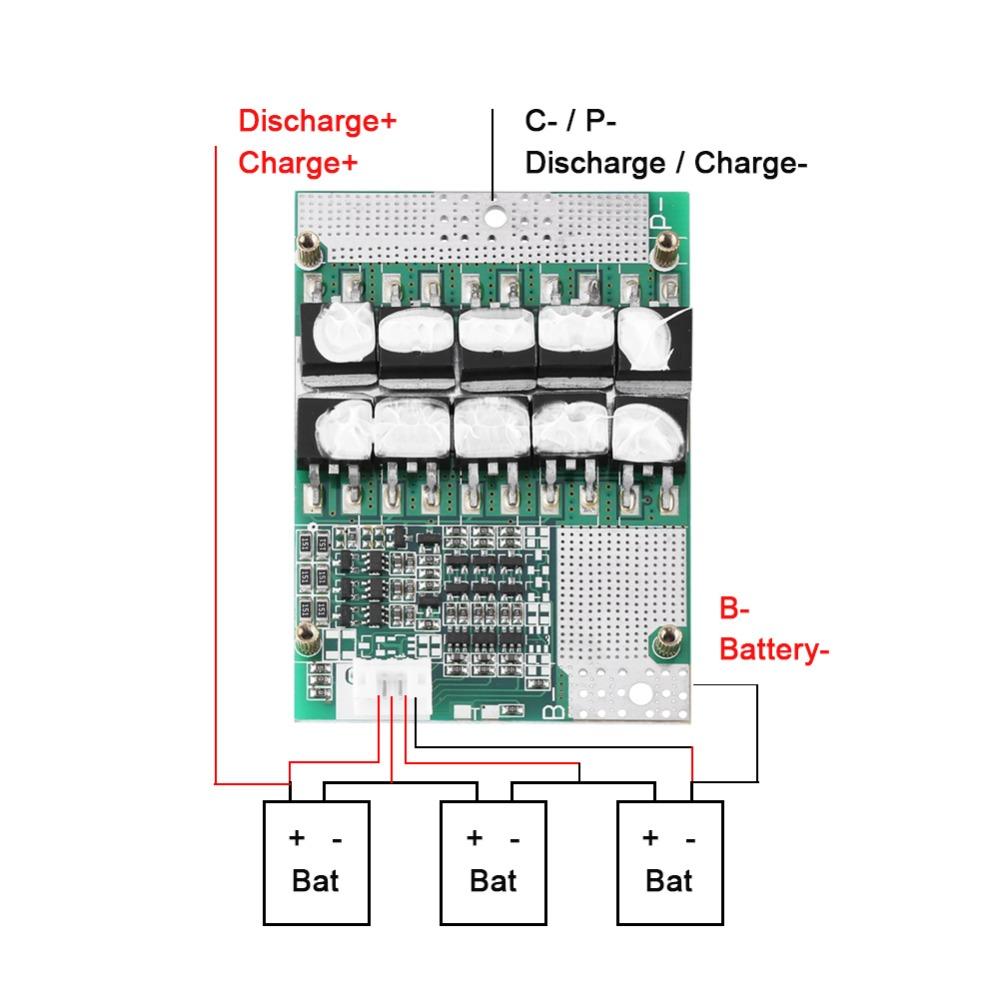

2.50A Continuous Discharge Current:Charging connector and discharging connector are same, continuous discharging current is 50A
5.Important for Battery Longevity:Selecting and correctly applying a suitable protection board is a vital factor in maintaining the performance and extending the service life of your batteries.
Specifications:
Discharge:
Continuous Discharge Current: 50A
Momentary Discharge Current: 150A
Charge:
Charge Voltage: 12.6V
Charge Current: 50A
Overcharge Protection:
Overcharge Detection Voltage: 4.28±0.025V
Overcharge Protection Delay: 0.5S
Overcharge Cancel Voltage: 4.08±0.1V
Balance:
Balance Detection Voltage: 4.20±0.025V
Balance Cancel Voltage: 4.20±0.05V
Balance Current: 60±5mA
Over-discharge Protection:
Over-discharge Detection Voltage: 2.8±0.1V
Over-discharge Detection Delay: 0.1S
Over-discharge Cancel Voltage: 3.0±0.1V
Overcurrent Protection:
Overcurrent Detection Voltage: 150mV
Overcurrent Detection Delay: 9mS
Overcurrent Protection Current: 200±10A
Protection Cancel Condition: Disconnect Load
Short Circuit Protection:
Short Circuit Protection Condition: Outside Load Short Circuit
Short Circuit Detection Delay: 250uS
Protection Cancel Condition: Disconnect Load
Internal Resistance:
Main Circuit Conduction Internal Resistance: ≤25milliohm
Self Power Consumption:
Working Current: ≤30uA
Sleeping Current (Battery Over - discharge): ≤10uA
Operating Temperature: - 30℃ - +80℃

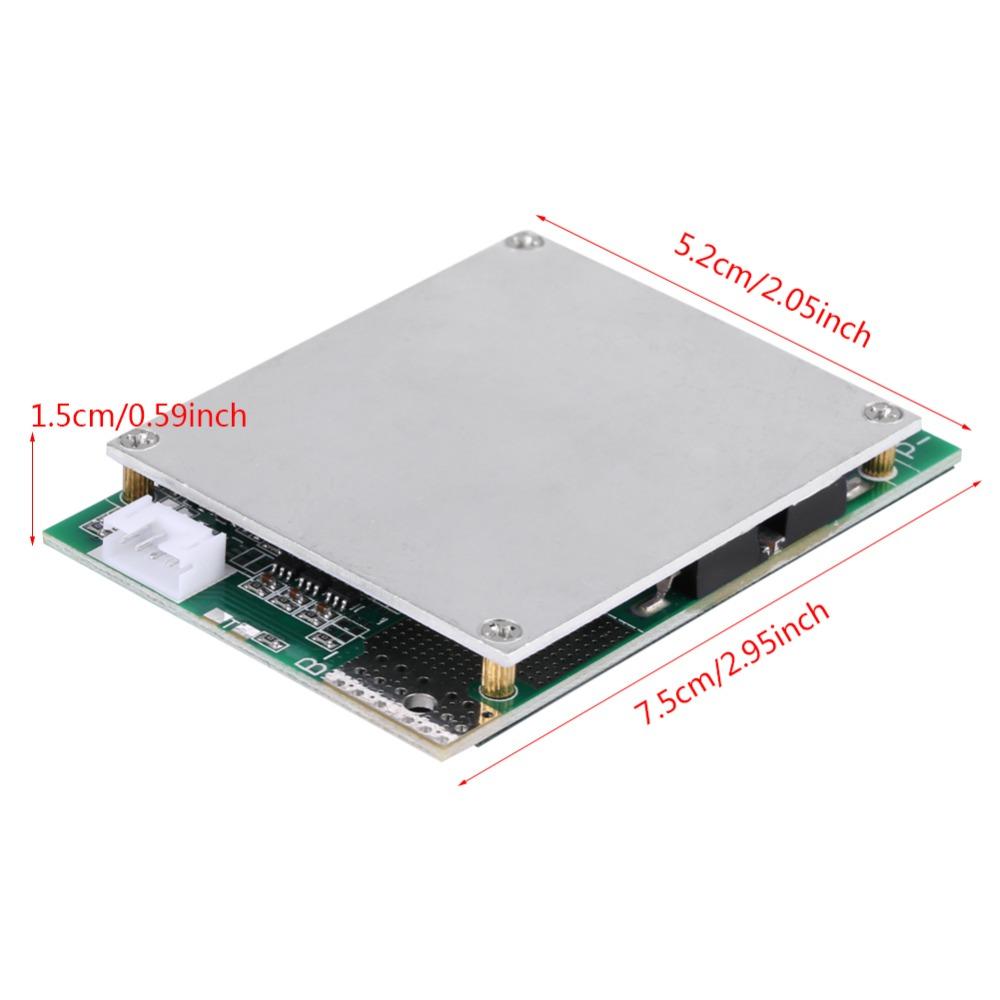

Size:8x5.5x0.8cm/3.15x2.17x0.31"
Color: Green and Silvery
Package Includes:
1 x Protection Board

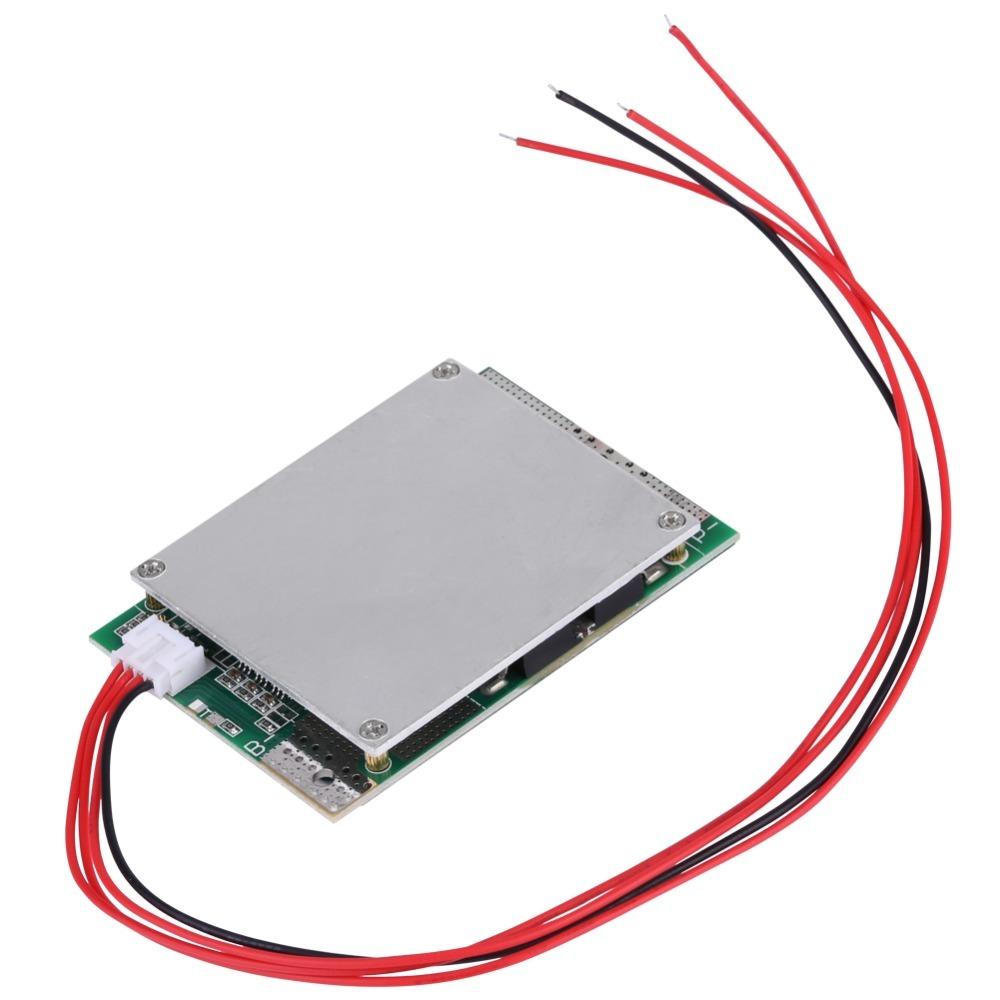

1 x Cable
Note:
1. Due to the difference between different monitors, the picture may not reflect the actual color of the item.
2. Please allow slight dimension difference due to different manual measurements. Thank you for your understanding.
