Feature:
1. OE Number: The referencing OE number of this controller are P1205M 6B403, 17721706, which is replacement for CURTIS 1205M 6B403 1205M 64011205M 6B401 controller.
2. Applicable Model: The DC motor controller is a replacement for Club Car IQ DS Precedent, please check the model of your golf cart before ordering.
3. Main Functions: According to gear, accelerator, brake and other commands, control the speed of the vehicle starting, driving, advancing and retreating, and the strength of climbing.
4. High Performance: The speed sensor input has superior closed loop control to adjust vehicle speed for simple, efficient deceleration adjustments.
5. Water Resistant: Adopts rugged anodized aluminum extruded housing, which meets IP65 waterproof environmental sealing standards for use in harsh environments.
Specification:
Item Type: Motor Speed ControllerMaterial: MetalOE Number: P1205M 6B403
Other Part Number: 17721706

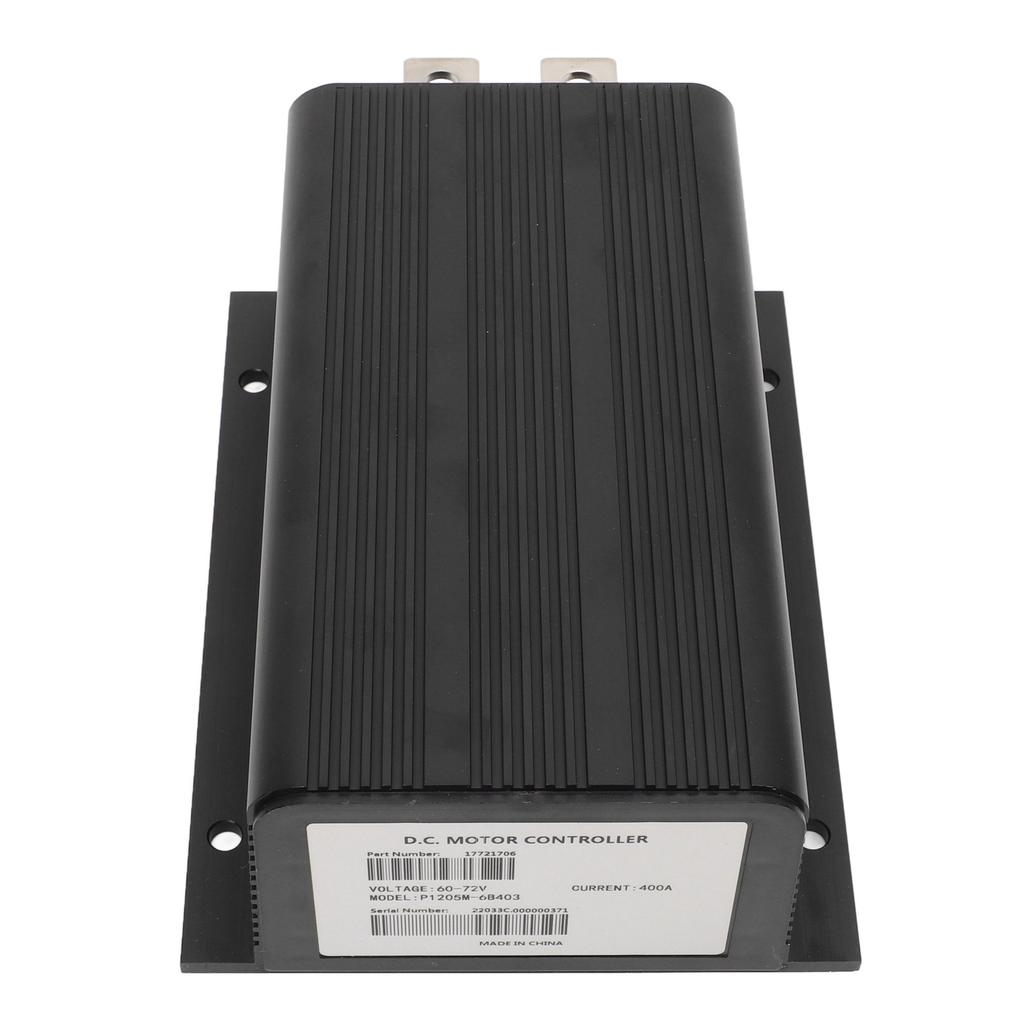

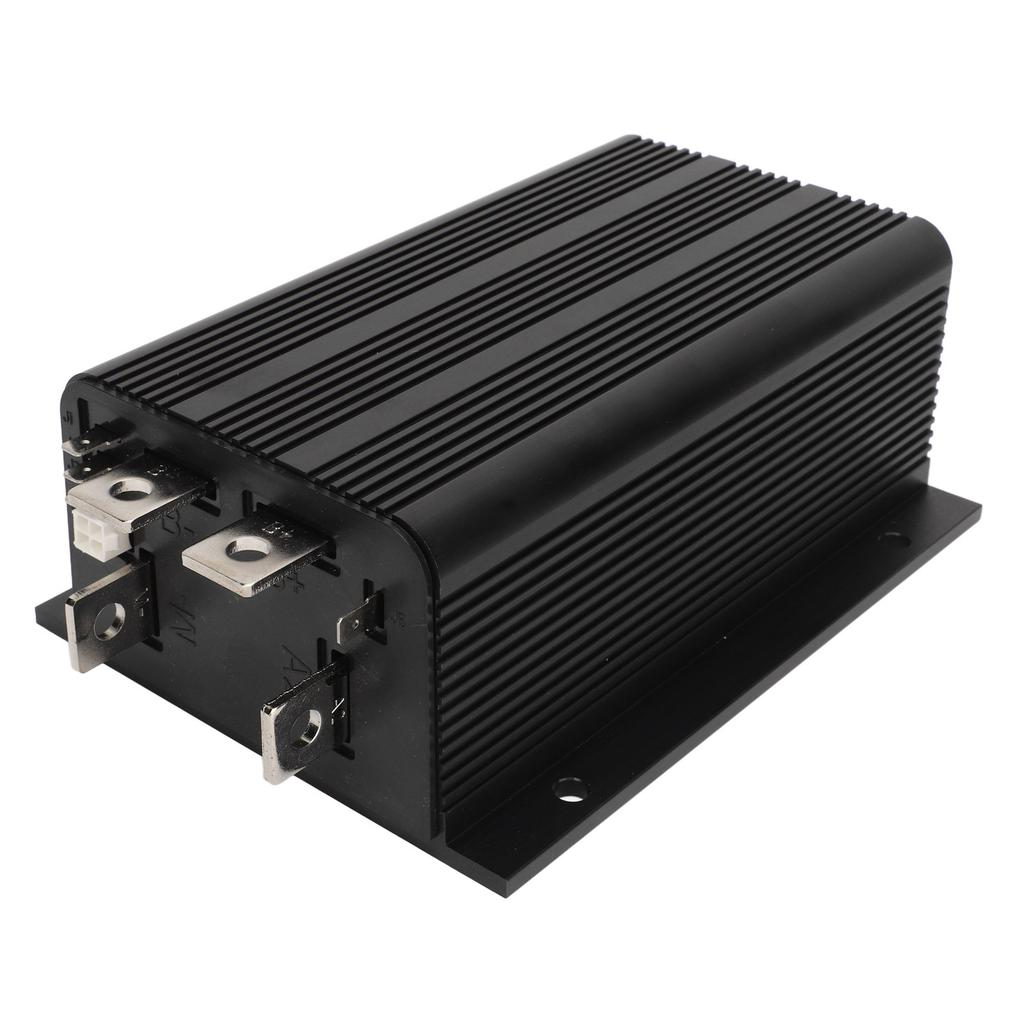

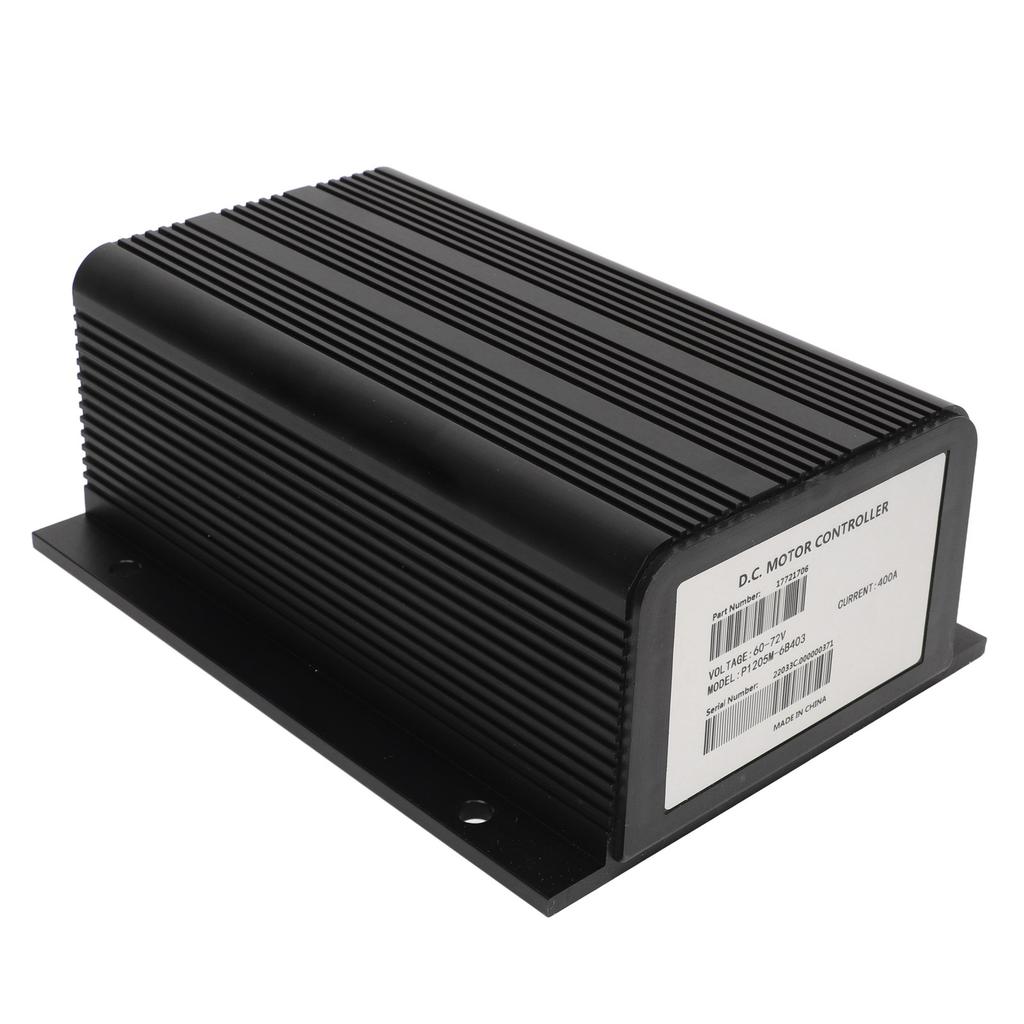

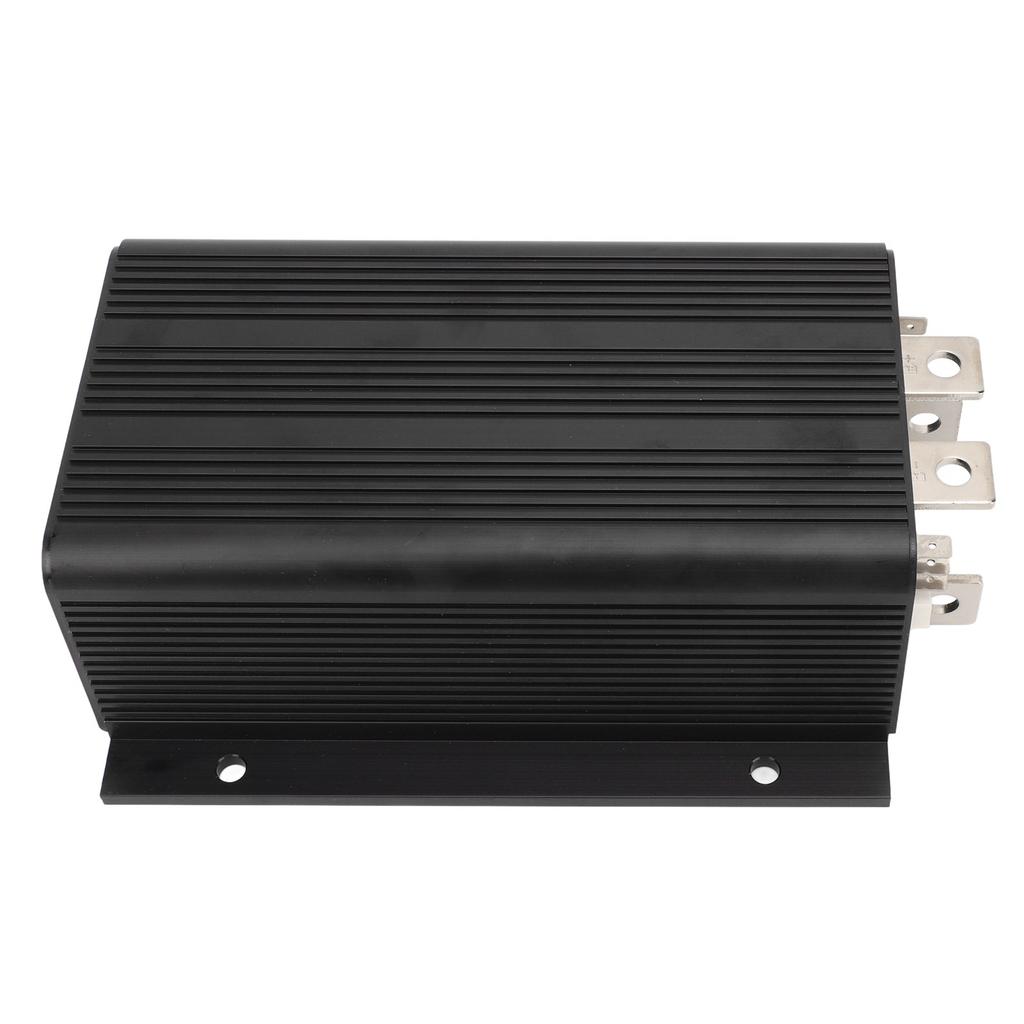

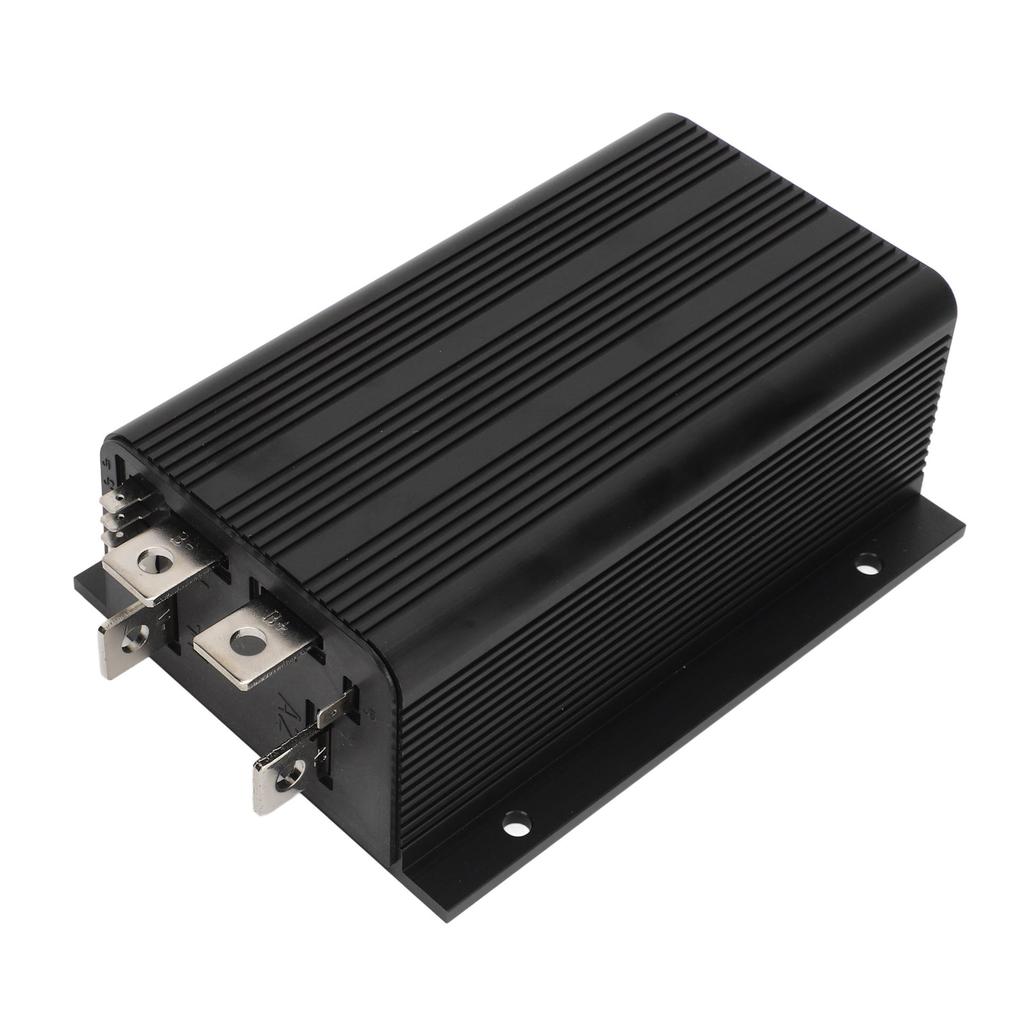

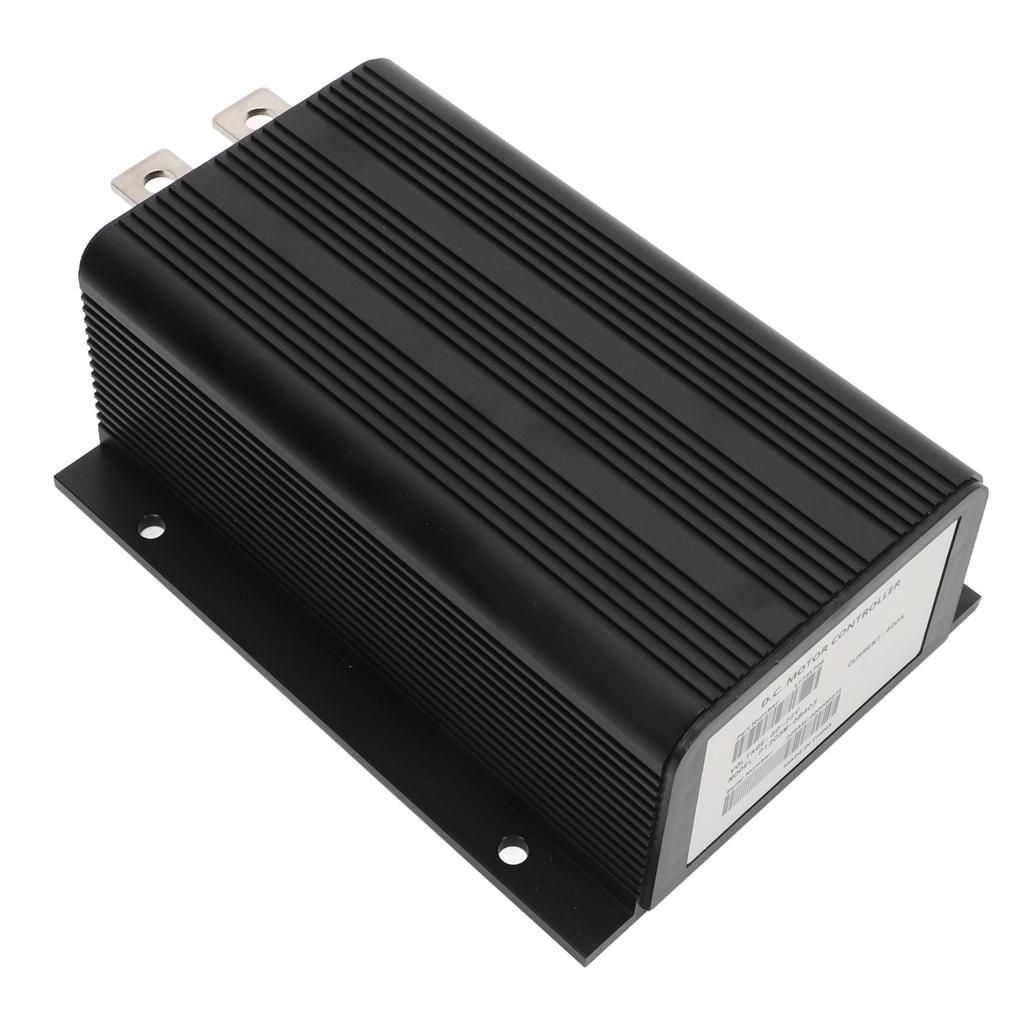

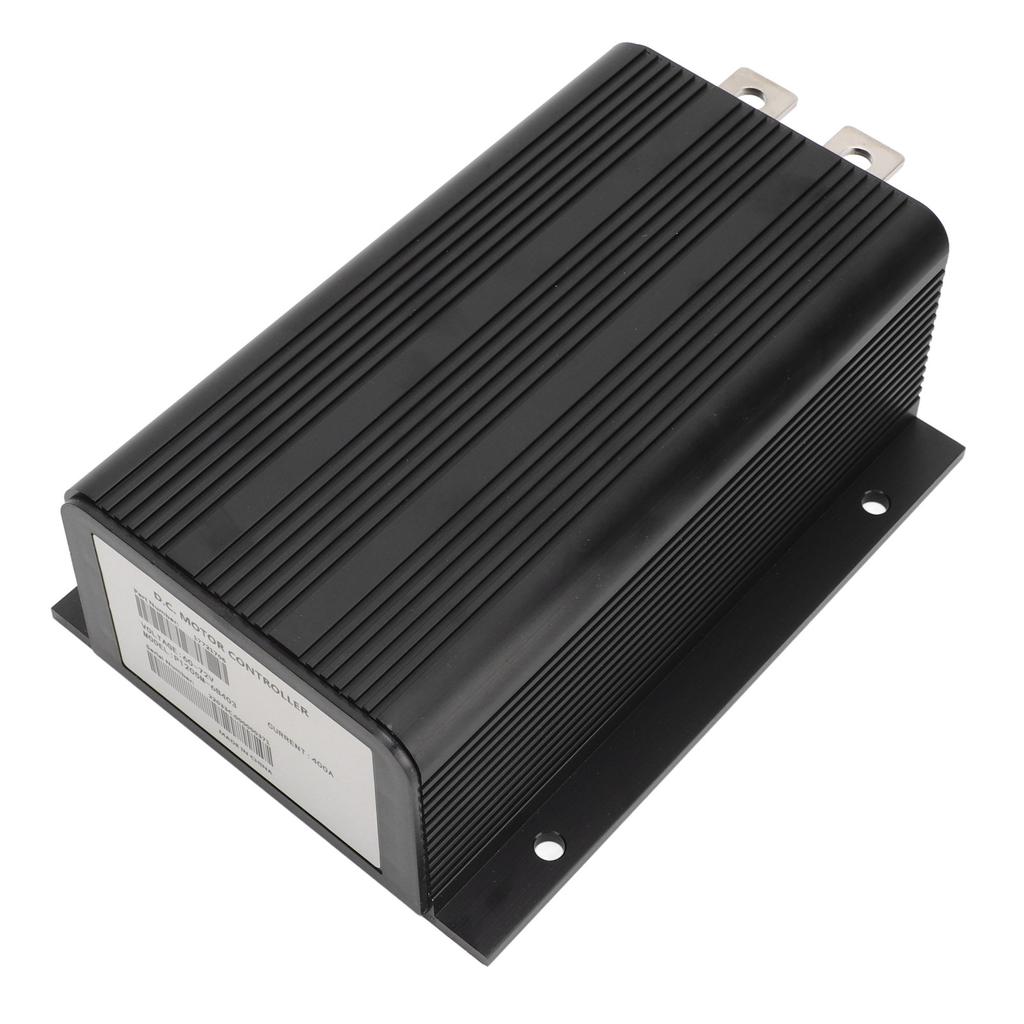

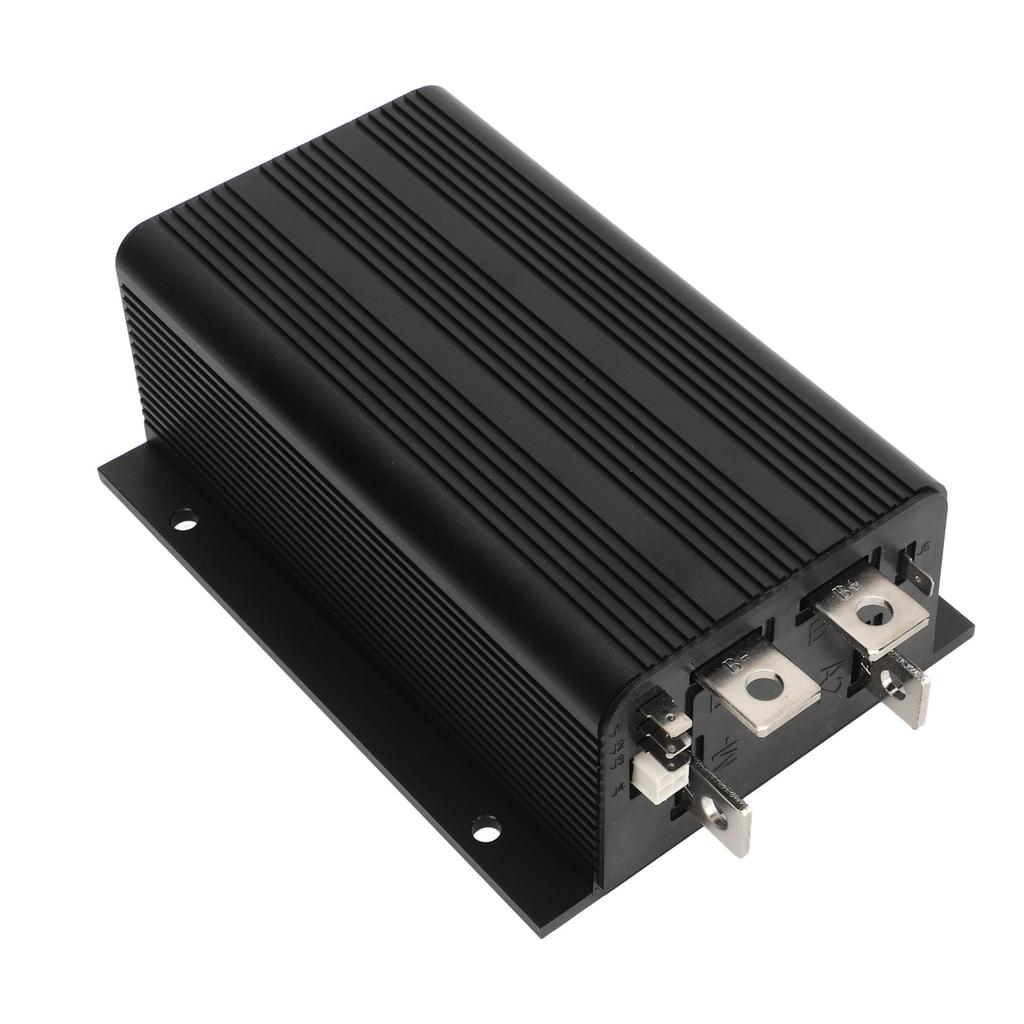

The P1205M 6B403 controller is a DC series winding motor speed controller designed to be replacement for CURTIS 1205M 6B403 controller (and for CURTIS 1205M 6401 and 1205M 6B401 controllers).
Fully compatible with for CURTIS programmer, all parameters of P1205M 6B403 are the same as its original for CURTIS 1205M 6B403
Battery Nominal Voltage (Volt): 60V 72V (There are two voltage settings to choose from. The voltage can be set to 60V or 72V. The default setting is 72V, and the allowable working range is 48 72V. If it is set to 60V , the allowable operating range is 39 60V).
Battery System Voltage And Throttle Type: 0 5k Ohm , 5k 0 Ohm or 0 5V (configurable)
By default we set the controller to 72V 400A 0 5k Ohm (Throttle Type = 0)
1 Minute Current Rating (Amps): 400
5 Minute Current Rating (Amps): 275
1 Hour Current Rating (Amps): 175
Plug Braking (A2 busbar): Yes
Features:
High frequency switching and ultra low voltage drops provide high efficiency and silent operation.

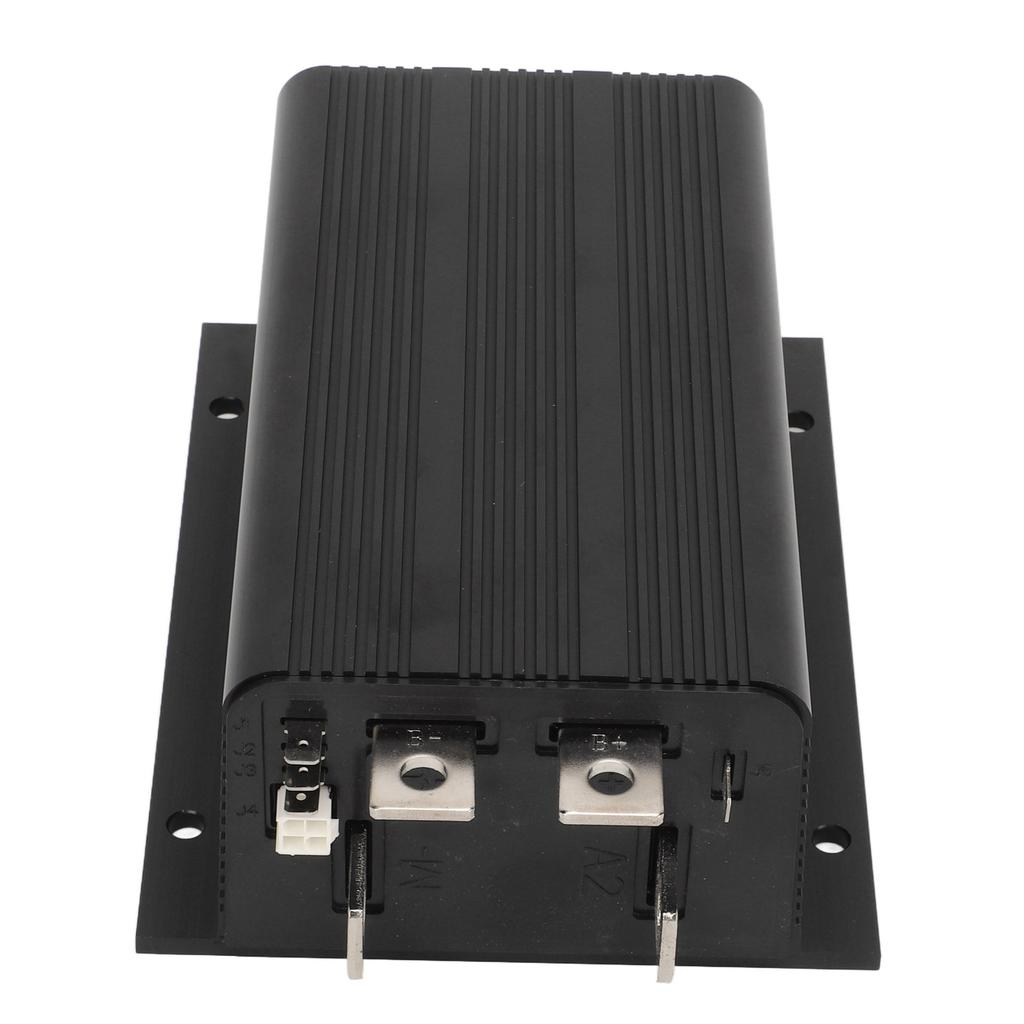

Simple mounting and wiring with push on connectors for control signals and plated solid copper buses for power connections.
Compatible with either a two wire potentiometer or a voltage throttle.
Throttle fault protection circuitry disables controller if throttle wires become open.
High pedal disable feature prevents controller operation if key is turned on while throttle is applied.
Plug braking diode internal to controller.
Thermal protection and compensation circuit provides constant current limit over operating range and during under or over temperature cutback; no sudden loss of power under any thermal conditions.
Undervoltage cutback function protects against low battery voltage, including low voltage caused by external loads.
PWM operating frequency: 15.6kHz
Galvanic isolation from heat sink (minimum): 500 V
KSI Input Current (without contactor engaged): <70 mA without programmer; <130 mA with programmer
Logic input current: <2mA
Status LED output current (maximum): 2 mA
Throttle Type: 2 wire 0 5k Ohm , 2 wire 5k Ohm 0 or 0 5V
Storage ambient temperature range: 40 degrees C to 85 degrees C ( 40 degrees F to 185 degrees F)
Operating ambient temperature range: 40 degrees C to 50 degrees C ( 40 degrees F to 122 degrees F)
Encapsulation environmental protection grade: ISTA 2A; Electronic equipment sealing grade is IP65
Ten Throttle Valve Types Available:
Type 0: 2 wire potentiometer, 0 5k Ohm
Type 1: 2 wire potentiometer, 5k Ohm 0
Type 2: Single ended 0 5V input
Type 3: 2 wire potentiometer, 4.6k Ohm 0
Type 4: 2 wire potentiometer, 5.5k Ohm 0
Type 5: 2 wire potentiometer, 1k Ohm 0
Type 6: ITS input
Type 7: Single ended 6.3 10.6 V input
Type 8: Single ended 6 12 V input
Type 9: Single ended 3 wire potentiometer, 0 5k Ohm
Fitment:Replacement for Club Car IQ DS Precedent.
Package List:
1 x
Motor Speed Controller
Note:
Please double check the part number, models and parameters of your item, matching information is for reference only.Installation by a professional mechanic is highly recommended
