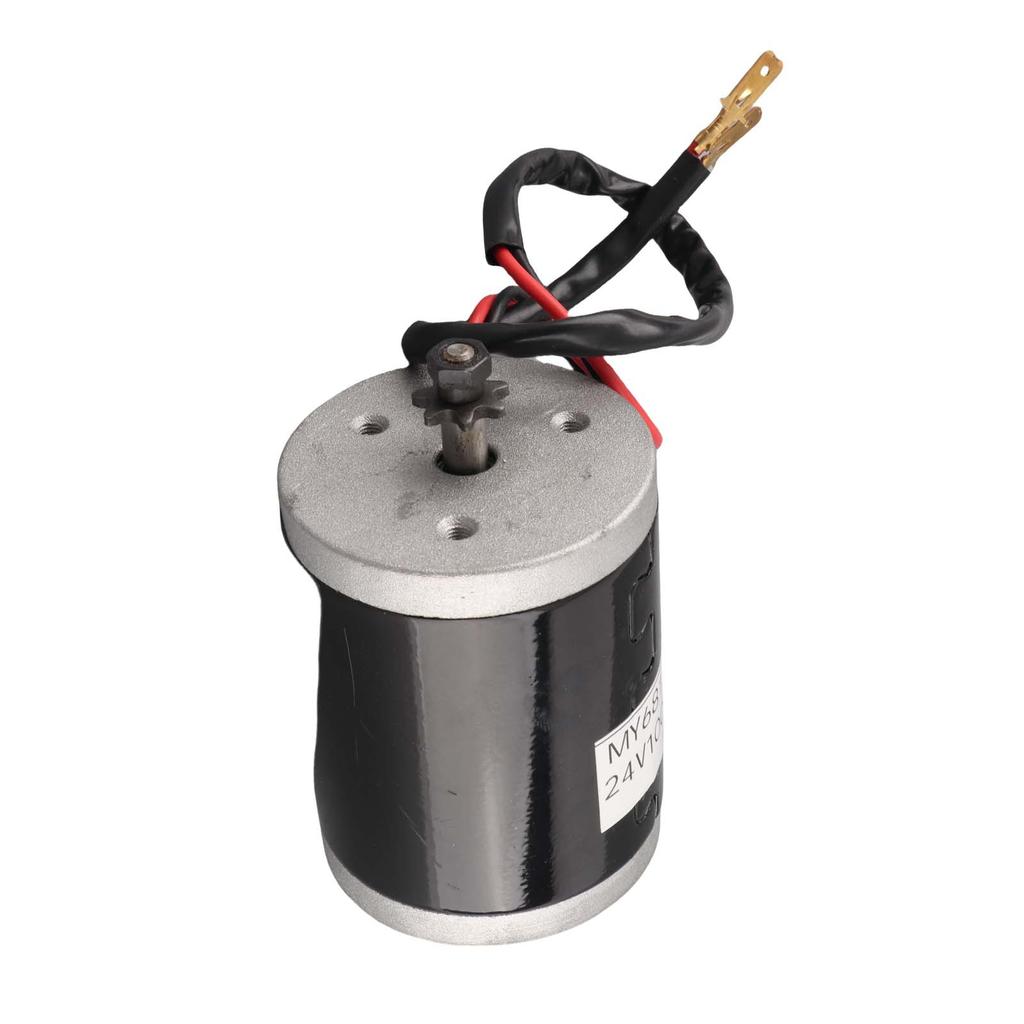

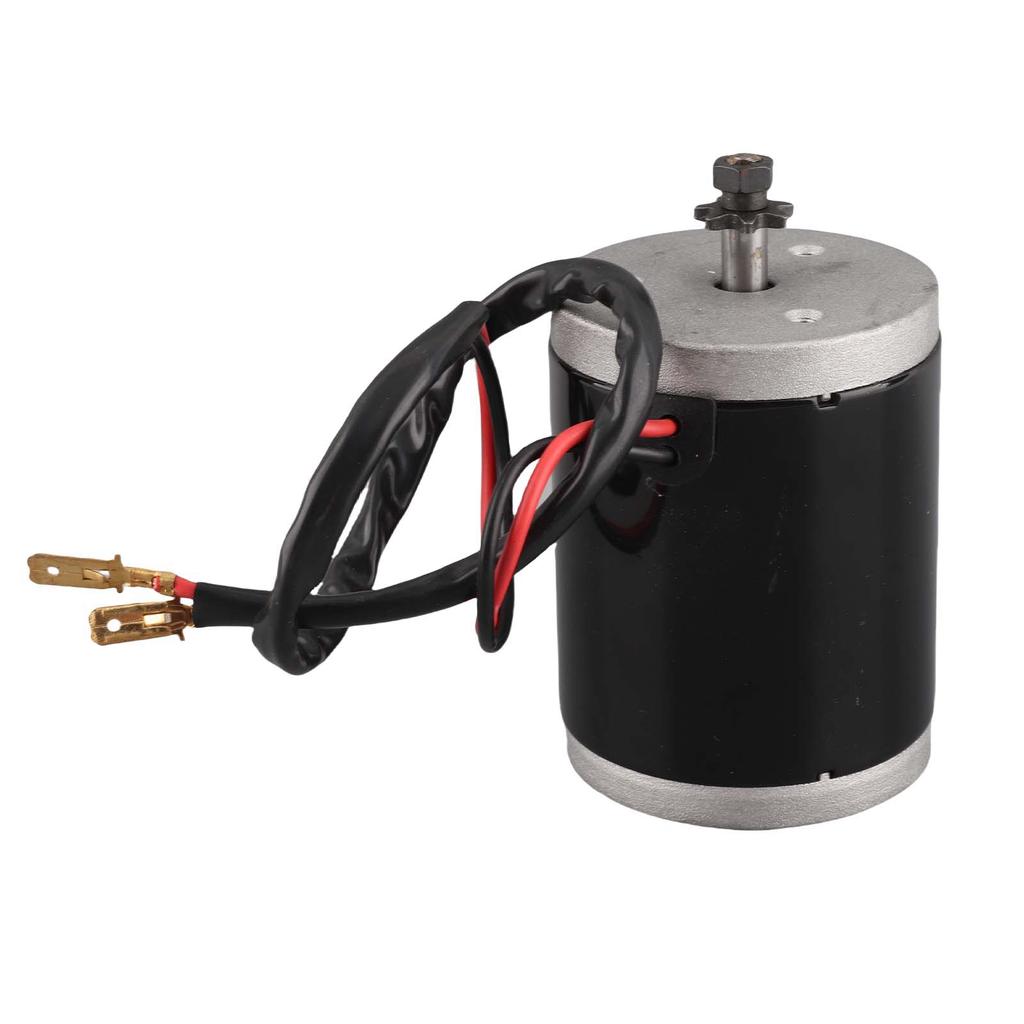

MY6812 24V 100W High Speed Small Brush Motor with Belt Pulley Electric Scooter E Bike Accessory

Feature: 1. This product is a small brush motor, made of premium aluminum material. 2. With metal belt pulley, strong, durable for long time use. 3. The motor length of 100mm is 68mm in diameter, the shaft length is 28mm, the shaft Diameter is 12mm, the distance between the 2 fixed holes of the motor is 36mm, and the sprocket wheel is the 9 teeth sprocket wheel of the 25H model. 4. The shaft diameter: 12mm (single milling slot 1mm). 5. Suitable for electric scooter, electric bike, etc. Specification: Item Type: Brushed Motor Model: MY6812 Material: aluminum Color: as picture shown Rated power: 100W (kW) Rated voltage: 24 (V) Main application: scooter, electric vehicle Rated voltage range of 3C: below 36V DC Rated current: <8, 5A Rated speed (RPM): 2500+ 5percent Maximum speed (RPM): 3500+ 5percent No load current: < 0.9A Rated torsion: 0.56 nm Transmission: belt pulley, metal Shaft diameter: 8mm (single milling slot 1mm) Efficiency: > 68percent Motor length: 100mm 3.9inch Motor diameter: 68mm 2.7inch Shaft length: 28mm 1.1inch Shaft diameter: 12mm 0.5inch Motor fixed holes distance: 36mm 1.4inch Sprocket: 25H 9 teeth sprocket 2800 RPM 6.0 amperes rated current 0.35 N.m For: mini scooters or DIY Package List: 1 x Brushed Motor
