Feature:
1. Safety protection, no matter where the throttle is, the motor will not rotates when connected to the battery.
2. Throttle calibration function, the throttle range can be calibrated to be compatible with different transmitters.
3. User programmable. Support a variety of program methods: emitting rod, LED program card. Very easy to operate at home or on the fly.
4. Compatible with lithium and nickel metal hydride batteries. You can change the time to suit different brushless motors.
5. Full protection such as low voltage cut off protection overheat protection throttle signal loss protection.
Specification:
Condition: 100percent Brand New
Item Type: Brushless Motor ESC
Material: Alloy + Electronic Components
Optional Type: A2217 1100KV, A2217 1250KV, A2217 2300KV
40A ESC:
Features:
Safety Protection: No matter where the throttle is, the motor will not rotates when connected to the battery.
Throttle Calibration Function: The throttle range can be calibrated to be compatible with different transmitters.
User programmable.
Support a variety of program methods: emitting rod, LED program card. Very easy to operate at home or on the fly.
Compatible with lithium and nickel metal hydride batteries.
You can change the time to suit different brushless motors.
Full protection such as low voltage cut off protection overheat protection throttle signal loss protection
Current: 40A
Output Capacity: Continuous current 40A, short current 55A (not less than 10 seconds)
Power Input: 2 4 lithium batteries (not included)
BEC Output: 5V@3A (Linear voltage regulator mode linear mode)
Maximum Speed: 210,000 RPM for 2 pole motor, 7,000 RPM for 6 pole motor, and 35,000 RPM for 12 pole motor
Size: Approx. 68 x 25 x 8mm 2.7 x 1 x 0.3in
2217 Motor:
Size: Approx. 27.8 x 32mm 1.1 x 1.3in
Weight: 68 g 2.4 oz(approx.)
Axle Diameter: Approx. 4mm 0.16in
Accessories: 4.0mm pillar adapter, motor mounting base, screws
Props Recommended:
2217 1100KV: 11 or 10 inch props such as 1155, 1070, 1060, etc.
2217 1250KV: 9 inch prop such as 9050, 9045, 9060, etc.
2217 2300KV: 6 inch prop such as 6040, etc..

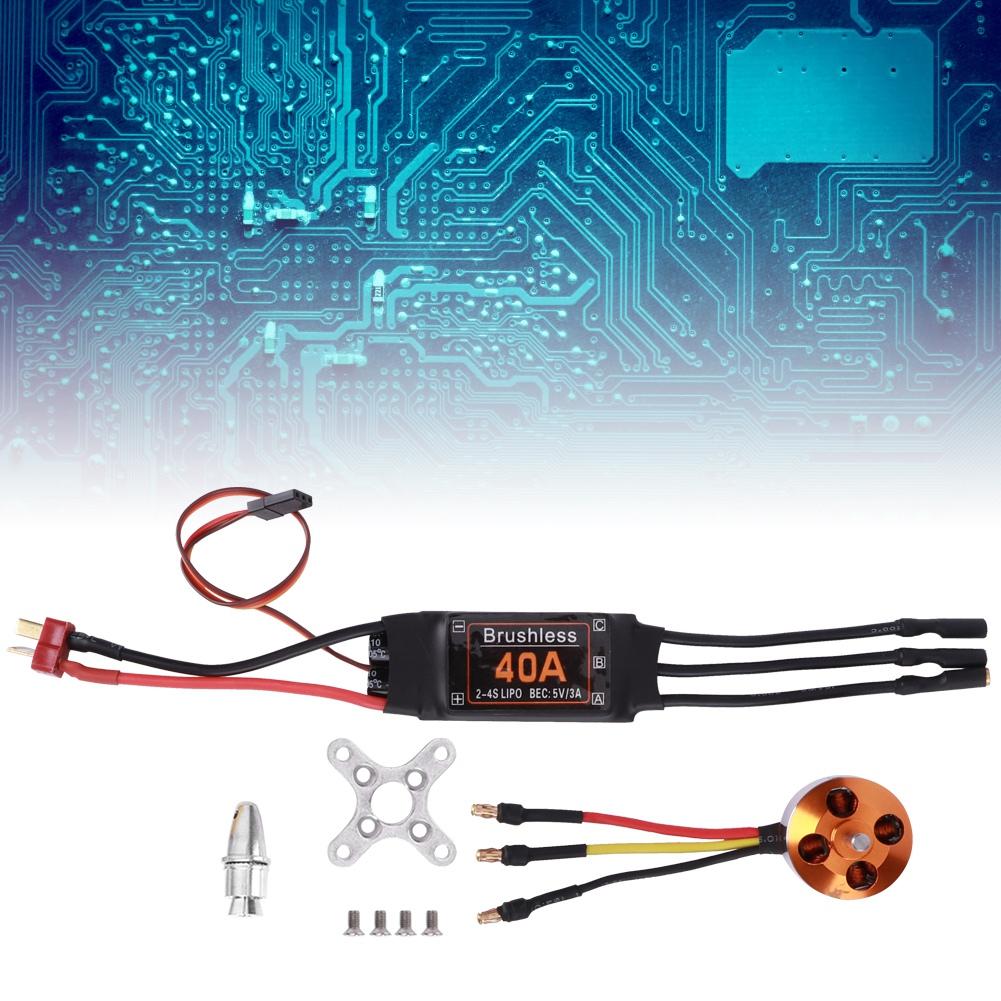

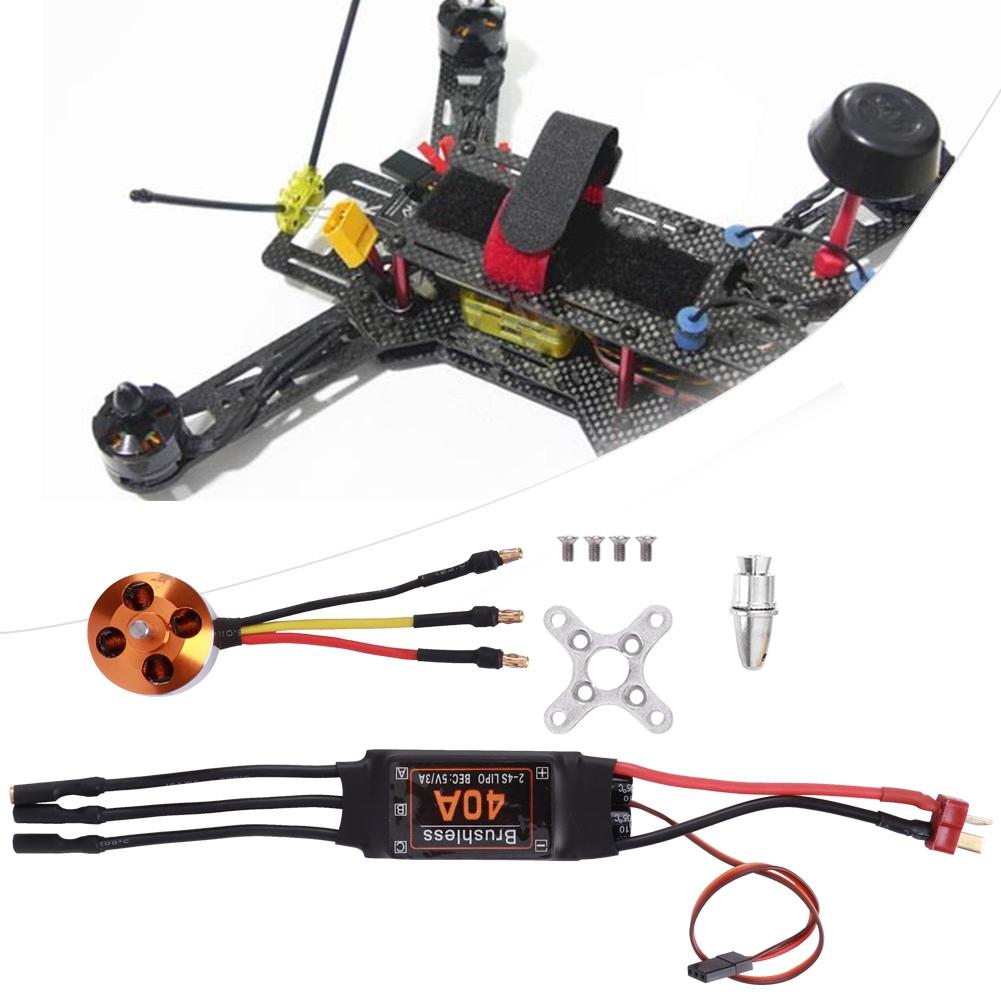

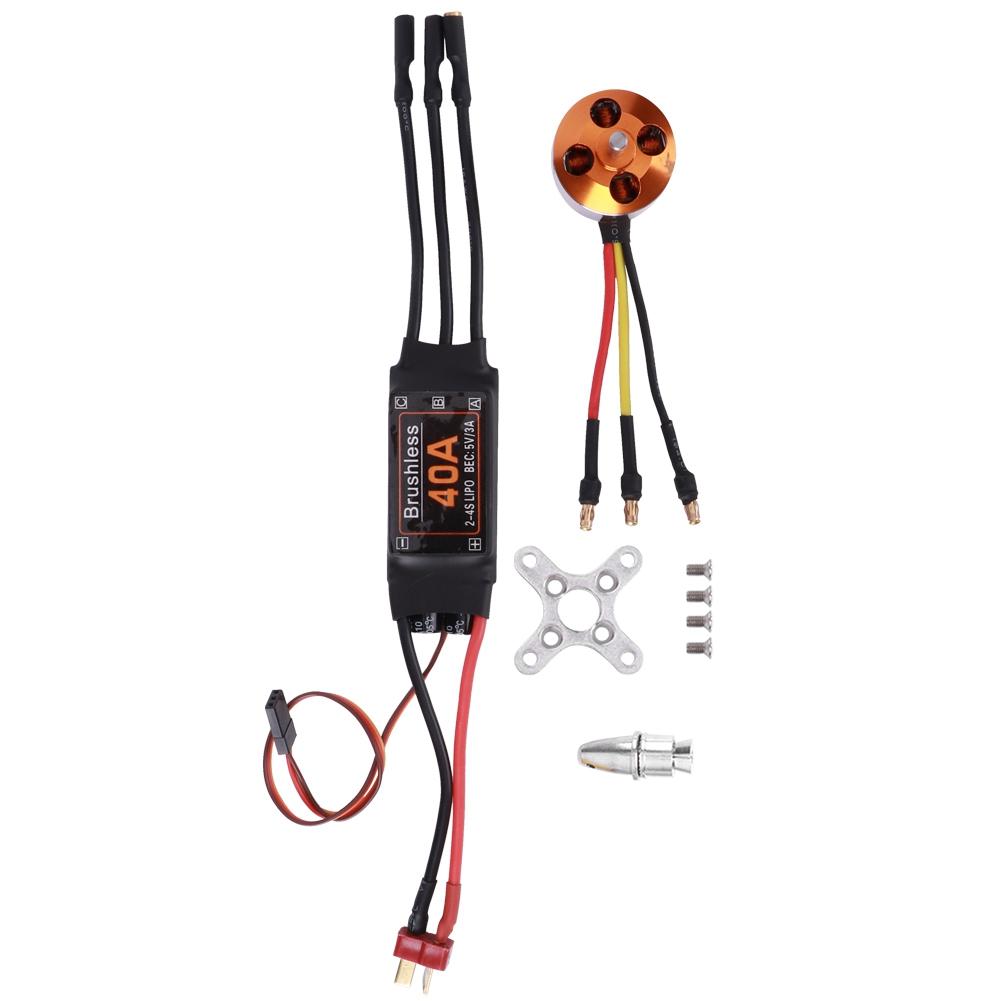

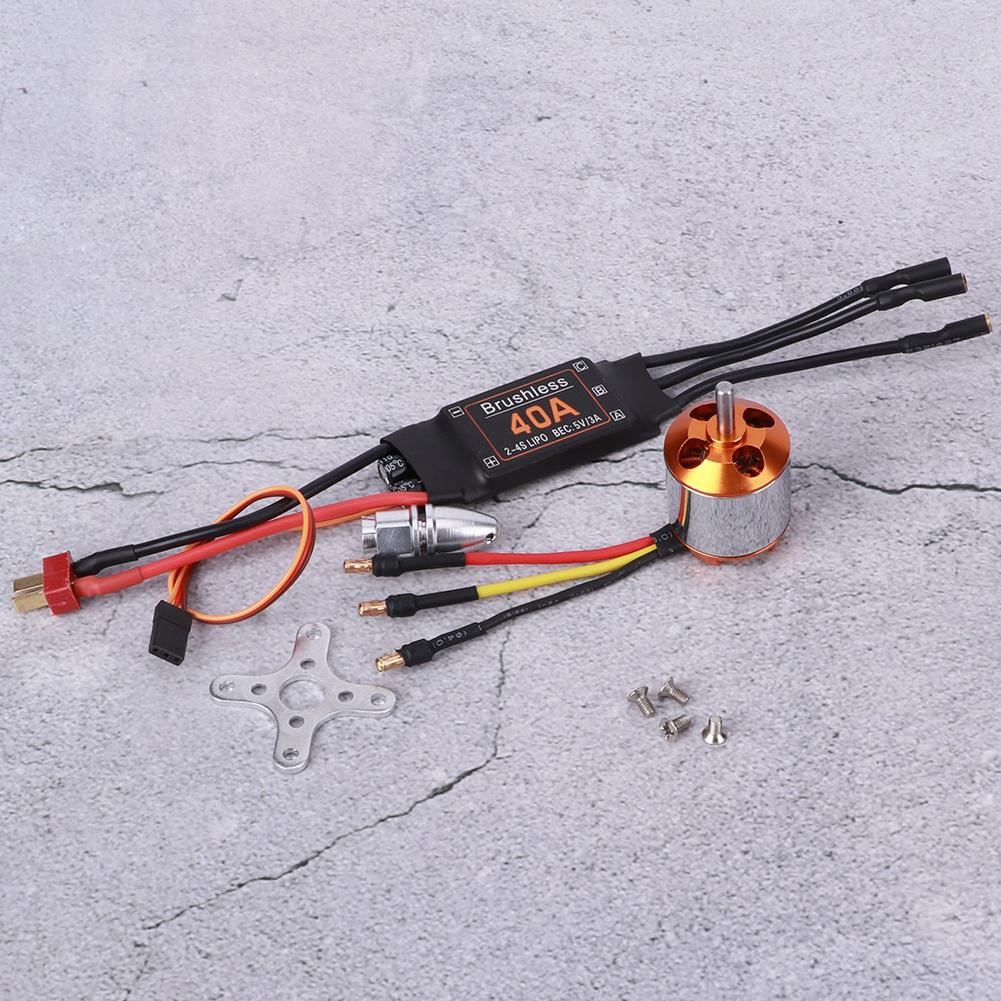

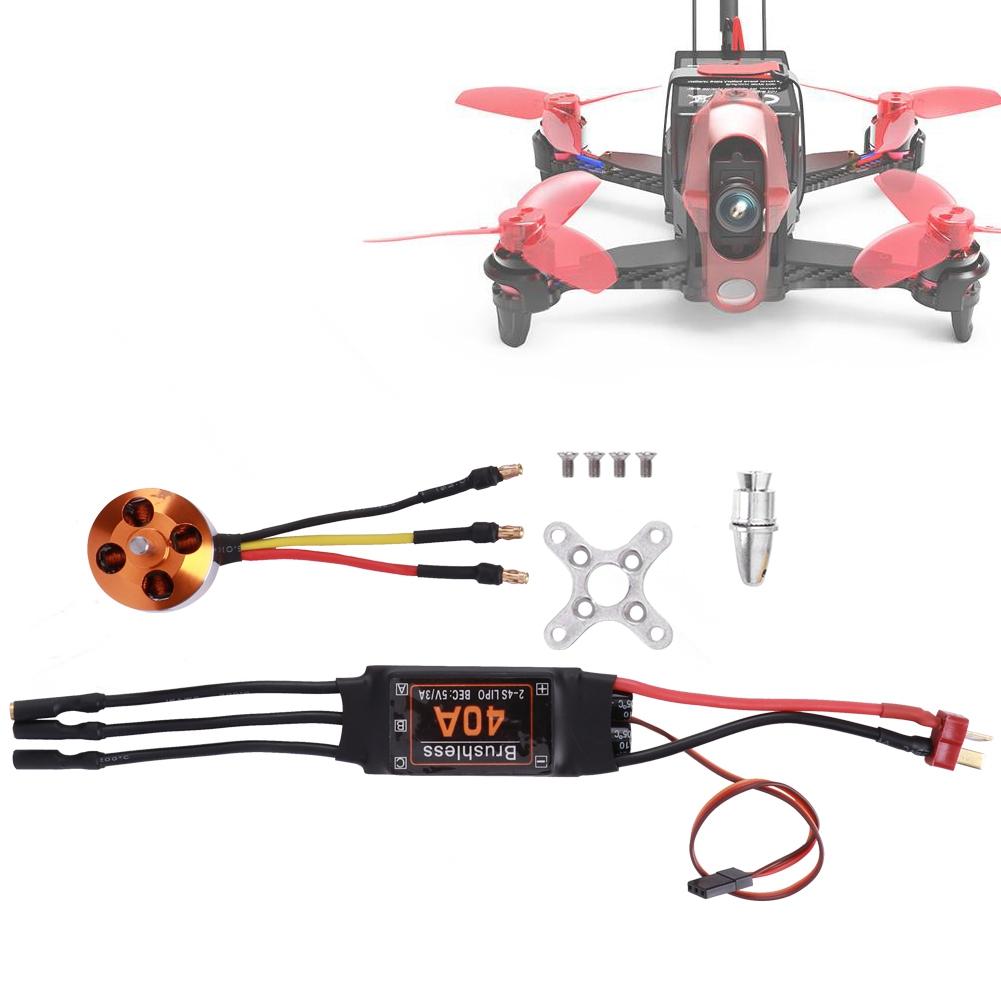

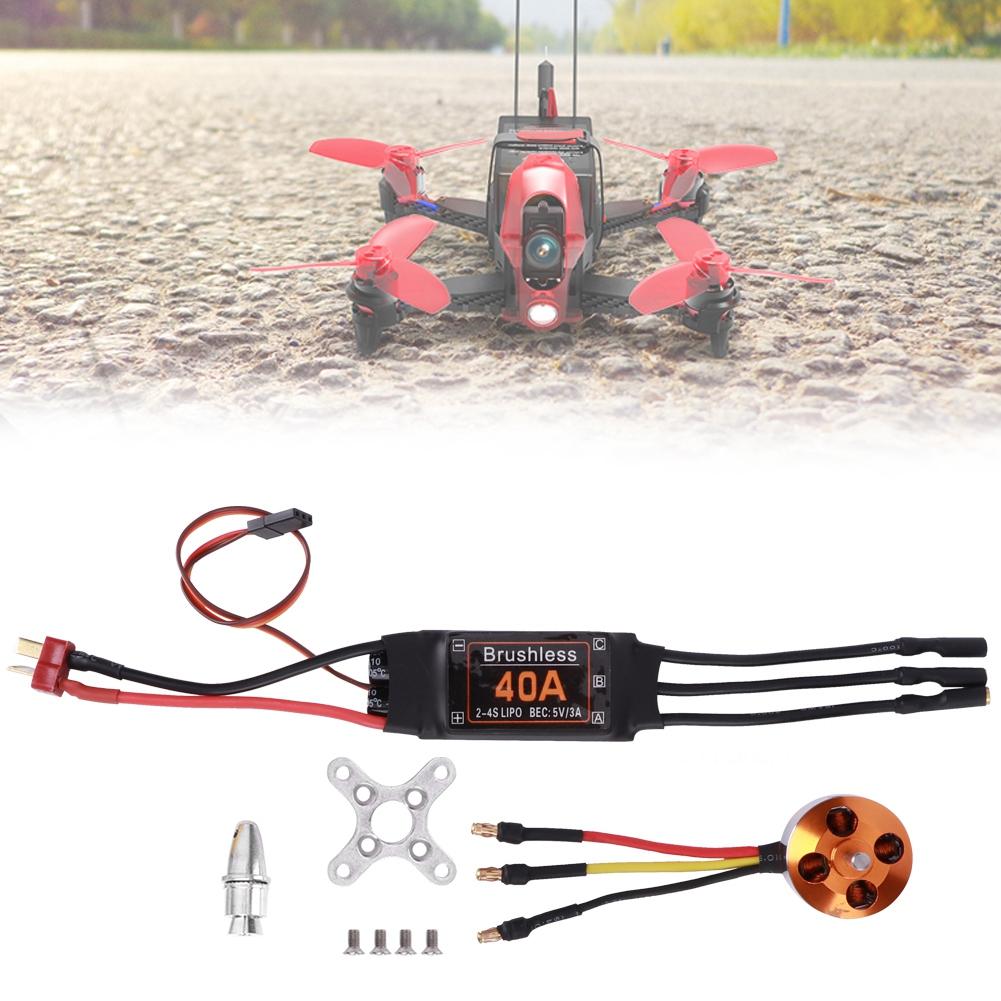

Package List:
1 x Set of Motor 1 x Set of ESC
Note:
1. Please allow 0.5‑2mm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
