Feature:
1. Has the function of low‑voltage cut‑off to prevent excessive discharge of lithium battery.

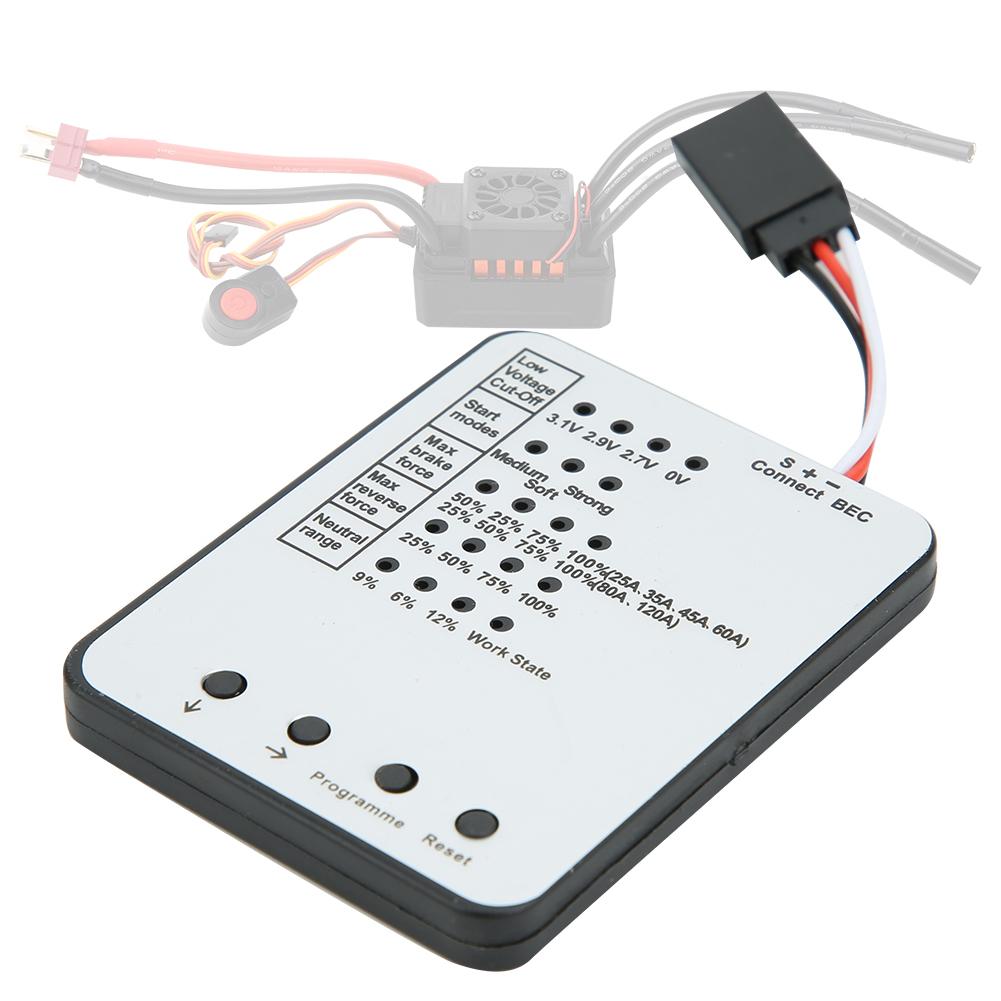

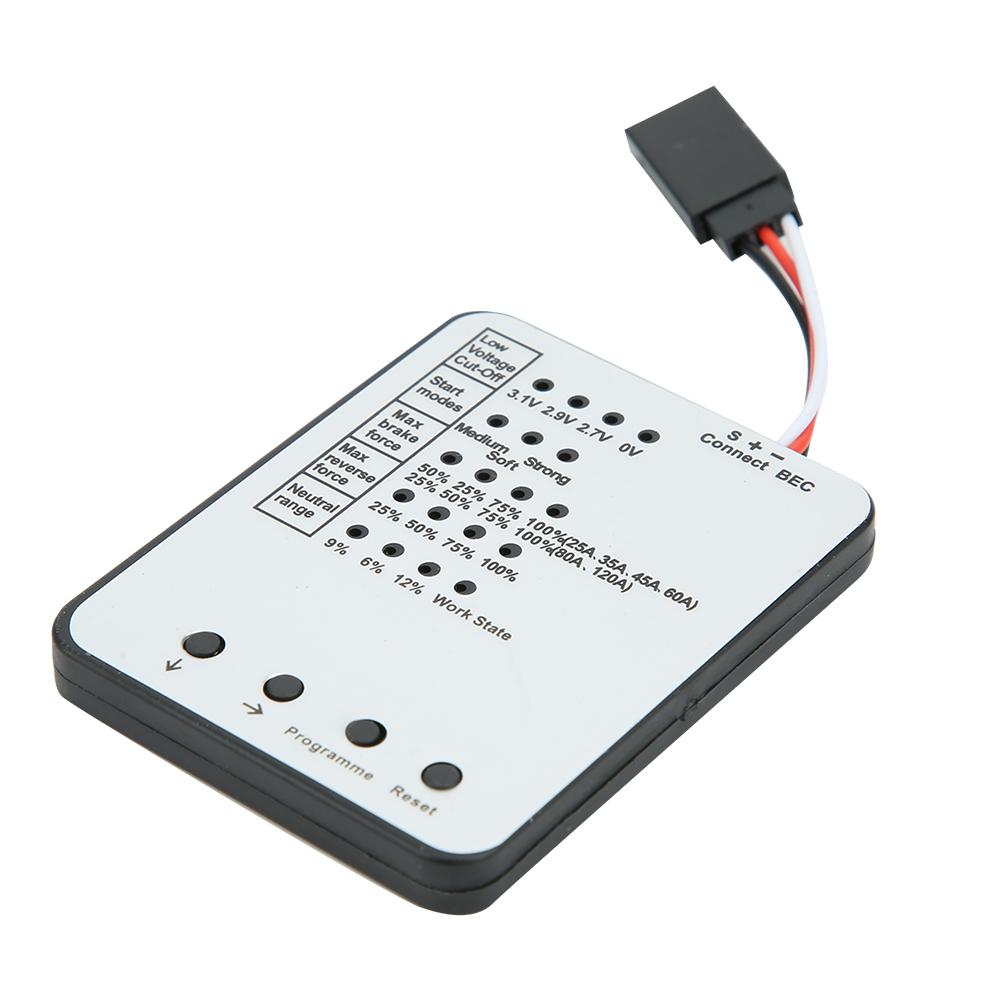

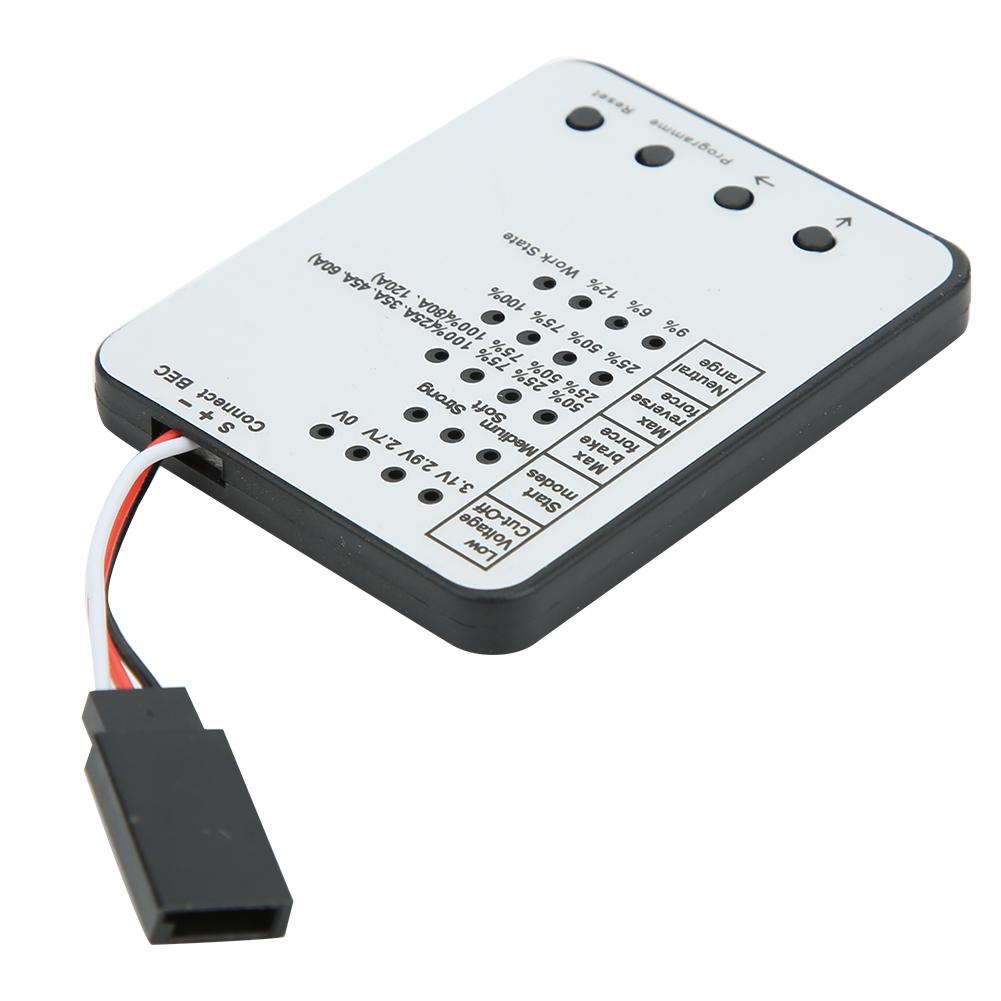

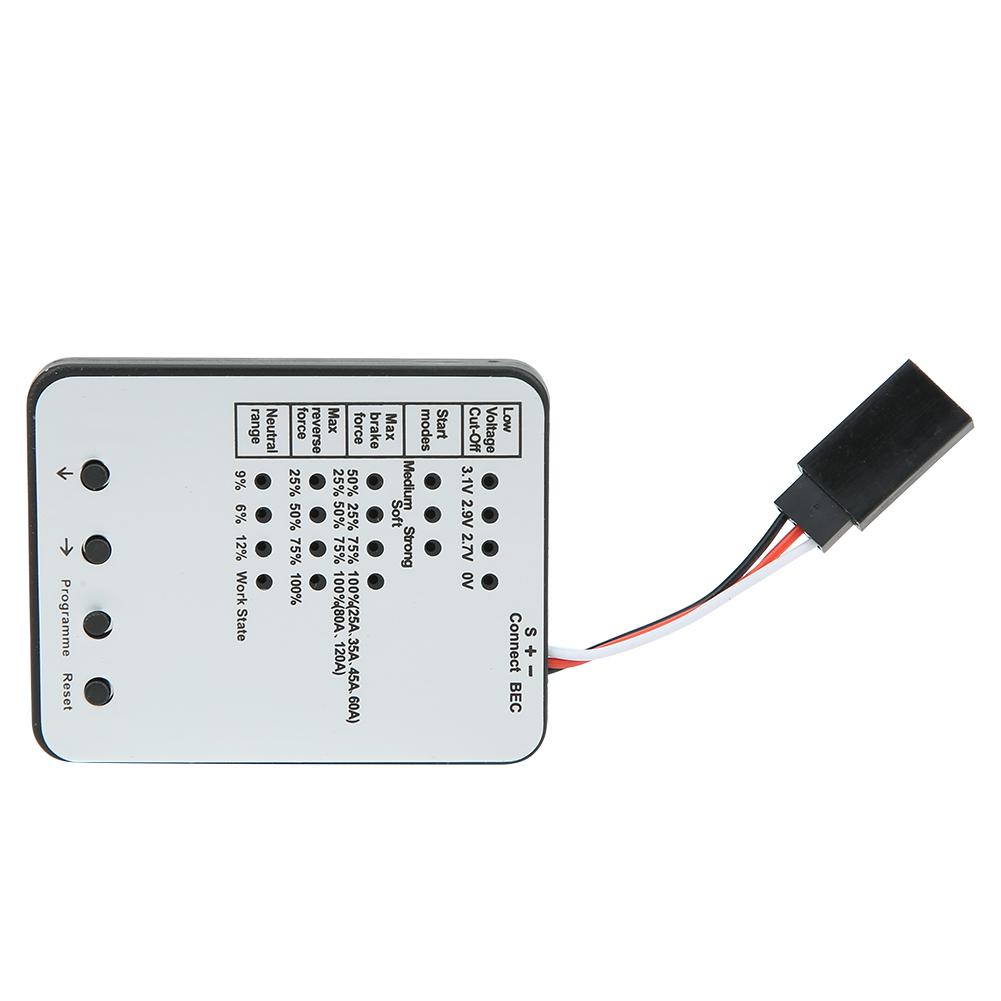

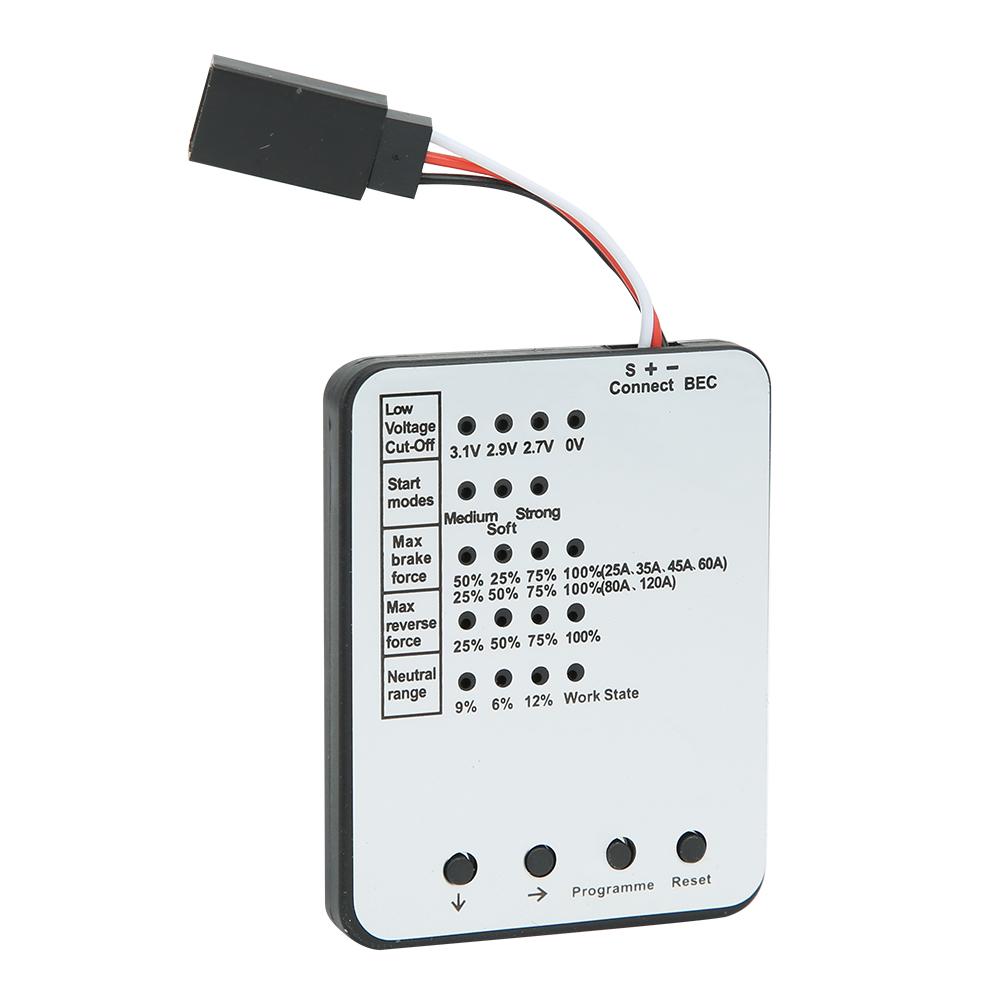

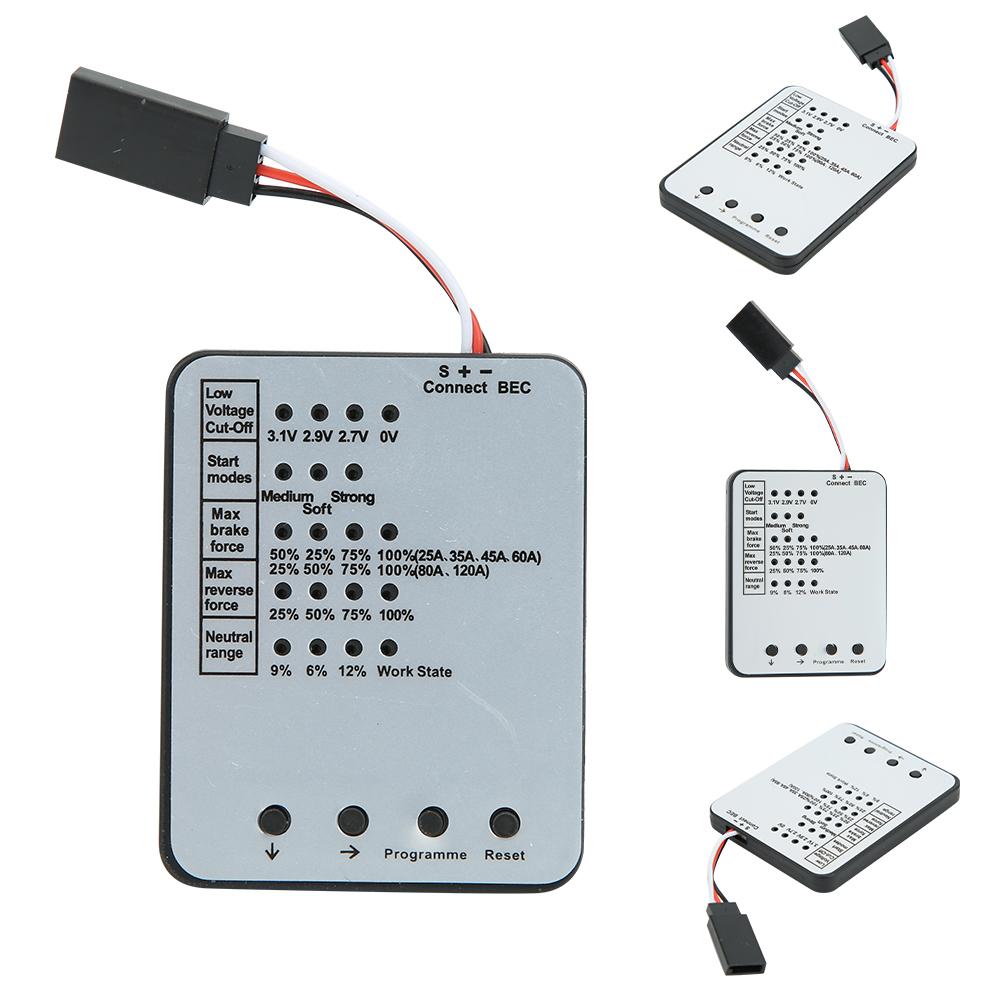

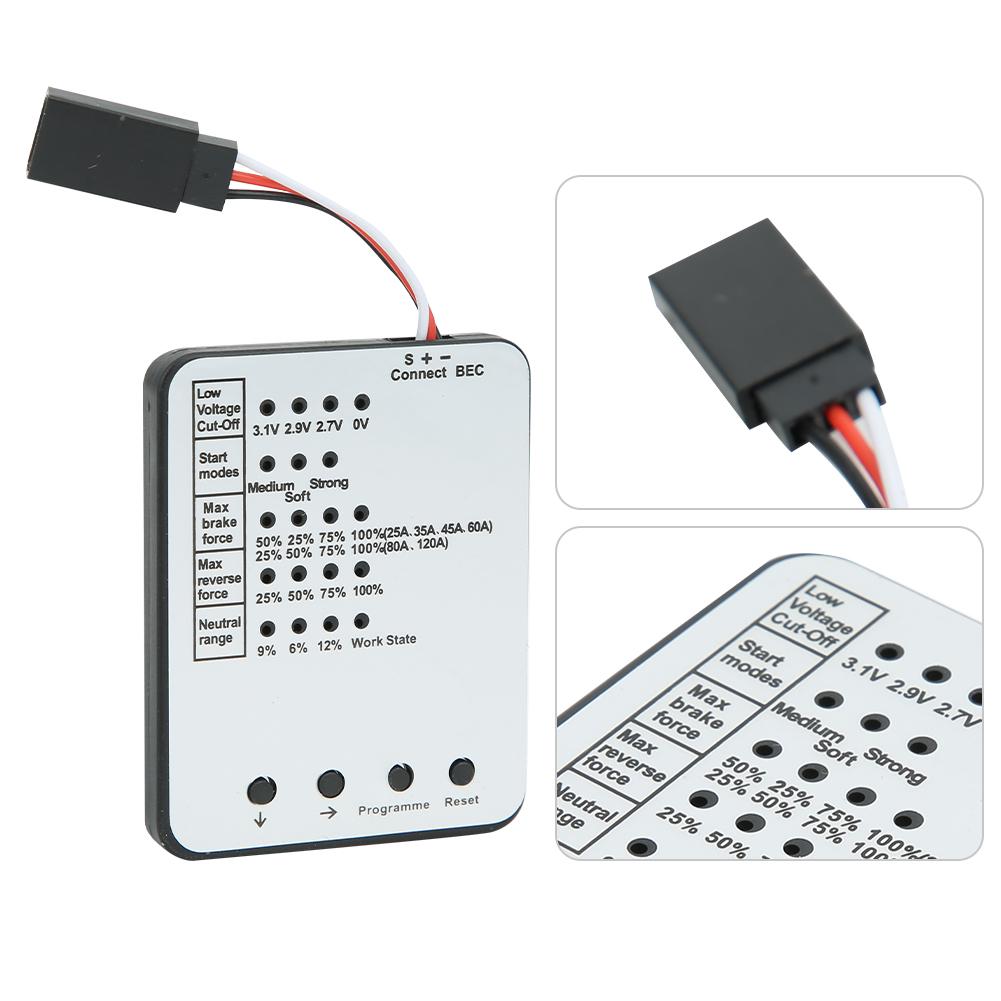

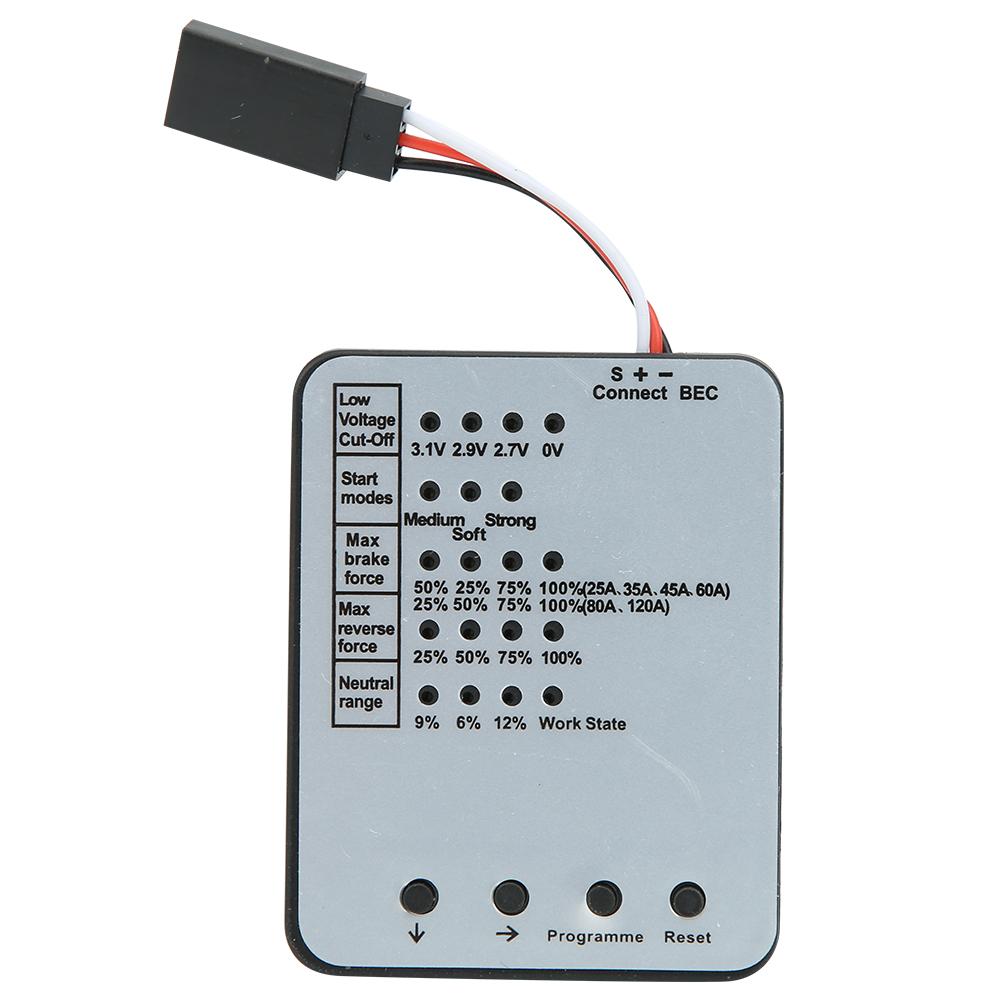

2. RC electronic speed sensorless brushless ESC programming card.
3. Designed for brushless ESC, wonderful and practical RC car acessory.
4. Three‑layer starting mode: ordinary, soft and strong, meeting different demands.
5. This product is made of high quality plastic, which is durable and reliable.
Specification:
Condition: 100percent Brand New

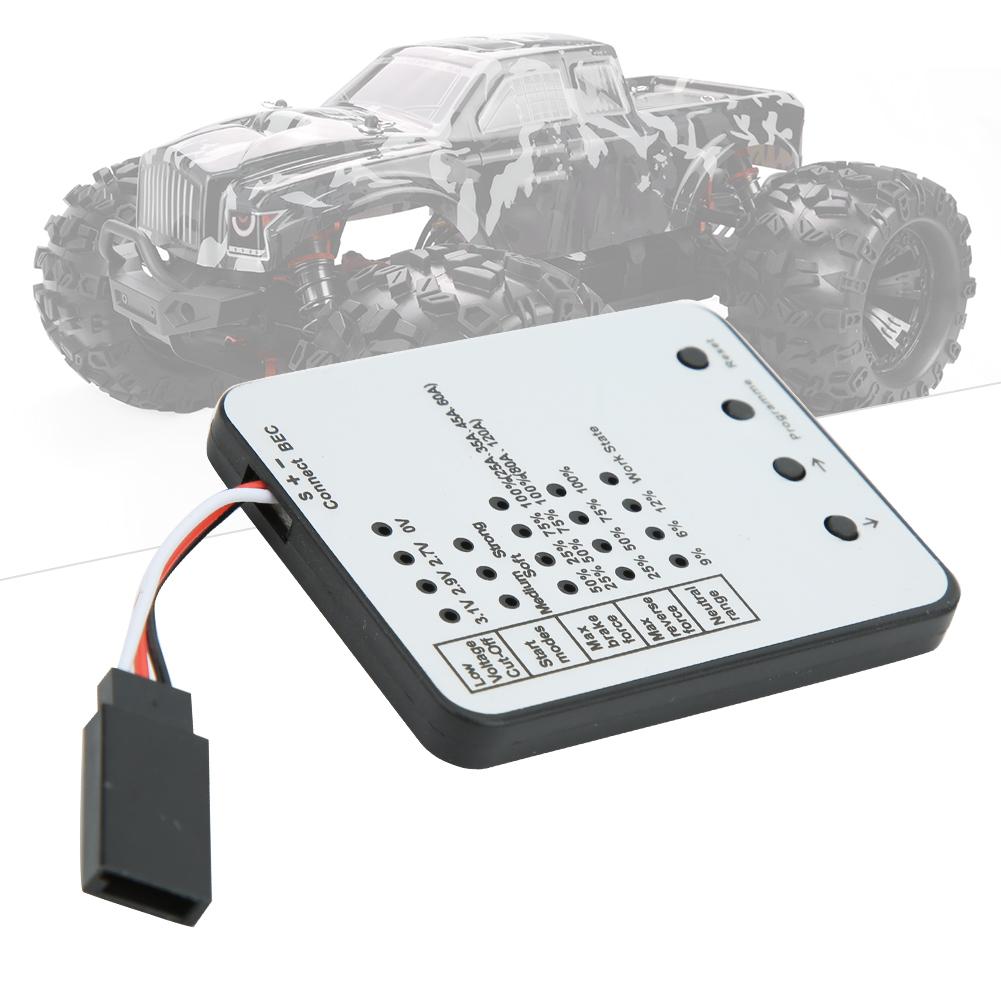

Item Type: RC Car Program Card
Material: Plastic, Electronic Components
Size: Approx. 61 x 48 x 6mm 2.4 x 1.9 x 0.2in
Low Voltage Cutoff Voltage: 3.1V, 2.8V, 3.3V, unprotected (default value: 3.1V)
Starting Mode: Ordinary, soft and strong.
Maximum Reverse Force: 25percent , 50percent , 75percent , 100percent (default value: 25percent )
Neutral Range: 9percent (narrow), 6percent (normal), 12percent (wide) (default 9percent )
Maximum Braking Force :(25a, 45a, 60a) 50percent , 25percent , 75percent , 100percent (standard value 50percent , 80a, 120a) 25percent , 50percent , 75percent , 100percent (standard value 25percent )
6: Connect the BEC connection line according to the color direction.
7: The above 1 5 red indicates the default setting of the Electric modulator.
Method Program Card:
1. Connect the B and W lines to the programmer, and then open ESC. (80A 120120A press the unused key)
2. The green LED flashes twice, and then closes the LED, that is, successfully connected to the ESC programmer, and the red LED displays the current value item. Otherwise, the connection fails.
3. Please press Go to select a different program
4. Press Go to select the different values of the current program
5. Please press the Program button to confirm the above selection, and the green color will immediately light up and leave within 5 seconds, that is, the process is successful.
6. Please press the reset button for factory data reset.
Package List:
1 x RC Program Card
Note:
1. Please allow 1‑3mm error due to manual measurement. Thanks for your understanding.2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.3. Warning: Do not use the default unprotected value. When using lithium battery pack, please set the appropriate low voltage protection value according to your preference.
