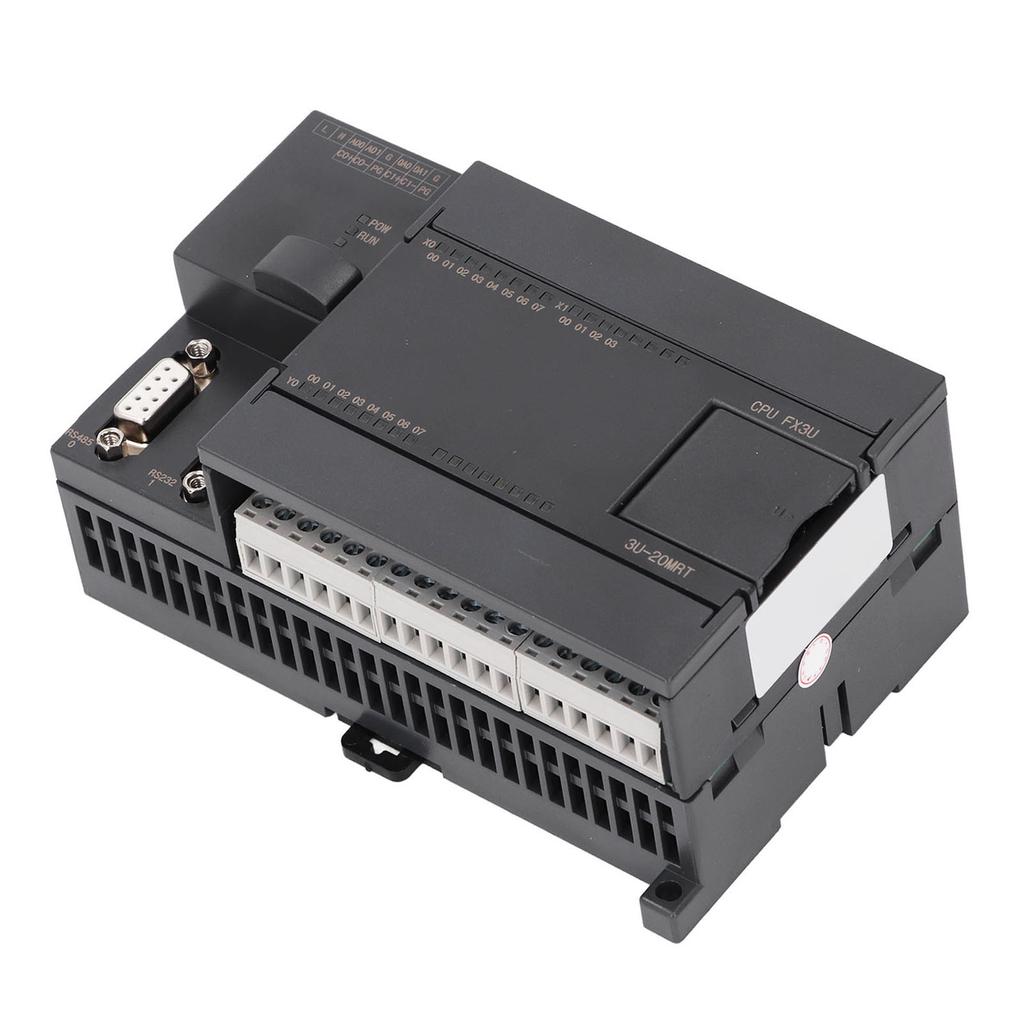

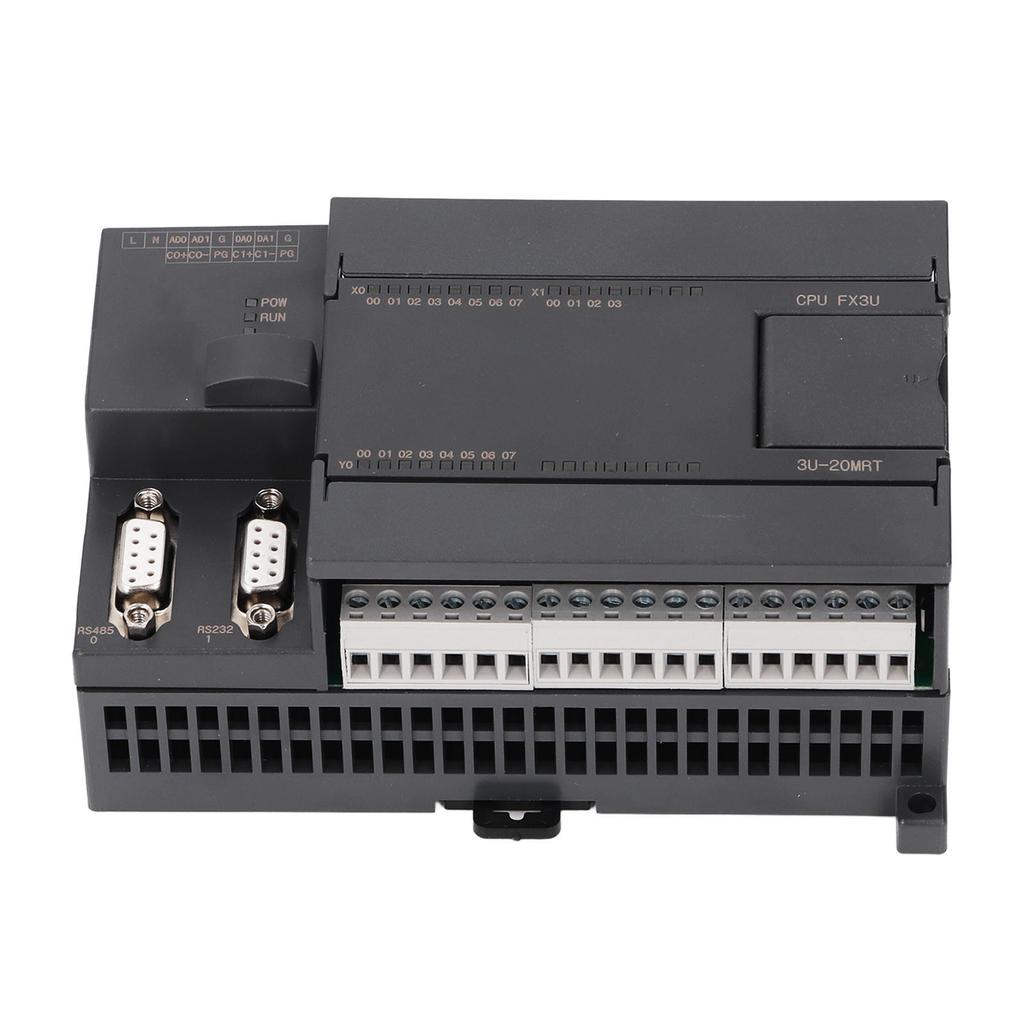

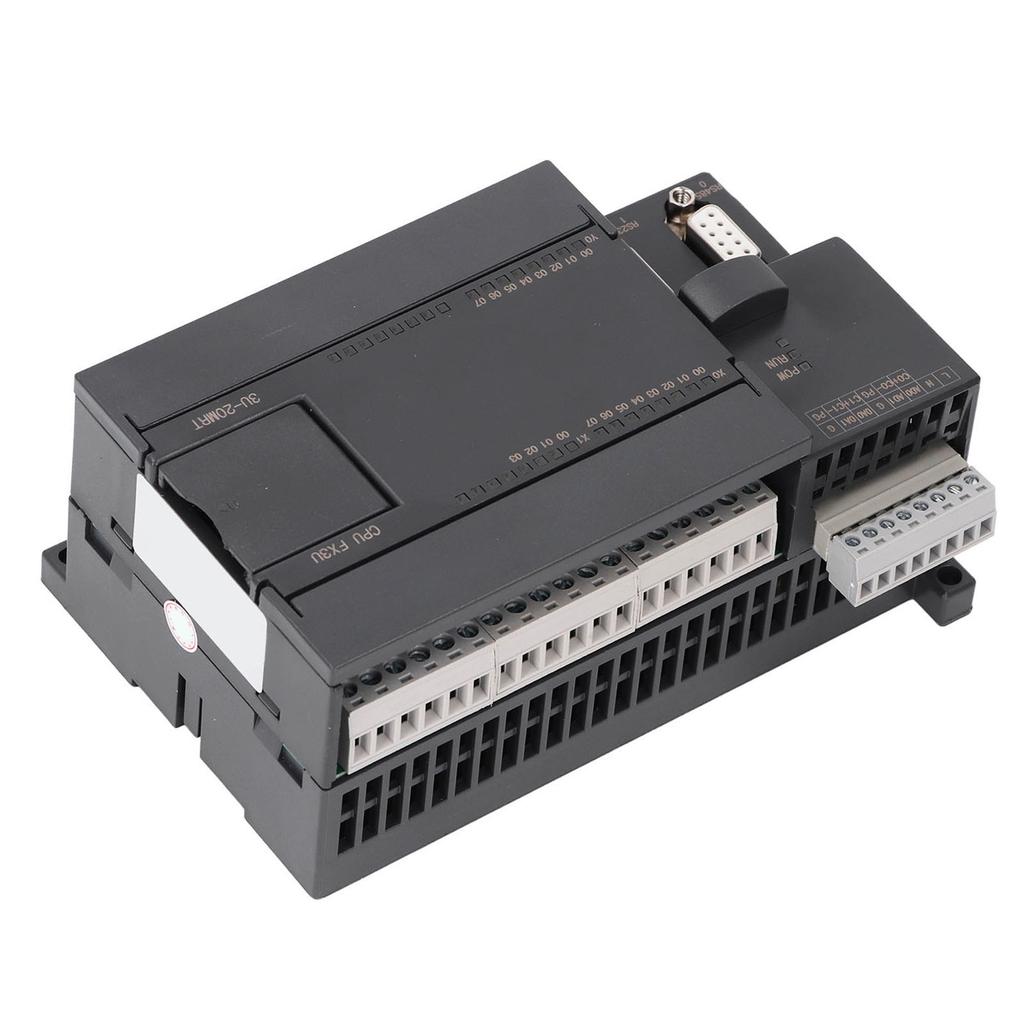

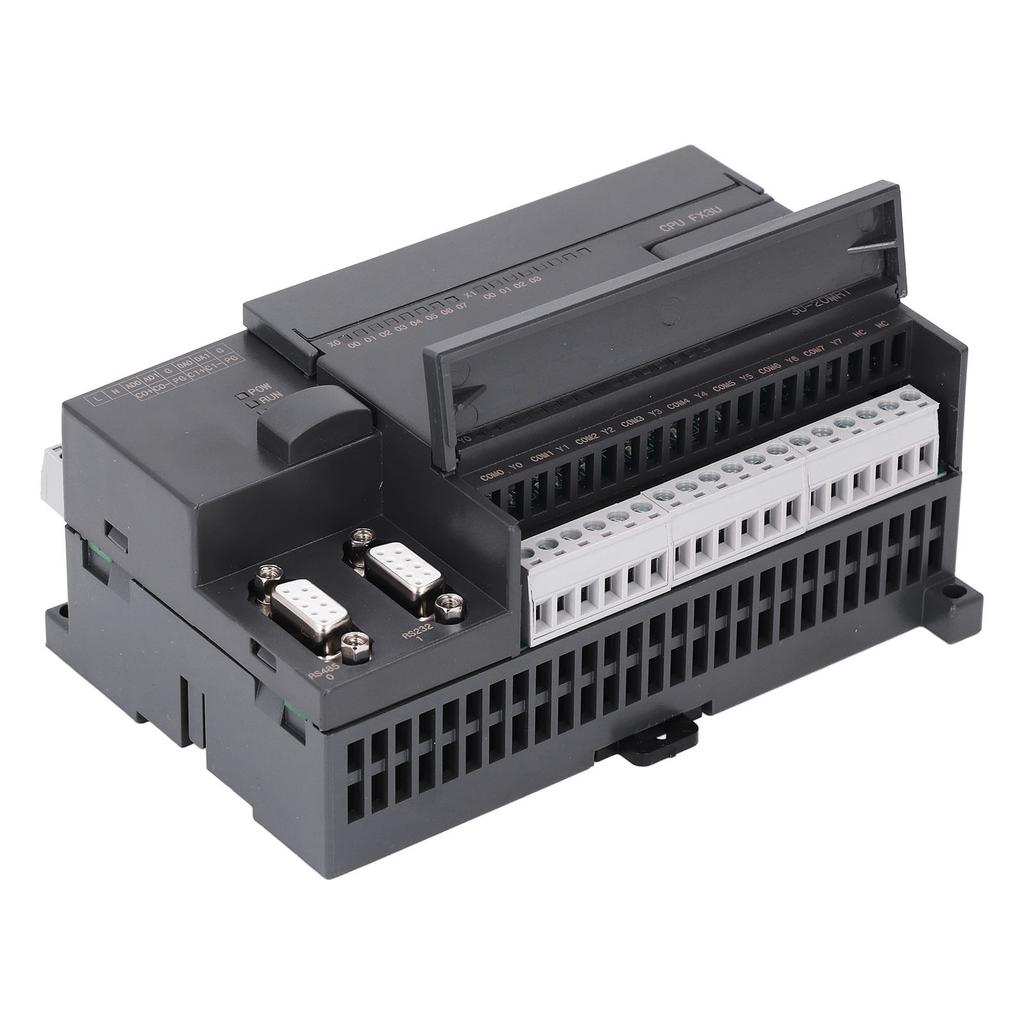

PLC Industrial Control Board 12 In 8 Out Programmable Logic Controller Module with 232 485 Port DC24V

Feature: 1. High Speed CPU: Equipped with a 32 bits chip, the PLC controller industrial control board offers fast operating speed and ample storage space, ensuring efficient and stable performance. 2. Download Communication Capability: Featuring a download speed of 38.4Kbps (can be requested to change to 9.6k under special circumstances), the PLC industrial control board supports direct programming, downloading, debugging, and monitoring using for GX Developer or for GX Works2 software, enhancing programming convenience. 3. Good Load Capacity: The programmable logic controller module features 5A current relays suitable for long term usage below 3A and transistor outputs for driving applications, supporting 1A output current with a long usage limit of 500mA, ensuring reliable performance. 4. Analog Input And Output Options: With 6 built in analog input channels including 3 voltage (0‑10V) and 3 current (0‑20mA) inputs, along with 2 analog voltage output channels (0‑10V), the PLC programmable controller offers versatile analog signal processing capabilities for diverse control applications. 5. Low Power Consumption: Powered by DC24V, the PLC programmable logic controller maintains a static current of 30mA when the output relays are closed, with an additional 10mA increase for each opened relay up to a total of 70mA (1.44W) when all relays are open, ensuring efficient power usage. Specification: Item Type: PLC Control Board Material: ABS Size: Approx. 140 x 100 x 63mm 5.51 x 3.94 x 2.48in Data Transfer Speed: 38.4Kb Memory Capacity: 8000 Input Points: 12 Output Points: 8 Output Type: Relay Output Current: 5A Load: DC24V High Speed Counting: 6 3K Analog Input, Output: Default 2AD 0 10V, 2DA 0 10V, Can be changed to 4AD For MODBUS: Built In. Package List: 1 x PLC Control Board
