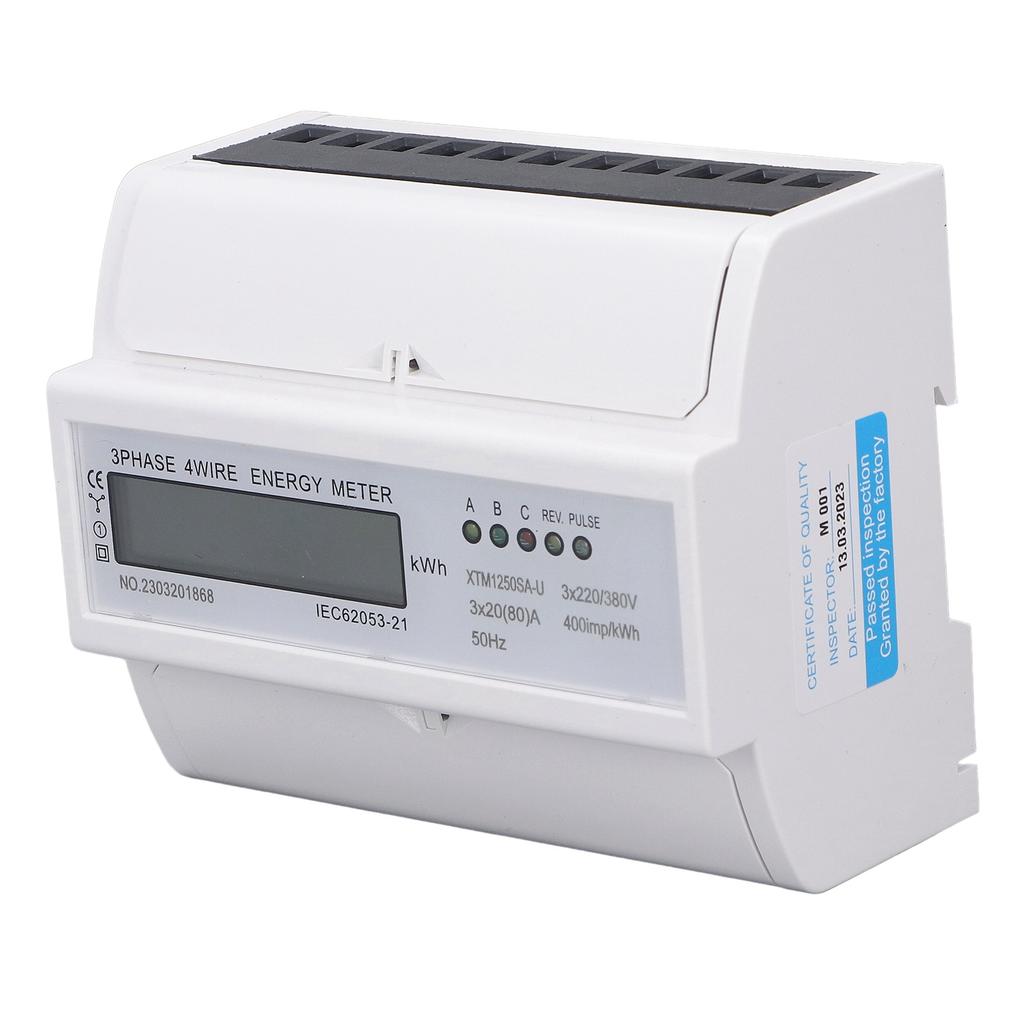

Electric Meter 3 Phase 4 Wire 7P LCD Digital Display DIN Rail Mount Power Monitor

Feature: 1. A Premium Monitor: This electric meter can monitor total power, current, voltage, power, power factor, frequency, etc., for electricity measurement. 2. Clear LCD Display: The LCD digital display with backlight and high accuracy is very clear to see, which will largely simplify your use and operation. 3. Easy Modification: Table address, baud rate, constant, validation bit can be modified, so the smart power monitor can better fit to your working need. 4. Wider Application: Allows for extensive application in a variety of occasion, including but not limited to home, factory, office, machine and so on. 5. Simple to Install: The 3 phase 4 wire energy meter is very convenient for DIN rail mount, and it can be quickly completed within several minutes. Specification: Item Type: Electric Meter Model: XTM1250SA U Relative Humidity: less than 95percent Environmental Temperature: 35 65 celsius Accuracy: Level 1 Voltage Specification: 3 x 220V 380V 50Hz Current Specification: 3 x 20(80)A Indicate Current Specification: Reference current, maximum current. Insulation Performance: AC voltage 4KV, 1 minute, 1.2 50us waveform impulse voltage 6KV. Data Display: 7 bit LCD display. Installation Method: Rail Mount. Package List: 1 x Electric Meter1 x User Manual
