Feature:
1. Using 0.96in LCD HD color LCD display, real time display of the charging status of electrical appliances, voltage, current, capacity, energy, power, equivalent impedance, temperature and so on.
2. HD display, 160 degree wide angle of view, clear picture quality, high brightness, long working life.
3. Supporting two way current measurement, it can measure both forward current and reverse current, which is more convenient to use.
4. 6 bit resolution, more accurate measurement, real time monitoring of charging status, protection of charging equipment, safer use.
5. It supports Bluetooth connection control of mobile APP (For Android + For IOS). Through Bluetooth wireless connection of APP, real time data of voltage, current and power can be detected by mobile APP.

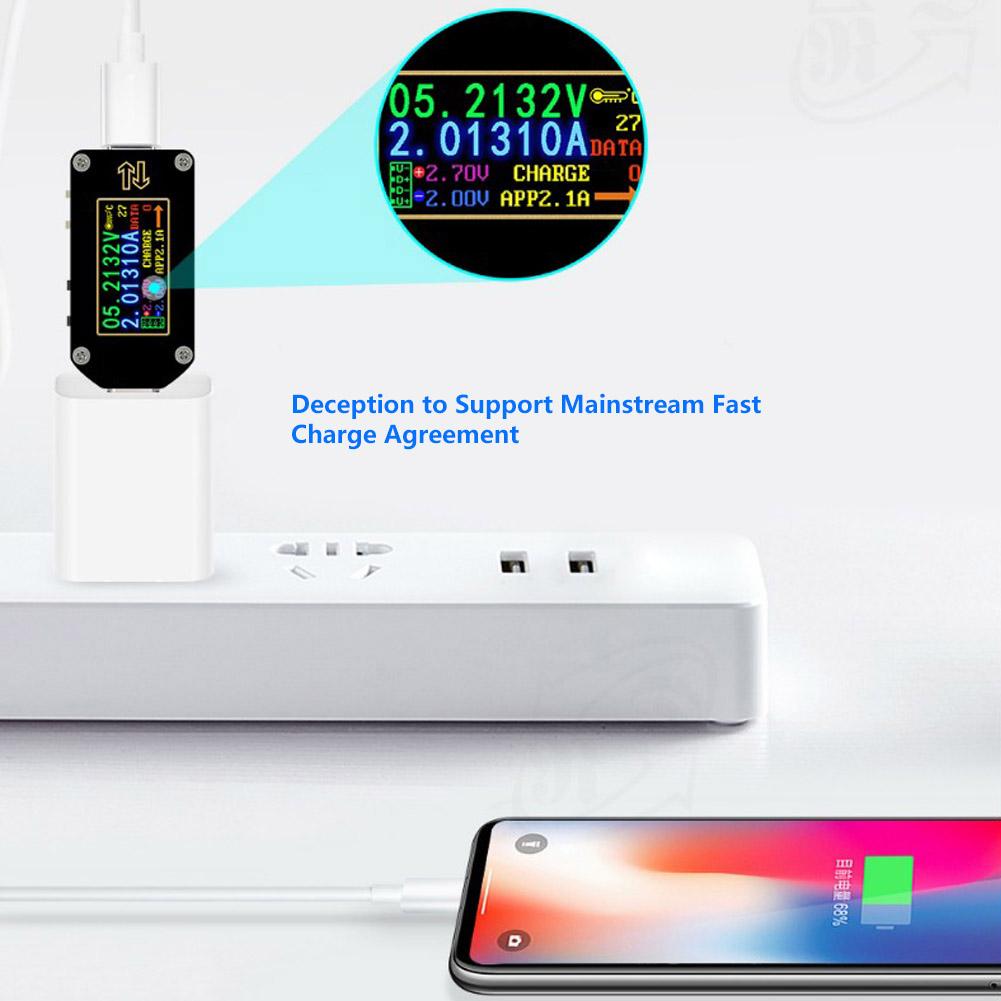

6. Supporting for USB PD, for QC2.0 3.0, for Samsung AFC, for Huawei FCP SCP, other mainstream fast charging protocols, can trick out 5V 9V 12V 20V and other fast charging voltage, convenient for digital players to test the performance of fast charging chargers, data lines and other products.
Specification:
Condition: 100percent Brand New
Item Type: USB Tester
Material: ABS
Model: TC66
Display: 0.96in Color IPS Display
Voltage Measurement Range: 0.005V 30.0000V
Voltage Measurement Resolution: 0.0001V (0.1mV)
Current Measurement Range: 0 5.00000A
Current Measurement Resolution: 0.00001A (0.01mA)
Supply Voltage: 3.5 24V
Screen Resolution: 160x80
Capacity Accumulation Range: 0 99999mAh
Voltage Measurement Accuracy: + (0.05percent + 20 Bits at 23 degrees C)
Energy Accumulation Range: 0 99999mWh 999.99Wh
Current Measurement Accuracy: + (0.1percent + 30 Bits, 23 degrees C)
Load Impedance Range: 1 Ohm 9999.9 Ohm
Power Measurement Range: 0 150W
Temperature Measurement Range: 0 degrees C 80 degrees C 32 degrees F 176 degrees F
Refresh Rate: 2Hz
Operating Temperature Range: 0 45 degrees C 32 degrees F 113 degrees F
Automatic Screen off Time: 0 9 Minutes
Fast Charge Recognition Mode: Support For QC2.0, For QC3.0, For Android DCP, For SAMSUNGSize: Approx. 49x22x8mm 1.9x0.9x0.3in
Package List:
1 x USB Tester1 x Storage Box1 x Instruction Manual
