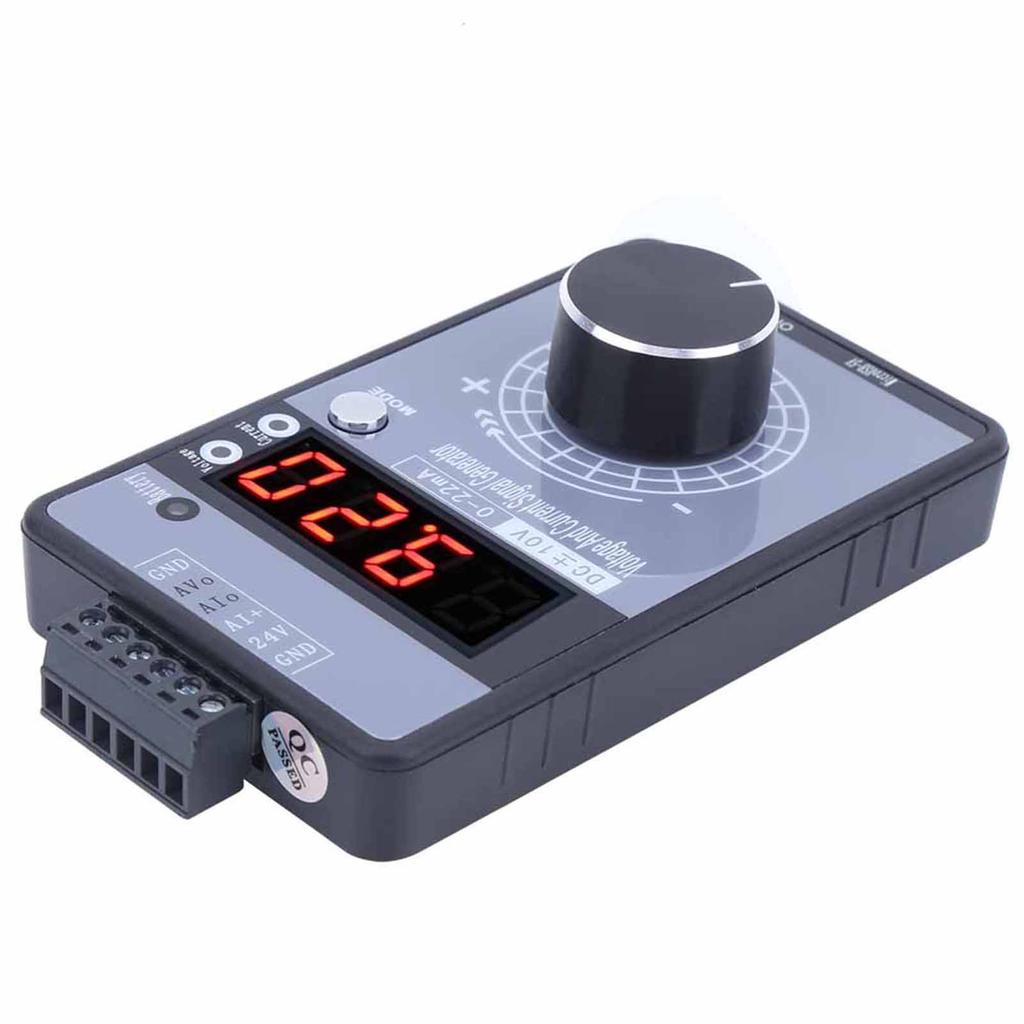

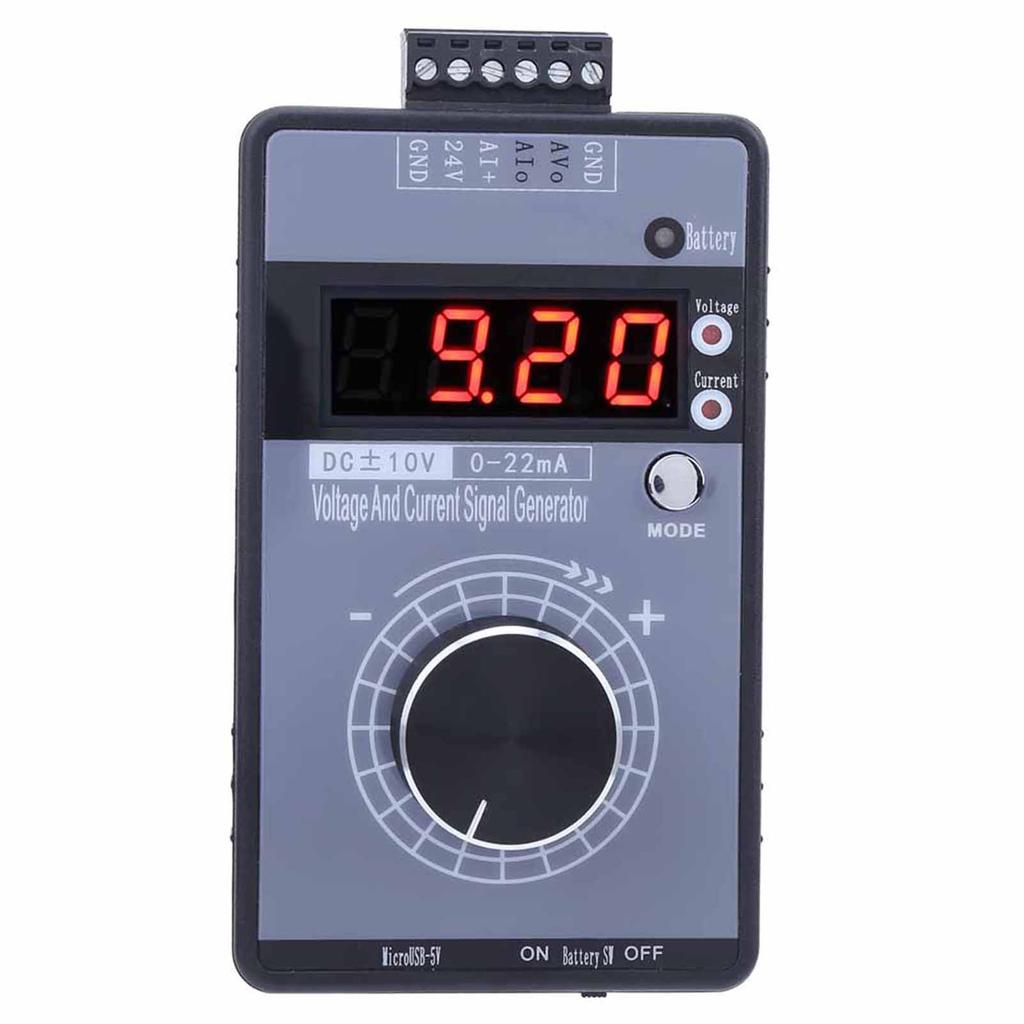

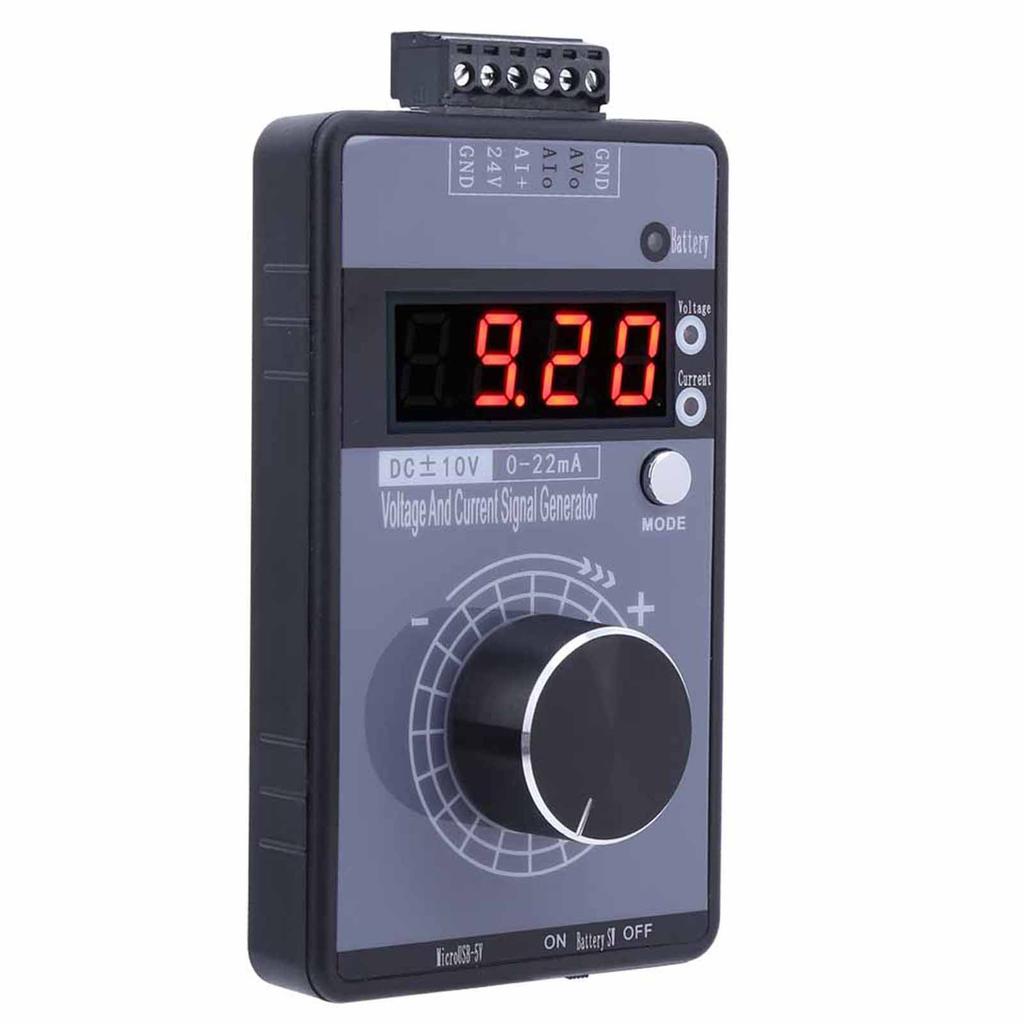

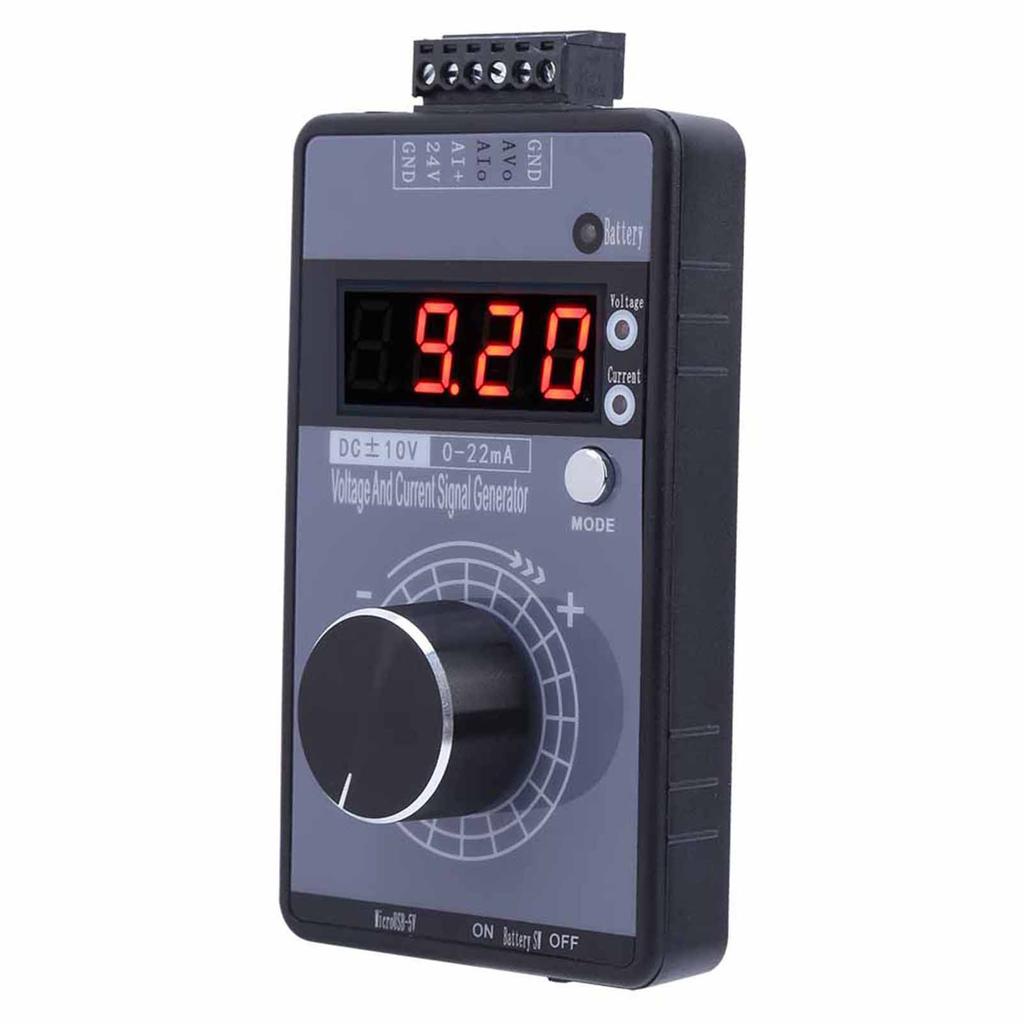

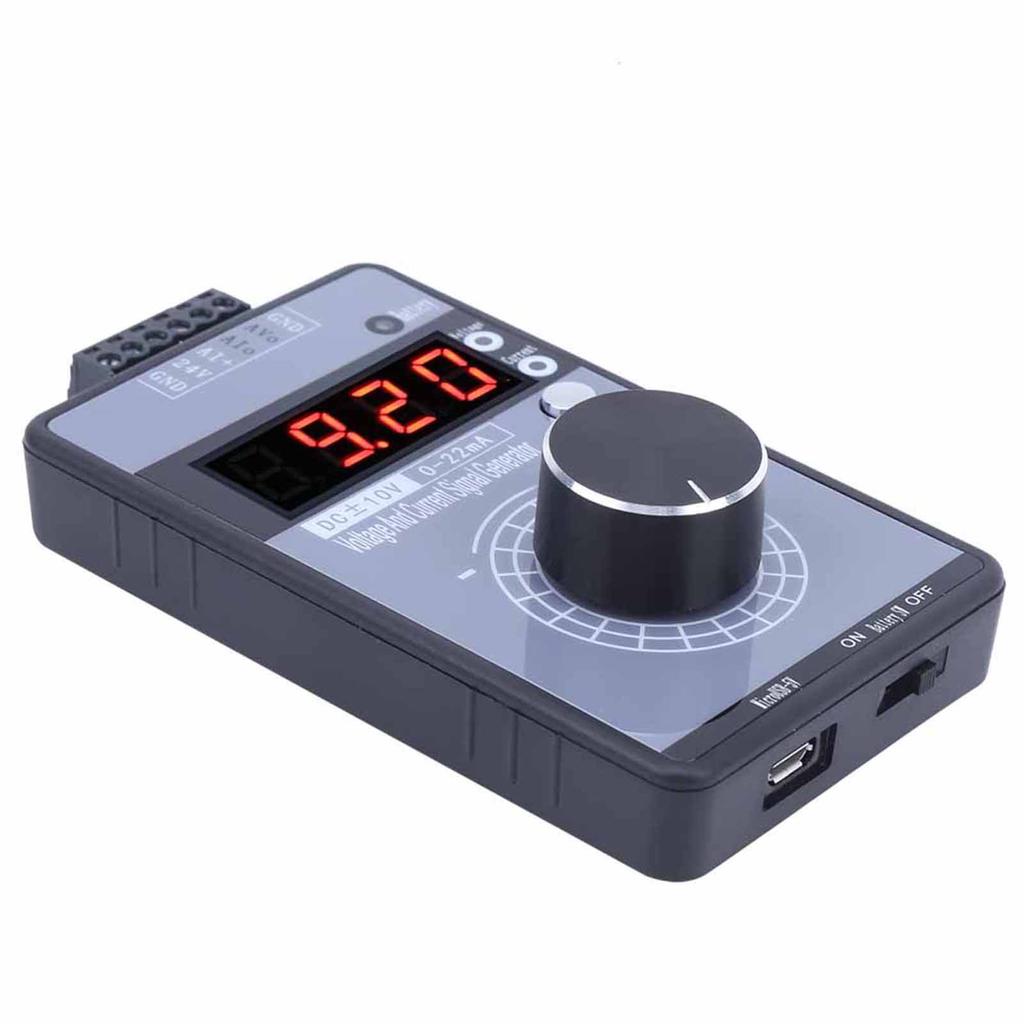

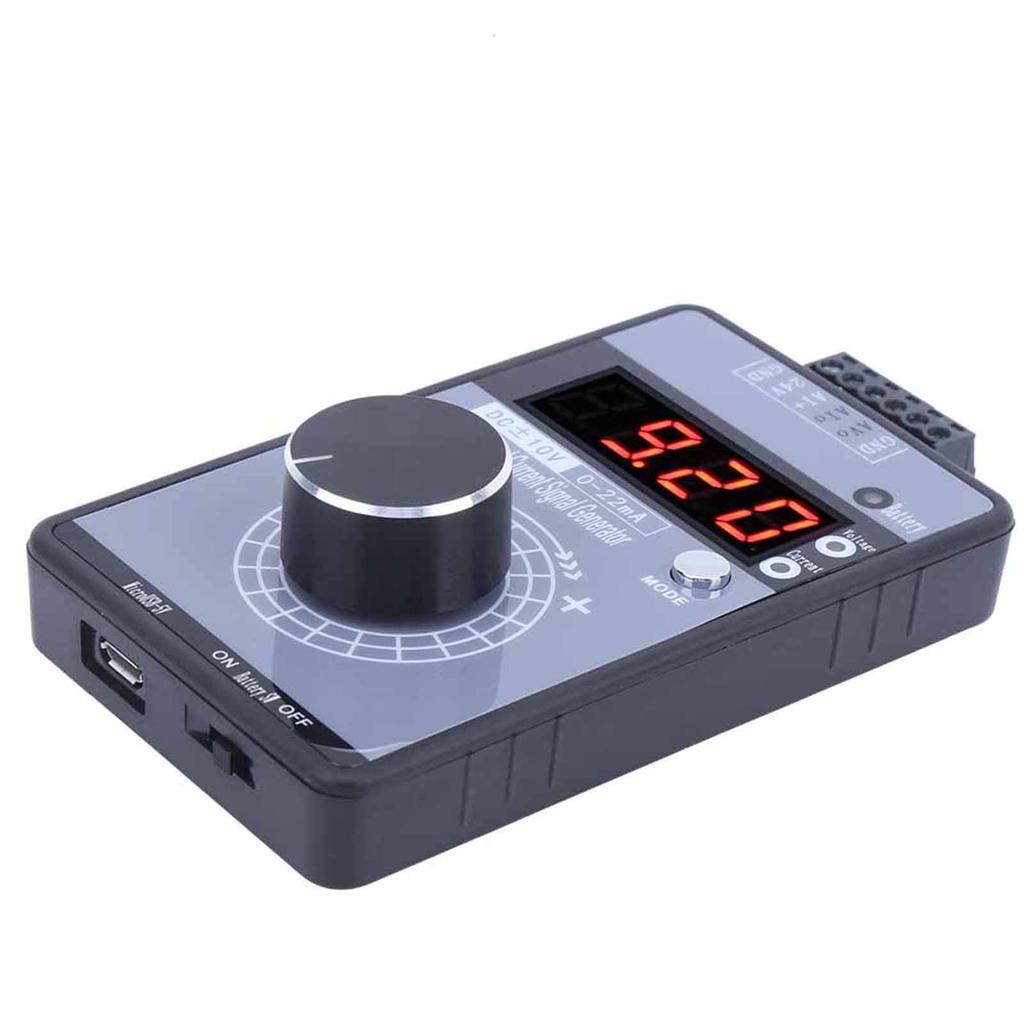

Hand‑Held 0‑10V 0‑22mA Digital Voltage Current Signal Generator Transmitter Analog Simulator

Feature: 1. Hand held digital signal generator, supports 3 power supply modes, which is more convenient to use. 2. Voltage and current adjustments can be switched by one button, adopt independent wiring, and output can be simultaneously performed. 3. The output has short circuit protection, and power supply has reverse connection protection, which is safe and reliable. 4. With pluggable terminal blocks, it is easy to install, stable in performance and easy to carry around. 5. It supports two modes of coarse and fine adjustment, the number of adjustment turns can be set, simple operation. 6. Equipped with 4‑digit highlight digital tube, supports high‑precision adjustment, and the output can be calibrated. Specification: Condition: 100percent Brand New Item Type: Voltage Current Signal Generator Material: ABS 3 Power Supply Methods: Charging with mobile phone charger, power bank or external 24V power supply External Power Supply: DC15 30V, Power: 1W (Not Charging) 4W (Charging) Lithium Battery Capacity: 1000mAh, 3.7V Maximum Charging Current: 0.6A External: Micro USB 5V, Current: 0.2A (Not Charging) 1A (Charging) Voltage Output: 0 10V Adjustable, Accuracy after Calibration: 0.05V, Maximum Current: 20mA Current Output: 0 22mA Adjustable, Accuracy After Calibration: 0.05mA, Current sampling resistance is not more than 500 ohms Digital Tube Display Digits: 4 digits, two decimal places Encoder: 20 pulses per turn of the knob Power Supply: Built in Lithium battery 1000mAH Size: Approx. 100x60x25mm 3.9x2.4x1.0in. Package List: 1 x Signal Generator1 x USB Cable4 x Clip4 x Insulation Clip Cover1 x Screwdriver6 x Terminal1 x Manual Note: 1.Please allow 0‑1 inch error due to manual measurement. Thanks for your understanding.2.Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
