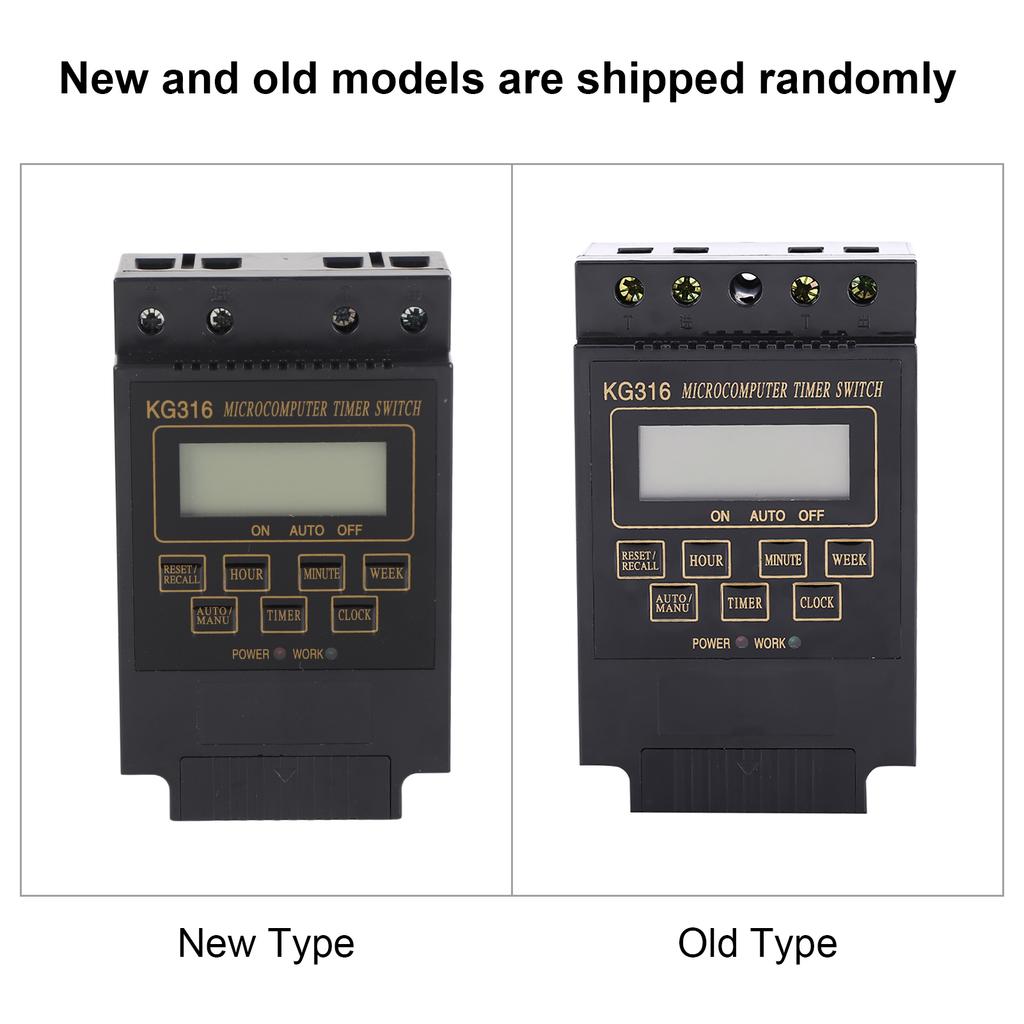

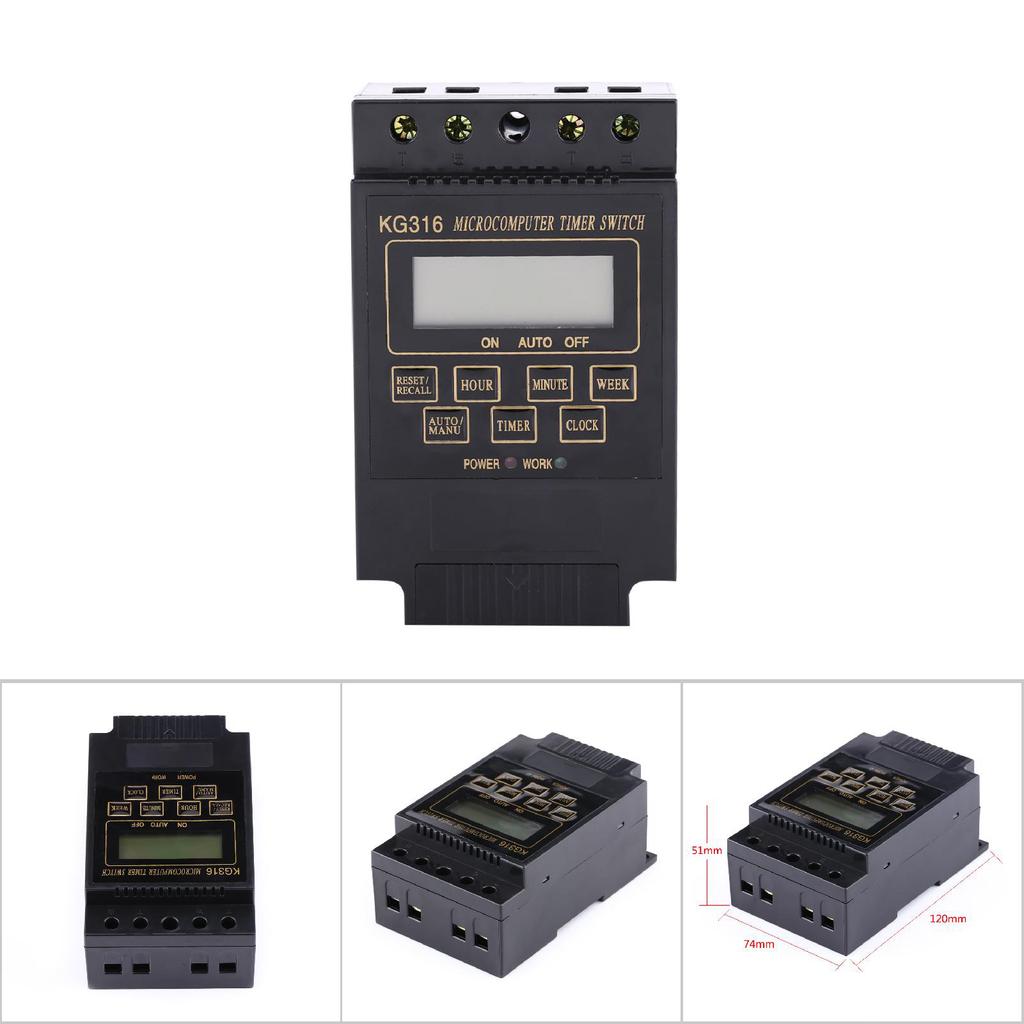

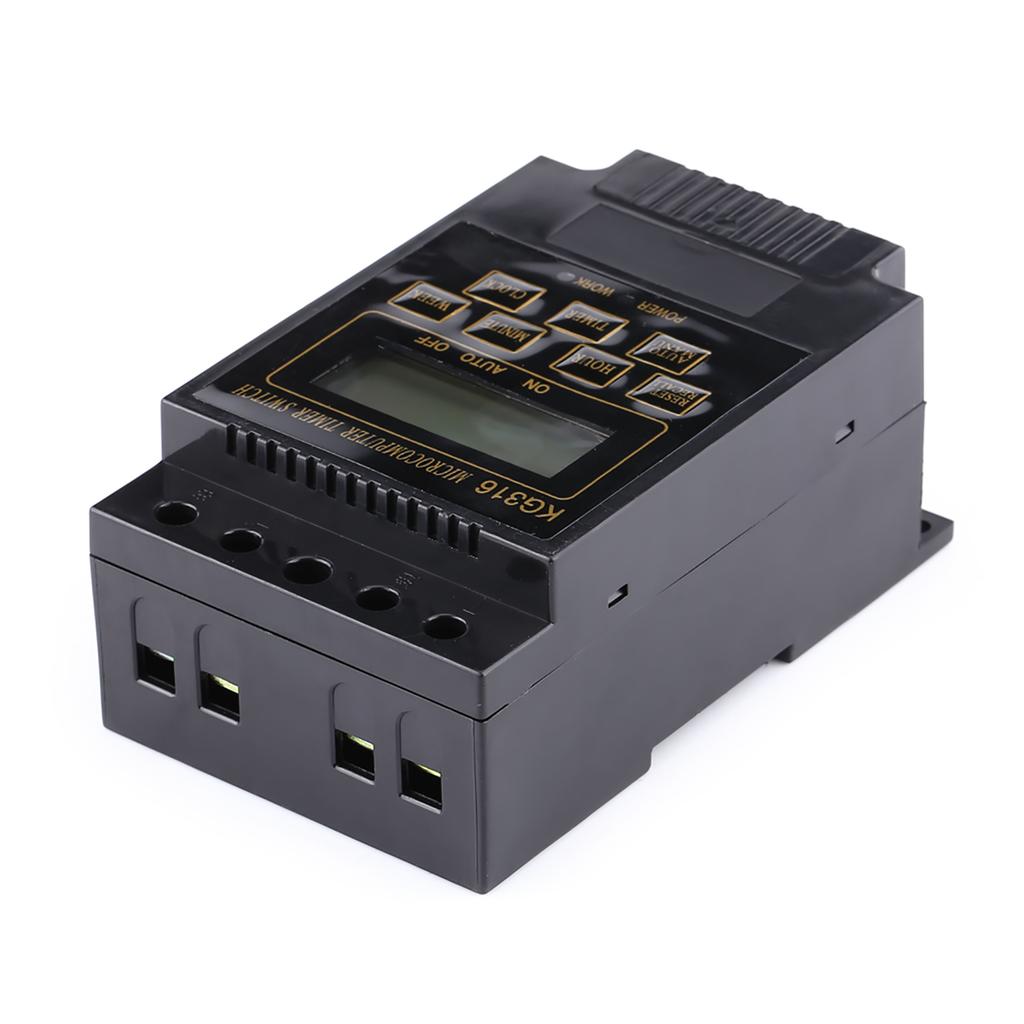

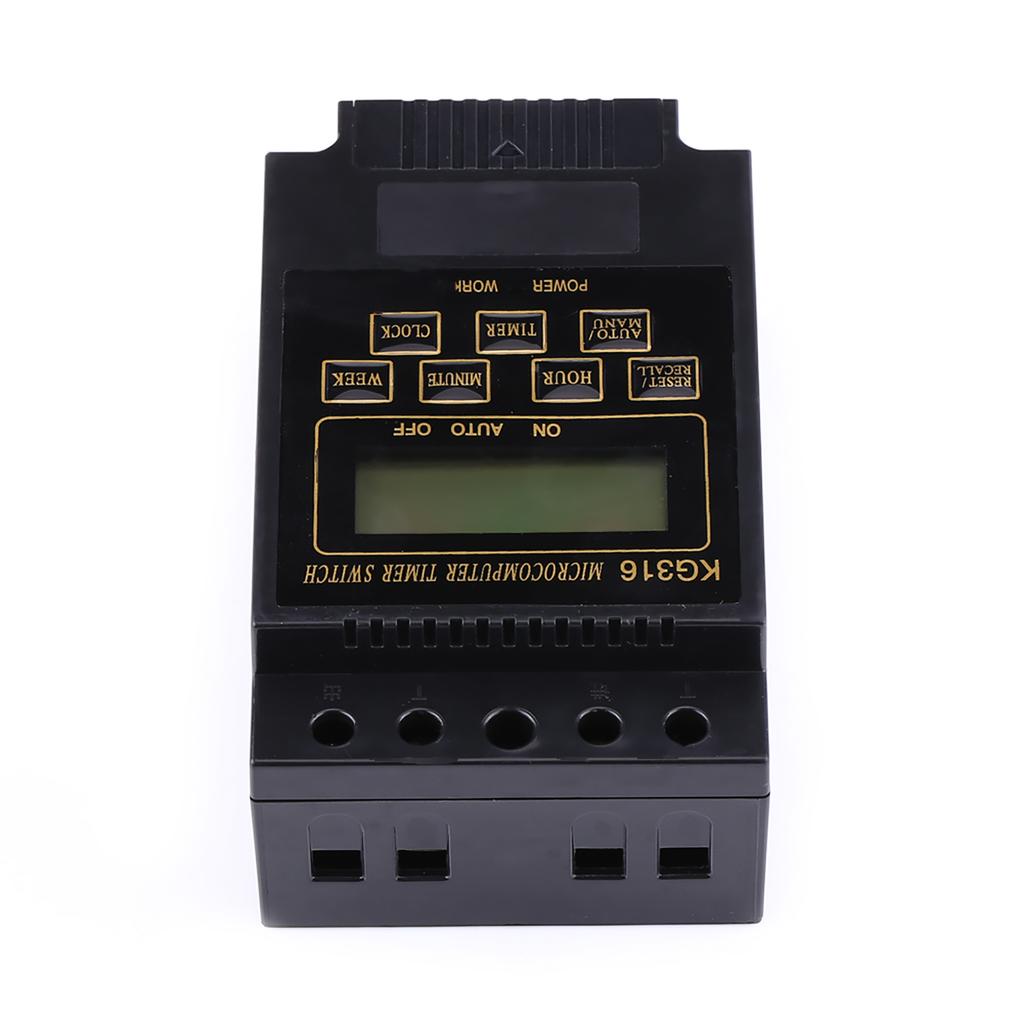

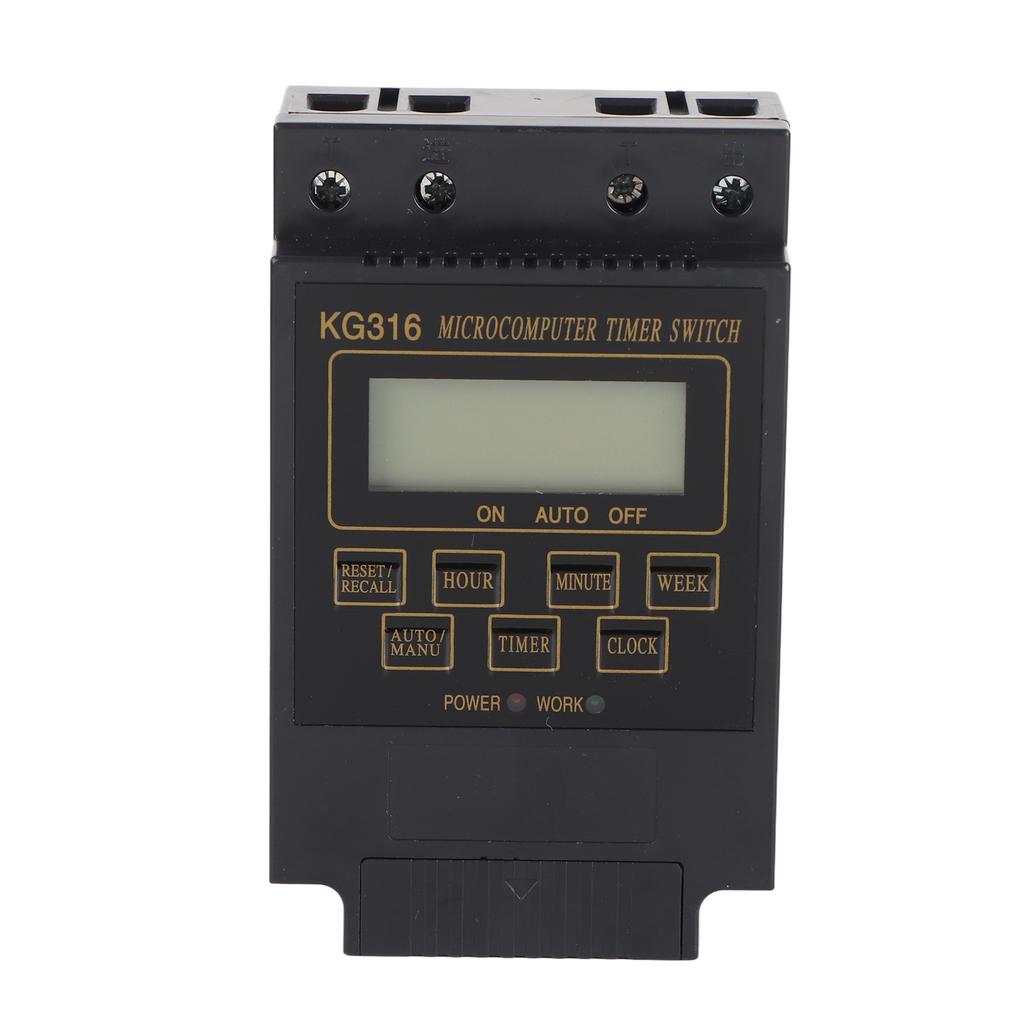

LCD Digital Timer Switch Microcomputer Control Programmable Time Relay (AC220V)

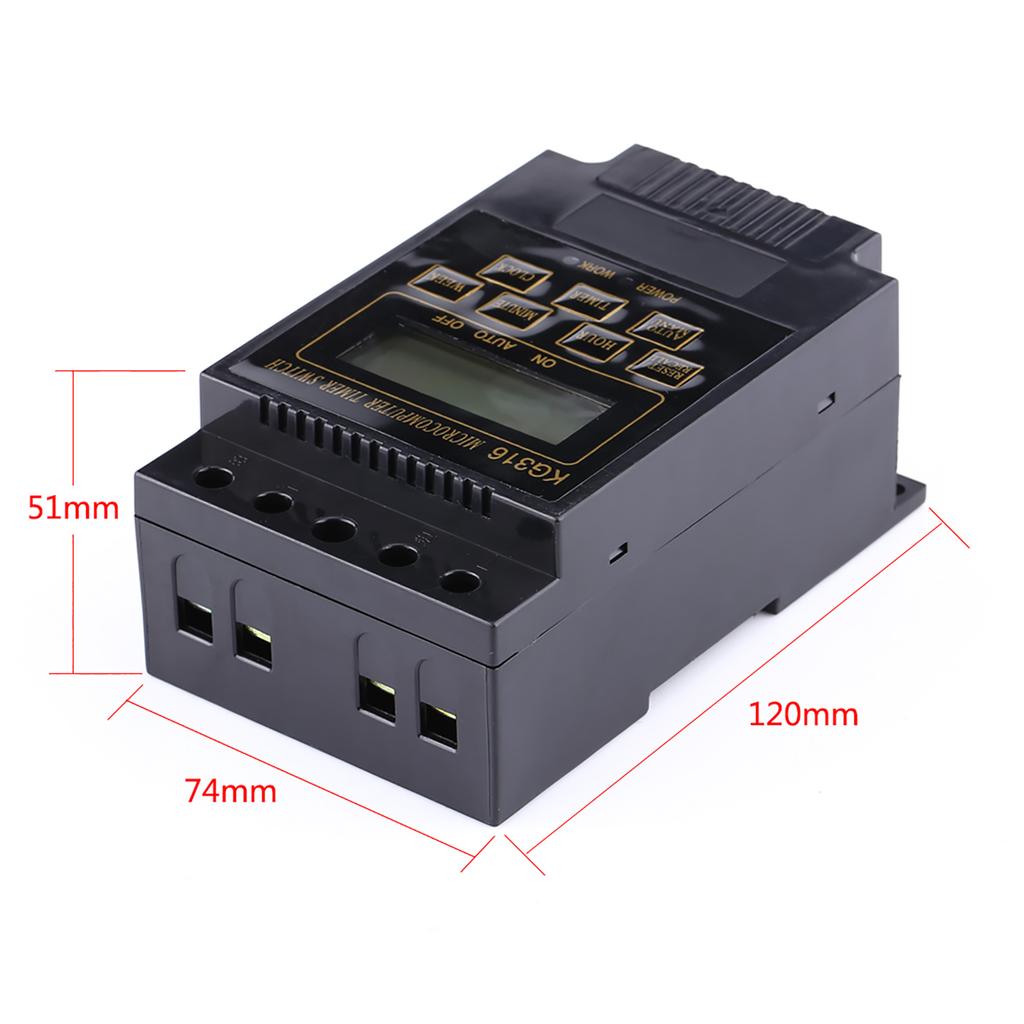

Description: This timer switch could automatic turn on off all kinds of electric equipment according to the time user set. With high precision and strong anti interference ability, the timer switch is great for controlling street lamps, neon lamps, production equipment, radio and television and many other home appliances. Features: This timer switch could automatic turn on off all kinds of electric equipment according to the time user set. The 110V timer switch has a inbuilt battery for storing data, and 220V timer switch uses 1 AA battery(not included). Repeat programs with 10 ON and 10 OFF settings, and the timing bound is from 1 minutes to 168 hours. The time switch setting time can be cycled by days or week. The timer switch is great for controlling street lamps, neon lamps, production equipment, radio and television and many other industry or home appliances. Specifications: Input Voltage: AC110V, AC220V(Optional) Contact Voltage Rating: 180V to 240V Switch Load Capacity: 10A(resistive), 10A(inductive) Power: <1W On Off Operation: 10 on and 10 off(manual auto) Timing Bound: 1 min to 168 hours Operation Temperature: 20 celsius to 60 celsius Humidity: <95percent Error: <0.5s day Battery(for 220V): 1 AA battery (not included) Size: 120 x 74 x 51mm 4.72 x 2.91 x 2 Instruction: NO. 1, Set Clock(present time): Press and hold CLOCK button then press WEEK ,

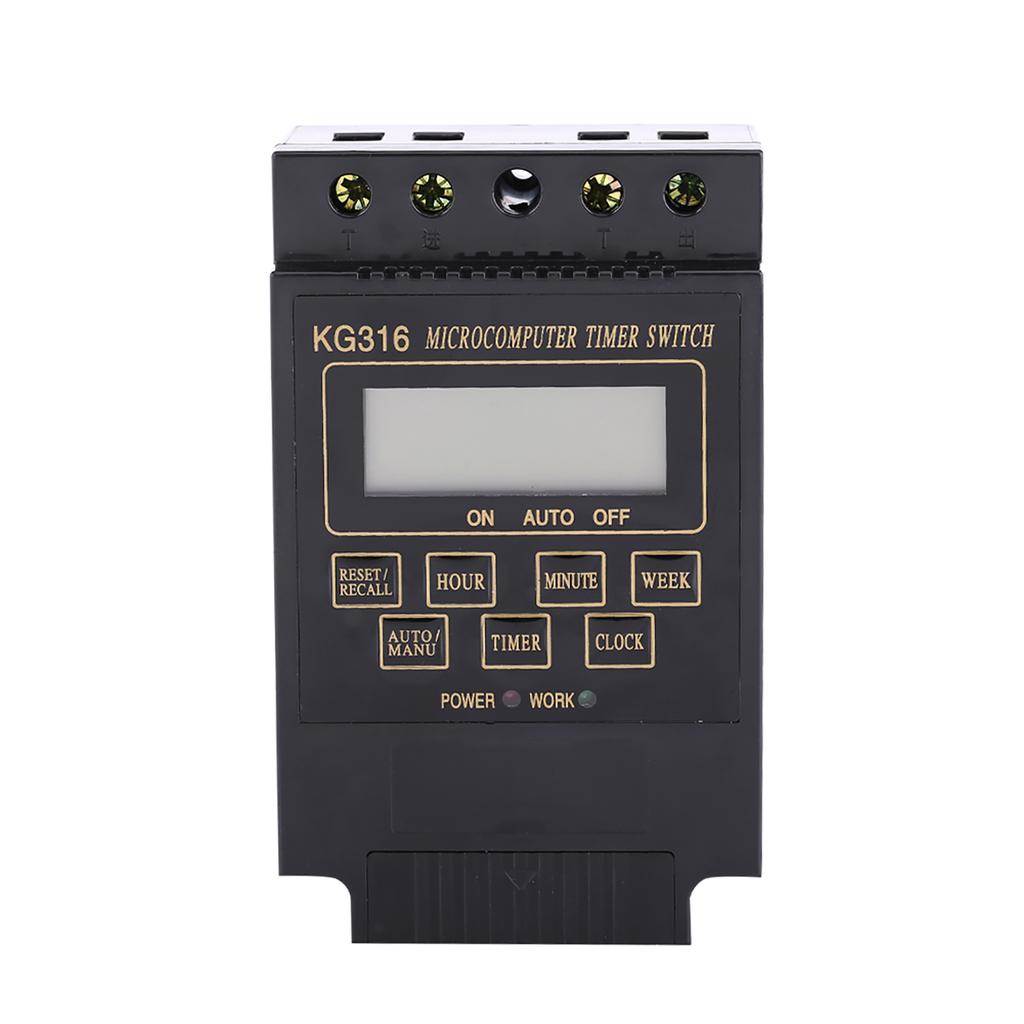

HOUR and MINUTE buttons. NO. 2, Set 1 on : Press TIMER button and LCD displays 1 on at the bottom left. Then press

HOUR and MINUTE buttons to set 1 on . NO. 3, Set 1 off : Continue to press TIMER button and LCD displays 1 off at the bottom left. Then press HOUR and MINUTE buttons to set 1 off . NO. 4, Continue to press the

TIMER button (LCD successively displays 2 on , 2 off , 3 on , 3 off ... ... 10 on ,

10 off ) so you can set them all. If you only need 1 on ,

1 off , you must press the TIMER button (LCD successively displays 2 on , 2 off , 3 on ,

3 off ... ... 10 on , 10 off ) and press

RESET RECALL button to set all other on and

off as : instead of 00:00 (shown on the LCD). NO. 5, After setting, press

CLOCK button so LCD displays present time. Or if no button was pressed in 30 seconds, it will automatically display present time. NO. 6, When connected to circuit, the red light indicates if the circuit is powered and the green light indicates if the switch is closed. NO. 7, Press the AUTU MANU to connect or disconnect circuit directly.Press AUTU MANU button till the LCD displays

off at the bottom, and then press AUTU MANU button again to set back to Auto . NO. 8, Press TIMER button, and then press WEEK to set which day or days each week you need the switch to work such as (Mon, Wed, Fri) or (Tue, Thur, Sat), (Mon, Tue, Wed) or (Thur, Fri, Sat), (Mon to Fri) and (Sat, Sun), etc. Wiring: Picture 1. Direct control wiring is for single phase powered electrical appliances with lower power consumption than load capacity of this switch. Picture 2. Single phase expansion wiring is for single phase powered electrical appliances with higher power consumption than load capacity of this switch. You will need an alternating current contactor with more capacity than the electric power consumption to expand capacity. Picture 3. Three phase wiring is for three phase electrical appliances, with a AC220V, 50Hz control contactor coil voltage, you will need a external three phase AC contactor. Picture 4. Three phase wiring is for three phase electrical appliances, with a AC380V, 50Hz control contactor coil voltage, you will need a external three phase AC contactor. Package Includes: 1 x Timer Switch Note:

.
