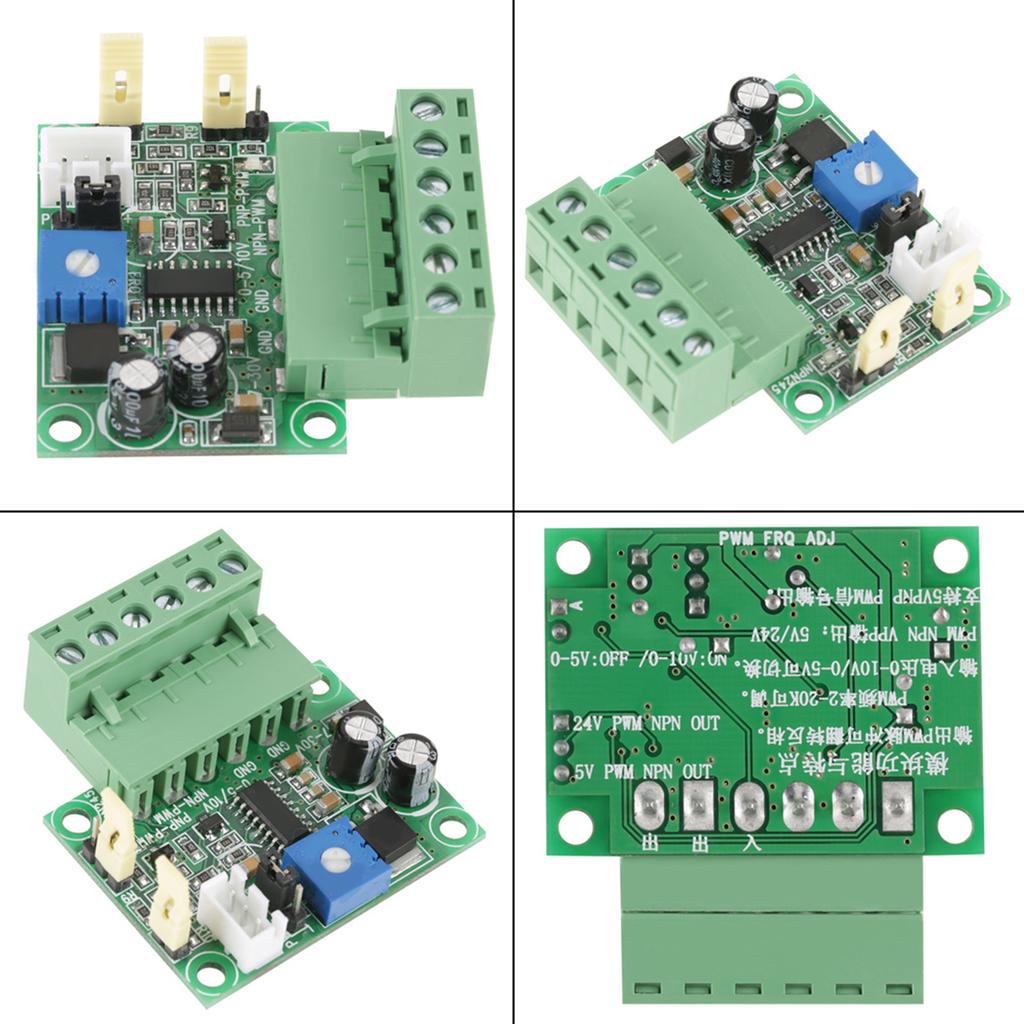

0 5V 0 10V Analog Input Voltage To 0 100percent PWM Signal 2KHZ 20KHZ Converter Module

Features: PWM signal frequency range is 2KHZ 20KHZ, maximum is 20KHZ, default minimum is 2KHZ. Default function is converting 0 10V into 0 100percent 2KHZ PWM signal; output frequency can be set by adjusting potentiometer as needed. There are two kinds of PWM signal, PNP PWM output and NPN PWM output;the PNP PWM output is only 5V level, NPN PWM output is 5V and 24V level. NPN PWM signal output supports common cathode connection and common anode connection, 5V and 24V two levels. When output 24V level, it need 24V power supply. For PNP PWM output, the level can only be 5V. Can only use common cathode connection, and connect to MCU, etc. Output PWM signal frequency is adjustable within 2KHZ 20KHZ; there are total 11 positions, respectively corresponding to 2KHZ, 4KHZ, 6KHZ, 8KHZ maximum 20KHZ, default frequency is 2KHZ. Specifications: Type: Voltage to PWM signal module Model: V PWM Input Power Supply Current: >200mA Size: Approx. 45 x 47 x 18mm 1.8 x 1.9 x 0.7in Weight: 20g(approx.) Package Includes: 1 x Converter Module Note:

.
