Features:
1. Brand new and high quality.
2. It adopts high current and high withstand voltage discharge MOSS. The internal components are brushed with three anti adhesive (waterproof, anti static, anti interference), stable ans reliable quality.

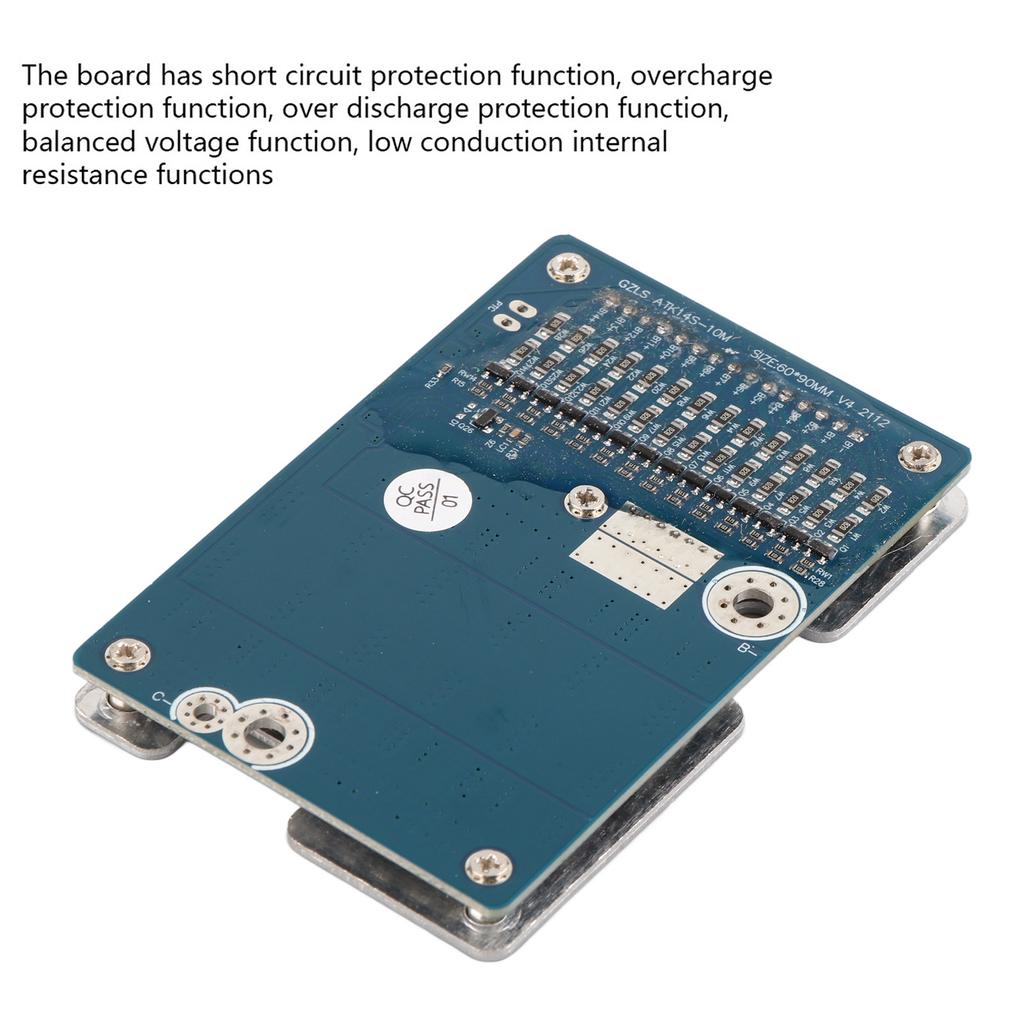

3. The board has short circuit protection function, overcharge protection function, over discharge protection function, balanced voltage function, low conduction internal resistance functions.
4. Suitable for lithium batteries with nominal voltage 3.7V 10 14 strings
5. Applied to rechargeable lithium ion battery, lithium polymer battery.
Specification:
Condition: Brand New
Model: TK14S40A 10M V1
Single Overcharge Protection Voltage: 5.24
+
0.025V
Single Overcharge Release Voltage: 4.19
+
0.05V
Rated Charging Current:
less than
40A
Single Chip Over Discharge Protection Voltage: 2.8
+
0.08V
Single Chip Over Discharge Release Voltage: 3.0
+
0.08V
Discharge Protection Current: 120
+
10A
With Or Without Short Circuit Protection: Yes
Short Circuit Protection Recovery Condition: Load Disconnect
Equilibrium Voltage:
4.25V
Equilibrium Current:
less than
26Ma
Internal Resistance:
less than
3.5m
Ohm
Self Consumption:
less than
50uA
Weight: Approx. 108g 3.8oz
Size: Approx. 60 * 90 * 10.1mm 2.4 * 3.5 * 0.4in

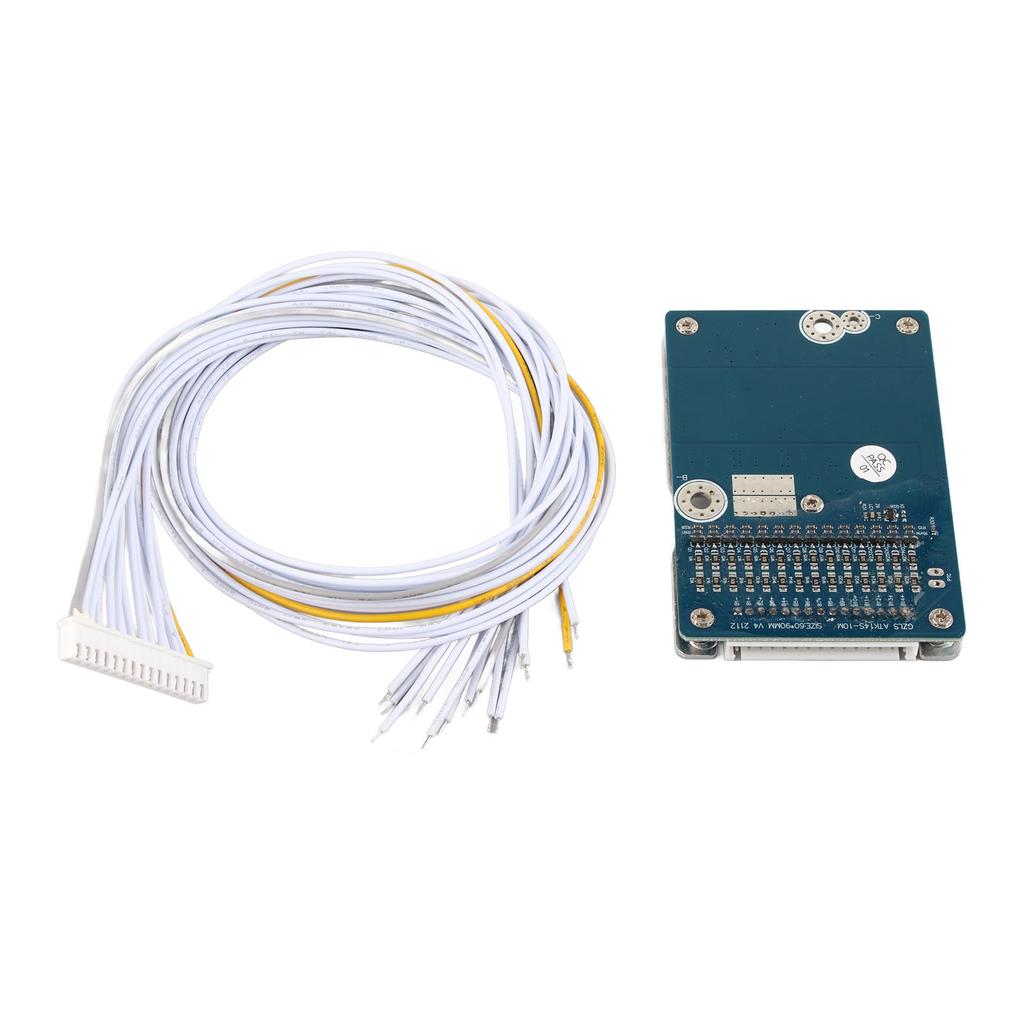

Package List:
1 * Lithium Battery Protection Balance Board Module
1 * Connecting Cable
Note:
1. The difference between the split port and the same port: the split port: when charging and discharging, the positive and negative poles are separated; the same port: charging current is the same as the discharge current, and charging and discharging are in the same place.
2. Without balance and balance: balance: when the high voltage battery is discharged with a resistor, waiting for the low voltage battery to charge the voltage to achieve the same voltage and improve the performance of the whole battery.
.
