Features:
This VFD uses unique control method to realize high moment of force, high precision and wide speed regulating range driving, with high performance.
It has good anti trip performance and ability to adapt to rough power, temperature, humidity and dust interference, greatly improved stability.
By optimizing PWM control technology and electromagnetic compatibility, it satisfies users requirement of low noise, low electromagnetic interference.

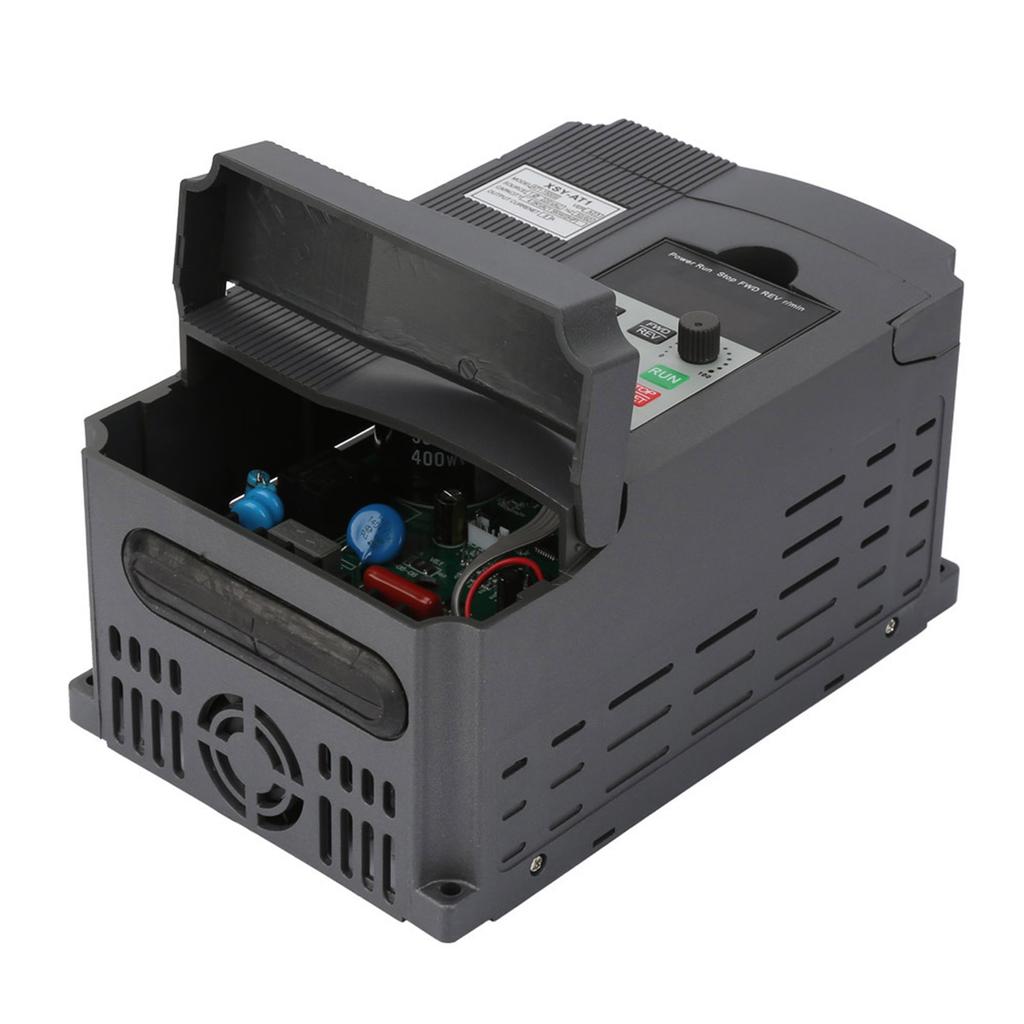

Simple to operate and wire, connect to wires after removing screws.
Fast start and stop response, large moment of force at low speed.
Specification:
Model: AT1 1500S
Rated Voltage: AC220V (single phase)
Suitable Motor Power: 1.5kW
Control Method: V F closed loop
Output Voltage Adjustable Method: PWM control
Rated Current: 8A
Max. Output Frequency Range: 0 400Hz

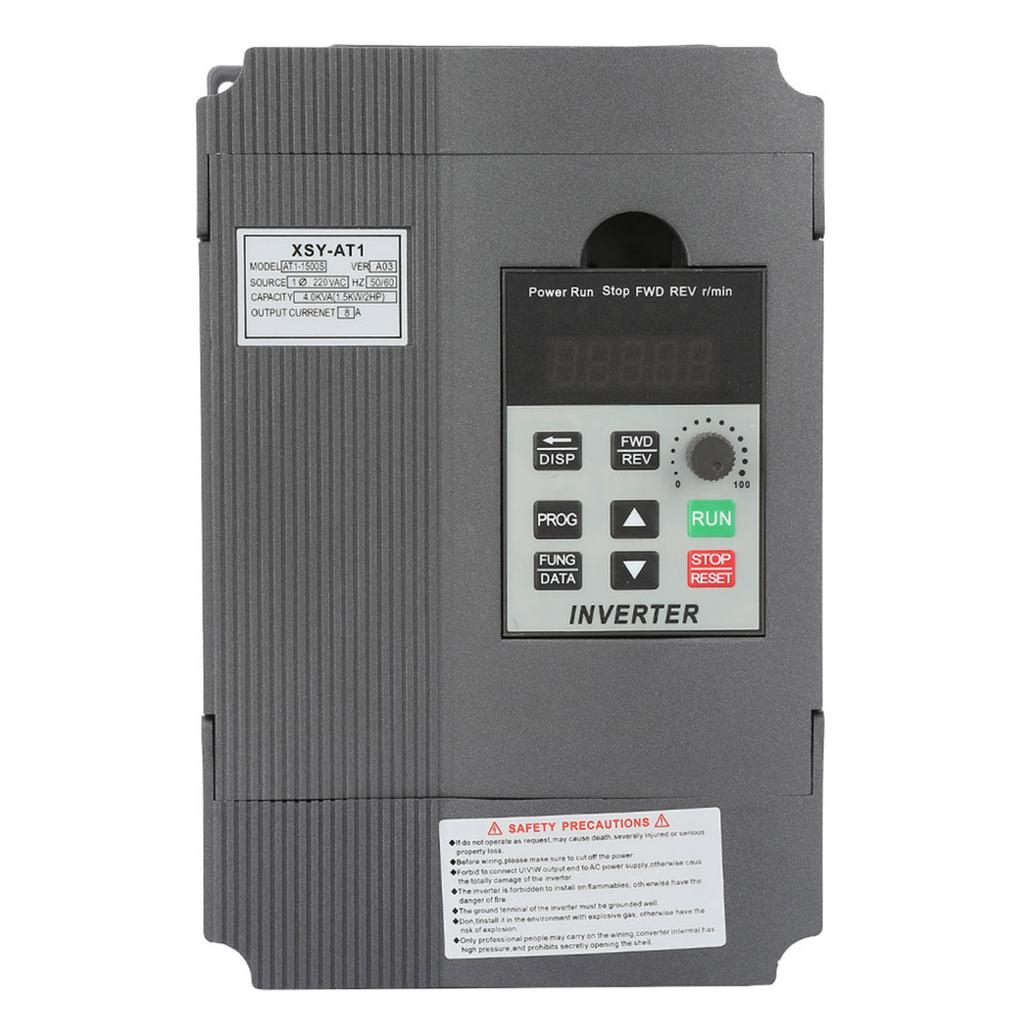

Button
Function
DISP
Switch monitoring parameters at monitoring state, at secondary menu, move data box to process editing position
PROG
Exit
current(or present) state, switch among each states, mainly used to switch monitoring state, exit to
previous menu.
FUNG DATA
Enter menus step by step, save setting parameters
FWD REV
1, Press momentary button to start,release to stop
2, Rotate anticlockwise
Up
Press or press and hold to add data or function code
Down
Press or press and hold to minus data or function code
RUN
Start
STOP RESET
1, VFD stops running 2, Restore to interface before error
Knob
Adjust
rotational speed
Terminal
Function
L,N
single phase AC 220V input
U,V,W
output,connect to 3 phase AC motor
GND
ground
Package list:
1 *
Variable Frequency Drive
Note:
.
