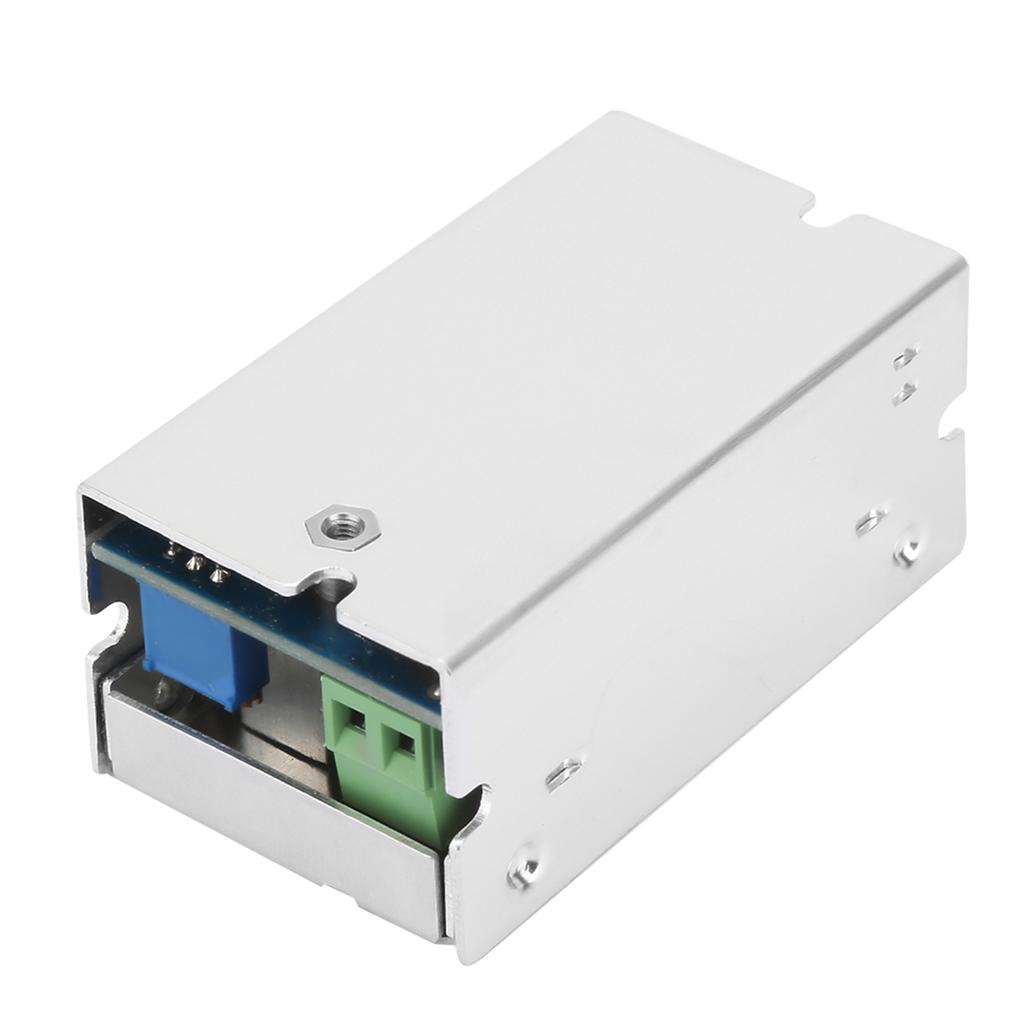

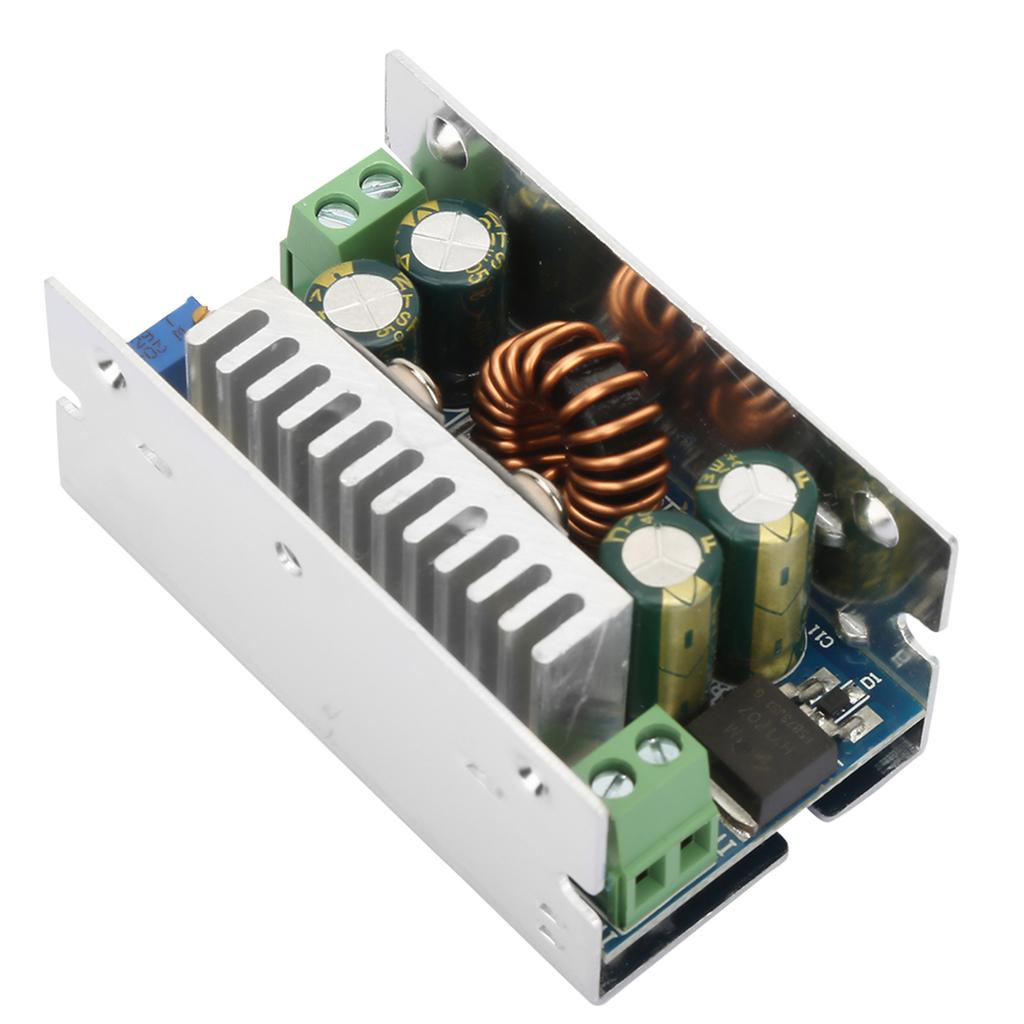

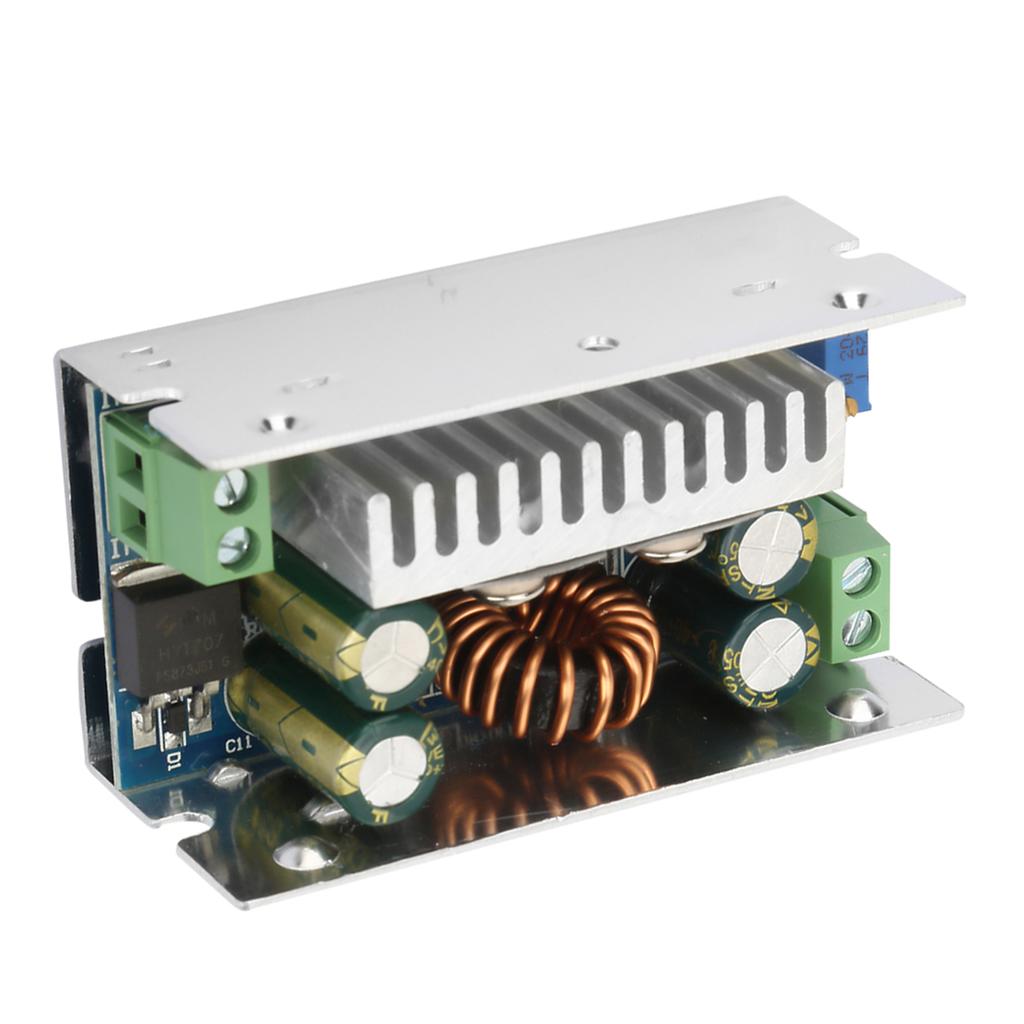

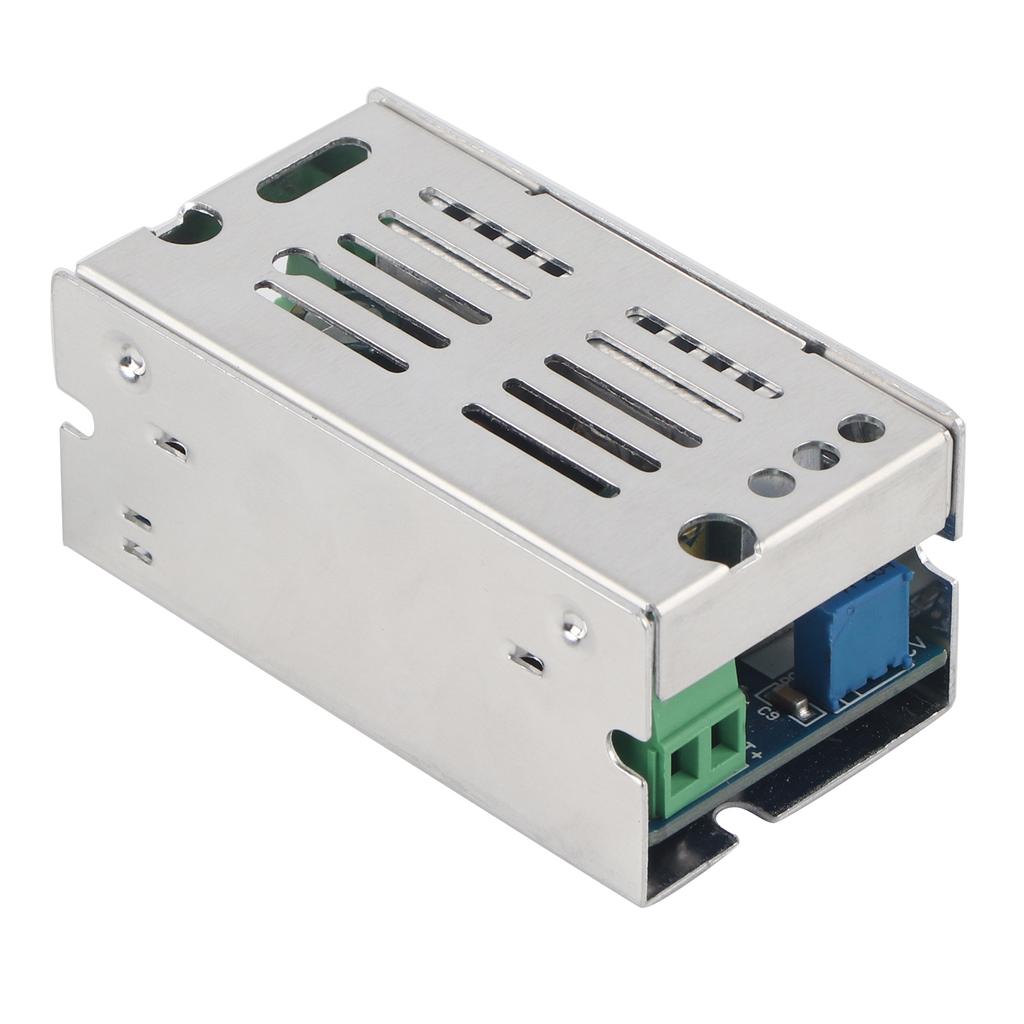

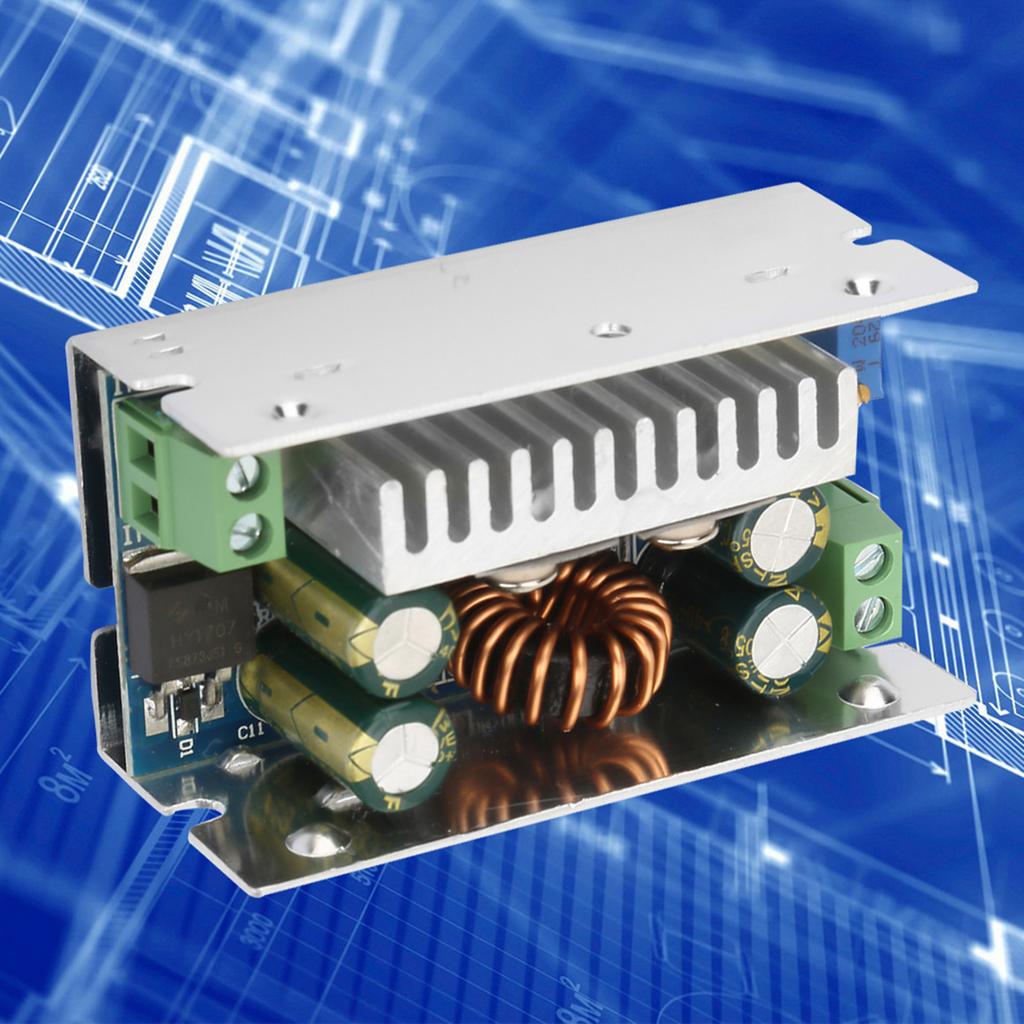

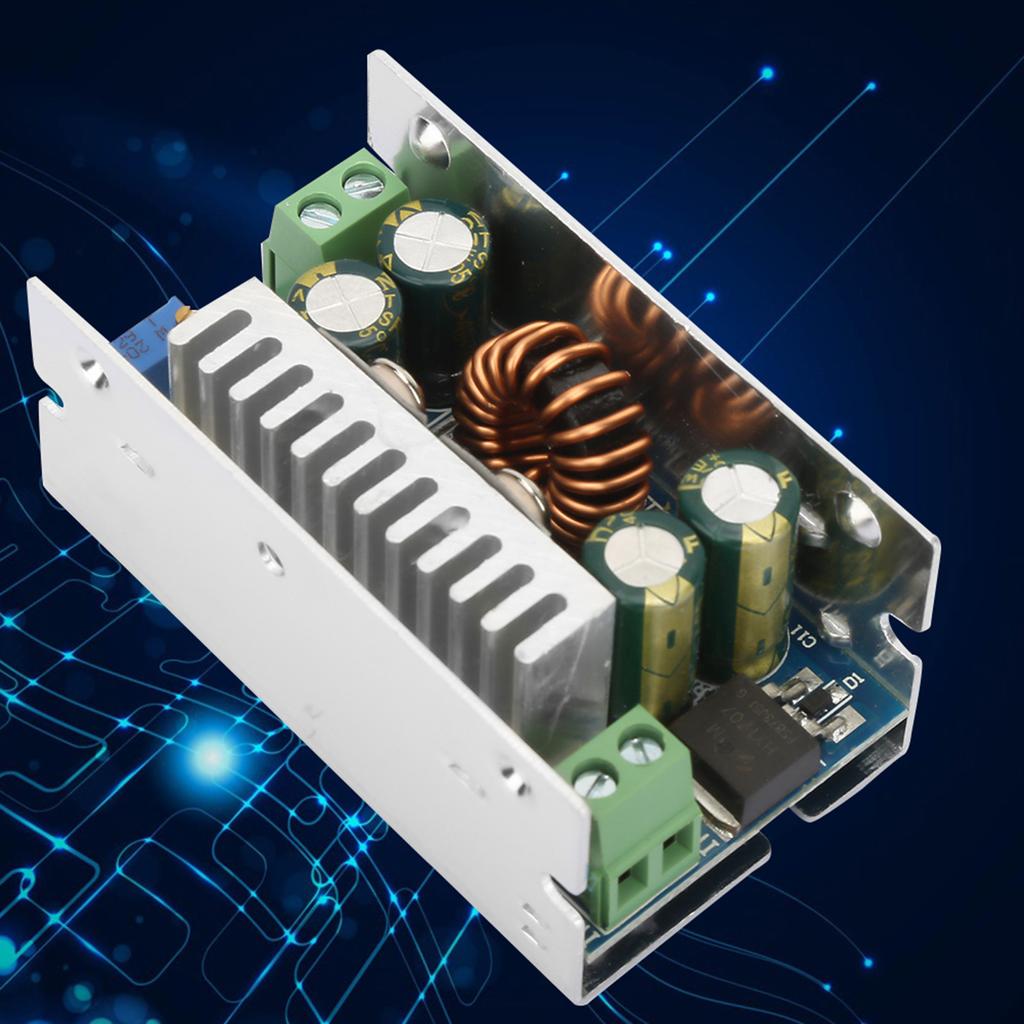

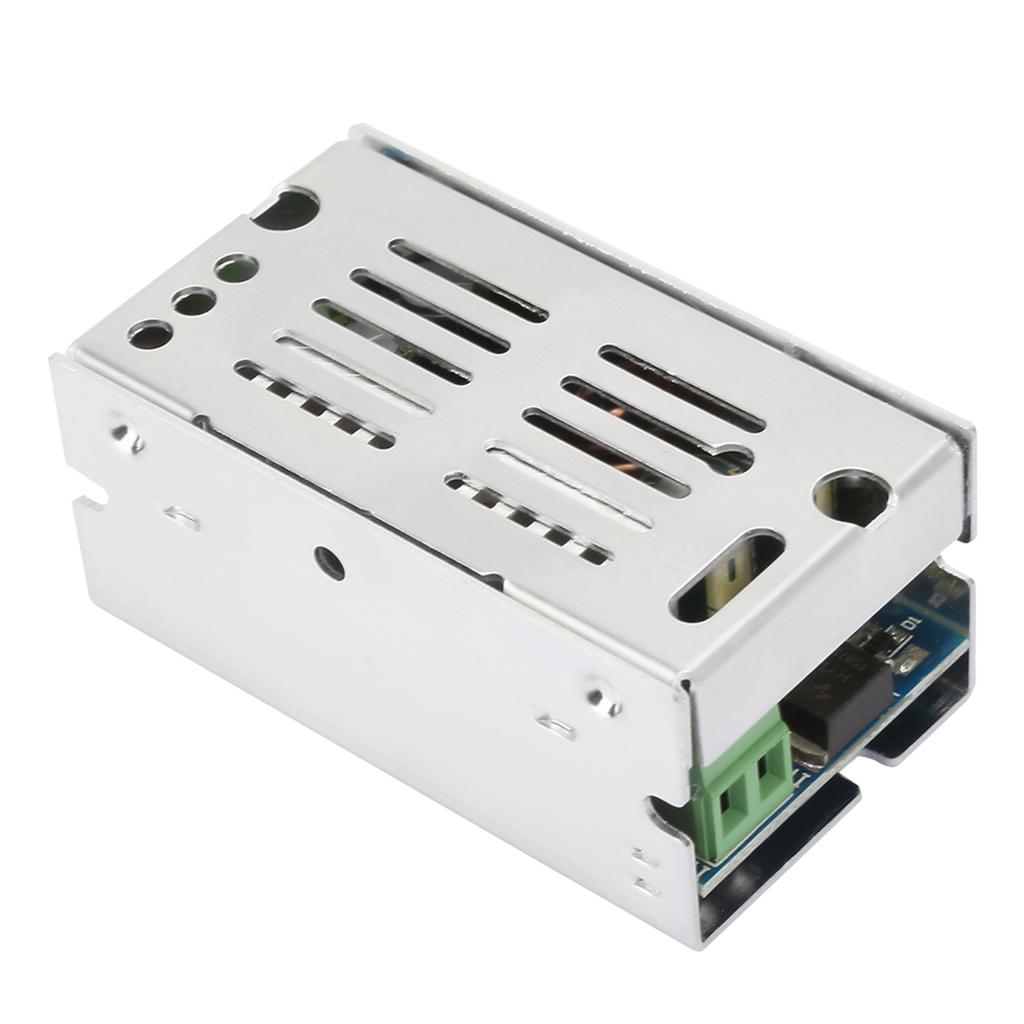

200W 15A DCDC 860V To 135V Nonisolated Adjustable Step Down Module with Aluminum Shell

Features: The module adopts synchronous rectification technology, which greatly reduces rectification loss at the output terminal, thereby improving conversion efficiency and reducing heating of the power supply itself. Short circuit protection, input reverse polarity protection. Includes aluminum shell for fast heat dissipation. Specification: Rectification mode: synchronous rectification Type: non isolated buck module (BUCK) Output current: 15A (max), less than 10A(continuous) (related to input and output pressure difference, temperature, etc) Output power: 100W(good ventilation and natural heat dissipation), 200W(enhance heat dissipation) Working temperature: 10 +85 celsius Operating frequency: 180KHz Short circuit protection: Yes Reverse polarity protection: Yes Wiring: large current terminal, free welding, IN+, IN , OUT+, OUT Aluminum shell size: 70*38*31mm 2.8*1.5*1.2in Weight: Approx. 83g Package list: 1 x Adjustable Step Down Module 1 x Aluminum Shell Note:

.
