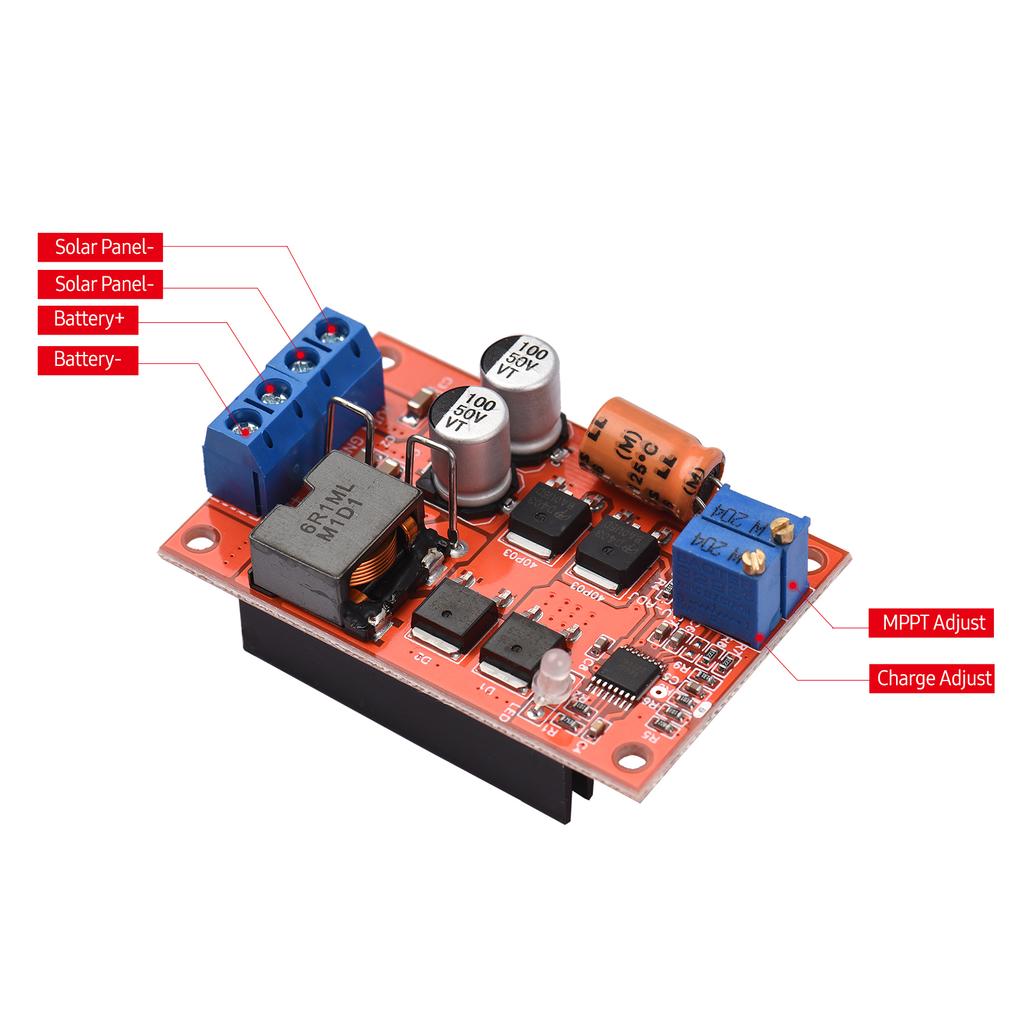

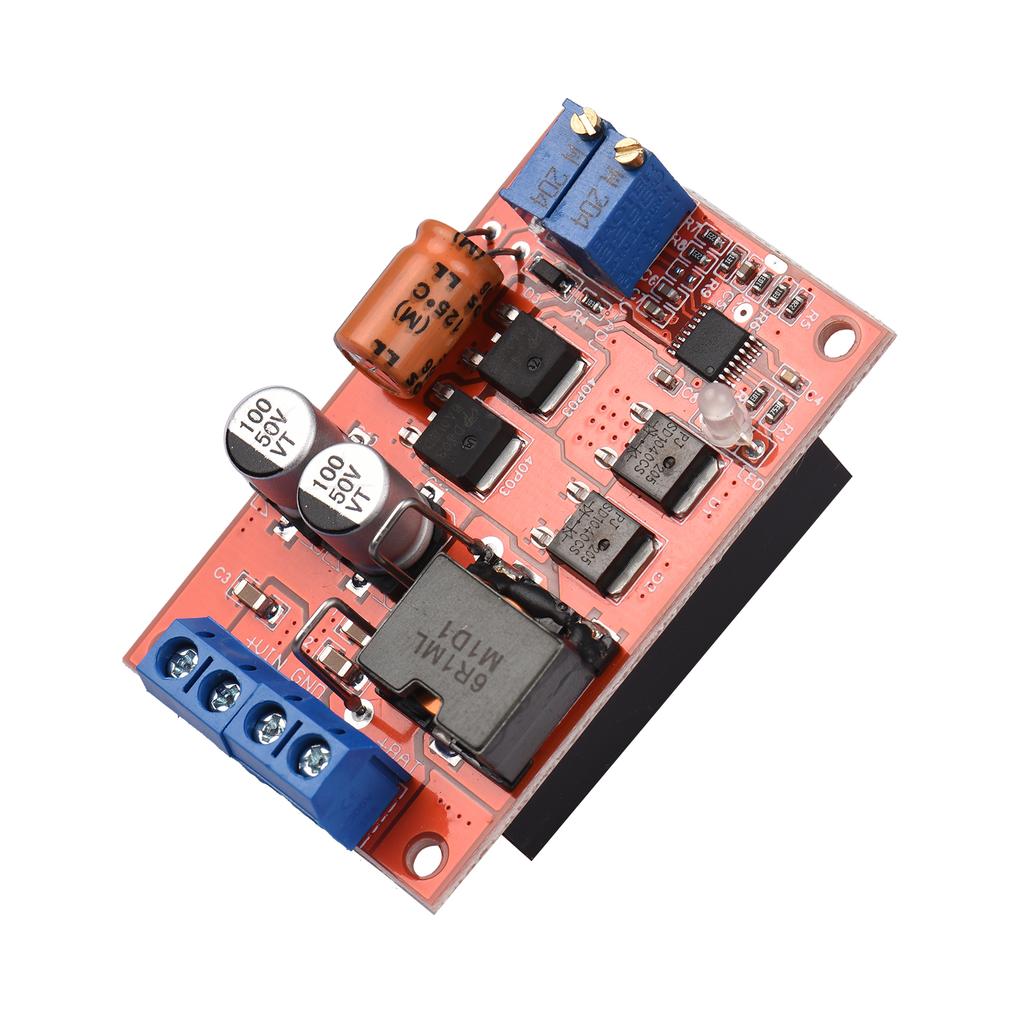

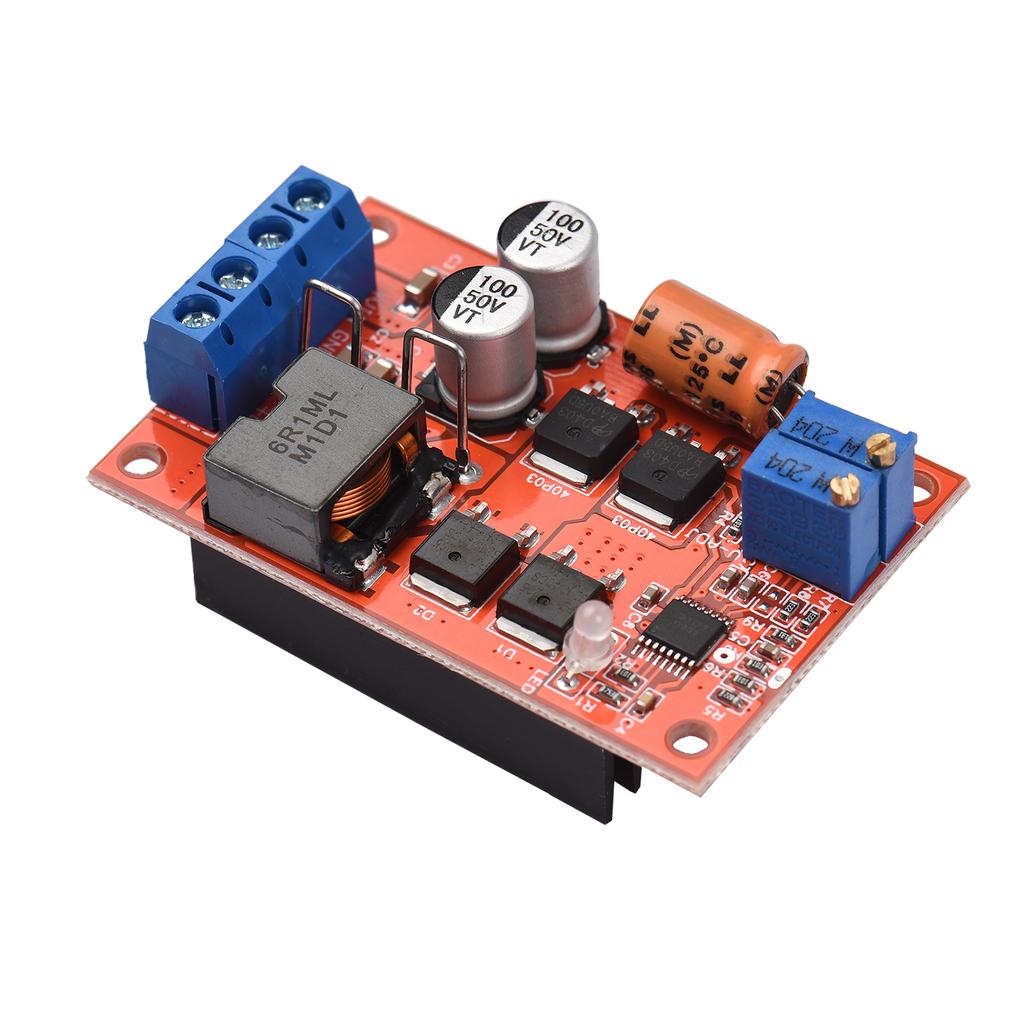

MPPT Solar Panel Controller Module 5A Solar Charging Panel Regulator Battery Charging PCB Board Simple MPPT Charge

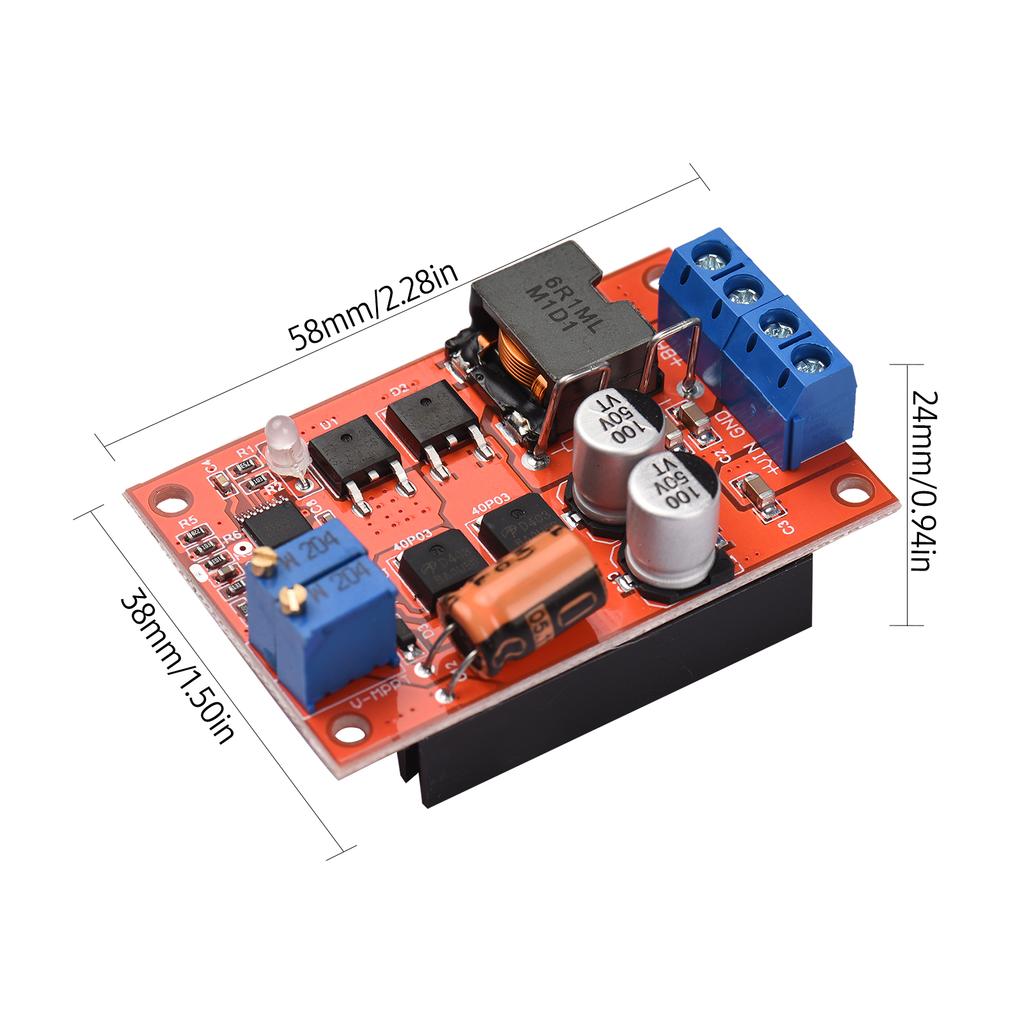

Feature: 1. Imported high frequency low conduction internal resistance double MOS tube is adopted. 2. 10A high current double diode. 3. Adopt advanced MPPT solar maximum power tracking technology. 4. Ultra high efficiency MPPT supports solar high current charging within 8 28V and 100W. 5. The output voltage can be adjusted arbitrarily, and CC CW automatic control. Specification: Features: Imported high frequency low conduction internal resistance double MOS tube is adopted. 10A high current double diode. Adopt advanced MPPT solar maximum power tracking technology. Ultra high efficiency MPPT supports solar high current charging within 8 28V and 100W. The output voltage can be adjusted arbitrarily, and CC CW automatic control. Complete charging management of battery. 300kHz PWM switching frequency. Constant current charging current is set by external resistance (preset 5000mA 2000mA). Trickle charge the deep discharge battery. Dual indication of charging state and charging end state. Low power soft start function. Specifications: Material: PCB PWM Switching Frequency: 300kHz Item Size: 58 * 38 * 24mm 2.28 * 1.50 * 0.94in Item Weight: 38g 1.39oz Package Weight: 39g 1.40oz Package Size: 11 * 7 * 2.5cm 4.33 * 2.76 * 0.98in Packing List: 1 * Module Package List: 1 * Module
