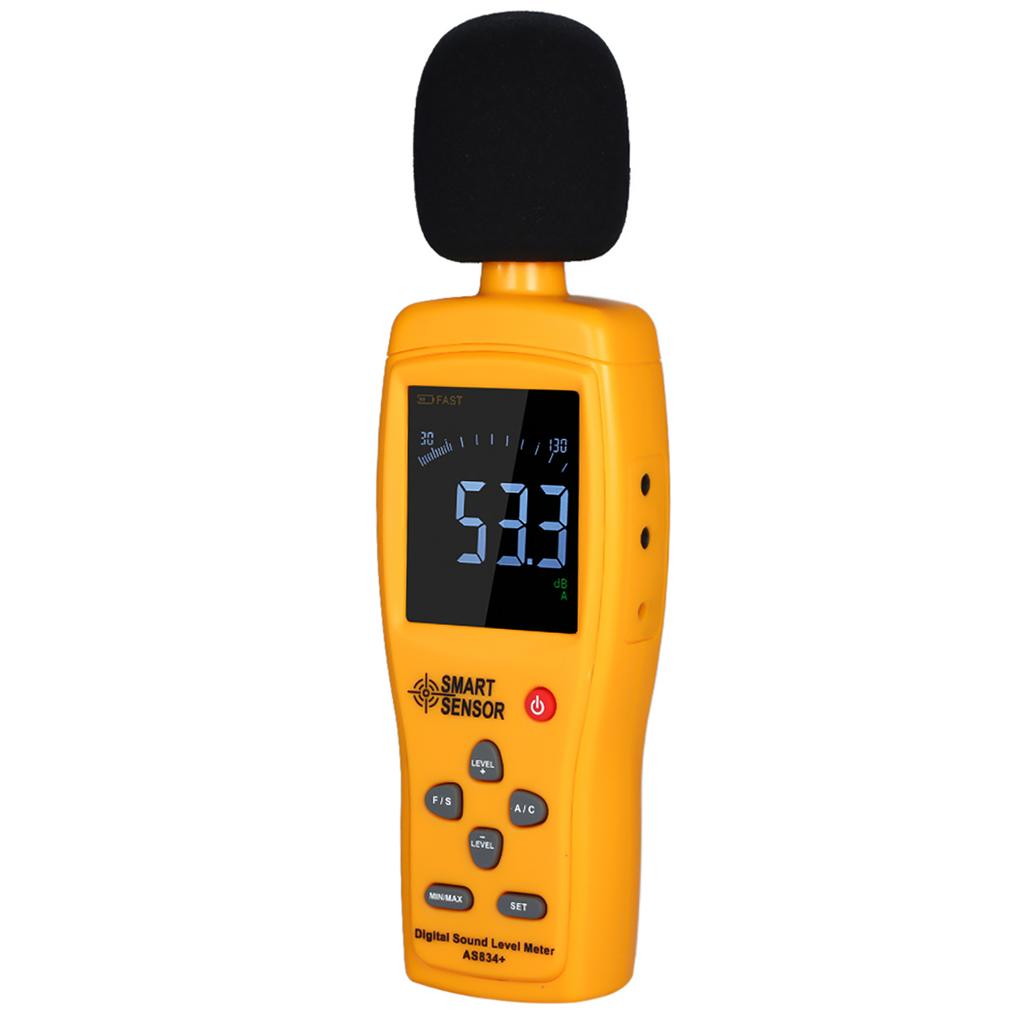

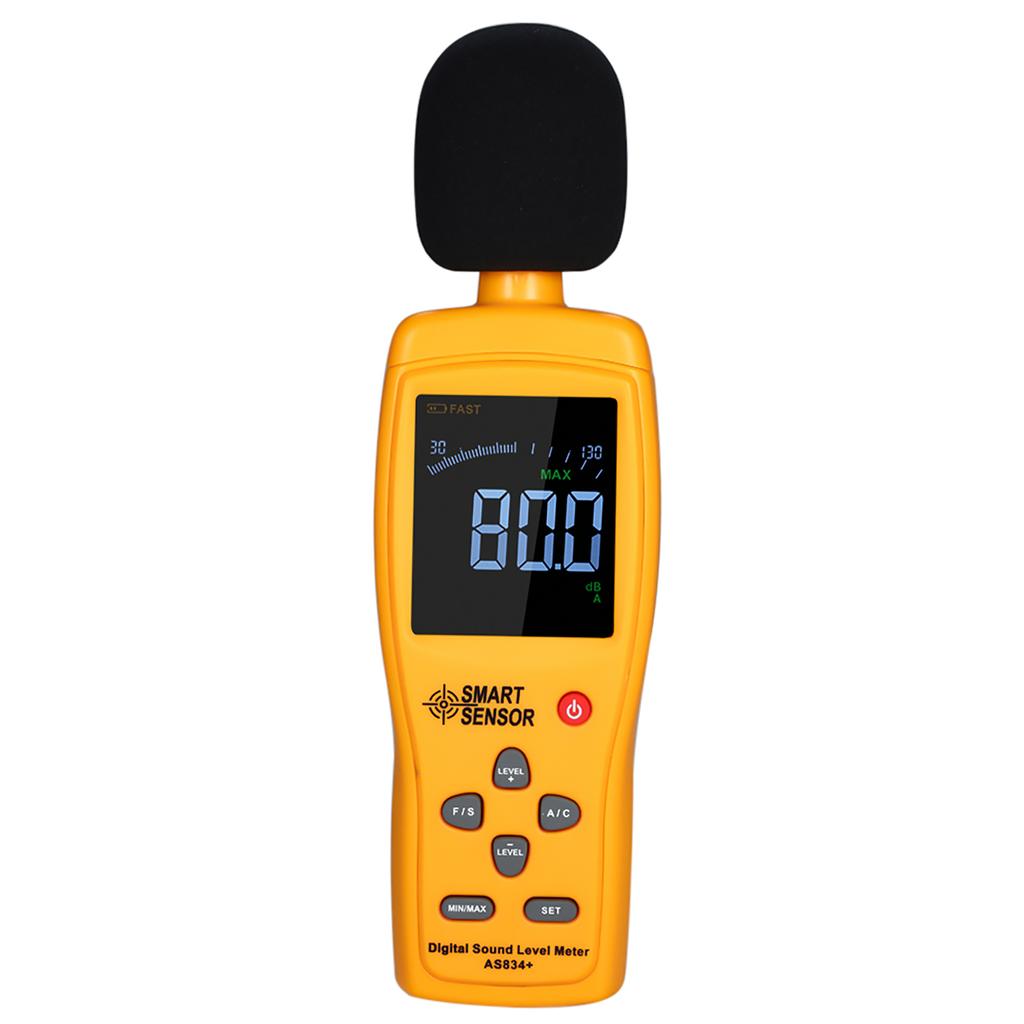

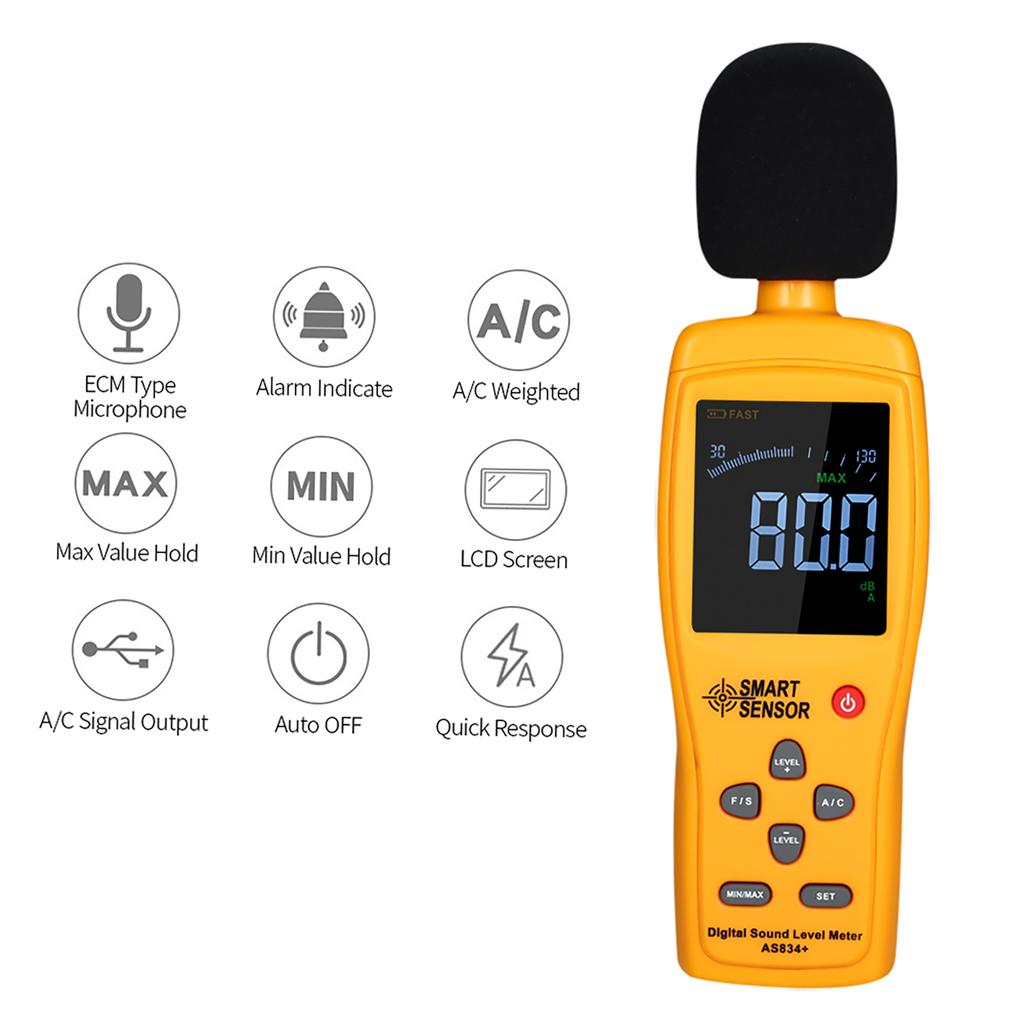

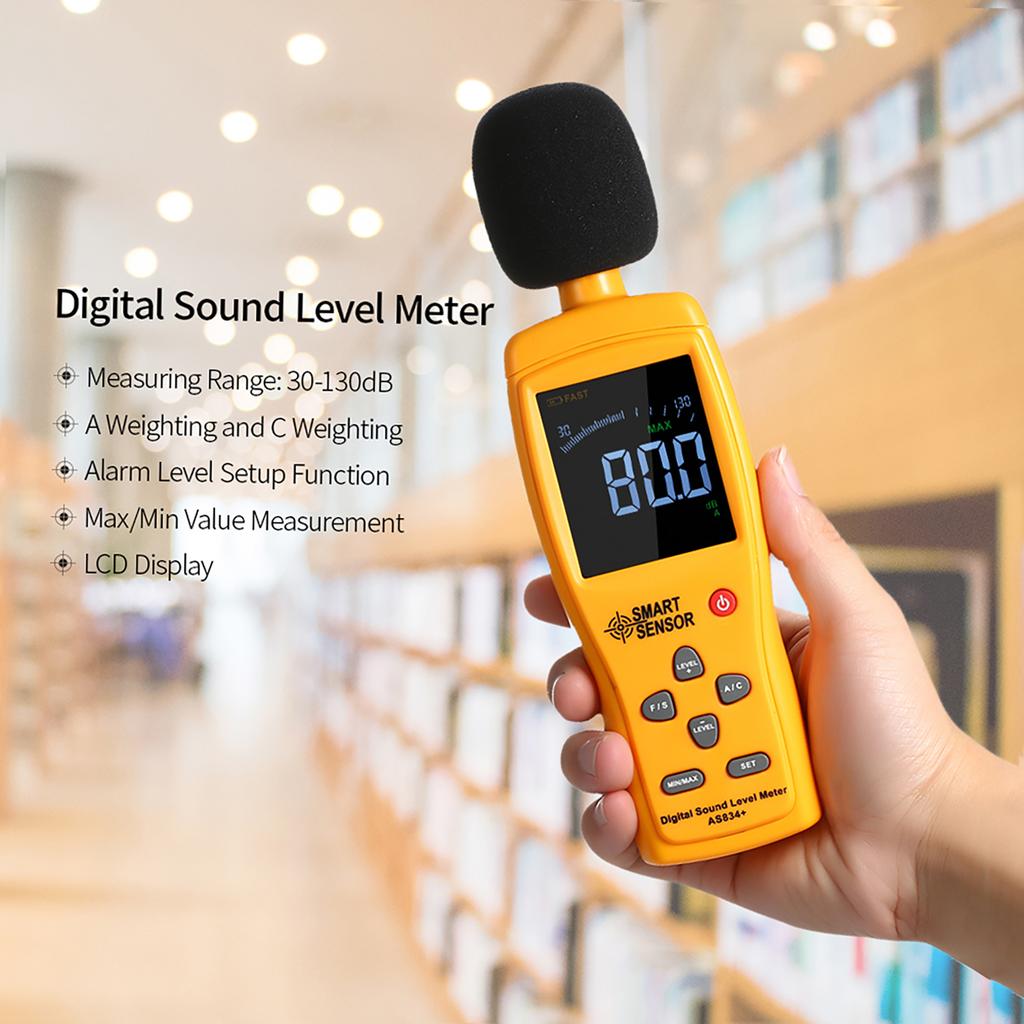

Feature:
1. 2.7in large LCD display for easy reading, convenient to use. Wide measurement range from 30dB to 130dB, Frequency: 31.5Hz 8KHz, Resolution: 0.1dB, Accuracy: + 1.5dB.

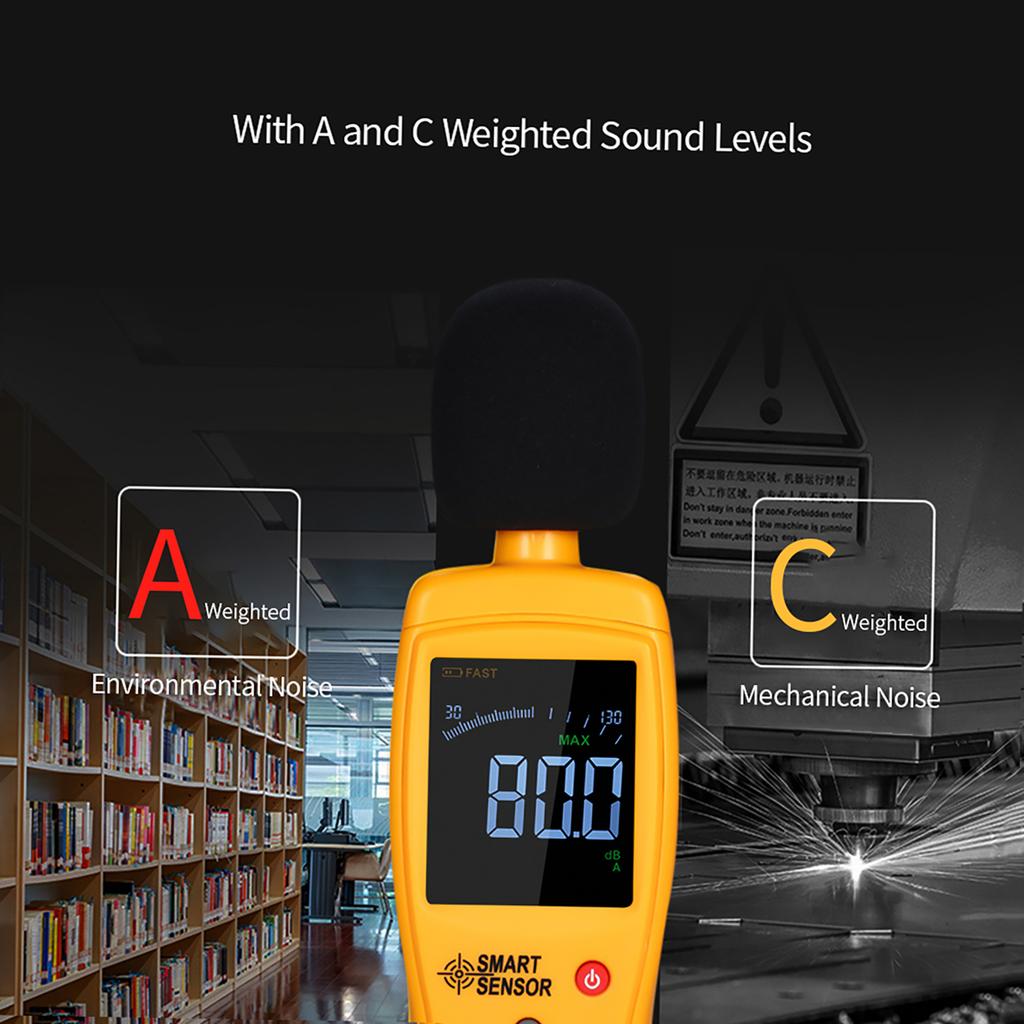

2. With A and C equivalent weighted sound pressure levels. Fast and slow dynamic characteristic mode. AC and DC signal output for frequency analyzer level recorder, FFT analyzer, graphic recorder, etc.

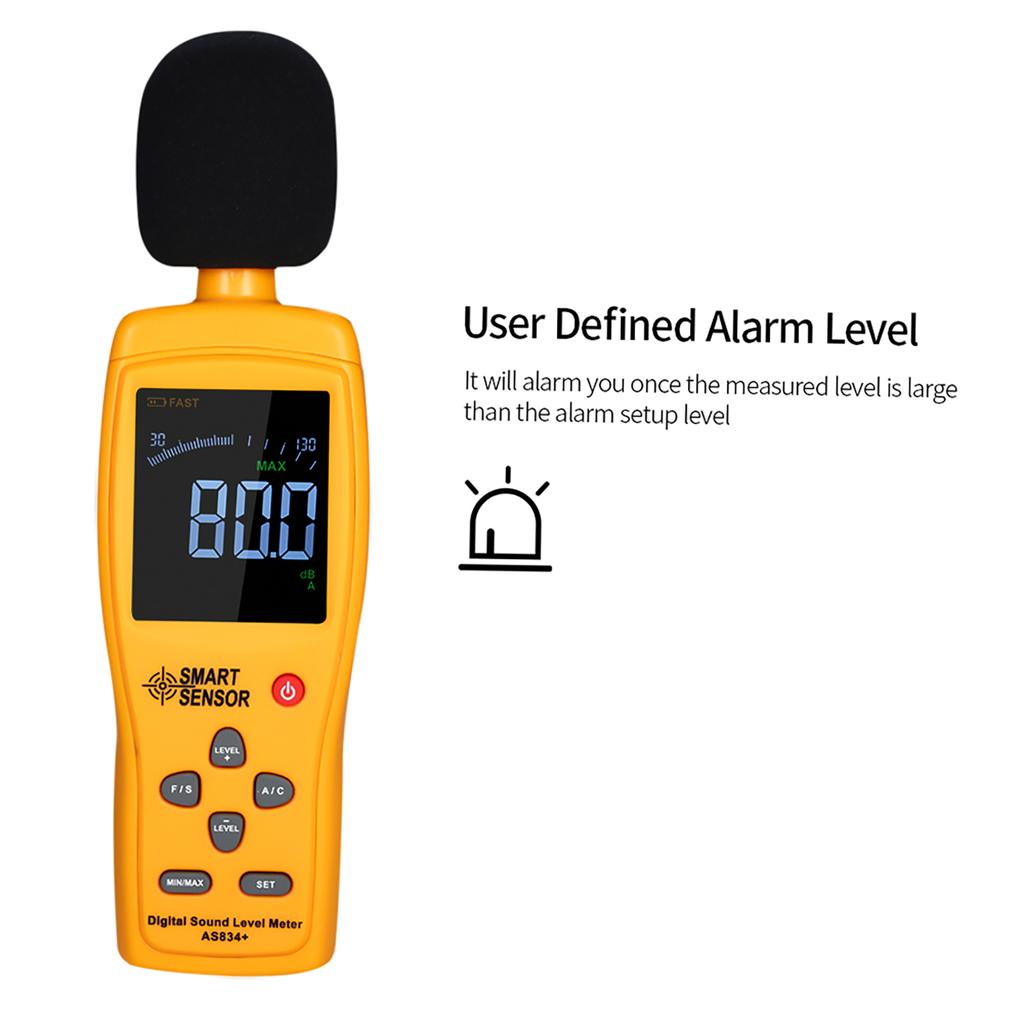

3. With maximum minimum value measurement. 90 130dB alarm level setup range, it will hold the maximum value once the measured level is large than the alarm setup level.
4. Low battery indication, automatic and manual power off function. Equipped with sponge ball and a storage pouch. Compact and light, convenient to hold and carry.

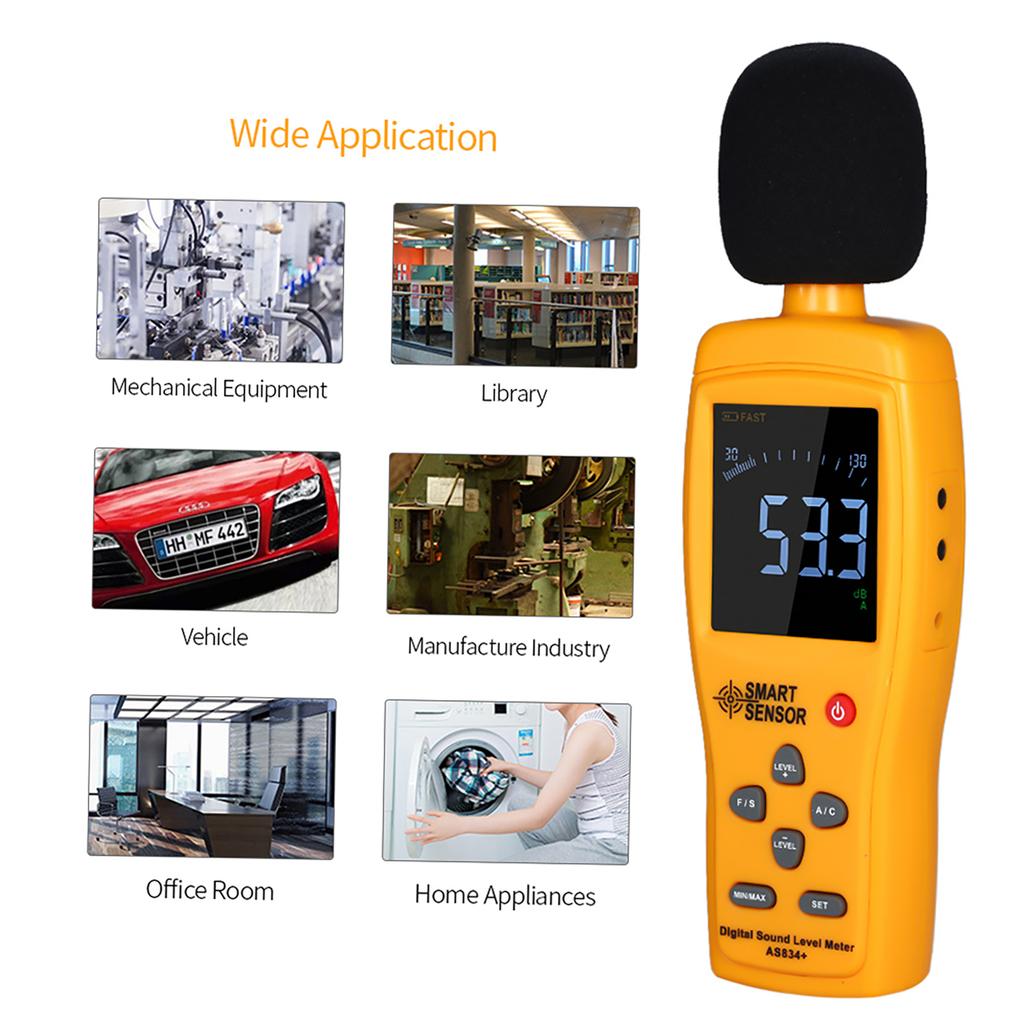

5. Portable and easy to use, suitable for checking, monitoring or controlling the sound level for personal, families, business, studies, industrial, etc.
Specification:
Specifications:
Material: ABS
Accuracy: + 1.5dB (at the calibration point, 94dB@1KHz)
Frequency Response: 31.5Hz 8.0kHz
Dynamic Range: 50dB
Measure Range: 30 130dBA, 35 130dBC
Frequency Weighting: A weighted and C weighting
Digital Display: 4 digit
Resolution: 0.1dB
Sampling Speed: 2 time per second
Analog Bar Graph: One bar is 1dB, sample rate is two times per second
Overload Alert: OVER or UNDER to show the stage
AC Signal Output: 0.707V rms at FS, output impedance approx. 600ohm
DC Signal Output: 10mV dB, output impedance approx. 100ohm
Time Weighting: Fast Slow

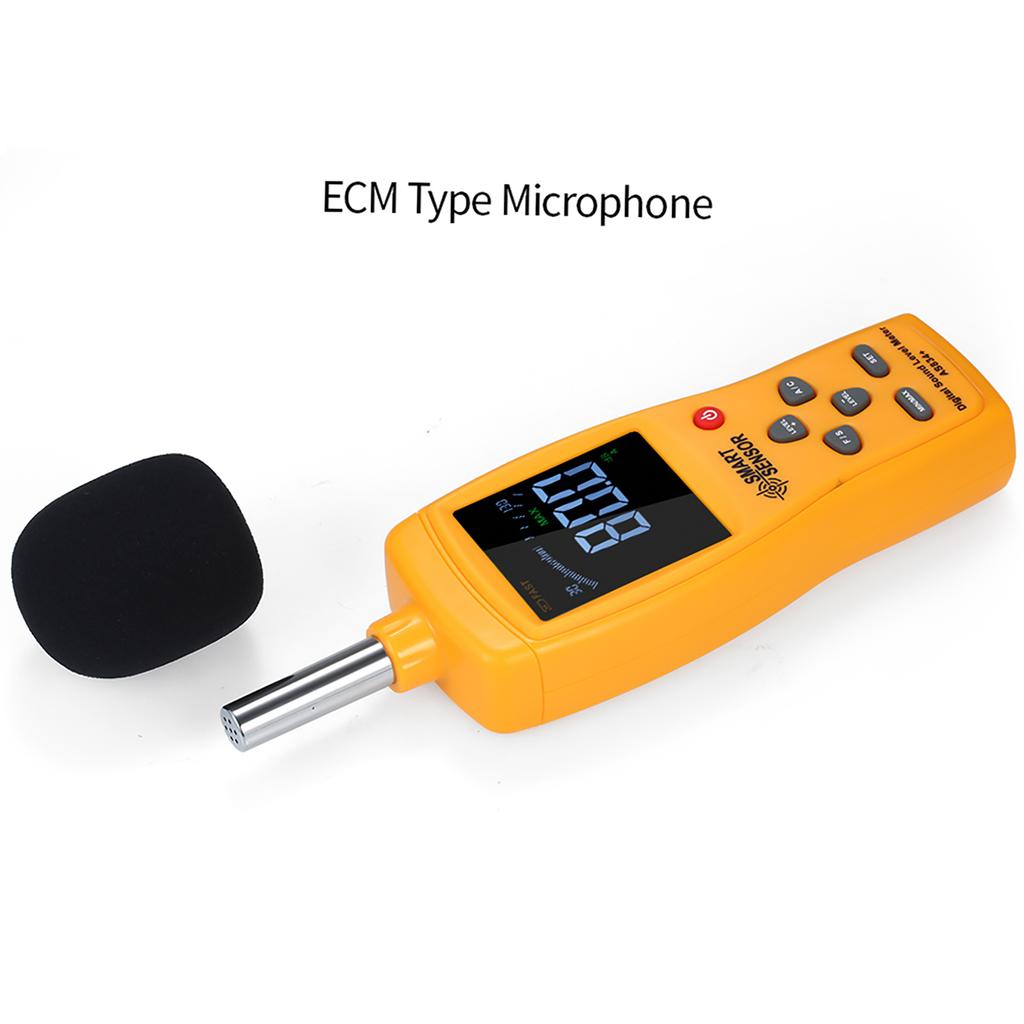

Microphone: 1 2 inch ECM type microphone
Operating Temperature and Humidity: 0 40 celsius , 10percent 80percent RH
Storage Temperature: 10 60 celsius , 10percent 70percent RH
Power Supply(NOT included): 1 * 9V 6F22 battery or 9V 100mA DC adapter
LCD Size: 52 * 43mm 2.05 * 2.01in
Item Size: 221 * 66 * 32.5mm 8.70 * 2.60 * 1.28in
Item Weight: 200g 7.06oz
Package Weight: 261g 9.23oz
Package Size: 24.5 * 9.2 * 5.2cm 9.65 * 3.62 * 2.05in
.

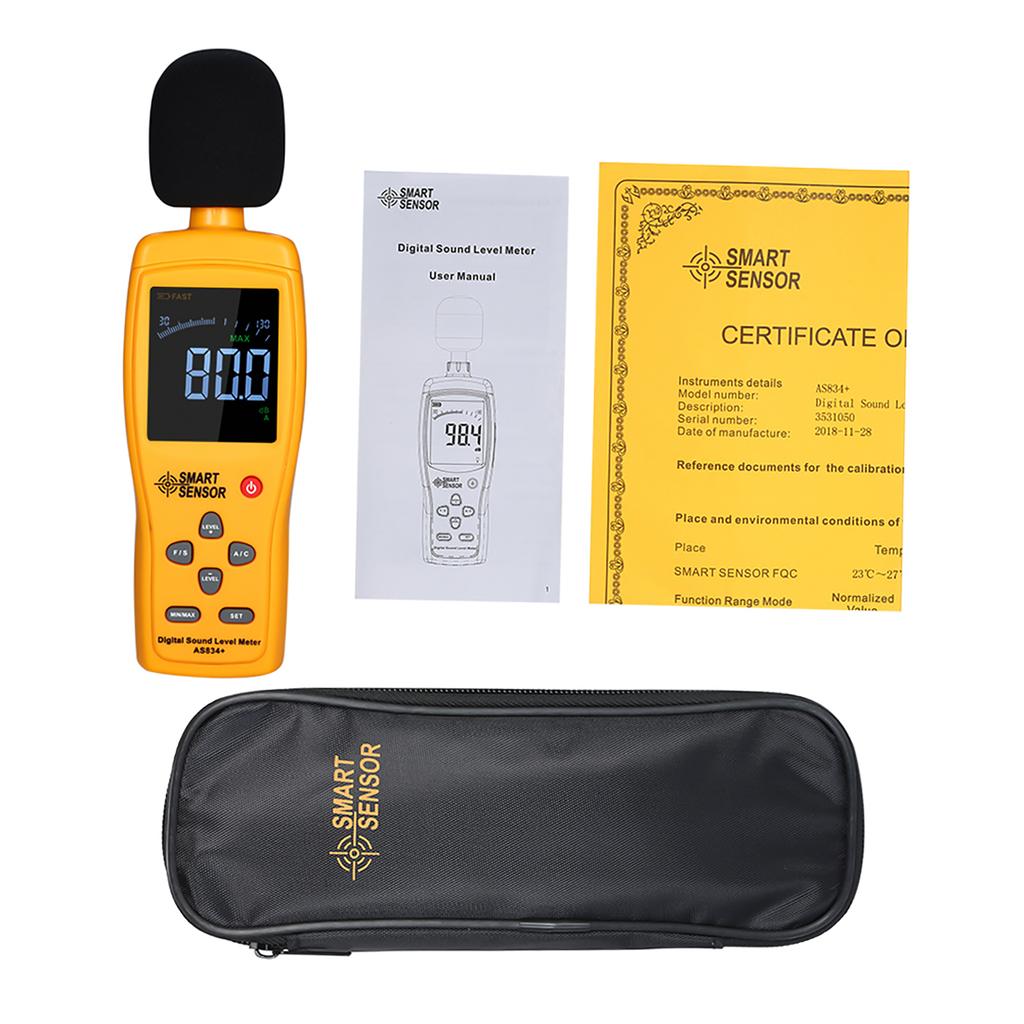

Package List:
1 * Sound Level Meter
1 * Storage Pouch
1 * User Manual(English)
Note:
When measuring the noise in outdoors, please put a sponge ball on the microphone head to prevent the microphone from being blown directly to cause airflow noise.
