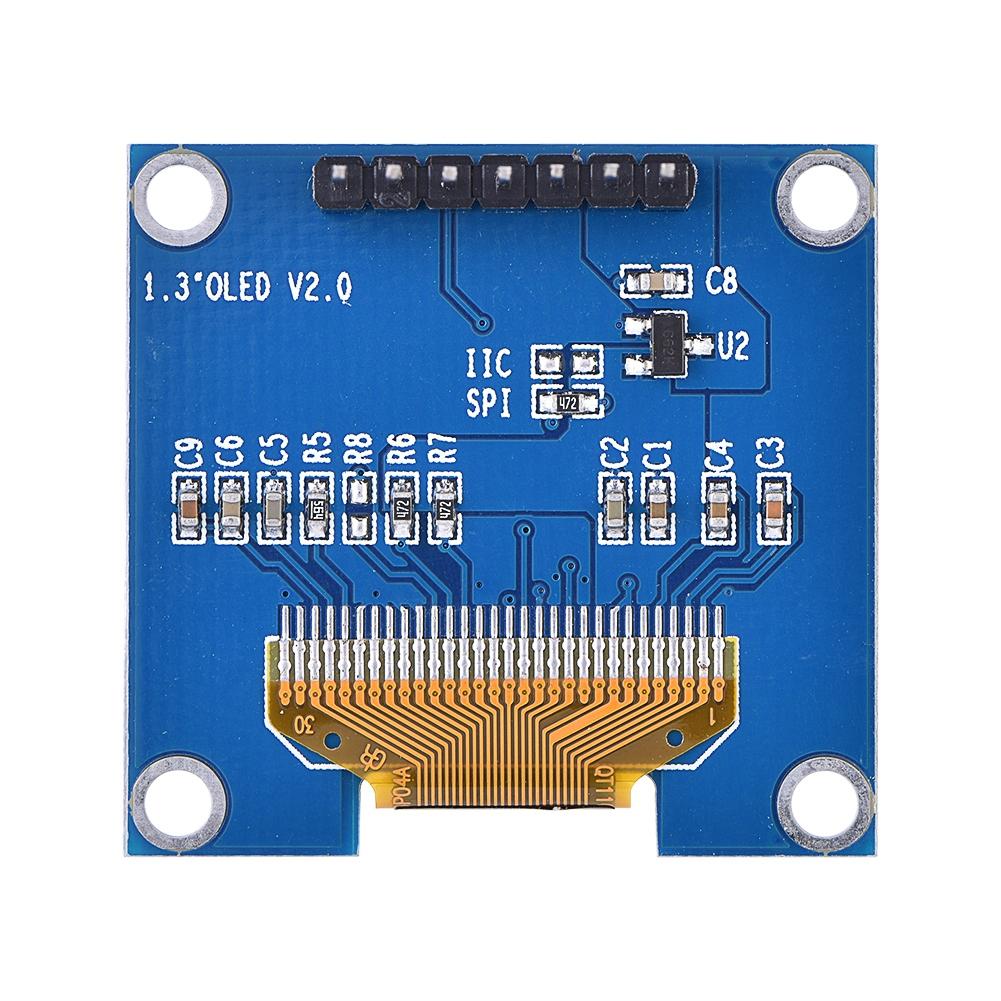

1.3 Inch IIC Serial 128 X 64 OLED 12864 Screen Display Module SSH1106

Description: This OLED display module is made of 128x64 OLED pixels, diagonal is only 1.3 inch.The controller ic SSH1106, communicates via IIC 4 wire serial interface. The power consumption is ultra low due to no backlight needed. Features: No backlight needed, the display unit can emit light. High resolution: 128 * 64 (same as the LCD12864, but this product s sharp is more intensive). Wide voltage support: no need to modify, direct support 3.3V 5V DC. The display has high contrast, extremely wide viewing angle and extremely operating temperature. Ultra low power consumption: The display makes its own light, no backlight is required, which will reduce the power required to run the OLED. So the power consumption is ultra low (far lower than TFT, LCD and other technologies). Specifications: Size: 1.3 inches Control chip: SSH1106 Resolution: 128 * 64 Display area: 29.4 * 14.7 mm 1.16 * 0.58in Physical size: 35.4 * 33.7 mm 1.39 * 1.33in Interface type: 4 wire Serial Peripheral Interface, IIC interface Number of pins: 7pin Operating temperature: 40 70 celsius Working voltage: 3.3 5V Package weight:15g Package List: 1 x 1.3inch OLED display
