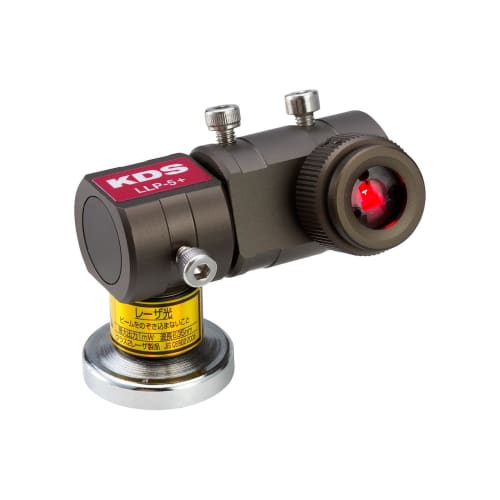

Muratec KDS Line Laser Projector LLP-5+ LLP-5+

Our store offers a curated selection of genuine Japanese products. You can shop with complete peace of mind knowing that all our items are authentic. Please note that the instructions and manual for this product may only be available in Japanese.

1. KEY FEATURES: - Marks for cutting plasterboard, wood, etc. - Alignment guide - Position indication during machine installation - Inclined (diagonal) mounting - 【accessories】

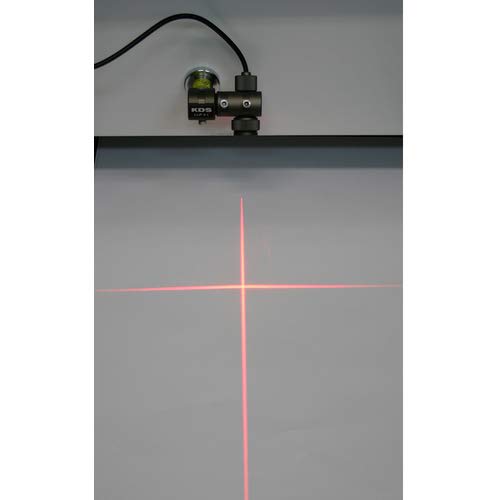

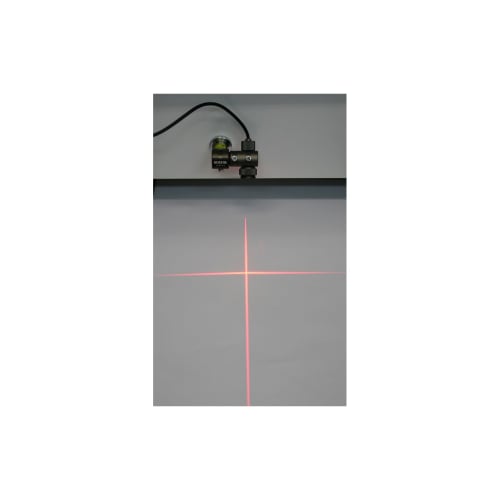

2. PRODUCT DESCRIPTION: •Display guidelines with laser in places where marking is not possible •Irradiation is possible in all directions at three rotating parts (up and down, left and right, angle) •With magnetic pedestal •Light source: 635nm red semiconductor laser •Light output: 1mW or less •Laser class 2 (JIS C 6802:2005) •Laser irradiation angle: Approx. 130° •Line accuracy: ±1mm/5m (linearity)•Adjustment range: 360°, fine adjustment possible all around the top, bottom, left and right •Operating range: Max. 10m •Power source: AC adapter.Cannot use batteries - Operating temperature range: -5℃~+45℃ - Line width: Approx. 2mm/5m (approximately 2mm at the center, approx. 1mm at the ends) *This device has a structure that stretches the laser point and irradiates, so the irradiated center point is the largest and becomes thinner towards both ends. *Only the crosshair will be irradiated (switching to straight lines only is not possible)

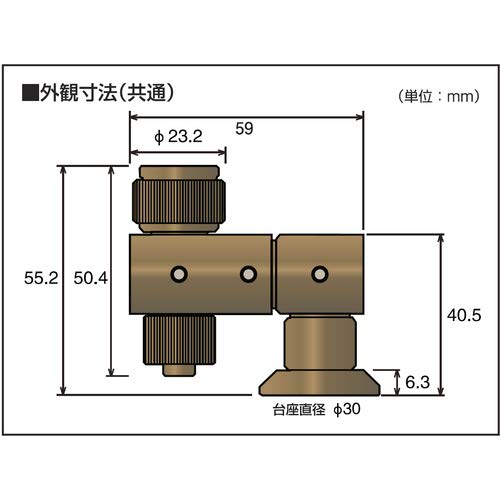

3. PRODUCT DIMENSIONS & WEIGHT: - Weight: 0.32 kg - Dimensions: 10.2 x 8.0 x 6.6 cm

4. SPECIFICATIONS:
