1. KEY FEATURES:
- 40KG Digital RC Servo - DS3240 Full Metal Stainless Gear 40kg Digital RC Servo 180 Degree.High control accuracy, excellent linearity, and fast response.Operating voltage: 4.8 ~ 6.8 DC Volts---Stall torque (5V): 36kg/cm; Stall torque (6.8V): 45kg/cm ----Speed: 0.2 seconds/60°(5V) / 0.17 seconds/60°(6.8V)---Dead band: 3μs---Control angle: 180 degrees (500-2500μs).
- Wide Application - Widely used in RC planes, helicopters, fixed wings, quadcopters, aircraft, cars, gliders, climbing cars, boats, robot arms and other DIY electronic projects, etc.Also perfectly fit for 1/8 1/10 Baja Crawler RC Car Buggy Truck etc.

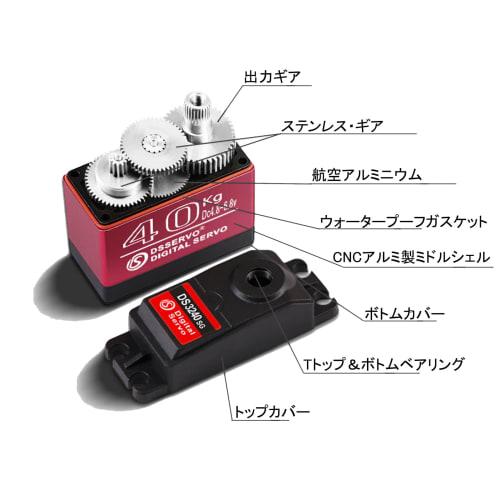

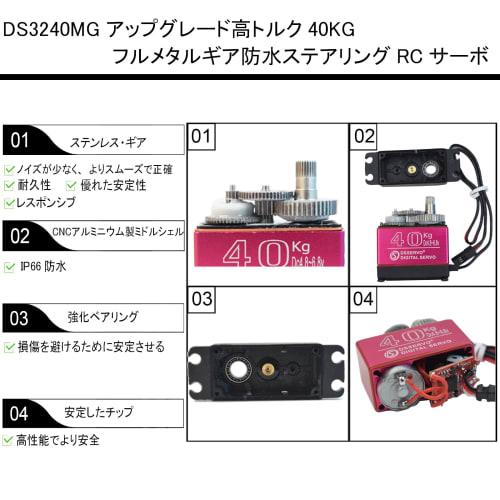

- High Quality and Performance - Equipped with high precision stainless steel gear and potentiometer, high resolution digital chip and waterproof rubber seal screw.CNC aluminum middle shell.Low noise, high control precision, excellent linearity, fast response, smooth, stable, low wear and long service life.

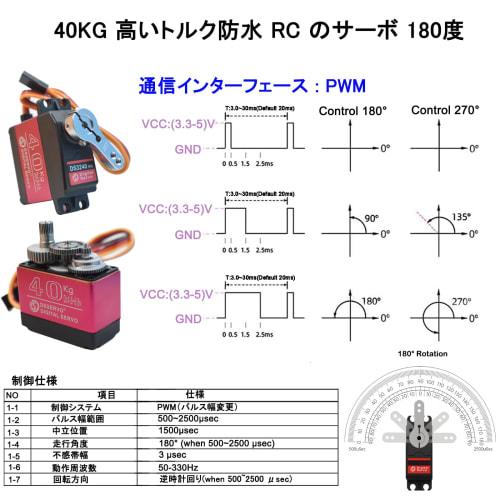

- PWM Control System - Controlled by a pulse width modulation system.Pulse range is 500μs-2500μs.When the pulse width is 500μs-2500μs, the control angle is 180 degrees.Therefore, make sure that the pulse width of the controller reaches 2500μs.

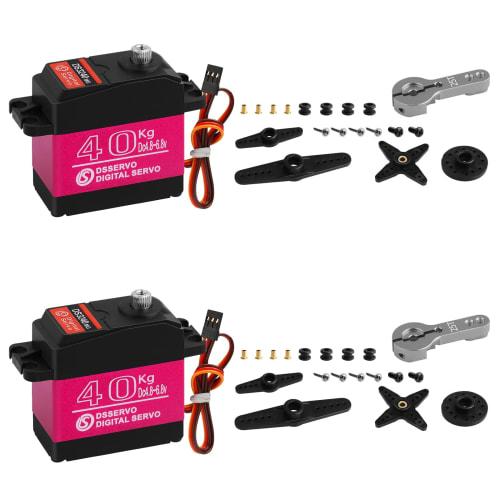

- Package Includes - 2X DS3240MG 40KG Large Torque Digital Servo 180 Degree, 2X 25T Adjustable Metal Servo Arm, 2X Accessory Bag.
2. PRODUCT DESCRIPTION:
Product Description HOOYIJ 2Pcs High Torque 40KG Digital RC Servo, DS3240MG Stainless Steel Full Metal Gear Waterproof Steering RC Servo Compatible with 1/8 1/10 Scale Baja RC Car Crawler Buggy Truggy Robot Boat Airplane Control Angle 180° Description[Wide Application]--Widely used in RC airplanes, helicopters, fixed wings, quadcopters, aircraft, cars, gliders, climbing cars, boats, robot arms and other DIY electronic projects, etc.Also perfectly fit for 1/8 1/10 Baja crawler RC car buggy truck etc.[High Quality and Performance]--Equipped with high precision stainless steel gear and potentiometer, high resolution digital chip and waterproof rubber seal screw.CNC aluminum middle shell.Low noise, high control precision, excellent linearity, fast response, smooth, stable, low wear and long service life.[PWM control system]--Controlled by pulse width modulation system.Pulse range is 500μs-2500μs.When the pulse width is 500μs to 2500μs, the control angle is 180 degrees.Therefore, make sure that the pulse width of the controller reaches 2500μs.Features: - High precision metal gear with hard anodized - CNC aluminum middle shell - Waterproof rubber seal screws Specifications: Model: DS3240MG Stall Torque (5V): 36kg/cm Stall Torque (6.8V): 45kg/cm Dead Band: 3μs Control Angle: 180 Degree Pulse: 500us-2500us Speed: 0.2sec/60°(5V) / 0.17 sec/60°(6.8V) Operating voltage: 4.8 ~ 6.8 DC volts Weight: 60 g (2.12 oz) Motor type: DC motor Gear type: Copper and aluminum Operating frequency: 1520μs / 333hz CE certification: Yes RoHs: Yes Wire length: 17.7 inches(45cm) Size: 40 x 20 x 40.5 mm (1.58 x 0.79 x 1.60 inch) Package Content: 2 X DS3240MG 40KG Large Torque Digital Servo 2 X 25T Adjustable Metal Servo Arm 2
3. PRODUCT DIMENSIONS & WEIGHT:
- Weight: 0.17 kg

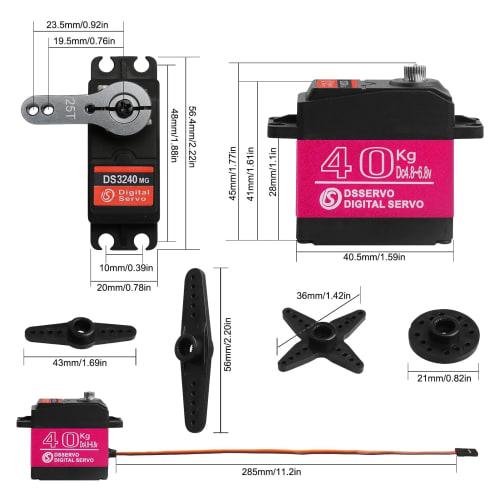

- Dimensions: 14.3 x 11.1 x 2.3 cm
4. SPECIFICATIONS:
