【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------
Supports Wi-Fi 6 for more stable and faster communication.
With OFDMA, which is strong for connecting multiple devices, 1024QAM, which increases the amount of transmitted information, MU-MIMO*, which allows multiple devices to be connected simultaneously, and TWT, which extends the life of smartphones, you can achieve smooth communication without stress even when connecting many devices. *Only supports downlink.

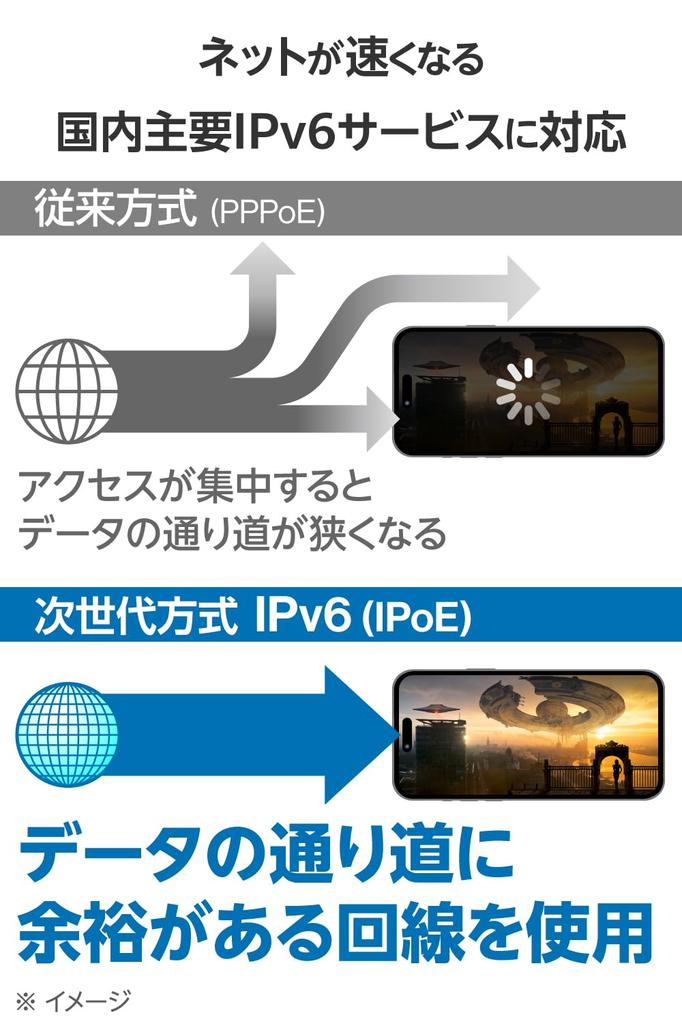

It supports IPv6 IPoE Internet connection, which is less likely to be congested, allowing for smooth communication.

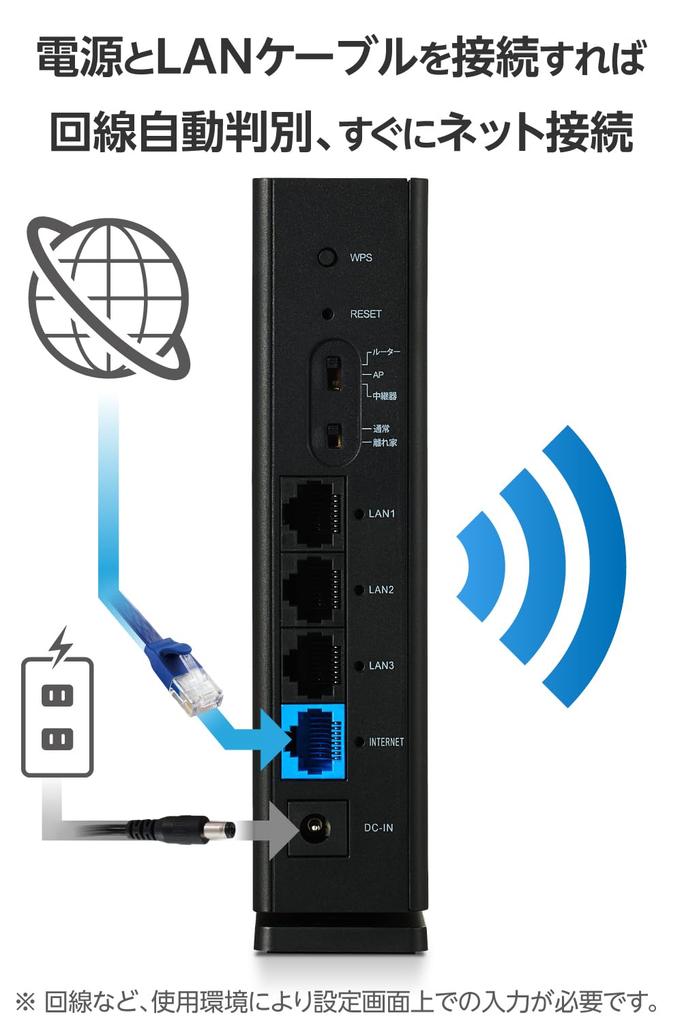

If you have an IPv6 IPoE Internet connection, you can start using the Internet immediately by simply connecting a LAN cable to the Internet port.
Compatible with 4K TVs. The 5GHz band is resistant to radio interference and boasts a maximum theoretical speed of 1,201Mbps, while the 2.4GHz band, the more common band, boasts a maximum theoretical speed of 574Mbps, allowing you to enjoy high-speed internet access and watching videos on your TV.
If automatic detection of your Internet connection fails, try manual configuration.
If communication is unstable, try restarting your router or checking your Wi-Fi environment.
If your provider does not support IPv6 (IPoE) or if your router is not properly connected to the WAN, automatic Internet detection may fail.
【 specification 】
■ Supported OS (Windows): Windows 11/10
■Supported OS (Mac): macOS Sequoia 15/macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12/macOS Big Sur 11
■ Compatible OS (iOS): iOS 18/17/16/15
■Supported OS (iPadOS): iPadOS 18/17/16/15
■ Compatible OS (Android): Android 15/14/13/12/11/10
■Browsers compatible with the setup tool: Microsoft Edge, Google Chrome, Safari *Only initial settings (Internet connection settings) using the standard web browser are supported.
■ Compatible devices (wireless LAN): iPhone series, iPad series, Android devices, various game consoles (Nintendo 3DS series, PlayStation(R) Vita series, PlayStation(R) 5/4, NINTENDO SWITCH(TM)), various wireless LAN-equipped devices
■Wired standards: IEEE 802.3ab (1000BASE-T), IEEE 802.3u (100BASE-TX), IEEE 802.3 (10BASE-T) compliant
Wired connectors: WAN: RJ-45 type x 1 port, LAN: RJ-45 type x 3 ports *All ports support Auto MDI/MDI-X and Auto-Negotiation
■Wired transmission speed (WAN): 1000Mbps, 100Mbps, 10Mbps
■ Wired transmission speed (LAN): 1000Mbps, 100Mbps, 10Mbps
■ Wired settings (WAN): Automatic IP address acquisition, PPPoE authentication (1 session), fixed IP address, IPv4 over IPv6 (MAP-E), IPv4 over IPv6 (DS-Lite), IPv4 over IPv6 (IPIP), SLAAC, DHCPv6-PD
■ Wired settings (LAN): DHCP server, fixed DHCP assignment (maximum 20 entries)
■Hardware NAT: Supported
■Children's Internet Timer: Compatible with Children's Internet Timer 3
■Beamforming function: Beamforming Z compatible *The connected device must also be compatible with beamforming.
■MU-MIMO function: Supported (Down link only) *The connected device must also be MU-MIMO compatible.
■Multiple SSIDs: Supported (2.4GHz: up to 3, 5GHz: up to 2, up to 5 in total)
■ Separator function: Supports SSID separator and privacy separator
■Other wireless functions: Security Wi-Fi, Friend Wi-Fi, SSID stealth setting, automatic channel setting, radio wave output setting, WPS, band steering, easy moving function
■ Number of connected devices: Recommended: 26

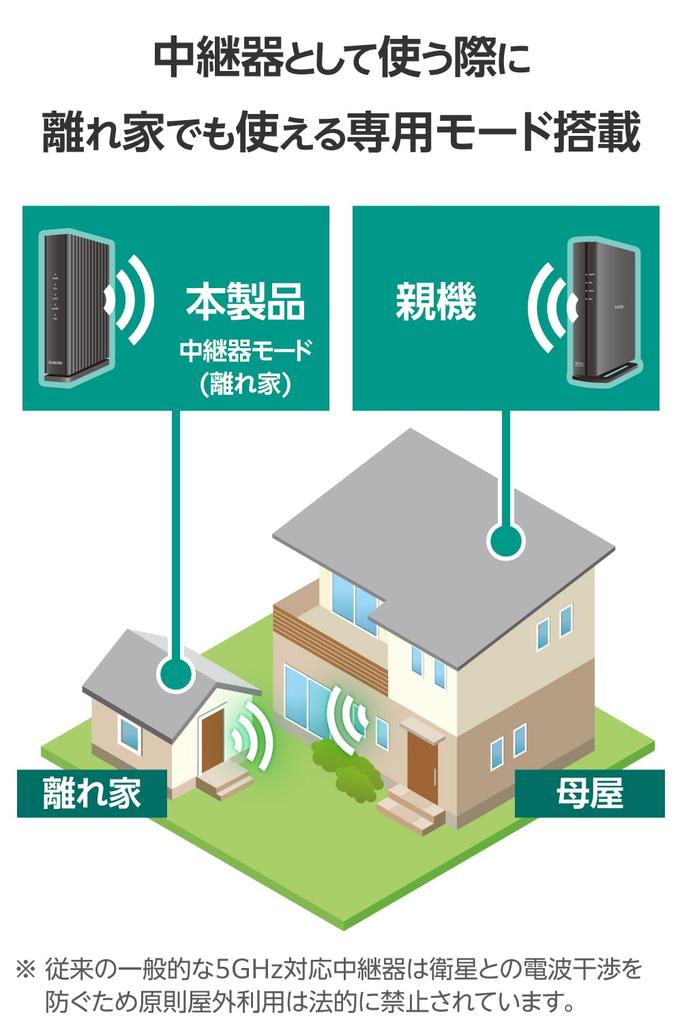

■Installed modes: [Operation mode] Router/AP (access point)/repeater, [Outhouse mode] Normal/Outhouse
■ Antenna (number): Built-in type (5GHz: 2 transmit x 2 receive, 2.4GHz: 2 transmit x 2 receive)
■ Supported protocols: TCP/IP (IPv6, IPv4)
■Supported IPv6 IPoE services: v6 Plus, IPv6 Option, OCN Virtual Connect, transix, Cross Pass, v6 Connect, OCX Hikari Internet
■USB port: None
■Automatic FW update: Supported
■ Additional services: None
■Other functions: SPI, DoS attack defense, rejection of settings from the Internet/rejection of Ping responses, DMZ support, UPnP (*1), MTU setting, NTP client, IPsec pass-through (*2), PPTP pass-through (*2), automatic line detection function, access control support (up to 20 entries), IPv6 bridge support, ALS function
■Other features (notes): *1 Available in IPv4 router mode (automatic IP address acquisition, manual IP address configuration, PPPoE) and IPv4 over IPv6 (IPIP). *2 Not available when using the IPv4 over IPv6 service.
Input voltage: AC100V±10% 50/60Hz
■Power consumption: 12.5W (maximum)
■External dimensions (W x D x H): W approx. 36.0 mm x D approx. 128.0 mm x H approx. 150.0 mm *Excluding protrusions and stand
■Weight: Approximately 400g (main unit only)
■Various standards acquired: VCCI Class B, TELEC, JATE, PSE
■Warranty period: 1 year
