【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
------------------------------------------------------------------------------------------------------------------

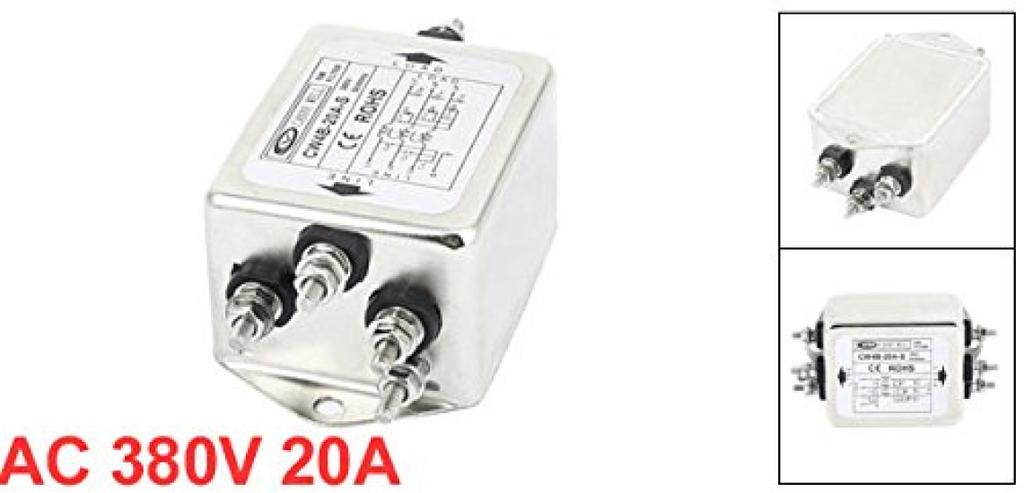

Product Name: EMI Filter; Model Number: C W4B-20A-S; Rated Voltage: AC 380V, 60/50Hz
Rated current: 20A, temperature: 40℃, terminal number: 6 pins
Terminal size: 8 x 3.8mm(L*D); Fixing hole diameter: 4.9mm; Fixing hole center distance: 75mm
Overall size (approx.): 95 x 52 x 38mm (L*W*T); Main material (exterior): Metal; Color: Silver tone, Black
Net Weight: 243g;Package Content: 1 EMI Filter
Description: Features: Metal case, compact design. Applications: Digital equipment, computers and peripherals, measuring instruments, factory automation equipment, office automation equipment (copying, faxing, etc.)
