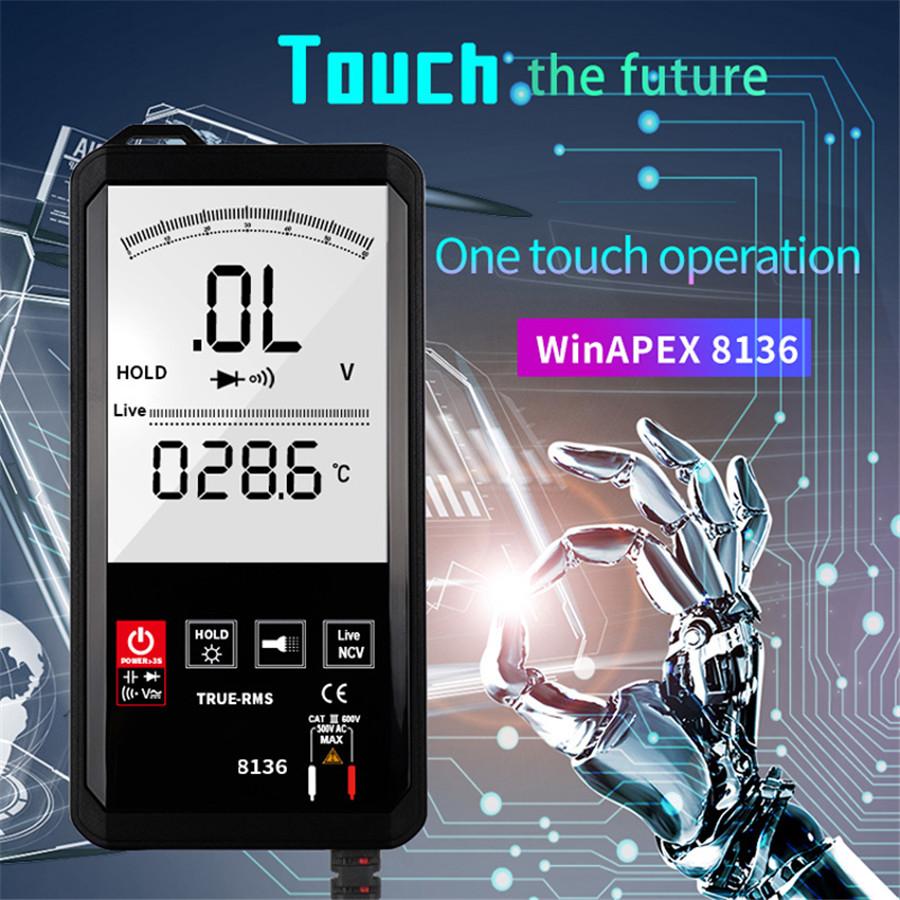

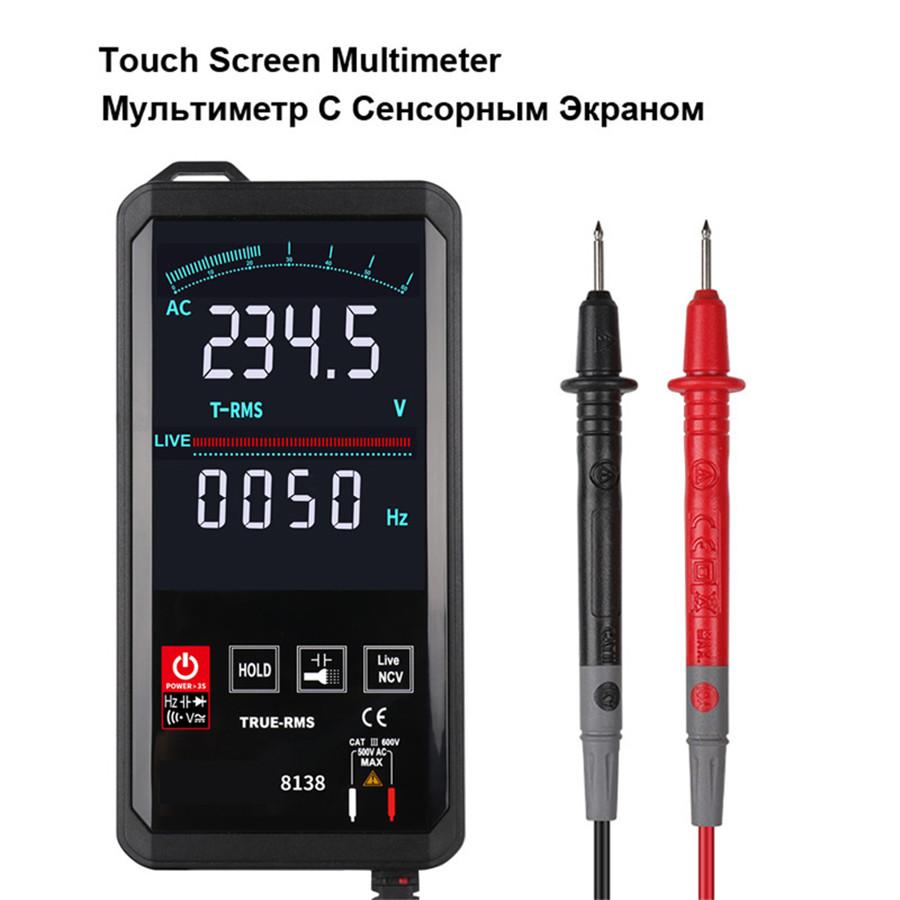

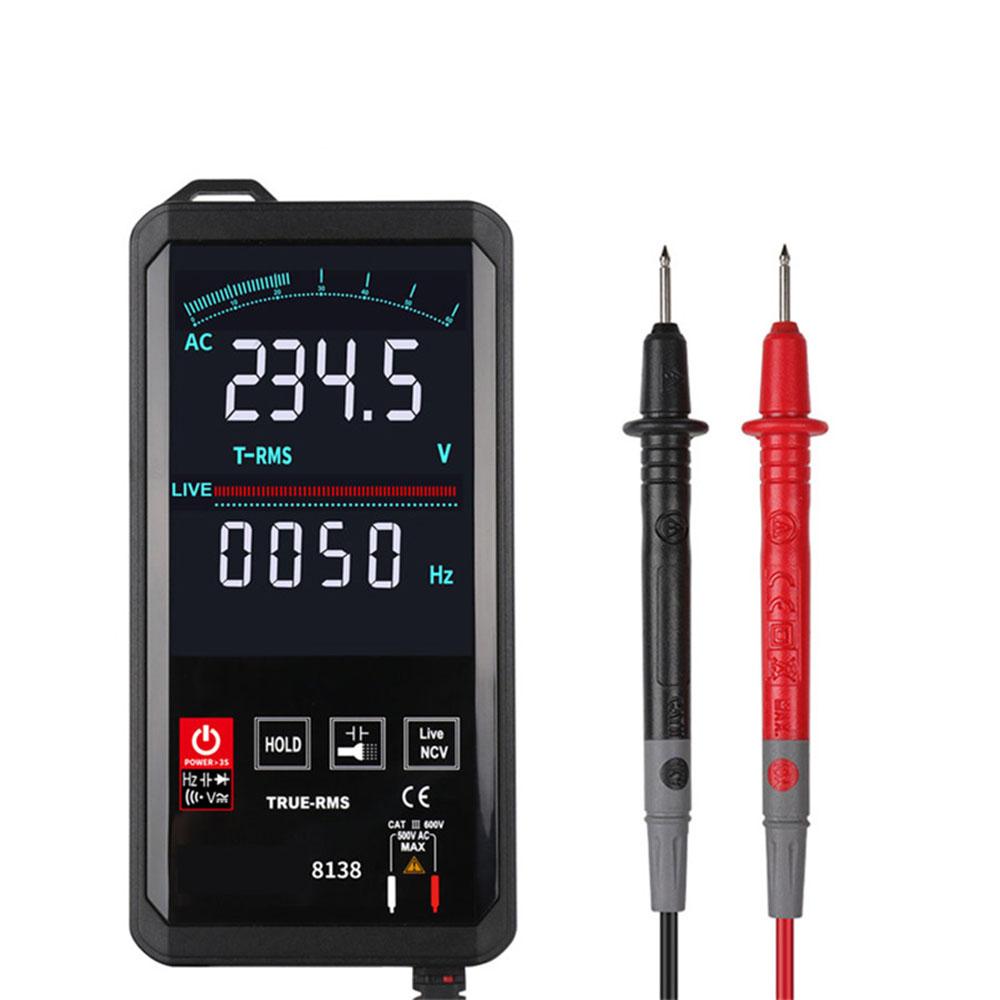

This a brand new multimeter with a color touch screen, the screen is triple display LCD; main display, sub display, analog bar; the interface is simplified, Automatic Identification Design is very convenient to use and operate, and the measurement accuracy is high; the multimeter is small in size and weighs only 175g, easy to carry.
This a multifunctional multimeter with advantages in one, it is the best choice for you to buy multimeter!!!

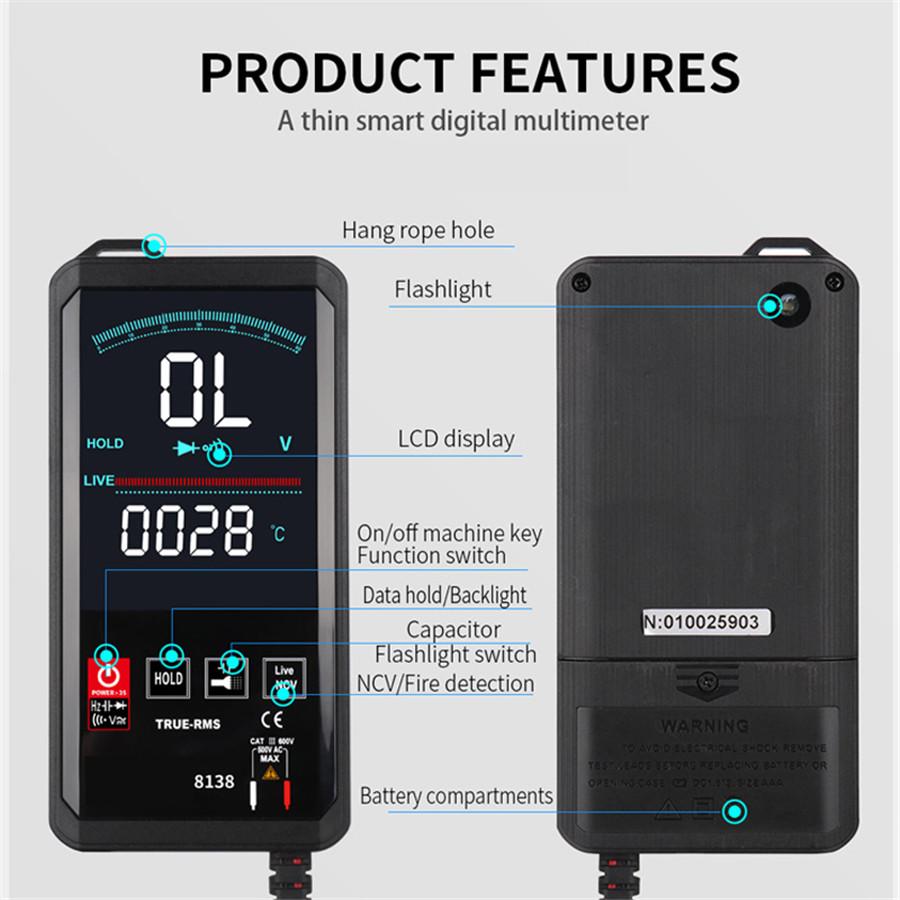

Characteristics:
1. General Characteristics:
1-1. Display mode: triple display LCD; main display, sub display, analog bar;
1-2. Maximum display: 5999 (5 5/6) bit automatic polarity display;
1-3. Measurement method: double integral A/D conversion;
1-4. Sampling rate: about 3 times per second;
1-5. Over range display: The highest position shows “OL”;
1-6.Continuous power operation function;
1-7. Low voltage display
1-8. Working environment：(0～40)℃，relative humidity＜80%;
1-9. Power: AAA 2* 1.5V battery;
1-10. Volume (size): 139×68×18mm (L×W×H);
1-11. Weight：about 175g;
2. Technical characteristics:
2-1. Accuracy: ±(a% of reading + least significant digit), to ensure accuracy Ambient temperature: (23±5)℃, relative humidity <75%
2-2. Performance (Note "▲" indicates that the meter has this function)
Function
DC voltage DCV ▲
AC voltage ACV ▲
Resistor / Diode / On-Off Test / Capacitor ▲
Frequency F ▲
Touch key ▲
Continuous power operation ▲
NCV ▲
Zero line / Fire line test ▲
Full unit symbol ▲
Backlight manual/Auto off ▲
True RMS measurement ▲
Temperature（℃/℉） ▲
Flashlight lighting ▲
Specification:
According 6000 (3 5/6)
Dc voltage 0V-1000V
Ac voltage 0V-750V
Resistance 10-6M0
Capacitance lnF-60mF
On and off the test 0.6V
NCV:√
Zero line of fire:√
No-operation shutdown:About 5 minutes
Backlight:√
Flashlight:√
Room temperature display:√

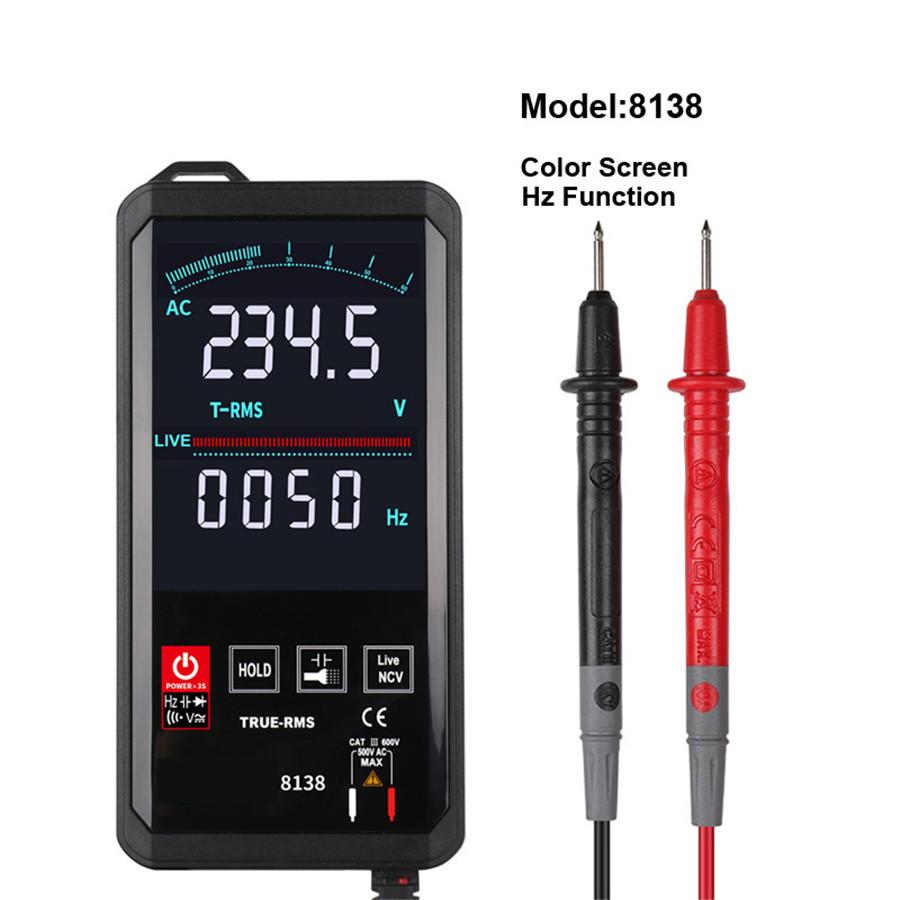

Frequency display:√
Color screen :√
Keeping data:√
Battery:AAA 2xl.5V(Not included)
Weight:173g (Net weight)
Size:133x67x12mm
Package includes:
1 X Digital Multimeter
(NOTE:For your safety and quickly receive the item, batteries are not included!!!)
