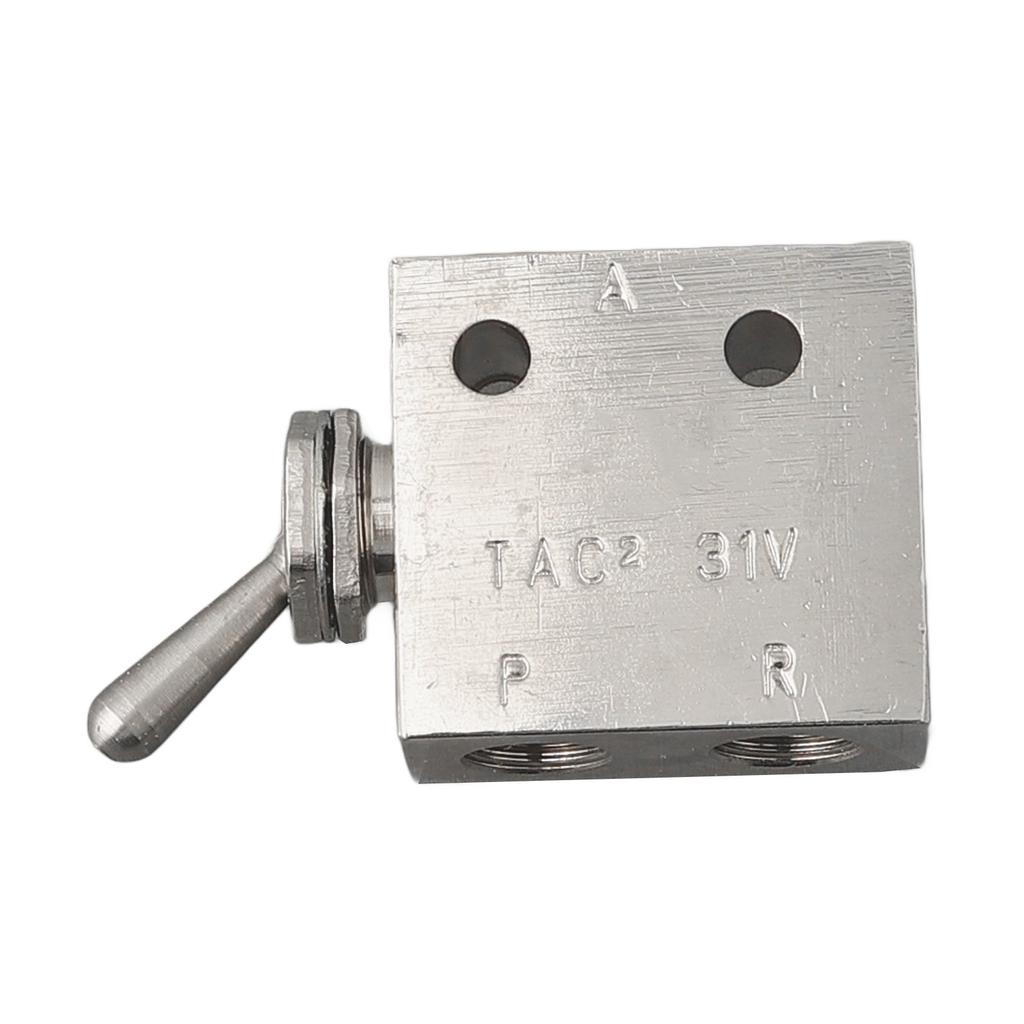

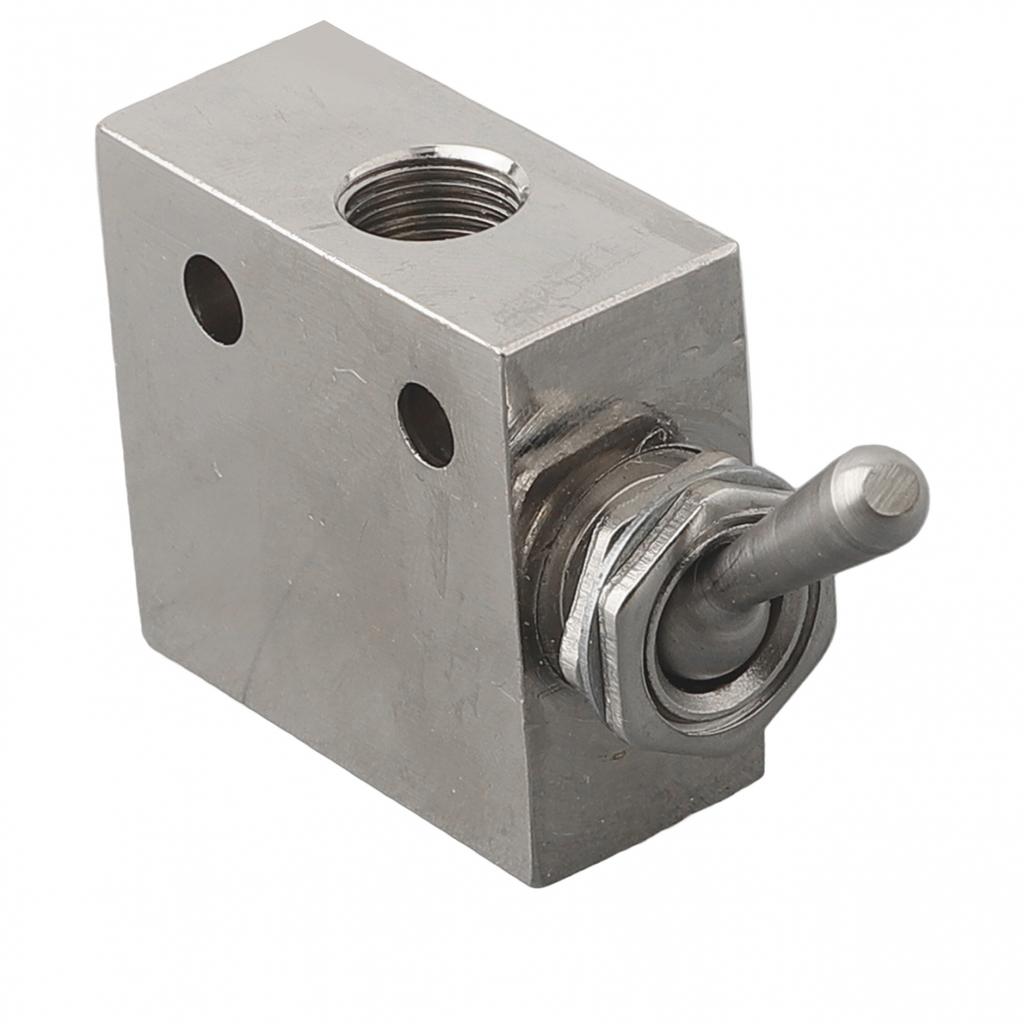

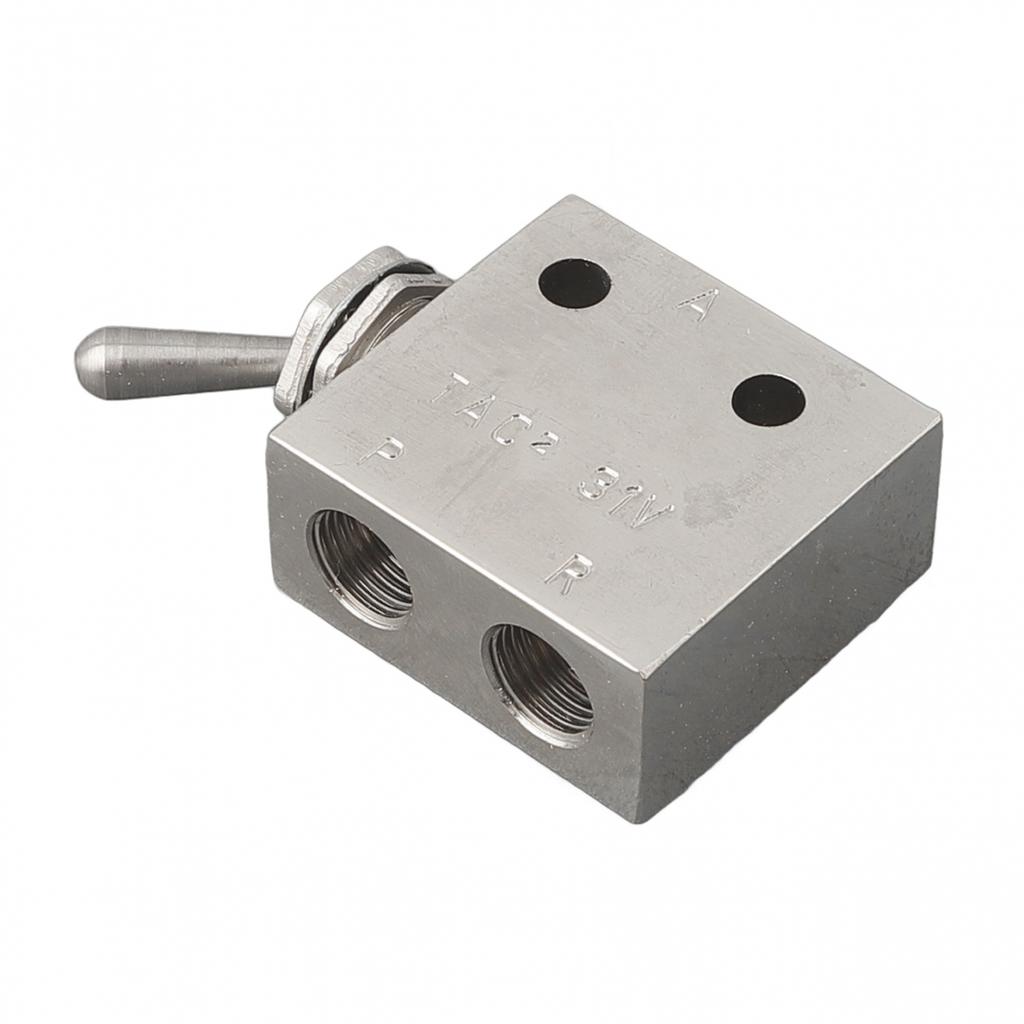

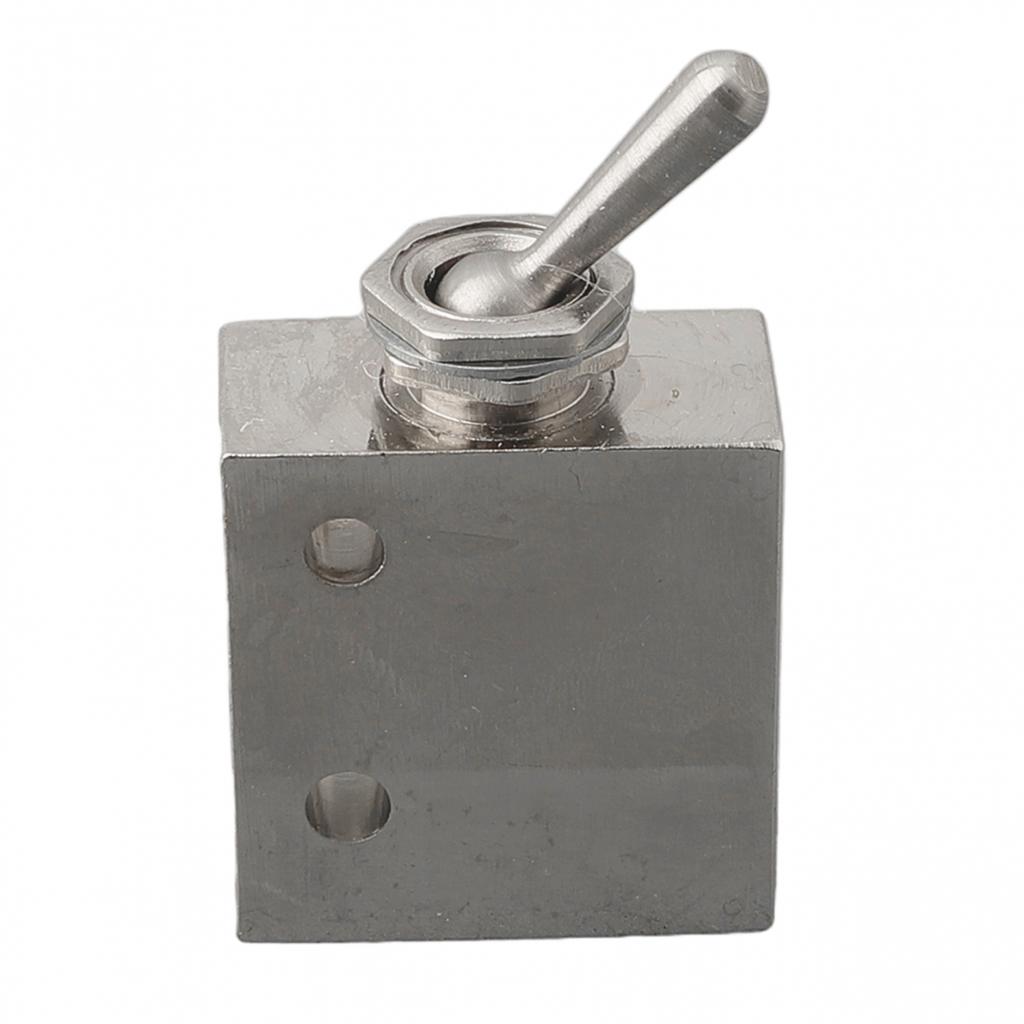

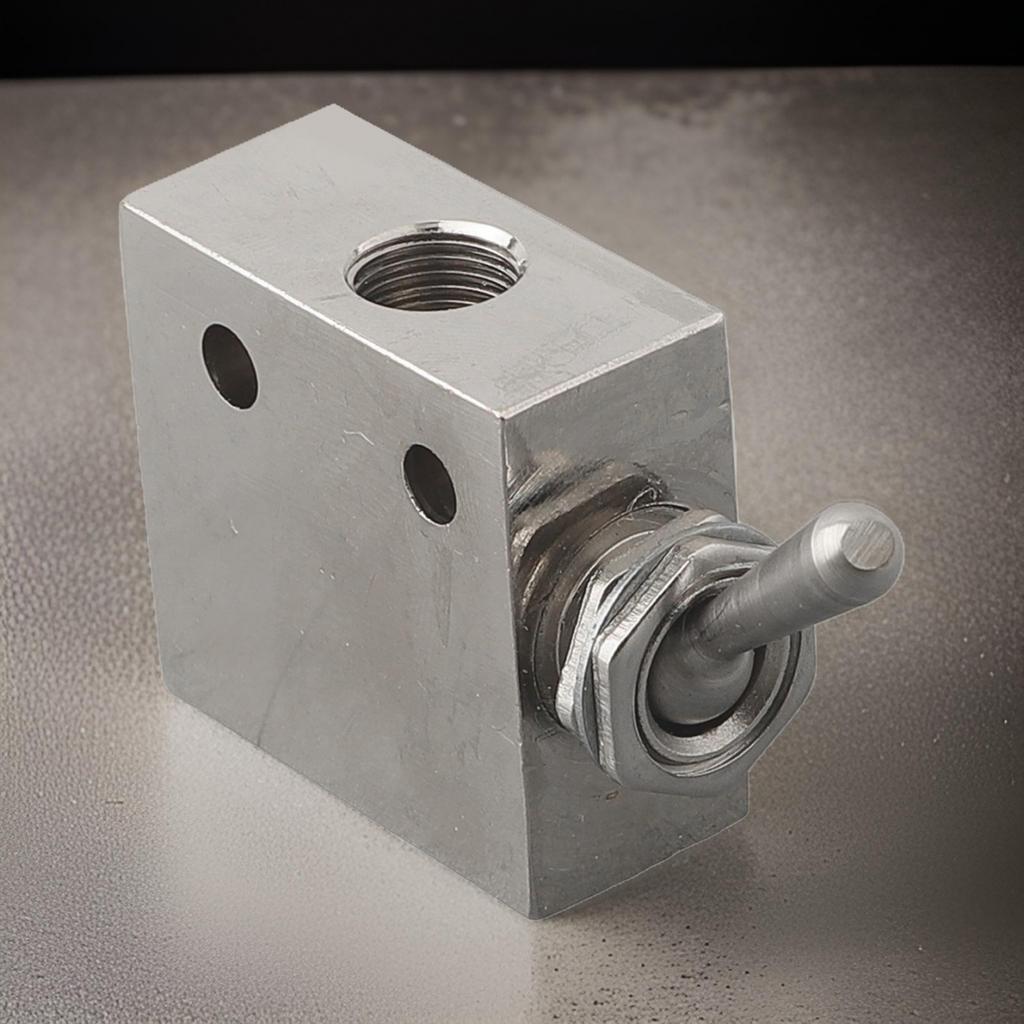

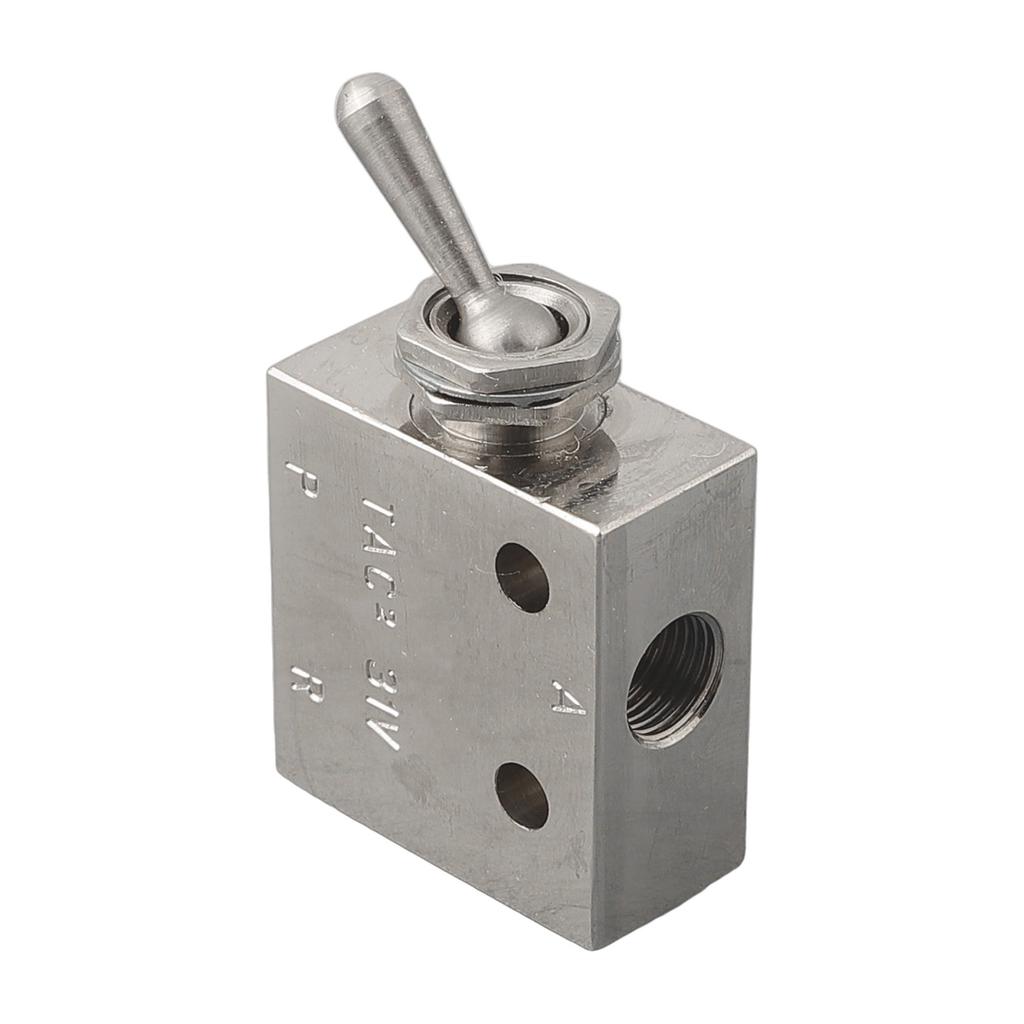

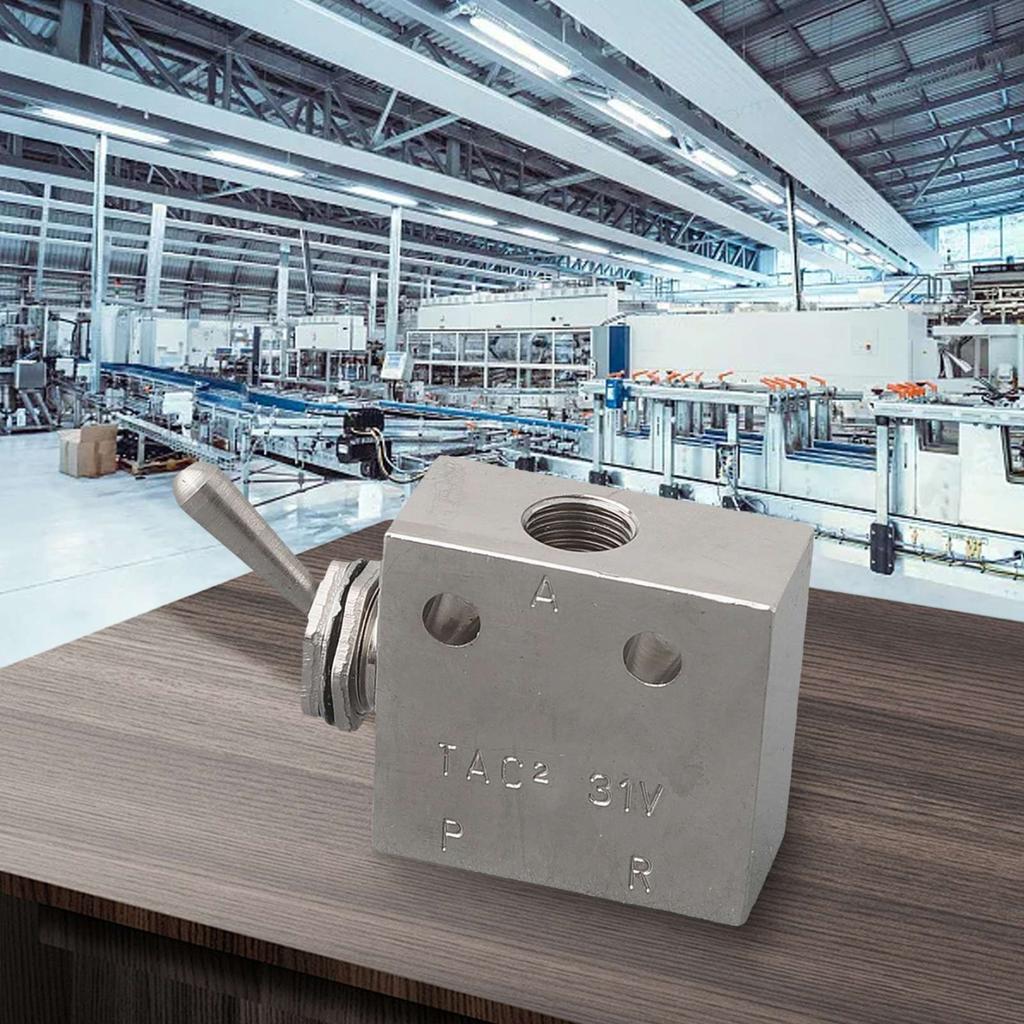

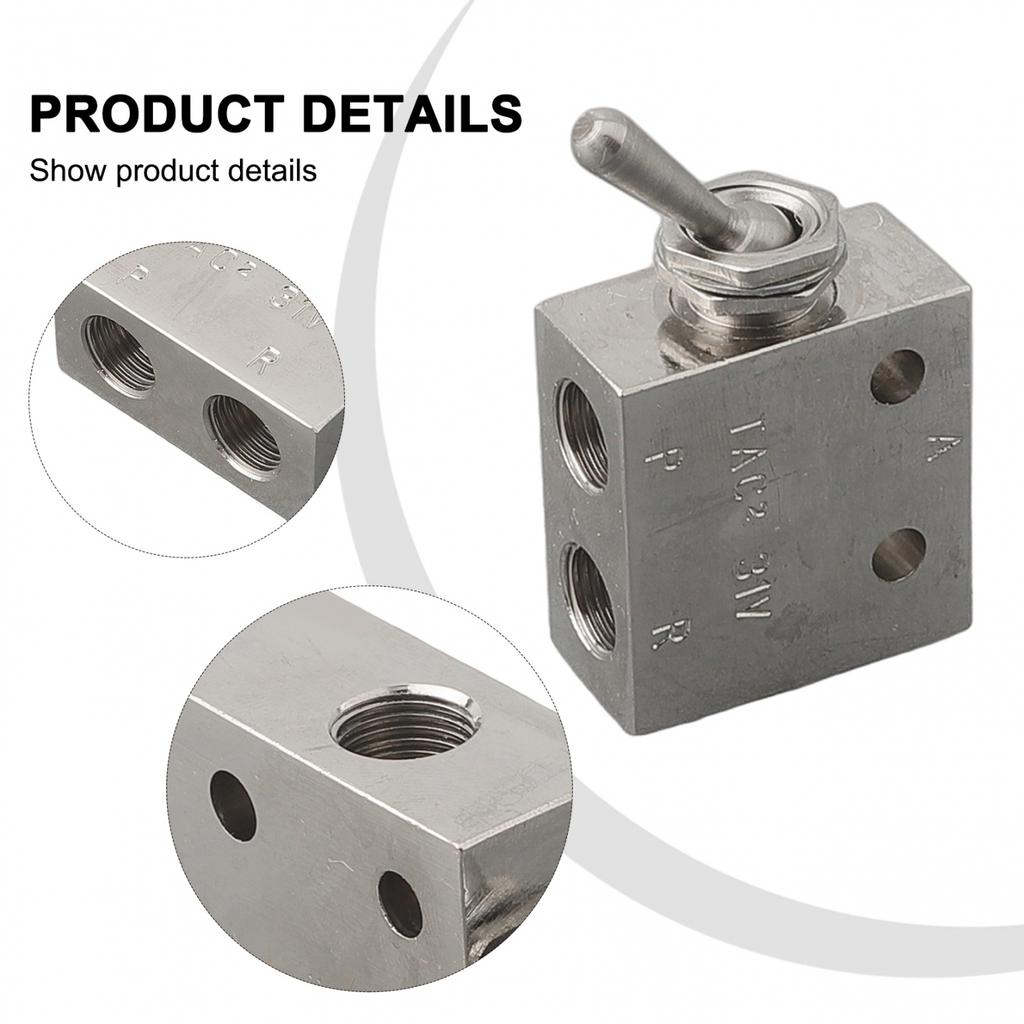

1.35MPa Pneumatic Valve 2 Position 3 Way NC/NO Common

Describe

for TAC is a small component for total air pressure control, and is a trade name named after the first letter of (Tiny Air Components for Total Air Control). The for TAC series iludes almost all small air valves and all peripheral components. It is possible to simplify the of the small cylinder and to construct a simple air control circuit.

Specifications: Product Name :Pneumatic Button Valve Model: TAC2-31V Type: 2 Position 3 Way

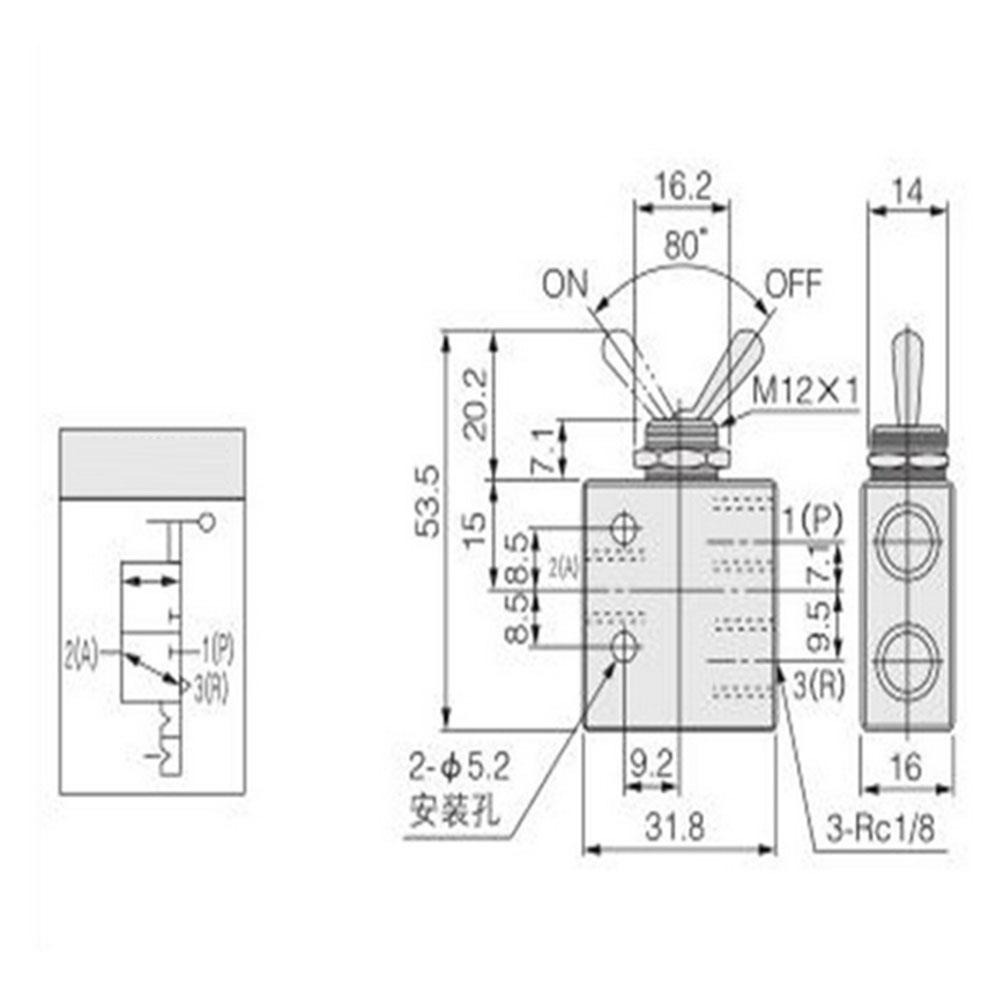

mode: Toggle lever, hold type Number of ports: 3-port /NO common type Size: as shown Use fluid: 0-0.9MPa Guaranteed pressure: 1.35MPa Use temperature range (environmental medium and use fluid): 0-60 ℃

for Sonic conduction C: 0.36 dm³/(s-bar) Effective flows area ( value): 1.8 (0.08) mm² Installation direction: Maximum operating frequey: 5Hz Filling oil: need Color: Silver Tone Material: Metal

Package Content 1* Pneumatic Valve
