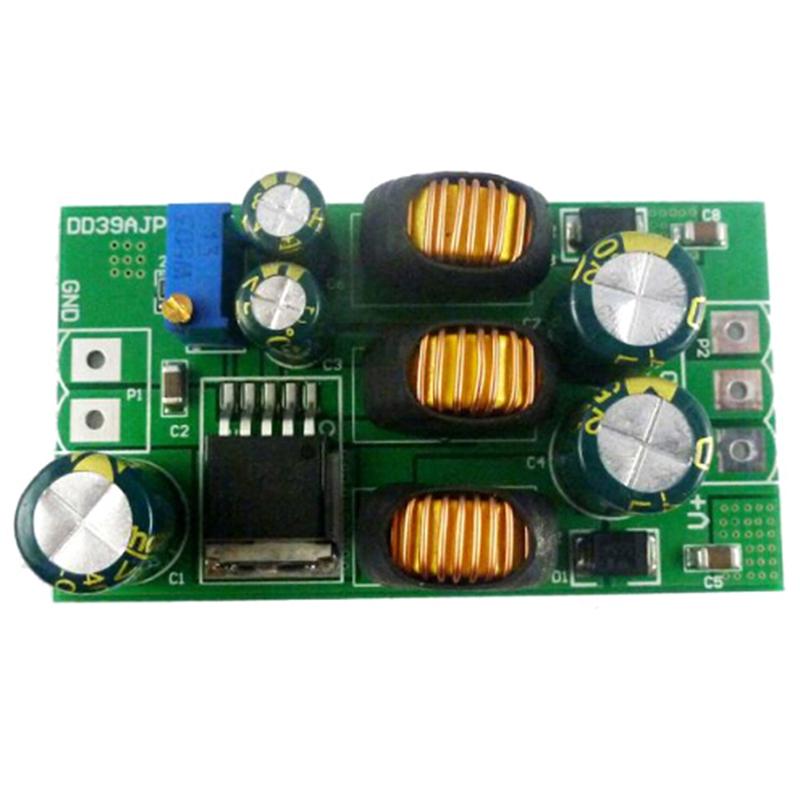

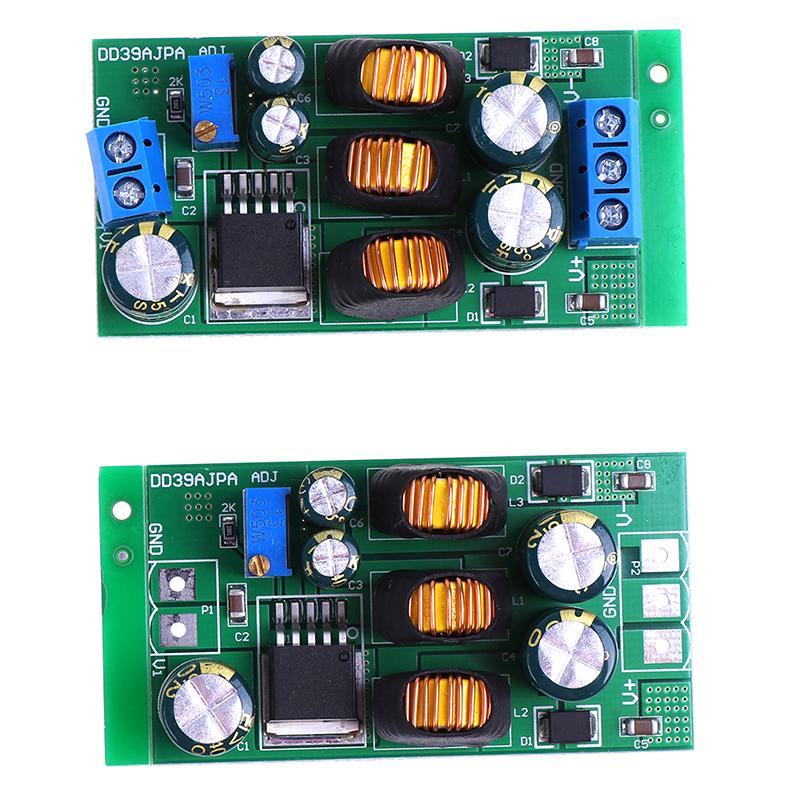

20W ±5V To ±24 Positive & Negative Dual Output Power Supply Boost Converter

Product Name: 20W +- 5-24V Positive & Negative Dual Output Power Supply Boost-Buck Converter Packing list: 1 PCS 20W DC DCStep-up/Step-down Converter Positive and negative voltage Dual voltage Module

Description: Input voltage 3.6~30V,output ±3~±30V adjustable Maximum output power: 20W (For details, please see the description at the bottom or ask us for information.) Conversion efficiency :69-89 Quiescent current: 3-4mA 20W DC-DC Boost-Buck Converter working frequency 180KHZ. Operating ambient temperature : -40~+85 Degrees Celsius Size : 60 x 34 x 15mm High efficiency up to 89 Built in Frequency Compensation Built in Soft-Start Function Built in Thermal Shutdown Function Built in Current Limit Function Note: 1 In order to obtain a more stable voltage, it is recommended that the output is greater than 15MA 2 V- cannot be used alone, or no voltage output.But you can just use V+ 3 The startup current of the module is 2.5-3 times the operating current. 4 Increasing the 1UF-10UF MLCC capacitor reduces the startup current The merchant warrants that their products comply with all applicable laws, and are offered only if they comply with Joom's policies and EU Product Safety and Compliance laws.
