【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.

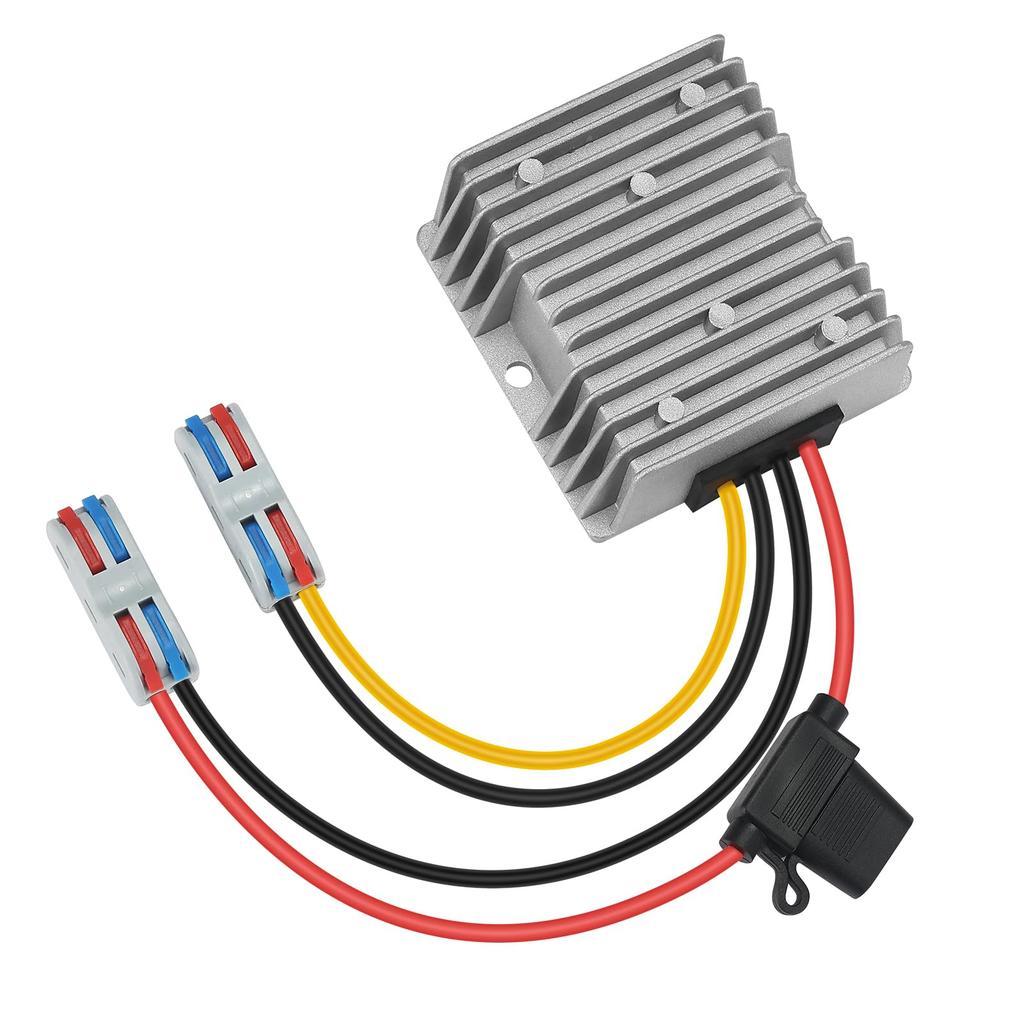

DC Boost Converter: This 12V to 24V voltage converter can convert DC 12V to DC 24V. Voltage input: DC 10-22V, output: DC 24V. Maximum current: 15A 360W MAX. Warning: 1. Please check whether the output voltage is correct before use. 2. Please check the positive and negative polarity of the power supply before wiring.

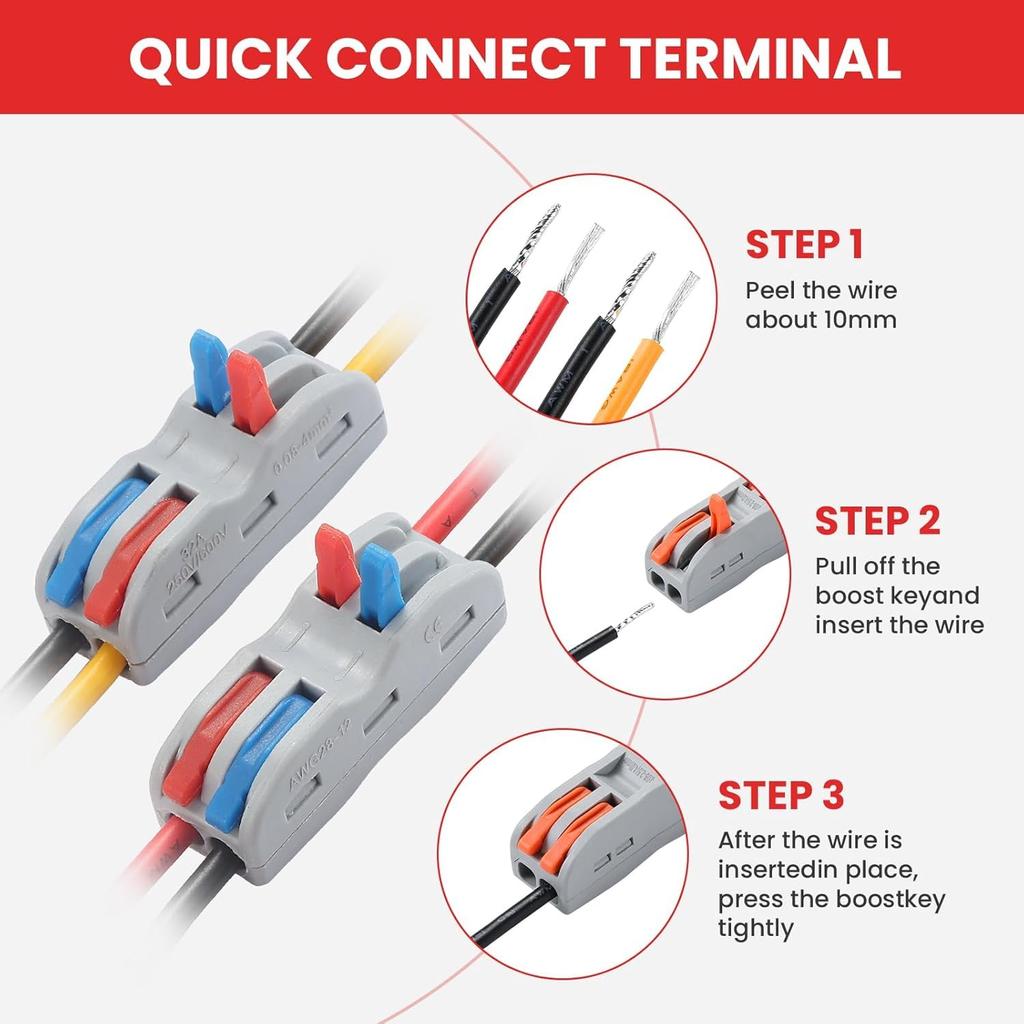

Convenient Connection Terminals: The 12V to 24V voltage regulator is equipped with lever nut connection terminals for quick connection. No wiring is required, saving time and ensuring safety. Note: Strip the wire about 10mm before inserting it into the terminal. Note: Make sure the positive and negative terminals are connected correctly. Incorrect connection will cause permanent damage to the product.

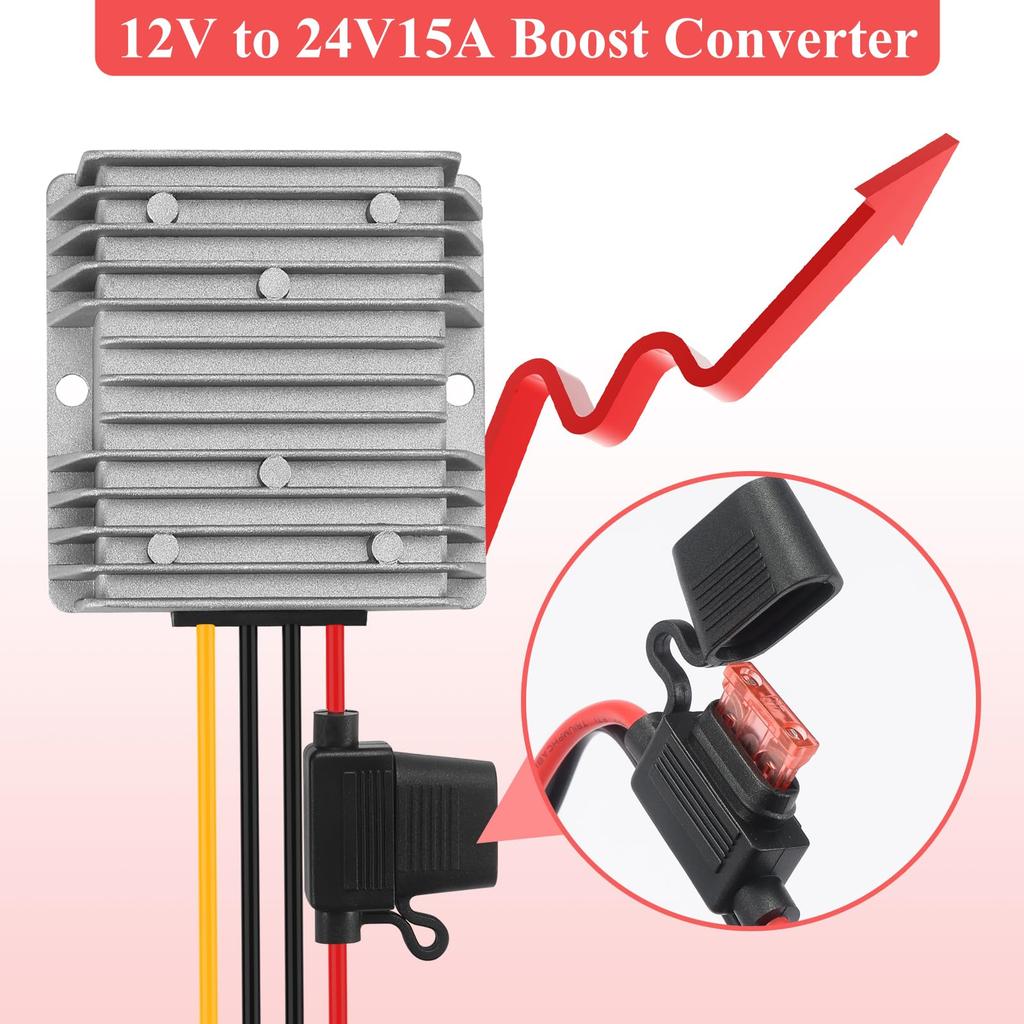

Fuse-equipped for safety: For user safety, our DC-DC converters are equipped with fuses. If the voltage is too high or there is a fault or abnormality in the circuit, the transformer will stop working, protecting your appliances. It also reduces the risk of fire or explosion. Proper performance ensures up to 95% conversion rate. High quality, high performance, and long life.

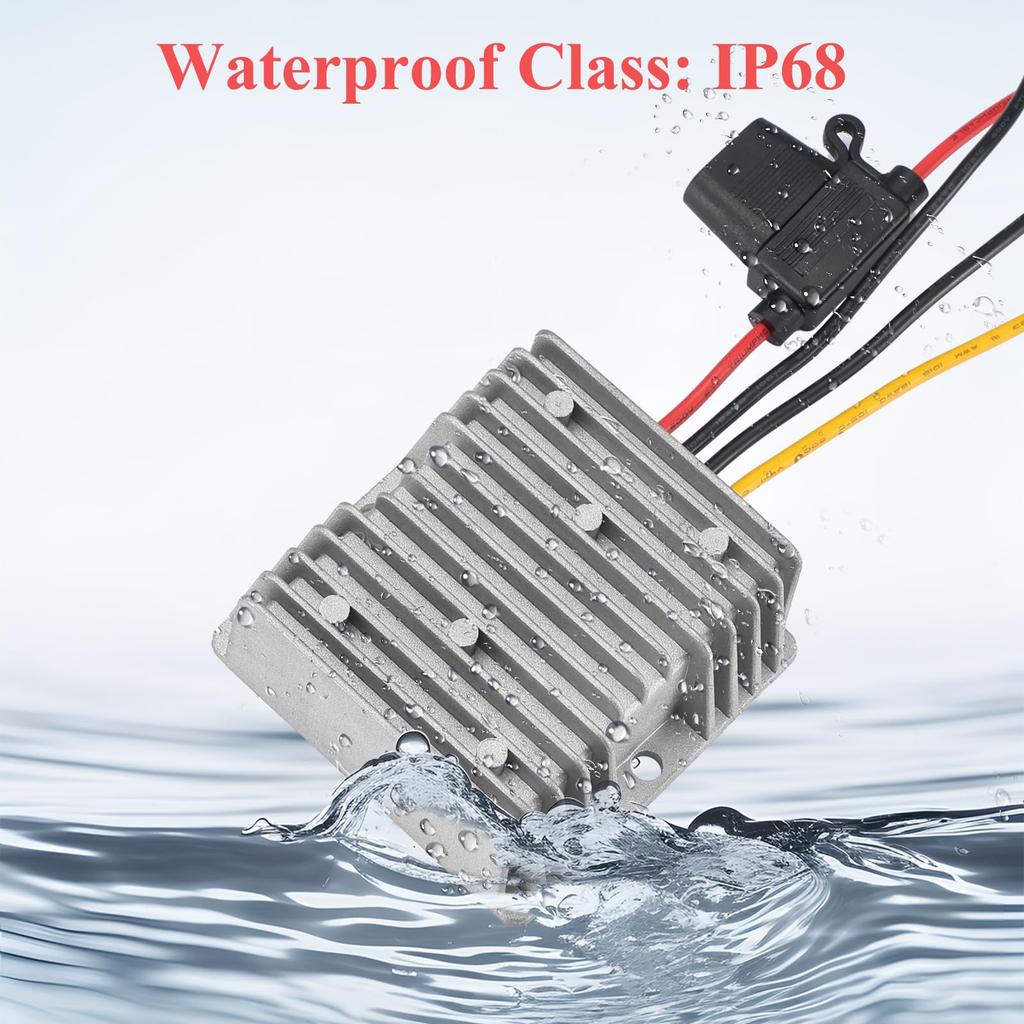

Multiple Protection: The regulator has output overcurrent protection, output short circuit protection, and overheating protection. The encapsulation technology makes it waterproof (IP67), dustproof, moisture-proof, and shock-resistant, making it suitable for use in a variety of situations, including indoors, outdoors, and underground.
Wide range of applications: Our 12V boost converter module can be used for integrated wiring, fire alarm system monitoring, car radio, audio, bus, minibus, truck display, taxi advertising screen, LCD TV, DIY, solar power system, intercom, etc.

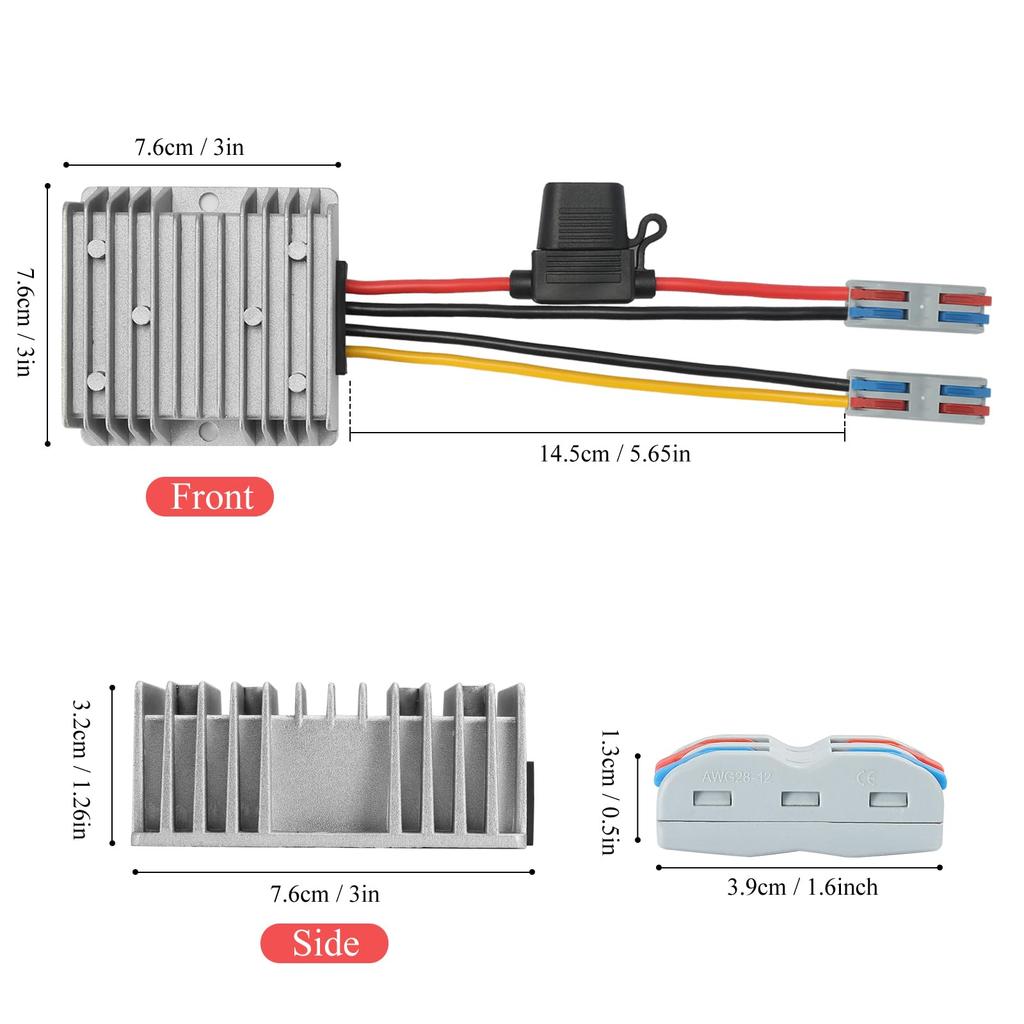

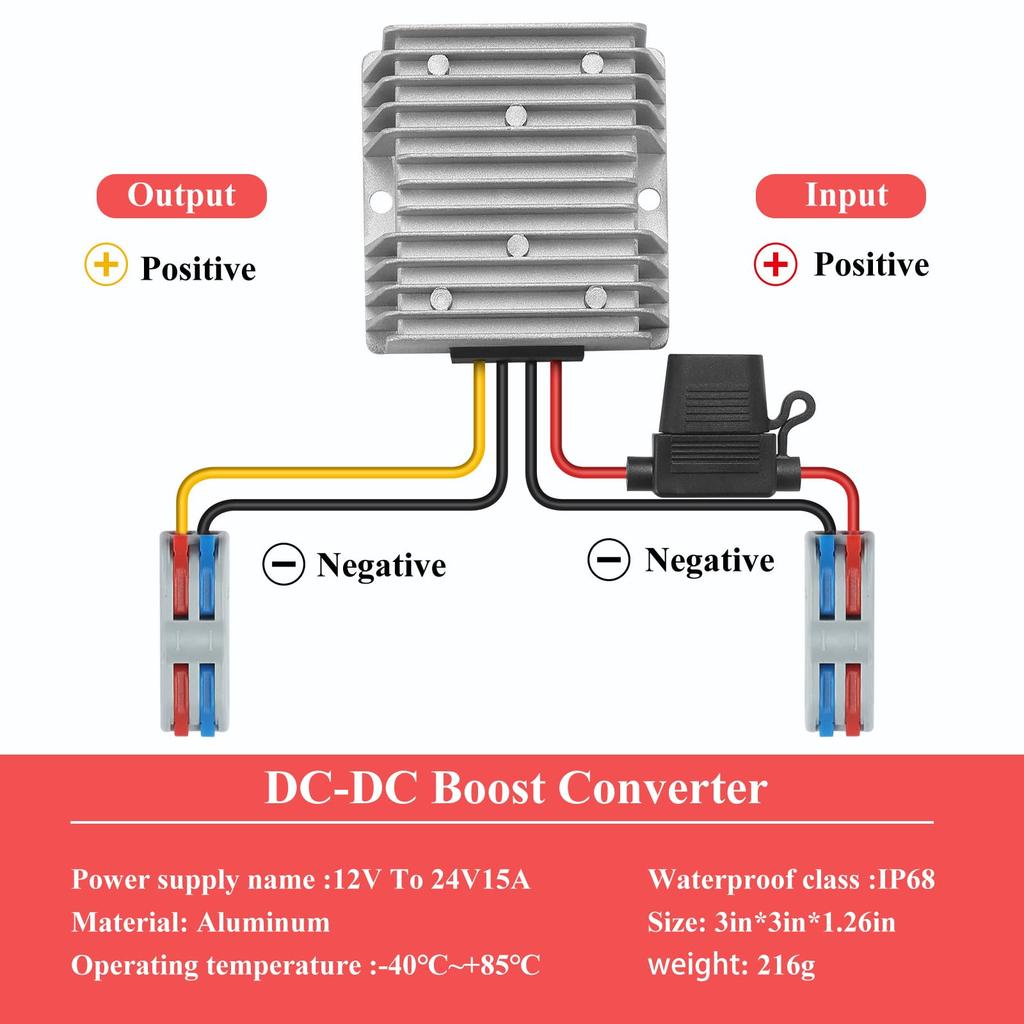

12V to 24V Power Amplifier Specifications: Input: DC 10-22V Nominal Input Voltage: 12V Output: DC 24V 15A (Maximum) Output Power: 360W (Maximum) Waterproof: IP67 Operating Temperature: -20° to 65°C Storage Temperature: -40° to 85°C Idle Control: 1 Load Regulation: 224V 15A Voltage Regulator Connections Input: Red (+) Black (-) Output: Yellow (+) Black (-) DC Voltage Regulator Safety Manual 1. The load connected to the voltage regulator output should not exceed the maximum load power. 2. If the ambient temperature is too high, the power should be reduced accordingly. Operation at low temperatures ensures the long-term reliable operation of the power supply. 3. Do not use the device near heat sources such as fire or heaters. 4. Do not connect the input cable to a 220V household power source. 5. Do not use the device near sources of fire or heaters. 6. Disassembly or maintenance of the device by anyone other than professionals is prohibited. 7. The input voltage must not exceed the converter's fluctuation range. 8. The converter's output power must be greater than the power required by the connected device.
Package includes: 1x 10V-22V to 24V 15A 360W Voltage Converter
