[Step-Down Converter] This DC step-down converter (9-36V to 5V) converts DC 9-36V to DC 5V. Low power consumption. High conversion rate of over 96% ensures accurate output. High quality and performance, more durable, and longer lifespan. Voltage input: DC 9-36V, output: DC 5V. Maximum current: 8A 40W. Note: Please follow the provided wiring diagram to properly connect the converter to your device.

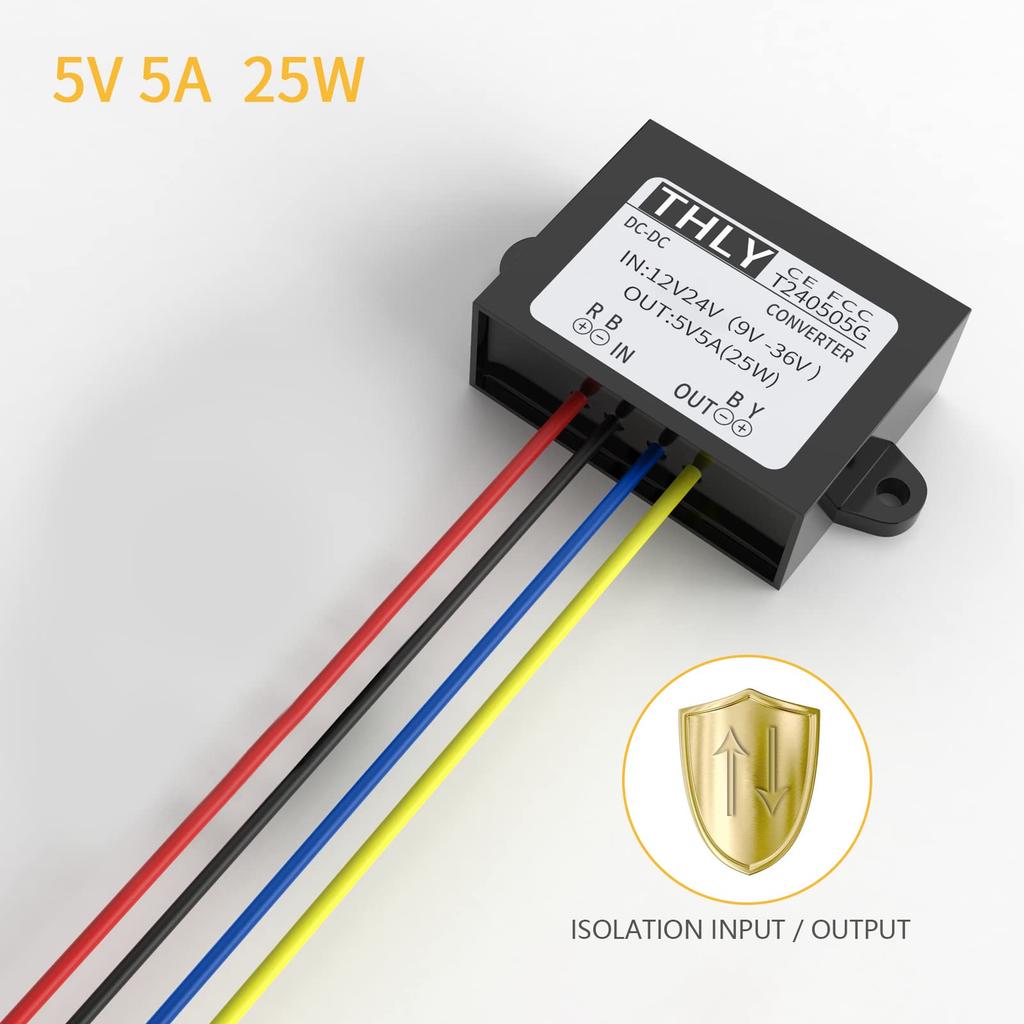

[New Upgraded Isolated Input/Output for Safer Operation] While ordinary transformers are non-isolated, this new upgraded isolation transformer prevents voltage from rushing into the output when the device is short-circuited, preventing damage to the device. It's much safer! If your equipment is delicate or expensive, we highly recommend purchasing this isolation type transformer, which can adequately protect your equipment from damage.

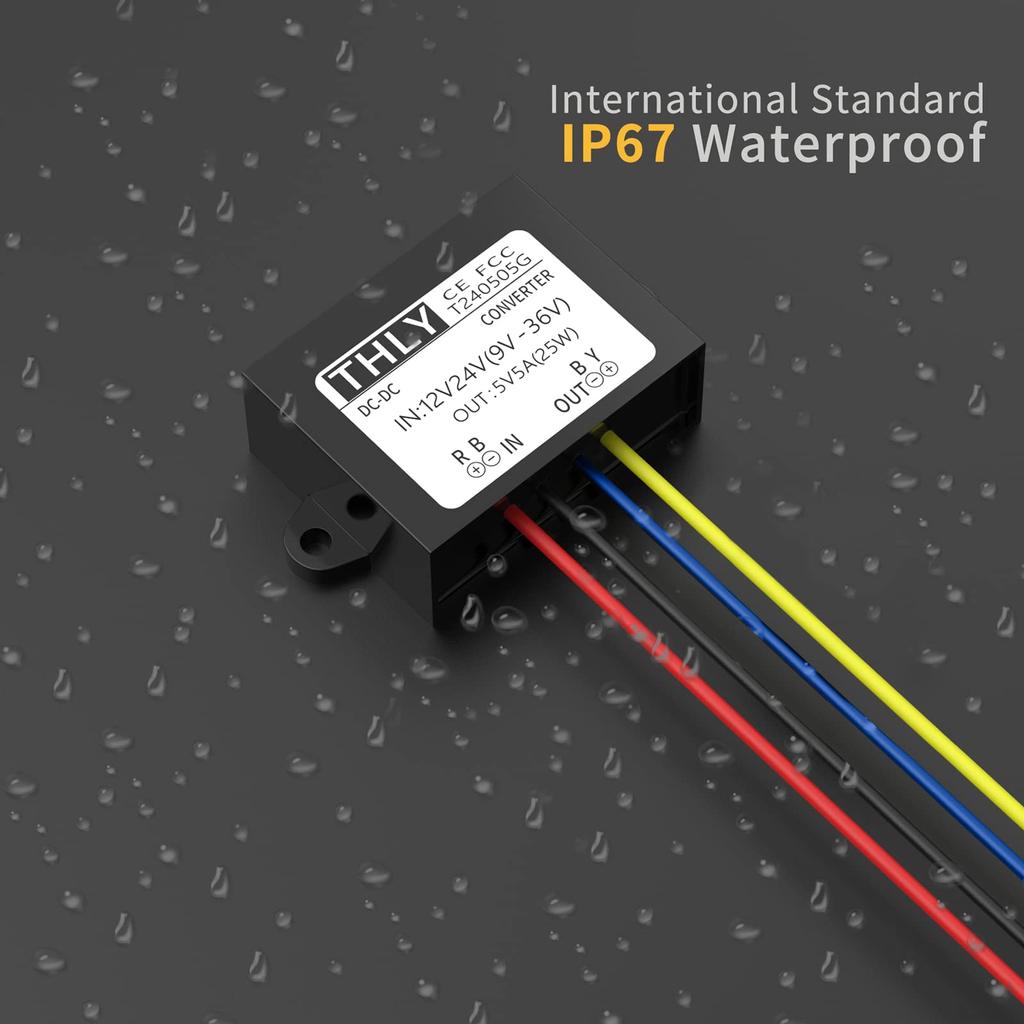

[IP67 Waterproof Rating] This voltage reducer uses thermal conductive organic silica gel sealing technology, making it waterproof, shockproof, moisture-proof, and dustproof. It can be used outdoors in heavy rain and other bad weather. Therefore, you no longer have to worry about your submerged equipment catching fire or exploding on rainy days.
[Widely Used and Easy to Install] This power voltage converter requires only four wires to operate. Its slim design and small volume make it extremely easy to install. If you have any installation problems, please contact us at any time and we will do our best to help. It is also widely used in golf carts, LED strip lights, buses, cars, trucks, motors, GPS, bus displays, taxi advertising screens, car audio, LCD TVs, intercoms, surveillance systems, and more.
[Best After-Sales Service] We offer a 12-month warranty. If you have any problems with the step-down transformer, please feel free to contact us at any time. We will do our best to help you. Free replacement or 100% refund. Note: The negative pole (ground) cannot be shared. The input and output negative poles must be used separately. Otherwise, the separation effect will be lost.
DC Buck Converter, 24V 12V to 5V Step-Down Converter (Accepts DC 9-36V Input) 8A 40W Waterproof Buck Converter with Isolated Input and Output Safety Instructions 1. The load connected to the output end of the DC transformer must not exceed the maximum load power listed. A load higher than the rated power will damage the power regulator. 2. Do not use at MAX for extended periods. If the device load is close to the maximum power, select a converter with a higher power rating. 3. Connect the converter and device according to the provided wiring diagram. 4. Negative poles (grounds) cannot be shared. The input and output negative poles must be used separately. Failure to do so will result in separation. Features: - Isolates input and output, protecting electrical appliances and reducing the risk of fire or explosion. More security. - IP67 protection rating, waterproof and shockproof. - Over 96% power conversion efficiency. - Si-Fe core magnetic loop, high temperature resistance, ultra-stable. DC Power Supply Voltage Converter Specifications: Material: Plastic, Electronic Components Input: DC 9-36V Output: DC 5V 8A
40W Conversion Efficiency: Over 96% Overheat Protection: 150°C Waterproof Rating: IP67 Connecting Wire Length: 12cm (4.7 inches). Mounting Hole Diameter: 5mm (0.2 inches). Mounting Hole Distance: 65mm (2.56 inches). Unit Dimensions: 74mm x 74mm x 31mm (L*W*H). Net Weight: 264g. Voltage Reducer Connections: Input: Red (+) Black (-); Output: Yellow (+) Blue (-). Protections: Input transient high voltage protection, output overcurrent protection, chip overheat protection. (There is no input short circuit protection or reverse polarity protection. Please note that improper wiring may cause the power supply to burn out.) Package Includes: 1 x 9-36V to 5V 8A 40W Step-Down Converter
