Joom: Safely charging your e-bike or e-scooter
• Don’t leave your battery unattended while charging, when you're out or while you're asleep
• Don’t cover chargers or battery packs when charging
• Don’t overload sockets or use unsuitable extension chords
• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C
• Don’t charge batteries next to combustible materials or hazardous substances
• Always unplug your charger once you have finished charging
• Always make sure to only use the proper proprietary charger
• Always ask a professional when converting your e-bike or e-scooter
• Always check your battery (and charger) for visible damage
-----

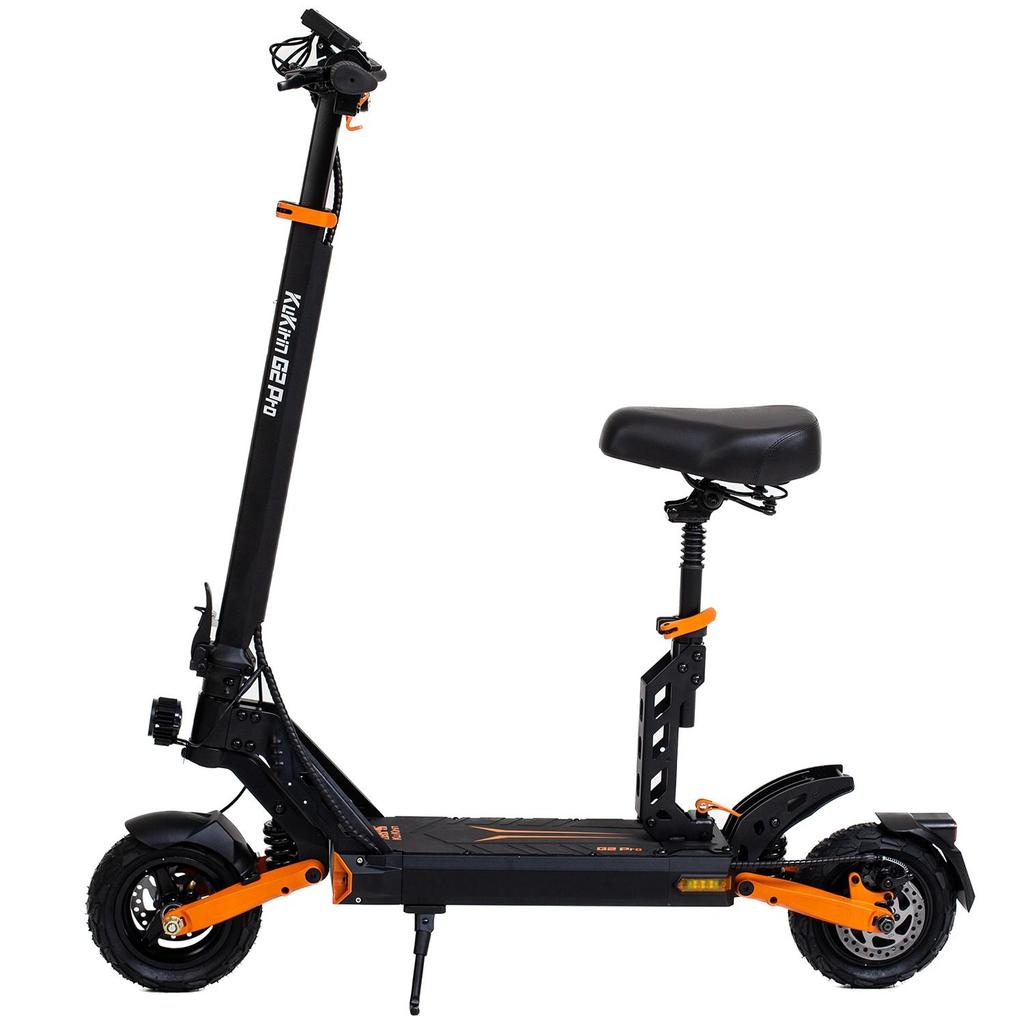

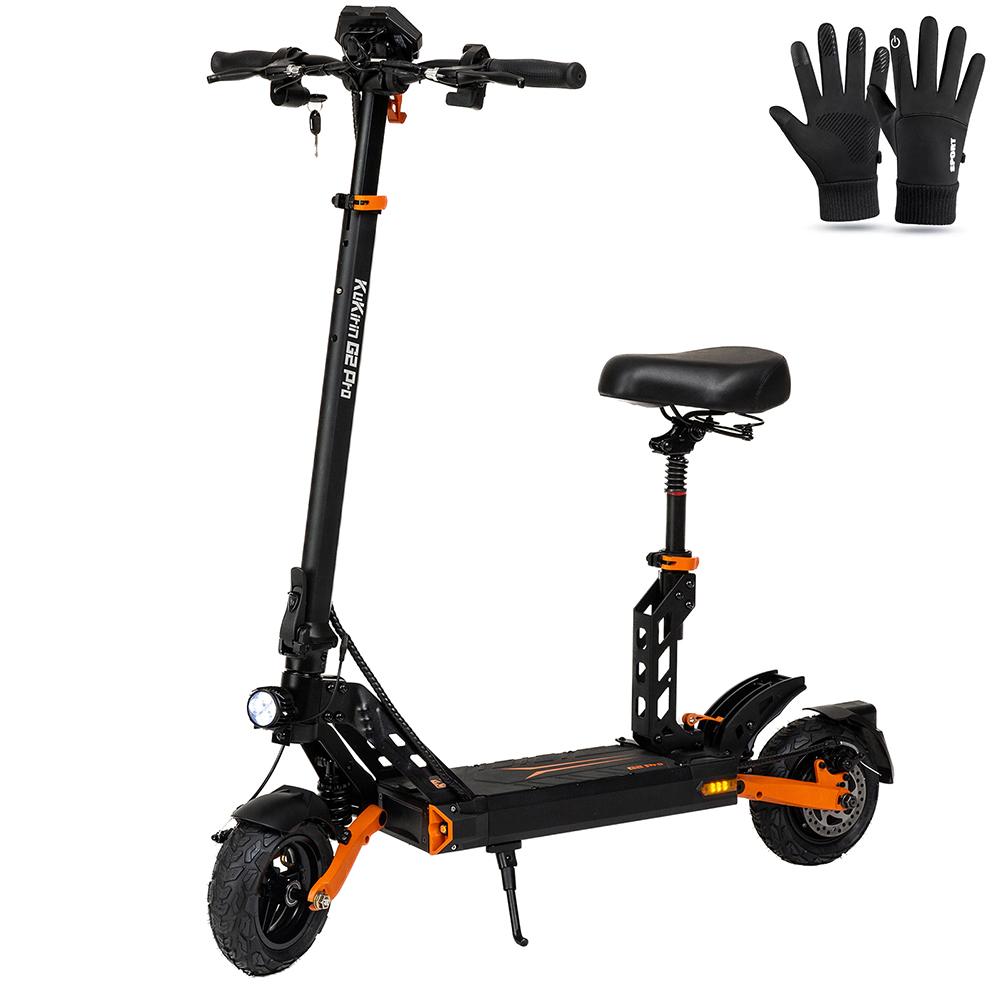

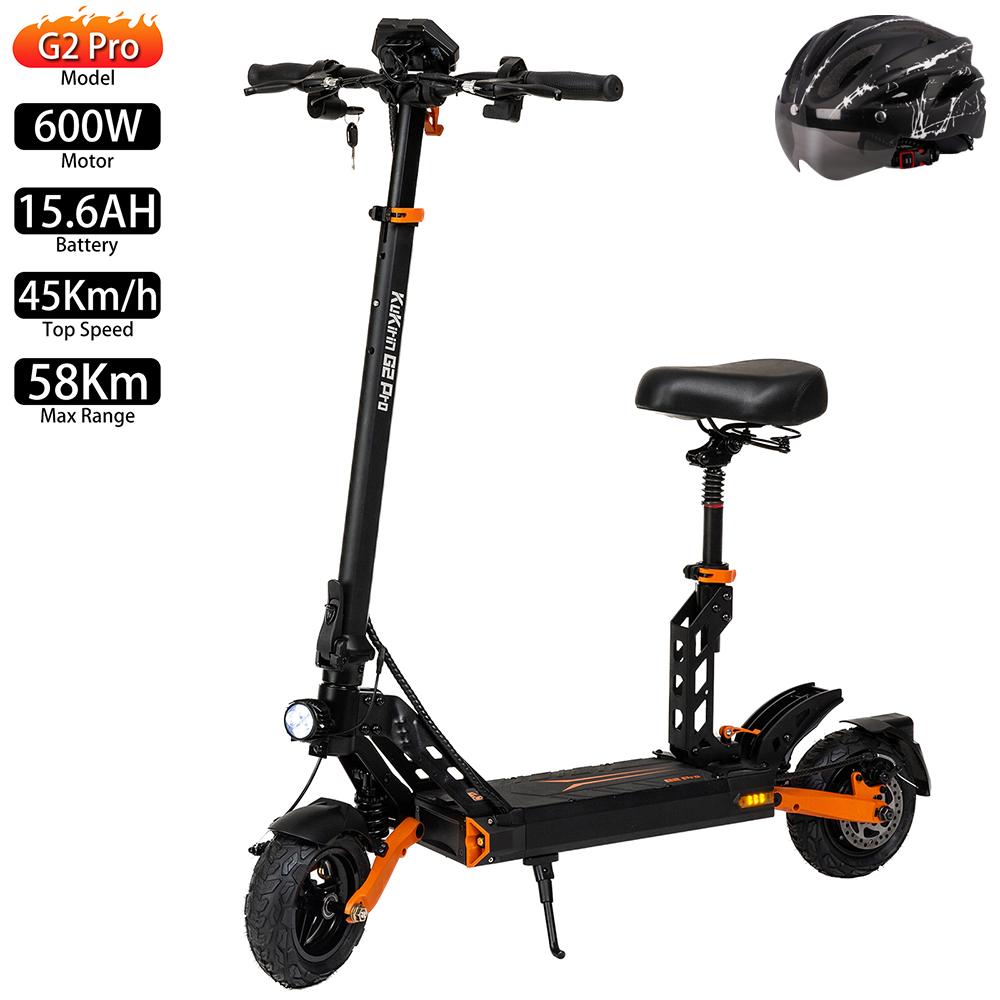

Foldable Electric Scooter With Removable Seat Kukirin G2 Pro
💗Advantages: All Kukirin scooters can be set to a speed limit mode, so there's no need to worry.

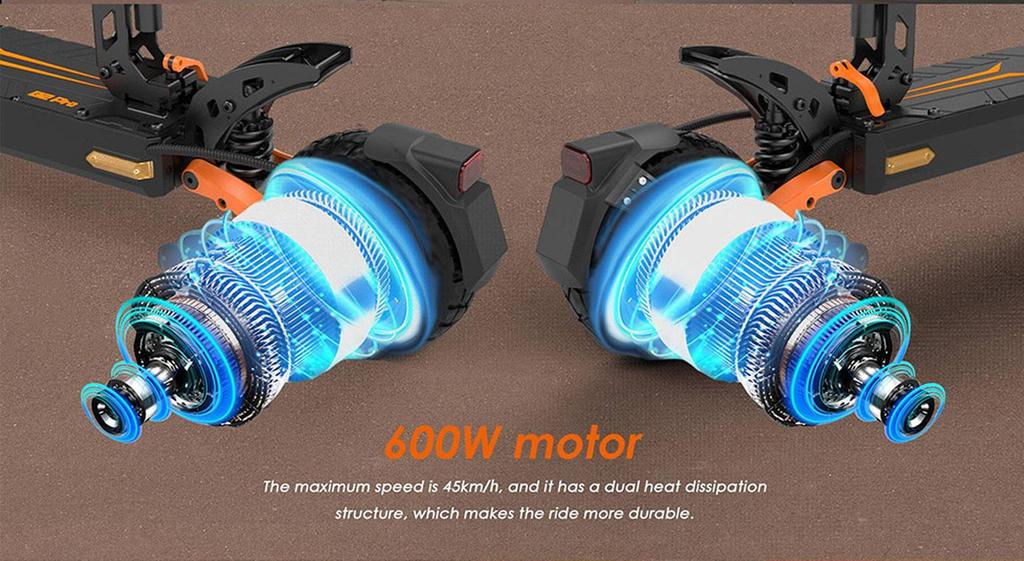

⚡ 600W Efficient Motor, Smooth and Reliable Power: The Kukirin G2 Pro Foldable Electric Scooter is equipped with a practical 600W motor, delivering smooth and sustained power.

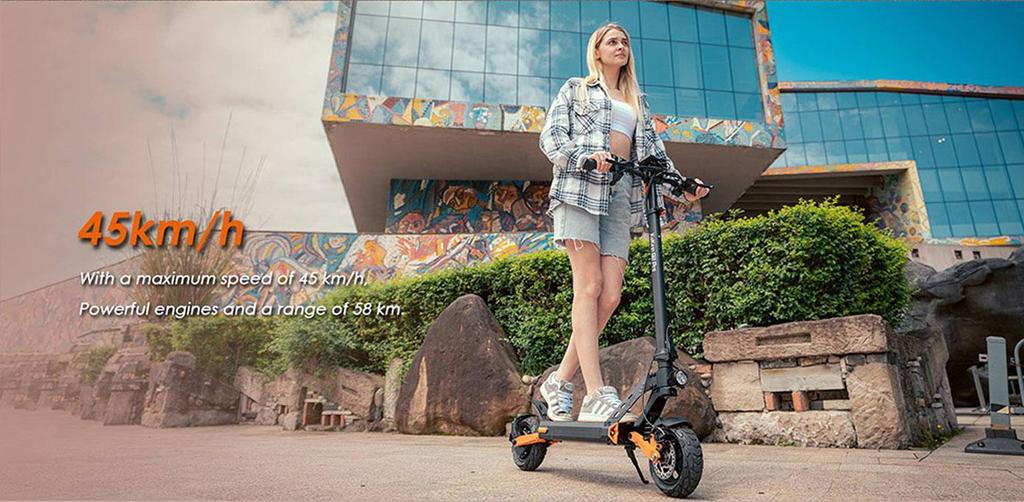

🏃 45km/h Top Speed, Efficient and Effortless Travel: With a top speed of 45km/h, it balances efficiency and safety.

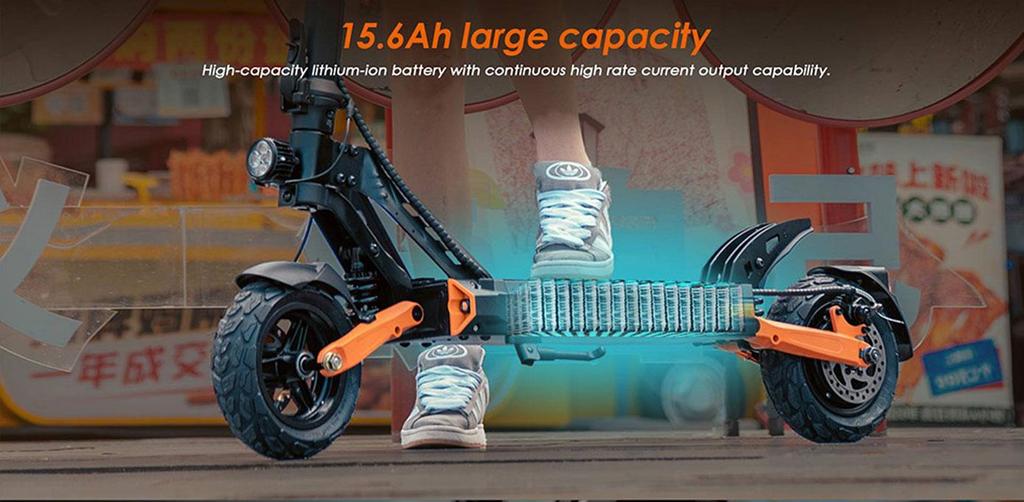

🔋 48V 15.6AH Battery, 58km of Worry-Free Range: Equipped with a high-quality 48V 15.6AH battery, it offers ample energy reserves and a maximum range of up to 58km.
💪 120kg Stable Load Capacity, Practical and Reliable: Constructed of durable materials, it has a maximum load capacity of 120kg.

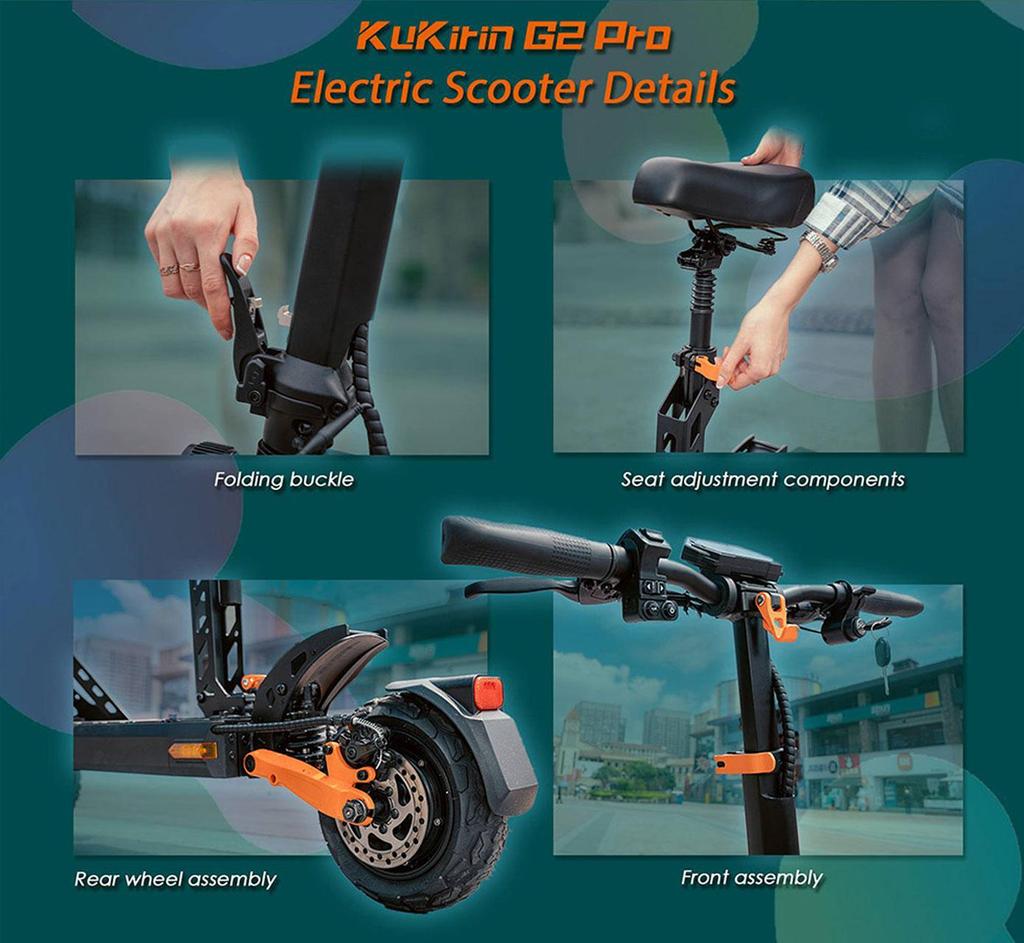

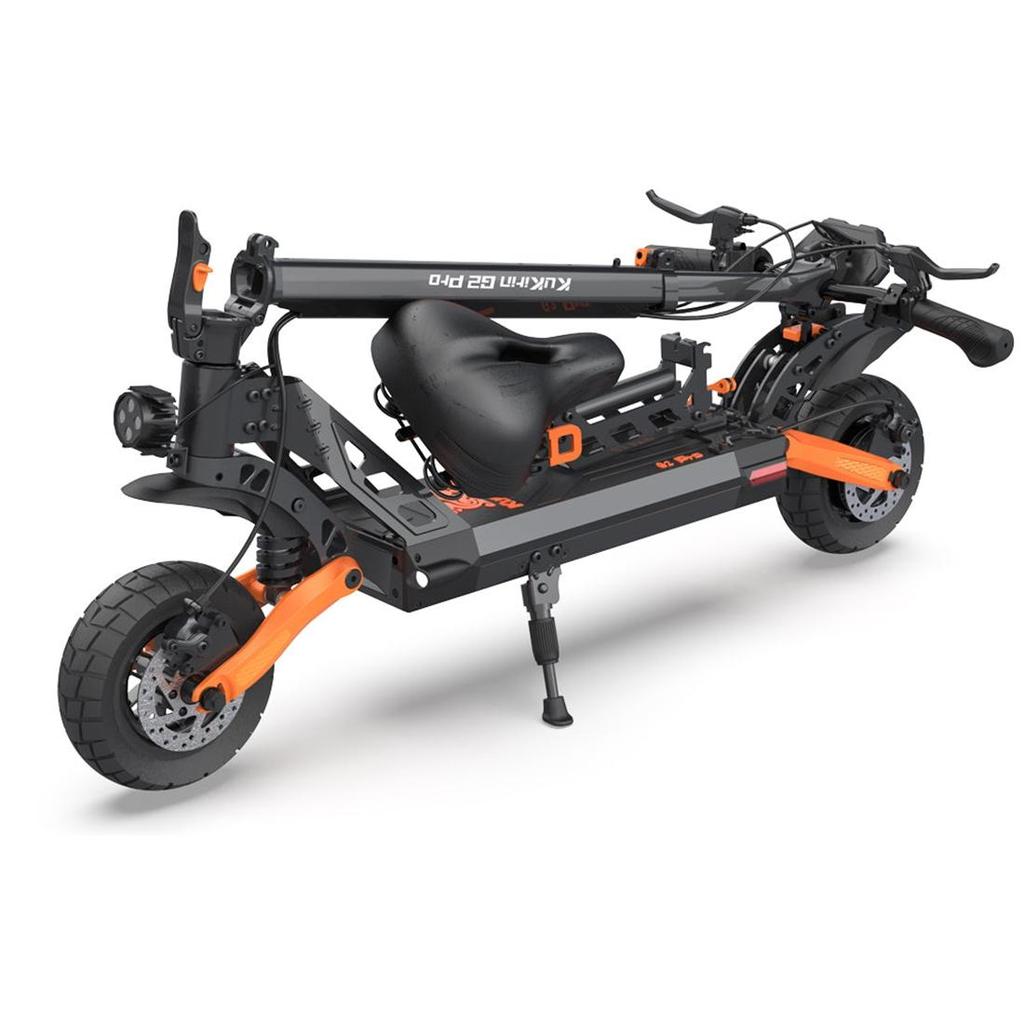

📦 Foldable Design + Removable Seat for Versatile and Convenient Use: Its convenient foldable structure allows for compact storage and portability, easily fitting into a car trunk or a corner of your home
Product Specifications:
Packing info Packing size 1180*225*527mm（inner）/1195*235*545mm（outer）
Product basic parameter Weight Product G.W 30±0.5kg
Product N.W 25±0.5kg
Size Expend size 1170*590*1300mm
Fold size 1170*590*512mm
Handlebar size 590mm

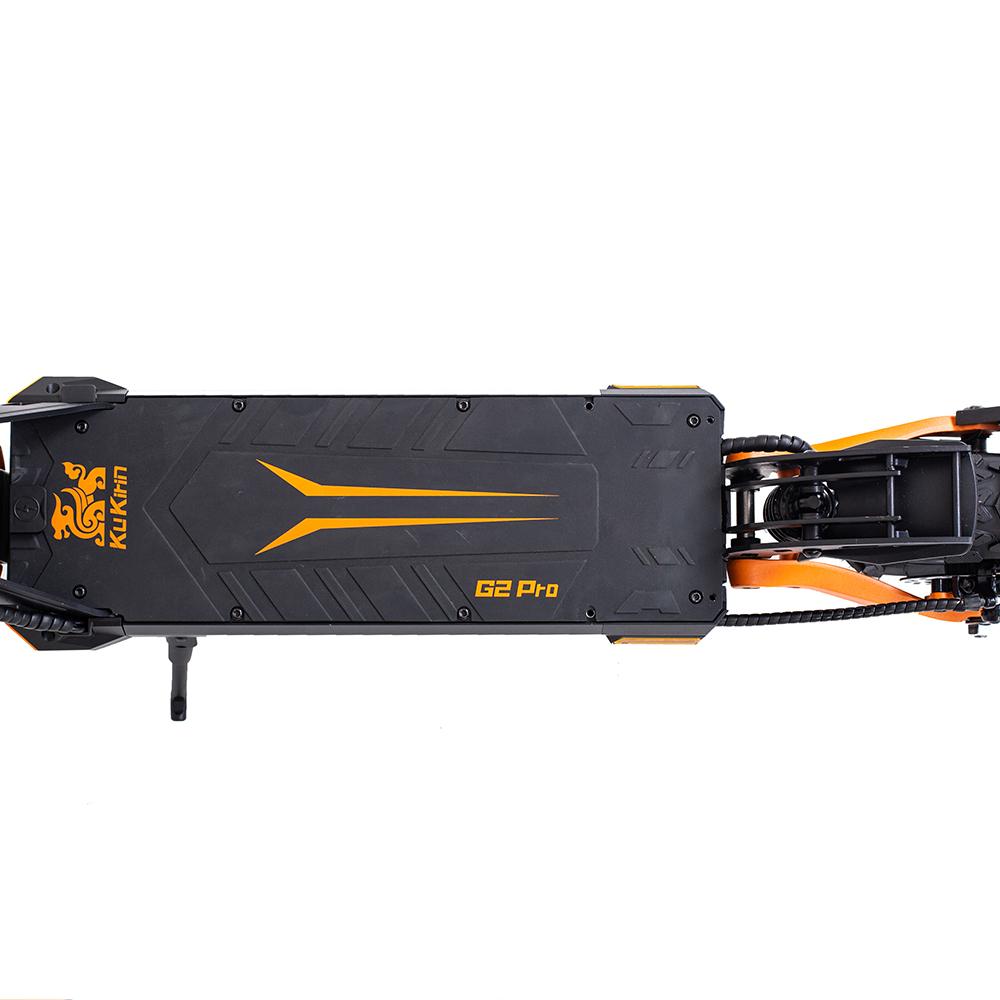

Pedal Size 500*160mm
Pedal to Handlebar size 1010mm
Chassis height 140mm
Max Load 120kg
Speed Maxium speed 45km/h
1st、2nd、3rd（idling） 23km/h、43km/h、55km/h
"1st、2nd、3rd
（65kg load）" 20km/h、40km/h、45km/h
Mileage Middle speed mileage（65kg load） ≤58km

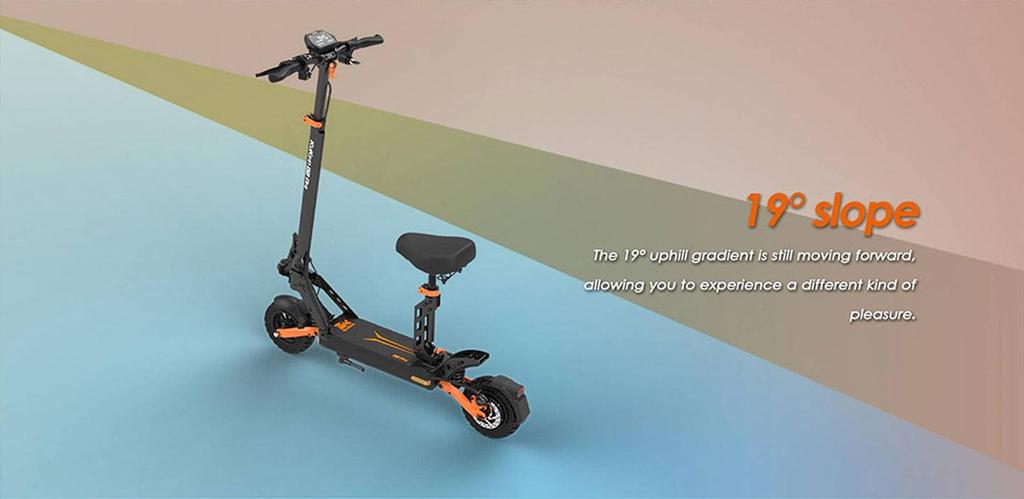

Performance Climbing ability ≤19° slope
Brake system Front and rear disc brake&e-brake
Brake distance 5-12m
Waterproof level IP54

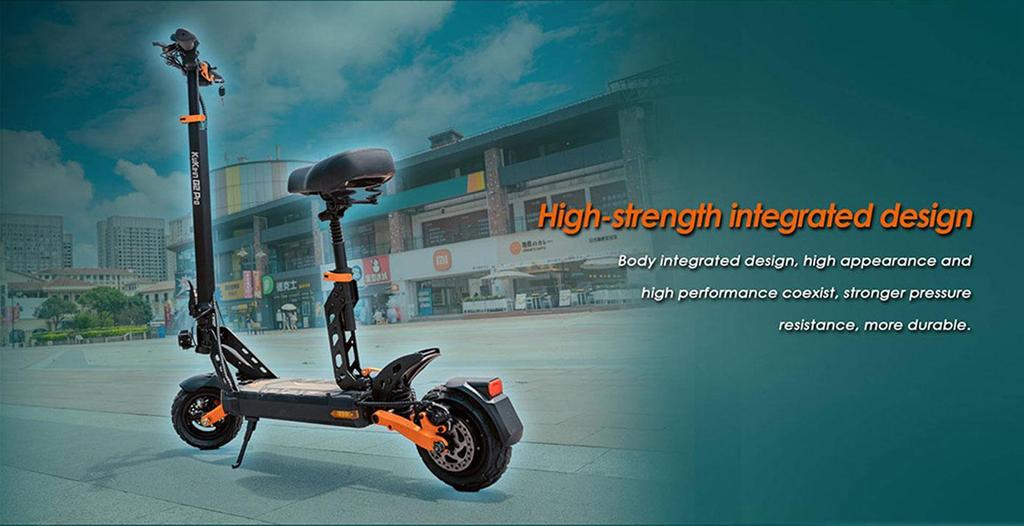

Material Frame material Steel + Aluminum Hybrid Frame
Motor Motor type Hall brushless DC motor (rear wheel single drive)
Voltage 48V
Accelerate mode Sine wave
Power date Rated power 600W
Instantaneous maximum power 1000W
Rated speed 1080 rpm
Max output torque 21.93 N·m
Battery Model 18650 Lithoum battery
Voltage 48V
Capacity Single cell capacity 2600mAh
Battery pack capacity 15.6Ah
Standard power consumption 0.52kW·h
Battery protect system Battery protective board（BMS）
Charger Input voltage 100-240VAC~50/60Hz
Input current 2A Max
Output voltage 54.6V
Output current 2A
Charging time 7-8h
Shock absorber system Front shock absorber Spring shock adsorption
Rear shock absorber Spring shock adsorption
Light System Headlight type LED
Headlight power 6W
Headlight illumination angle 45°
Headlight illumination area 5㎡
Turn light Yes
Taillight Yes，The taillights are on when the headlight is on,taillight flash when breaking.
Tire Size 9in
Type Vacuum tire
Optimum tire pressure 340kPa（50psi）
Insrument Type LED
Display material Instrument case ABS/instrument bracket PA6
Size 118*73mm
Show content Light indication, cruise indication, brake indication, turn indication, gear indication, mileage indication, real-time speed indication, kilometer/mile indication, battery voltage indication, fault code indication, starting mode indication, etc.
Function setting "After you press the power button three times in a row to enter the menu setting interface, the instrument will display P1, P2, P3, P4, P6, P8, Pa, Pb, and Pc, which respectively represent:
P1 is the kilometer/mile selection setting;
P2 is the voltage level setting;
P3 is the wheel diameter setting;
P4 is the magnetic pole pair setting;
P5 is the cruise and no cruise selection setting;
P6 is the non-zero start and zero start selection setting;
P8 is the automatic sleep time setting;
PA is the start force setting;
PB is the brake force setting;
PC is the total mileage clearing 0 setting;
Speed limit mode: hold the brake handle and double-click the power button at the same time."
Packing list：
Charger*1, Manual*1, Pump*1, Tool*1, Seat Kit*1, Seat Base*1, Seat Screws*4, Keys*2
