Product Introduction
● In addition to the performance of a conventional IC relay, this relay also features a hazard circuit function. It can be used with up to 120W of DC (direct current) power at 6-12V. Even on vehicles without hazard lights, all four lights can be flashed with the ON/OFF switch. It can be used with LED turn signals as well as turn signals using standard bulbs (up to 12V, 28W). Wiring connections other than the turn signal flasher circuit are required. The switch must be purchased separately. For use on AC vehicles, a DC conversion is required. (AC/DC adapters (part numbers 304-0522/0523) are not compatible.)
Precautions for Use
● Product information, including compatibility and specifications, is current as of February 2012. For later information, please refer to the manufacturer's catalog or website. (http://www.tk-kijima.co.jp/)
Caution (Disclaimer) > Please Read
*The photos shown may differ from the actual product due to changes in manufacturer specifications. Thank you for your understanding.

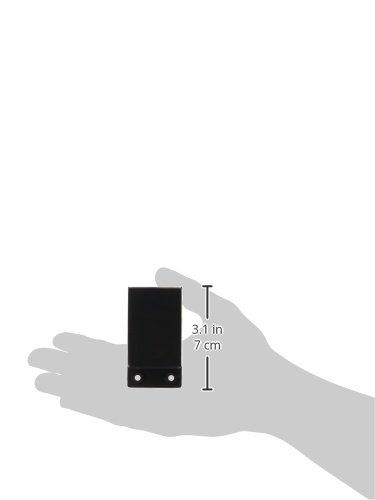

Dimensions: 41 x 61 x 25 mm
6-12V, 120W DC circuit
In addition to the performance of a conventional IC relay, this relay also features a hazard circuit.
Even on vehicles without hazard lights, all four lights can be flashed with the ON/OFF switch.
Compatible with LED turn signals as well as standard bulb turn signals (up to 12V, 28W).
