Motor - 12V DC motor widely used in electric drills, cordless drills, etc. 2.3mm motor shaft diameter, approximately 11.5mm long.
What's amazing is that the quality of our motor is better than most motors you'll see, it can run from 3-12V with high concentricity.
JT0 Chuck - 3 jaws, 0.18 high precision, well lubricated, meets industry standards. More durable!
Removable tapered collet. Quickly change motors and machines from tapered collets. Made of brass with rust-resistant finish.
Twist Drill Bits - 10 twist drill bits (0.5 / 0.8 / 1.0 / 1.2 / 1.5 / 1.8 / 2.0 / 2.3 / 2.6 / 3.0 mm) made from high-speed steel, 10 sizes to meet your different needs, especially for PCB / wood / plastic / acrylic etc.

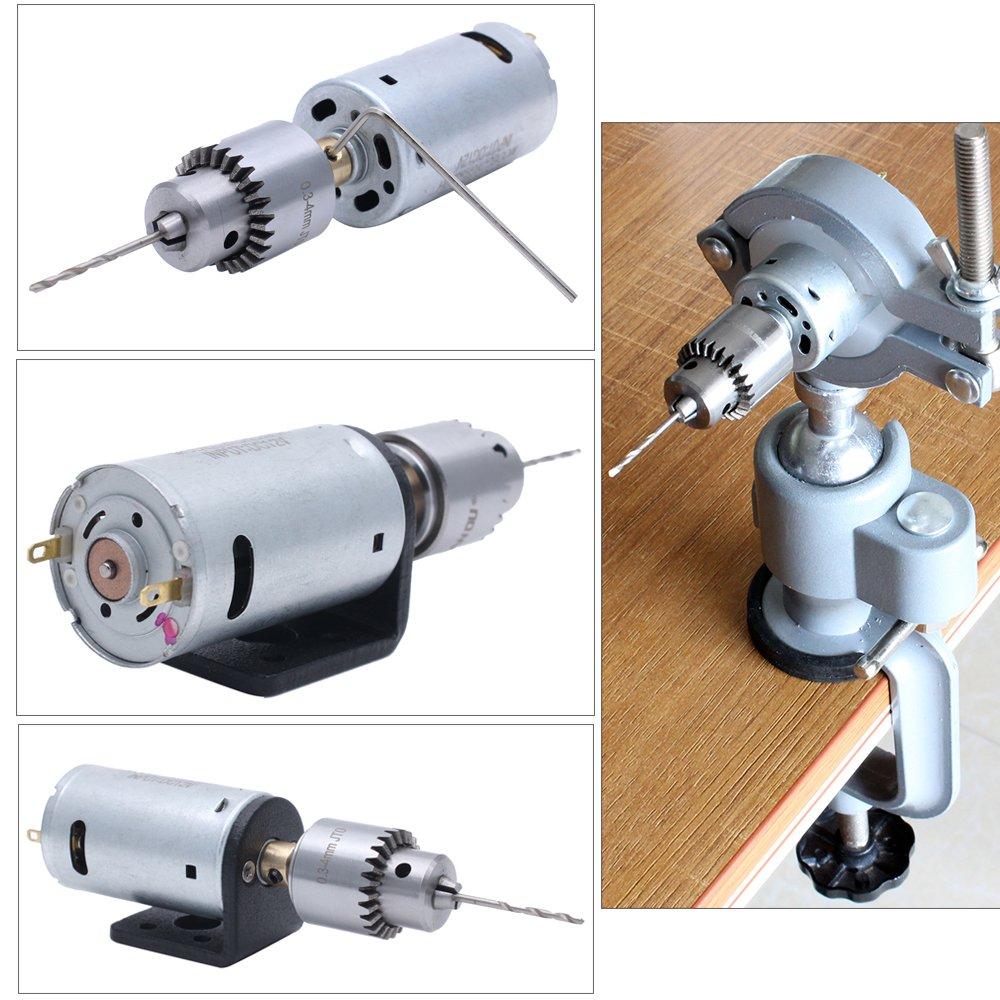

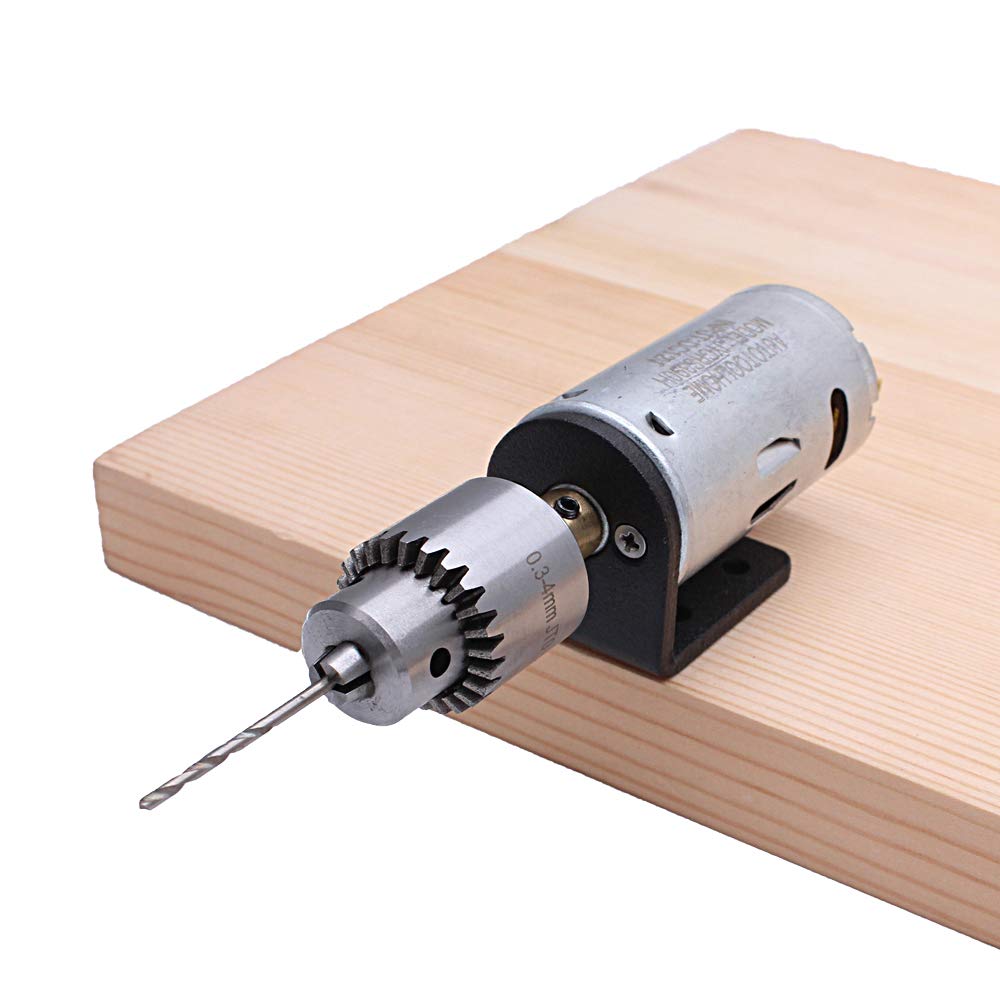

AUTOTOOLHOME brings you the item you've been waiting for - a 12V DC motor drill. The small motor combined with the JT0 chuck means your imagination is the limit.
Motor - 12V DC motor is widely used in electric drills, cordless drills, etc. What's amazing is that the quality of our motor is better than most motors you see. It can run on 3-12V with high concentricity.
JT0 Chuck - 3 jaws, 0.21mm high precision, well lubricated, meets industry standards. More durable!
Removable tapered collet. Quickly change motors and machines from tapered collets. Made of brass with rust-resistant finish.
Twist Drill Bits - 10 twist drill bits made from high speed steel, 10 sizes to suit different needs, especially for PCB/wood/plastic/acrylic etc.
specification

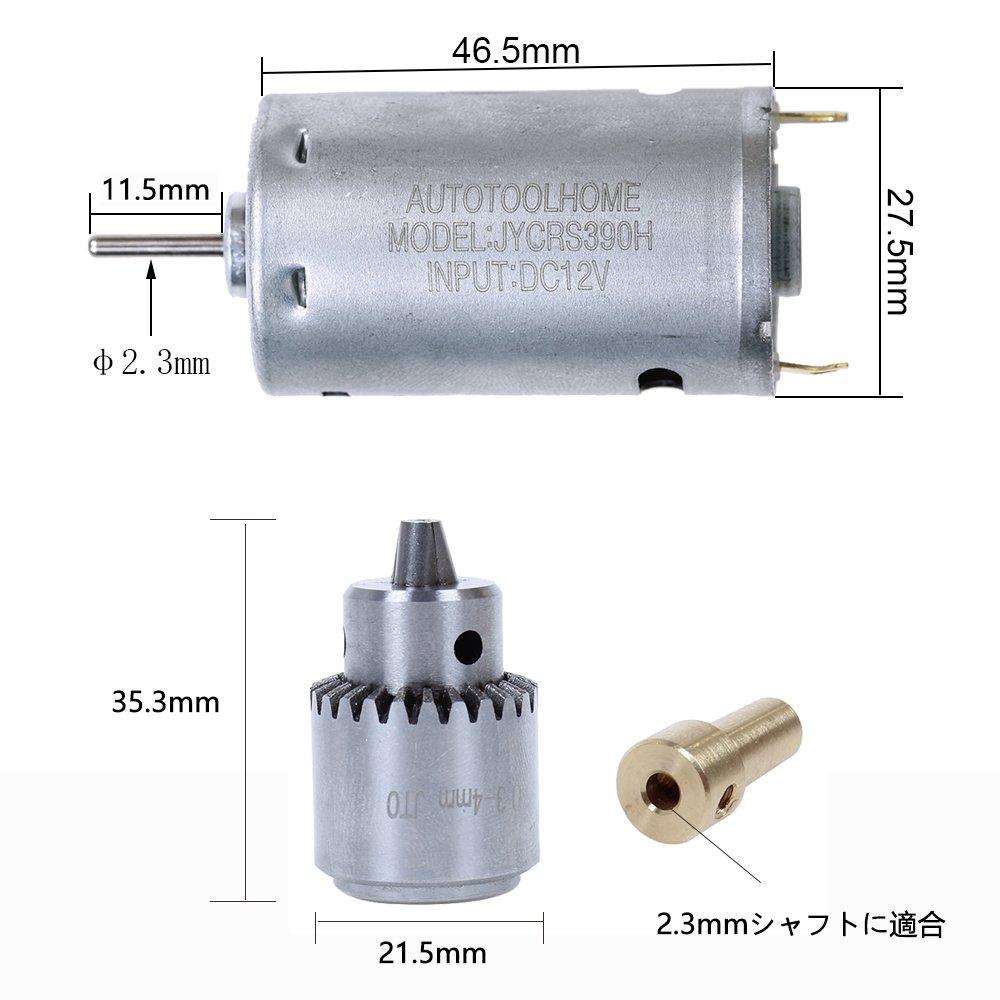

1. Motor:
Rated Voltage - 12 Volts DC
The motor operates on a DC voltage between 3 and 12 volts
No-load speed 18000~35000 RPM
No-load current - 1A.
Shaft diameter: 2.3mm
Material: Drop forged #45 carbon steel
Shaft length: 12mm
Motor diameter: 28mm
Motor height: 47mm

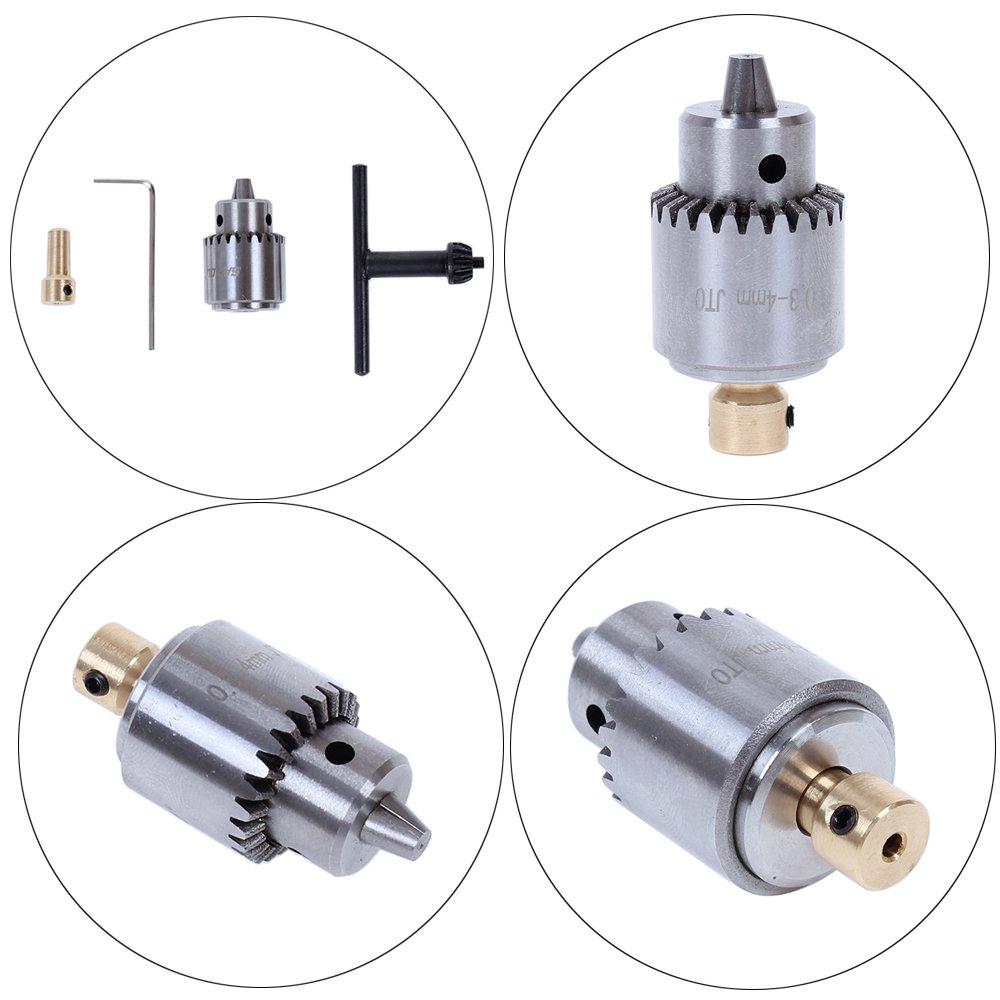

2. JT0 chuck:
Material: metal
Accuracy: 0.21
Drill collet size: 0.3-4mm
3.Taper collet:
Hole diameter: 2.3mm
Front diameter: 6mm
Back diameter: 9mm
Length: 20mm
4. Twist Drill Bits:
Design: Straight shank
Material: HSS
Diameter: 0.5 / 0.8 / 1.0 / 1.2 / 1.5 / 1.8 / 2.0 / 2.3 / 2.6 / 3.0 mm (1 of each size)

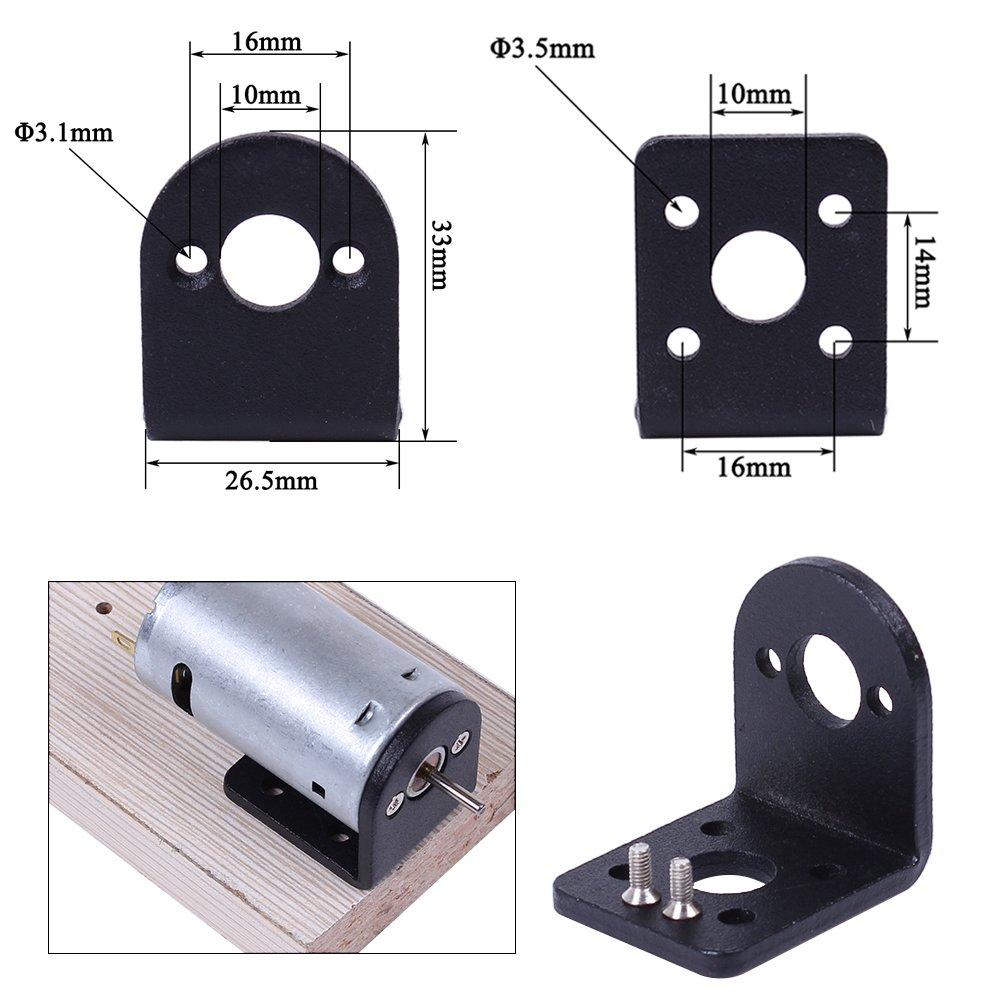

5. Mini motor bracket:
Material: Aluminum
Thickness: 3.2mm
Compatible with RS-360, 365, 385, 380, 390, and 395 series DC motors

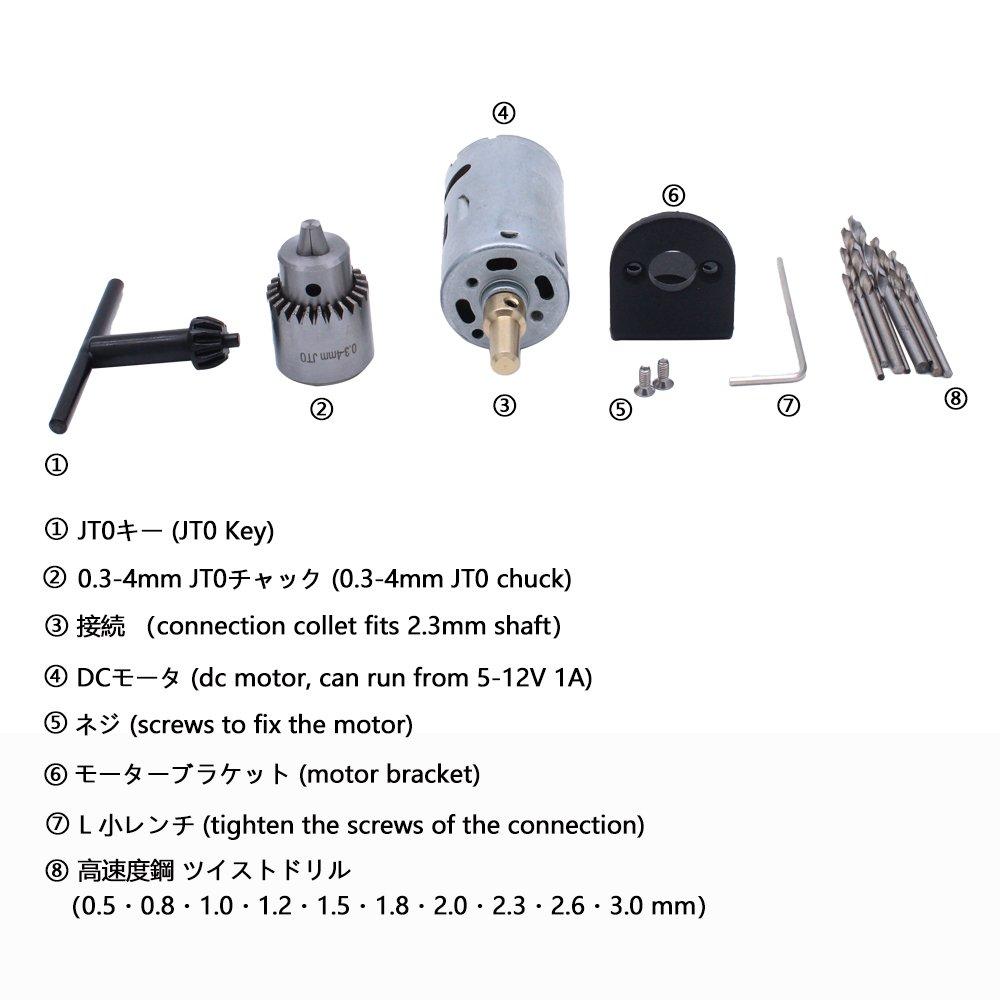

Package includes
1 DC motor
1 JT0 chuck
Tapered collet with one small wrench
10-Piece Twist Drill Bit Set
1 x Mini Motor Stand
(Power supply not included)
(Packed safely in bubble bag.)
