【Voltage Compatibility】
When using electrical appliances, please note that they are designed for Japanese voltage specifications (90-110V), so if you use them with a different voltage, it may cause a malfunction.
【Plug Type】
Our products use Japanese plug types (A or B type).
Please use a conversion adapter if necessary.
【Important Note on Transformers and Adapters】
A transformer adjusts voltage to match your device’s requirements.
A conversion adapter only changes the plug shape and does not adjust voltage.
Using only a conversion adapter without a transformer may result in damage to the product.
【Liability】
We are not responsible for malfunctions or damages caused by improper use, such as operating the product without a transformer.
----------------------------------------------------------------------

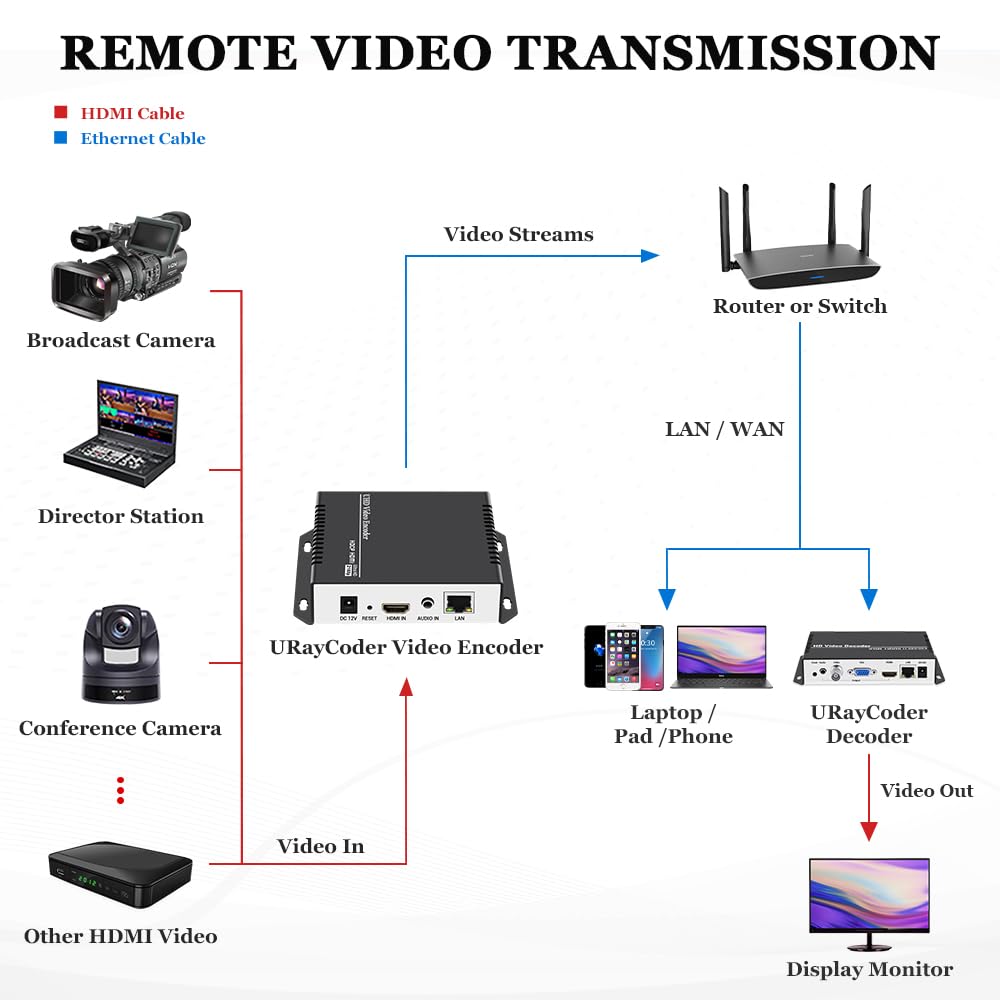

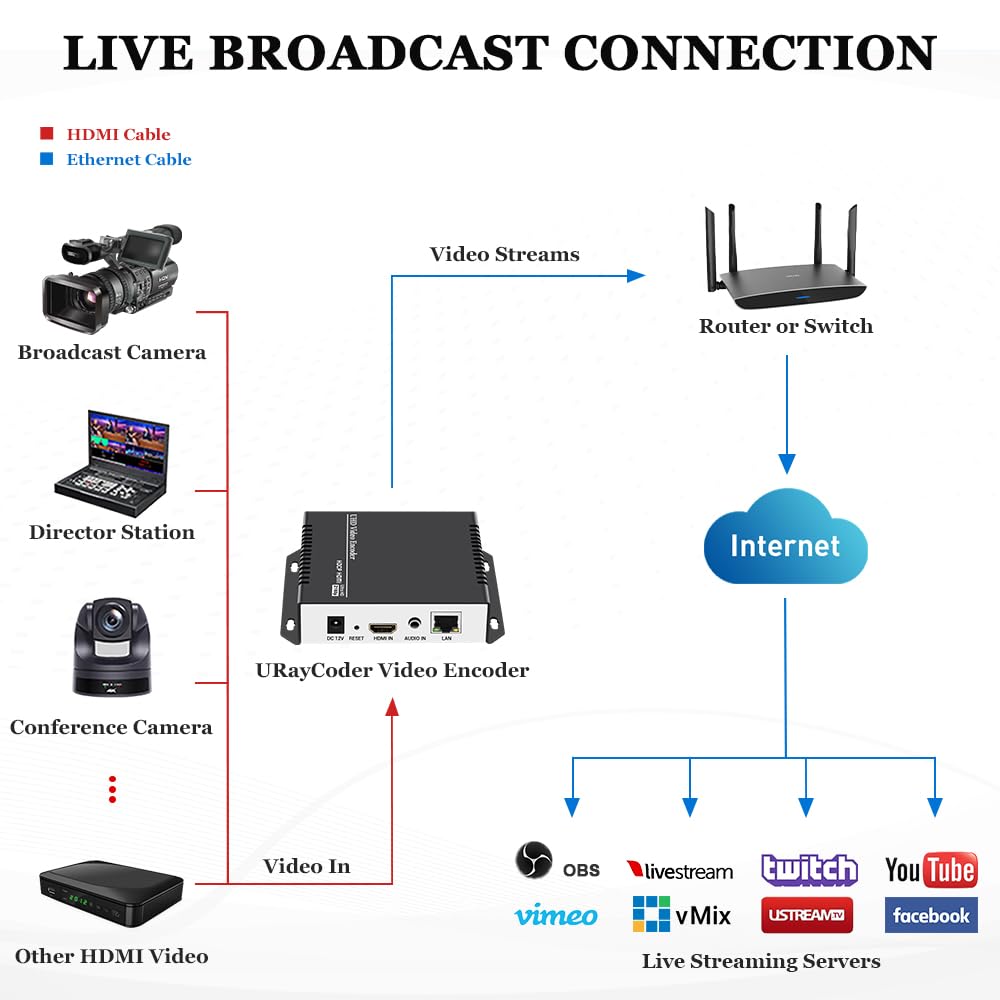

【Innovative Product with High-End Technology】- This URayTech video encoder is ideal for audio and video broadcasting, supporting live streaming to Youtube, Facebook, Ustream, Livestream, Twitch, Vimeo, Streamspot, Dacast, Tikilive, Netrmedi and other streaming server platforms.
【Simultaneous Output of Multiple Video Streams】- URayTech encoder supports simultaneous output of 4 video streams. Each video stream can use a different streaming protocol. These video streams can be pushed to different streaming server addresses simultaneously.
【Supports Multiple Streaming Protocols】- Supports streaming protocols such as HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), UDP, RTP, MP4, Multicast, Unitcast, ONVIF, FLV, etc. Choose from various video stream types to reduce bandwidth consumption or improve image quality.
【Multiple Video Stream Display Settings】- You can customize the display video by adding static text, scrolling text, logo, time, etc. to the output video. Of course, you can also adjust other video parameters, such as resolution, frame rate, bit rate, crop, rotation, flip, mirroring, etc. Output audio parameters are also adjustable.
4K Ultra HD Video Resolution - Supports 4K Ultra HD and 2K Full HD video input and output. Output video resolution is adjustable up to 3840x2160. Frame rates are supported up to 30 frames per second at 4K (3840x2160) resolution and up to 60 frames per second at resolutions below 2K.
【Lifetime Free Technical Support and Service】- All URayTech video encoders and decoders come with lifetime free technical support and warranty. We also provide various customization services, such as printing shell patterns, adding control panel logos, and developing firmware and hardware functions.
Product Features:
1. Web or APP control interface, support WAN remote operation and system upgrade.
2. H.265, H.264, MJPEG video encoding.
3. AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711 audio encoding.
4. Supports streaming protocols such as HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, MP4, FLV, Multicast(UDP, RTP, PTL), Unitcast, etc.
5. 4-channel video stream output, each stream supports different streaming protocol.
6. Support to switch HDMI audio or external audio as output audio.
7. Supports input and output up to 3840x2160, and the output resolution can be adjusted.
8. Video bitrate adjustable from 32kbit/s to 32mbit/s, CBR or VBR bitrate mode.
9. Audio bitrate adjustable from 48000kb/s to 320000kb/s.

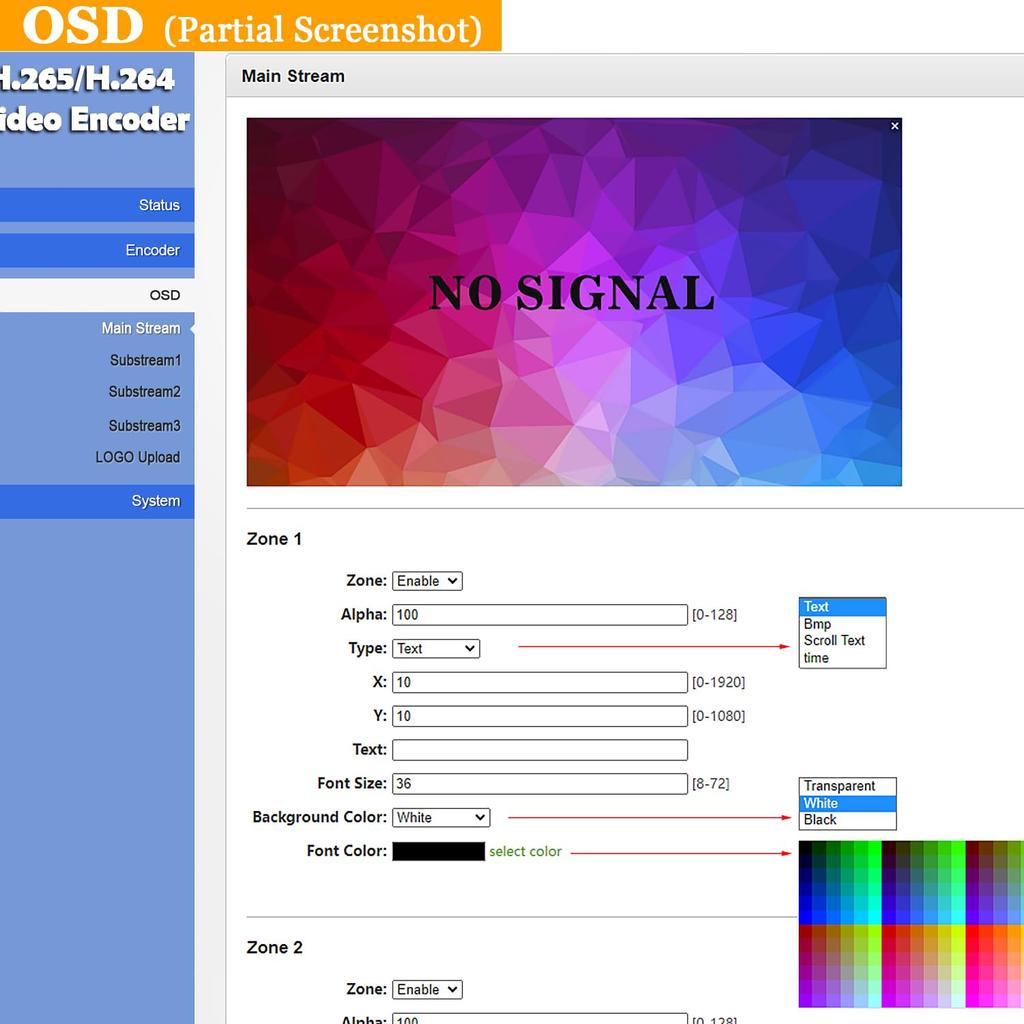

10. You can add logo, text, scrolling text and time to the output video stream.
11. Support various types of playback software and live broadcasting platforms.
12. You can upgrade the system by uploading firmware through the control panel.
13. Adopting high-performance chip, it is stable and efficient, supporting 24/7 operation.
14. Free lifetime warranty and technical support. Product parameters:
1. Video.

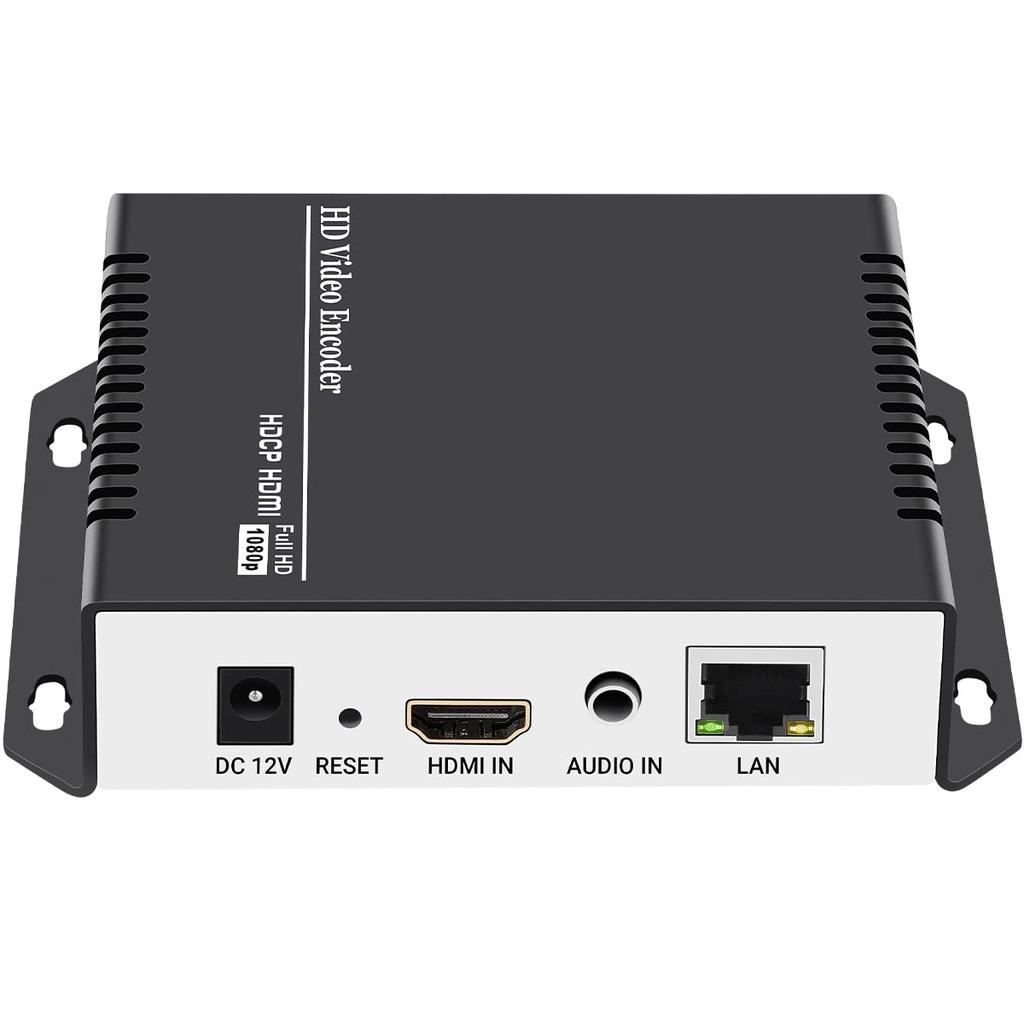

Input: 1 HDMI input, supports HDCP
Video Resolution: Supports input and output up to 3840x2160
Frame Rate: Supports up to 30 frames for 4K resolution; supports up to 60 frames for 2K (and below)

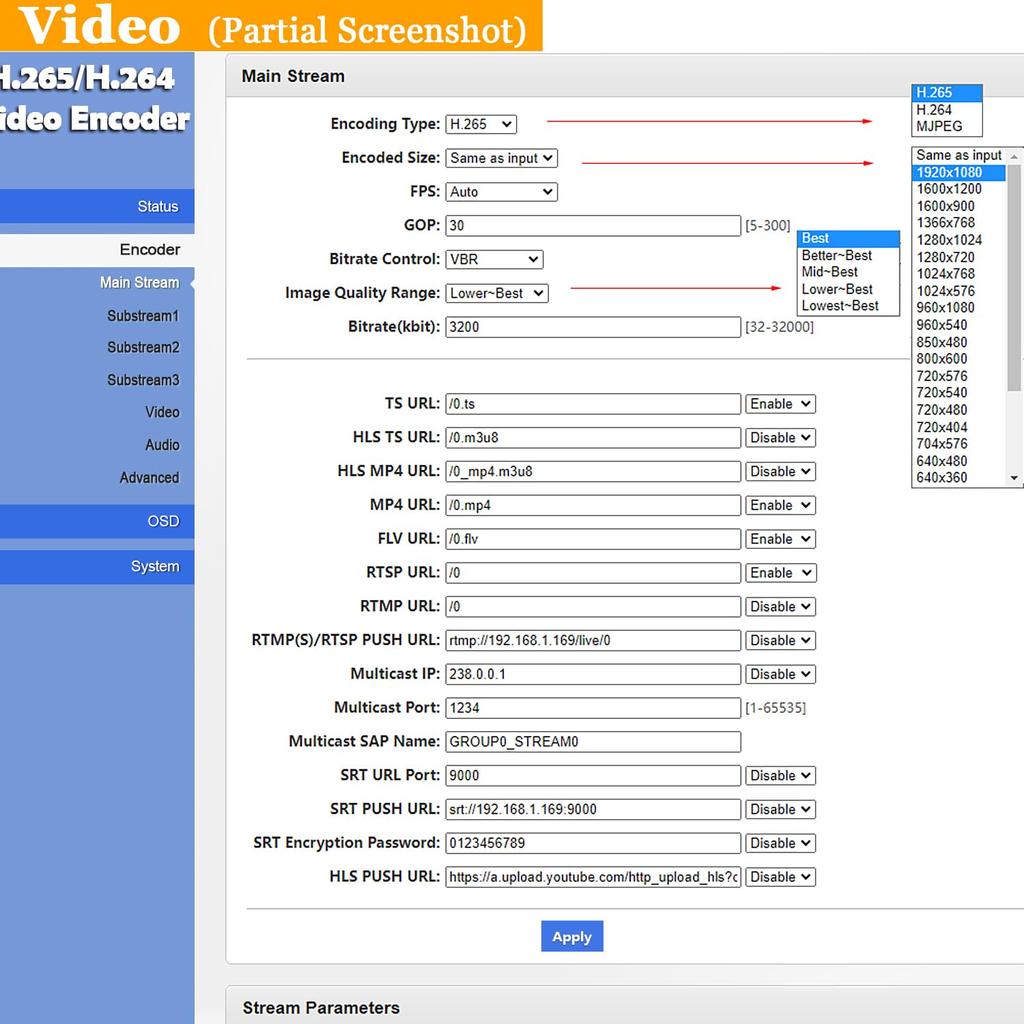

Video Bitrate: Adjustable from 32kbit/s to 32mbit/s, supports CBR or VBR bitrate mode
Video encoding: H.265, H.264, MJPEG

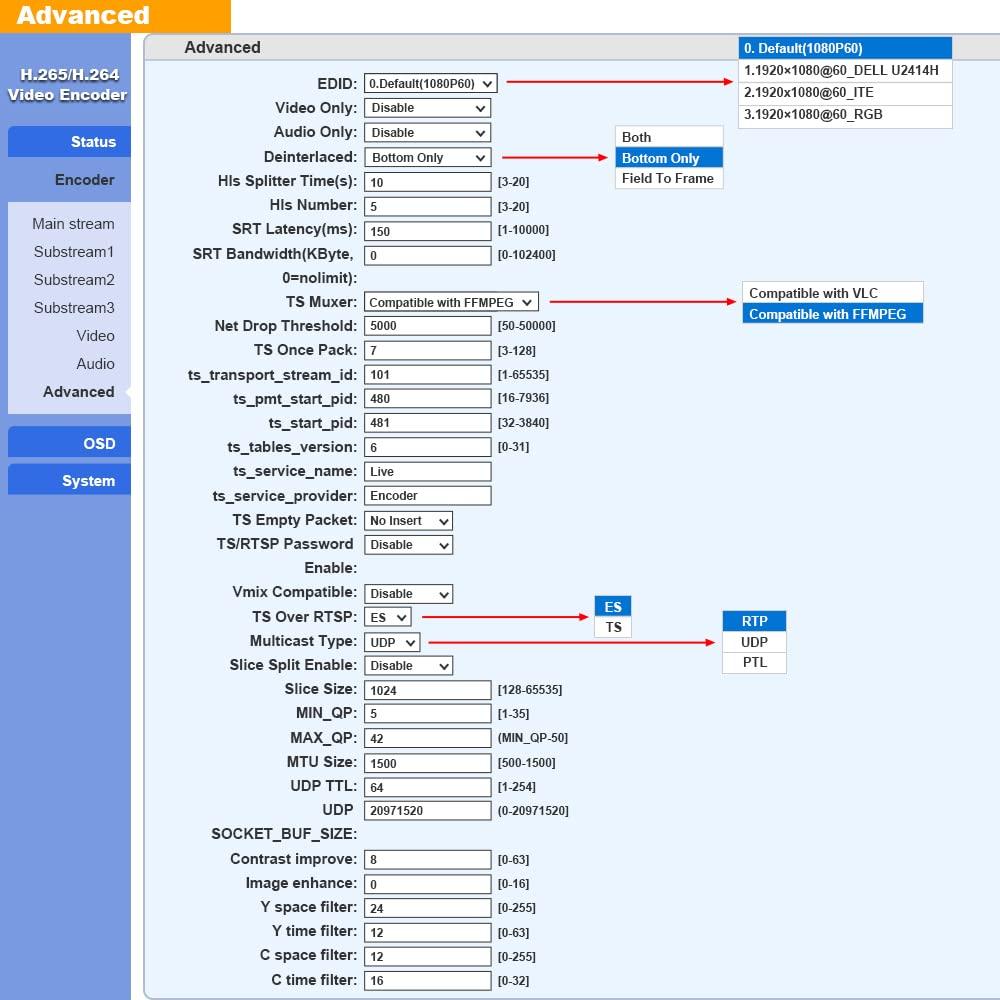

Video pre-processing: Supports deinterlacing, noise reduction, sharpening, flipping, mirroring, cropping, etc. 2. Audio.

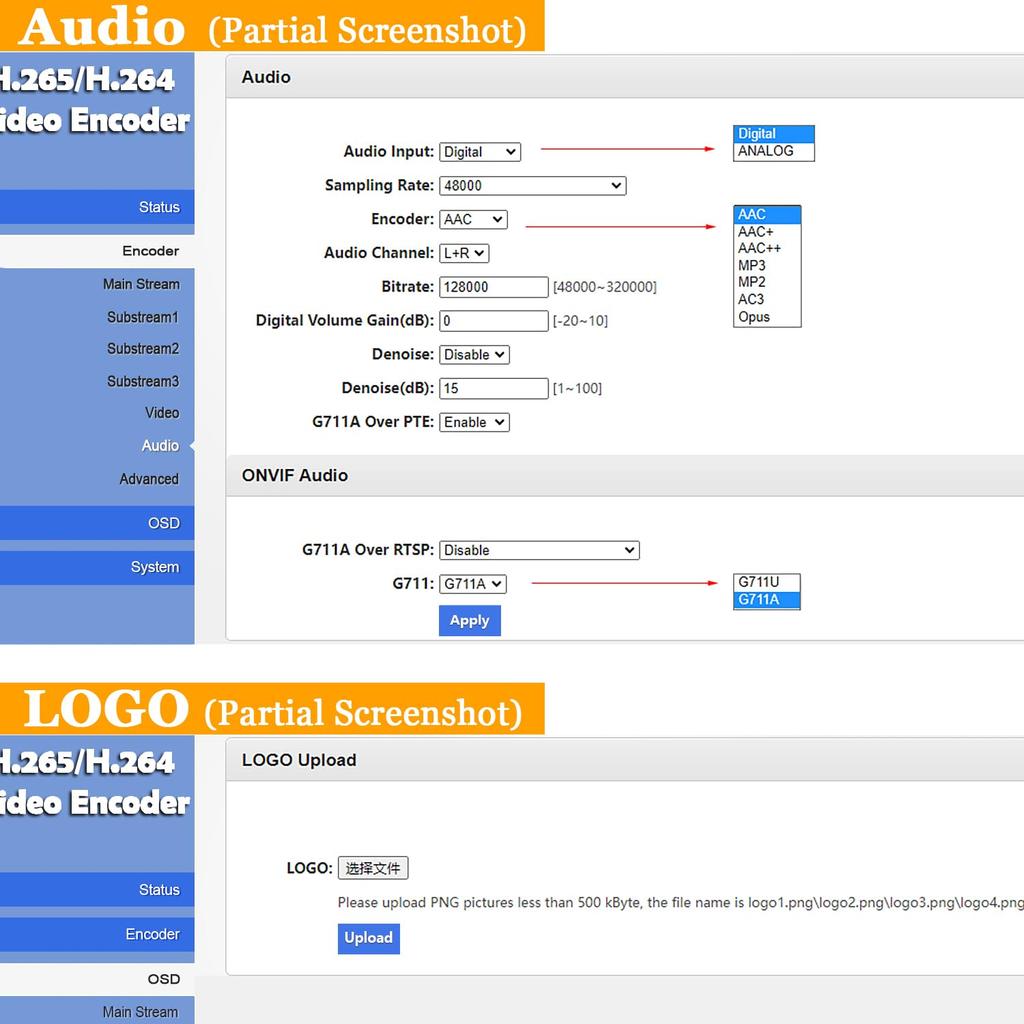

Input: HDMI audio, Line-in audio (3.5 mm jack)
Audio coding: AAC, AAC+, AAC++, AC3, MP3, MP2, Opus, G.711
Audio bitrate: adjustable from 48000kb/s to 320000kb/s 3. System.
Ethernet port: 1000Mbps

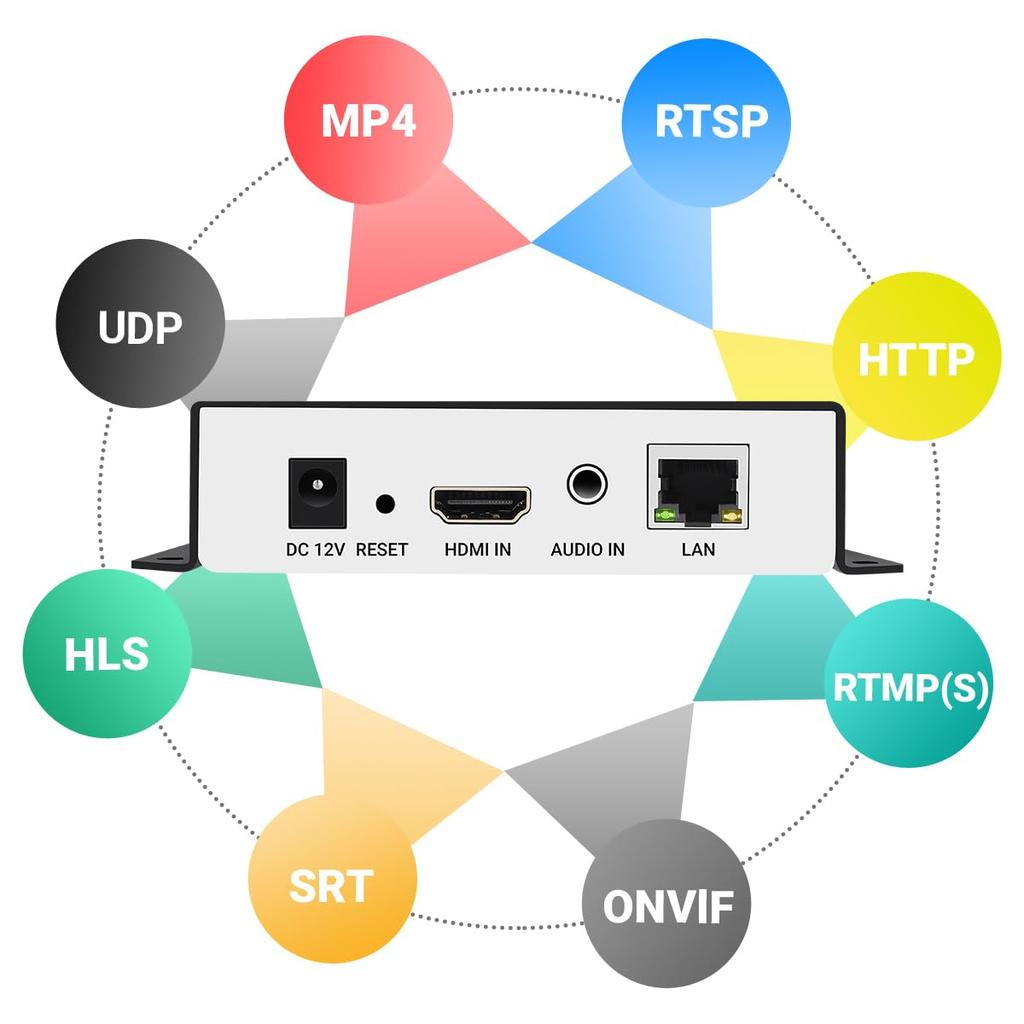

Streaming protocols: HTTP, RTSP, RTMP(S), SRT, HLS(M3U8), ONVIF, MP4, FLV, Multicast(UDP, RTP, PTL), Unitcast, etc.

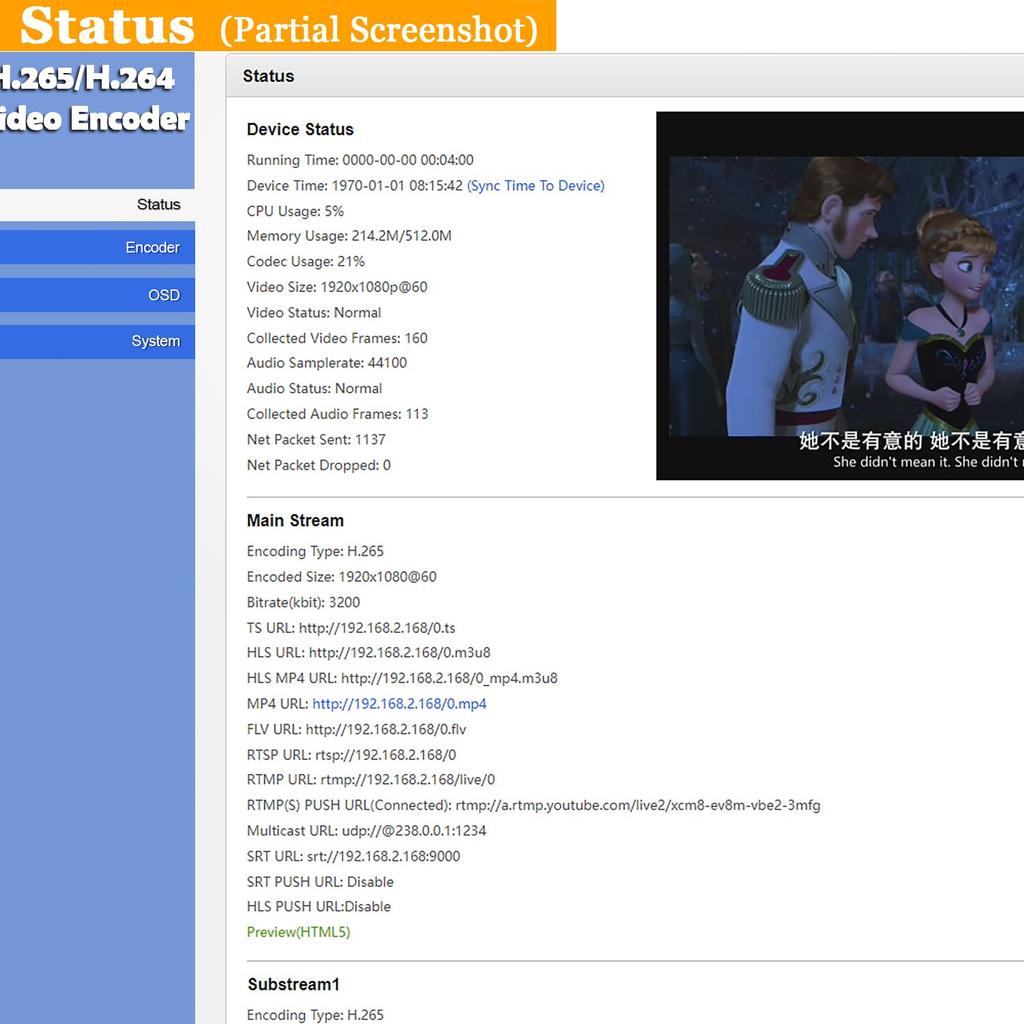

Control Panel: Web or APP control interface, support WAN remote operation
Power supply: 12V 1A power supply
