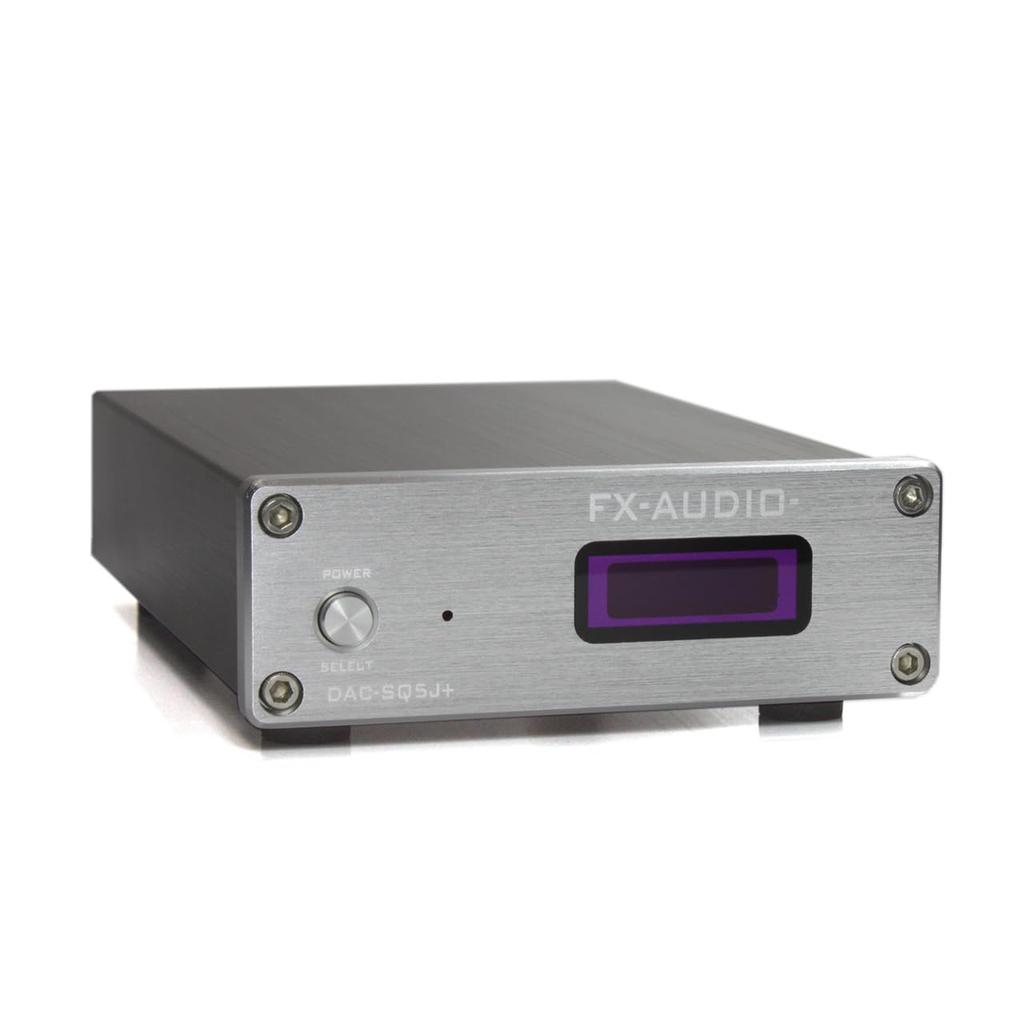

FX-AUDIO-DAC-SQ5J+ [Silver] Burr-Brown PCM1794A Hi-Res DAC with USB, Optical, and Coaxial Support, Digital Audio Up To 24-bit, 192kHz

This is a high-quality DA converter that employs the high-performance, high-quality DAC chip "PCM1794A." Based on the acclaimed flagship model "DAC-SQ5J," this D/A converter utilizes the next-generation USB receiver chip, SAVITECH's BRAVO-HD "SA9123L," supporting up to 24-bit/192kHz via USB connection. This high-end model utilizes high-quality components, even in addition to the DAC IC, the heart of the converter. Supporting three digital inputs (USB, optical digital, and coaxial digital) and input switching, it can be connected to a variety of digital devices, including PCs, CD players, and TVs.

[Notes] *The product warranty period is six months from the date of purchase. *This product requires a separate power supply. A separate AC adapter is required for use. *Replacement of the operational amplifier is not covered by the warranty.

[Product Specifications] Brand: FX-AUDIO Model Number: DAC-SQ5J+ Color: Silver Warranty Period: 6 months from the date of purchase Digital Inputs: [3 Inputs] USB Type-B Connector, USB 1.1/2.0 Compatible Optical Digital Audio Input (Square) Coaxial Digital Audio Input Analog Output: Stereo RCA Connector Supported Formats: PCM 2-Channel Stereo, up to 24-bit, 192kHz Signal-to-Noise Ratio: 109dB Dynamic Range: 110dB Total Harmonic Distortion: Less than 0.004% (20Hz-20kHz) Channel Separation: More than 99dB DAC IC: Texas Instruments Burr-Brown PCM1794A USB Receiver IC: SAVITECH BRAVO-HD SA9123L (USB-DDC) Audio Receiver IC: Cirrus Logic CS8416 (DIR) I/V Conversion Op Amp: Texas Instruments Two Texas Instruments LM4562 amplifiers Single-ended conversion op amp: Texas Instruments LM4562 Power supply: 12V DC / 1A or higher recommended (AC adapter sold separately) Power connector: 5.5mm outer diameter, 2.1mm inner diameter (center positive) Accessories: Instruction manual Dimensions: 98mm W x 148mm D x 33mm H (excluding protrusions) Weight: 332g

[Compatible OS (USB connection)] Windows 11/10/Mac OS X/9.1 or later USB AUDIO CLASS 2.0 compatible: Windows 10 Creators Update version 1703 build 15063 or later, Mac OS X 10.6.4 or later *Operates with the standard OS driver for Windows 10 or later and Mac OS. *Operation is not guaranteed with devices running mobile OSs* Connection with devices other than those listed above may not be recognized due to device or software specifications. While operation is not guaranteed, we have confirmed its compatibility with some mobile devices and provide this information for reference.

iPhone 6/iPhone SE/iPhone XR/iPhone X (connected via Lightning to USB 3 Camera Adapter)

Specifications and design may change without notice due to product improvements.

AC adapter required (sold separately): DC 12V/1A or higher, DC jack 5.5mm x 2.1mm (center positive)

Burr-Brown "PCM1794A" D/A converter IC

SA9123L IC supports high-resolution 24-bit/192kHz USB input

Optimized operational amplifier circuitry maintains output coupling-free operation

Equipped with 3-channel digital input switching
