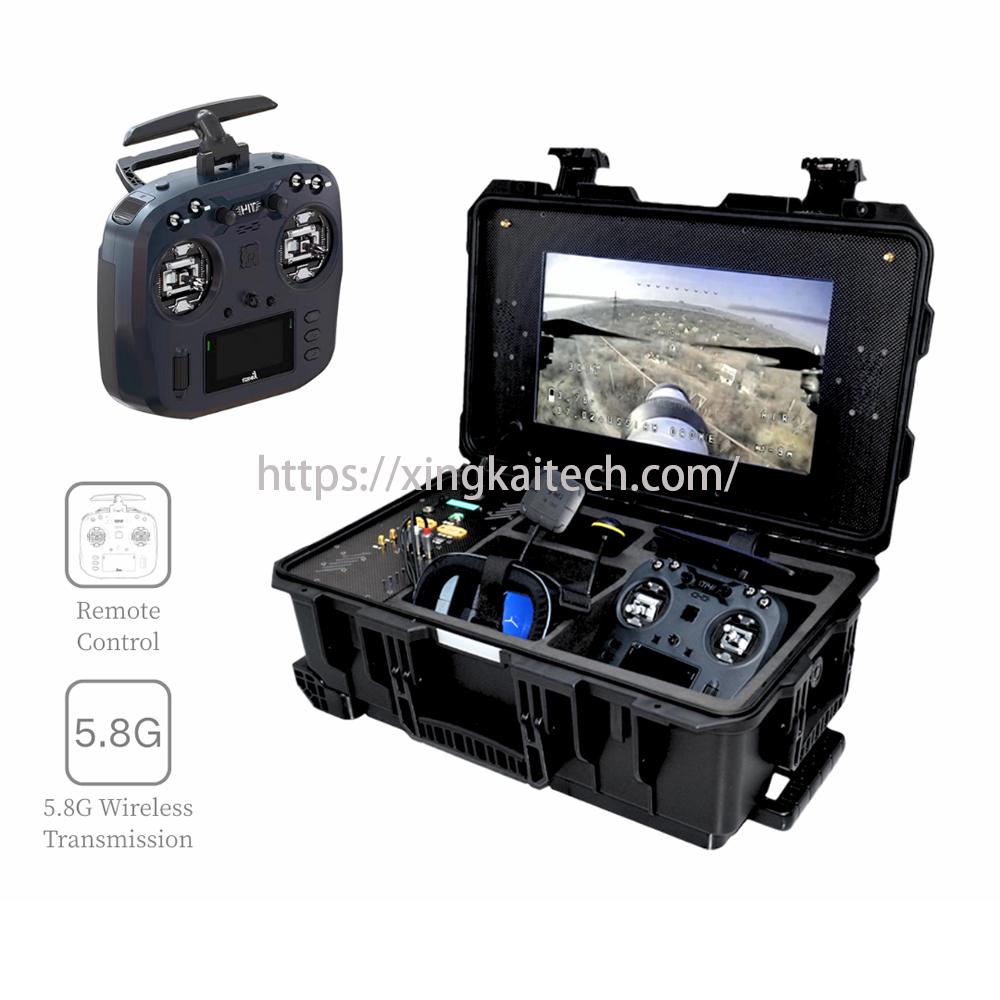

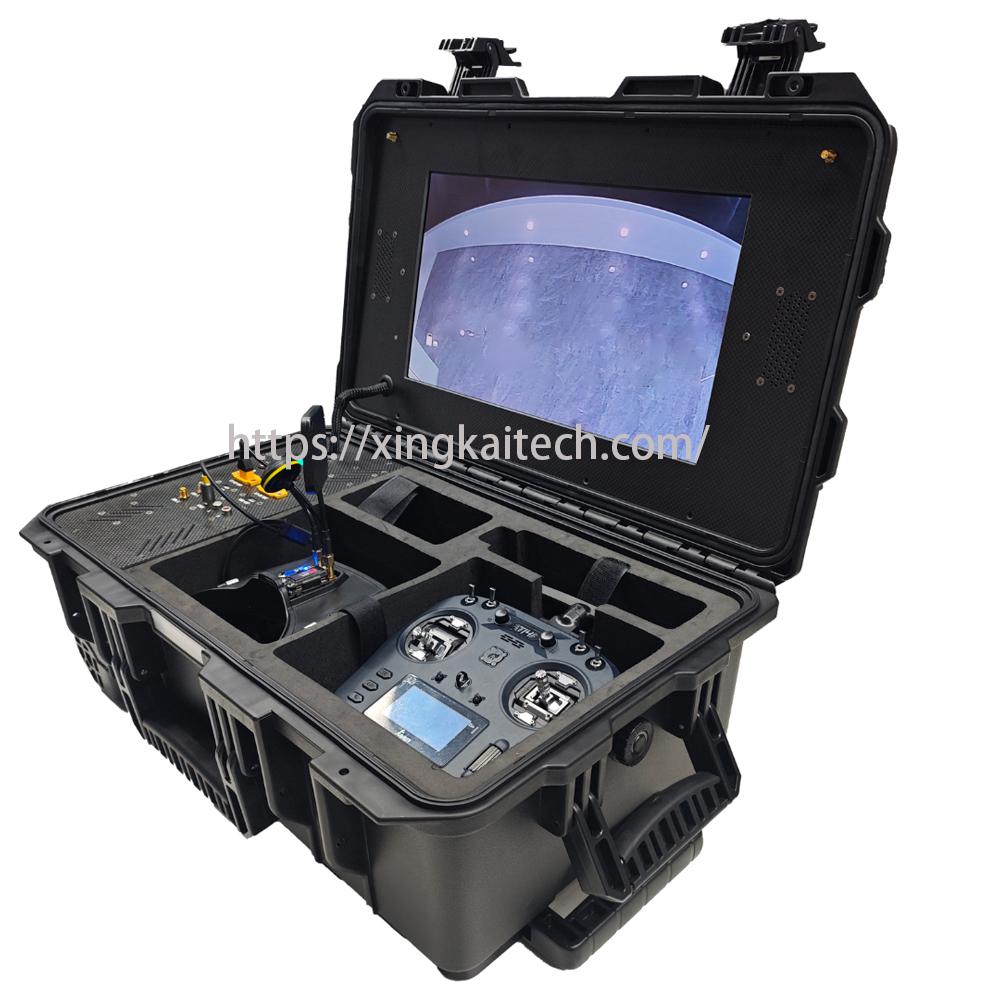

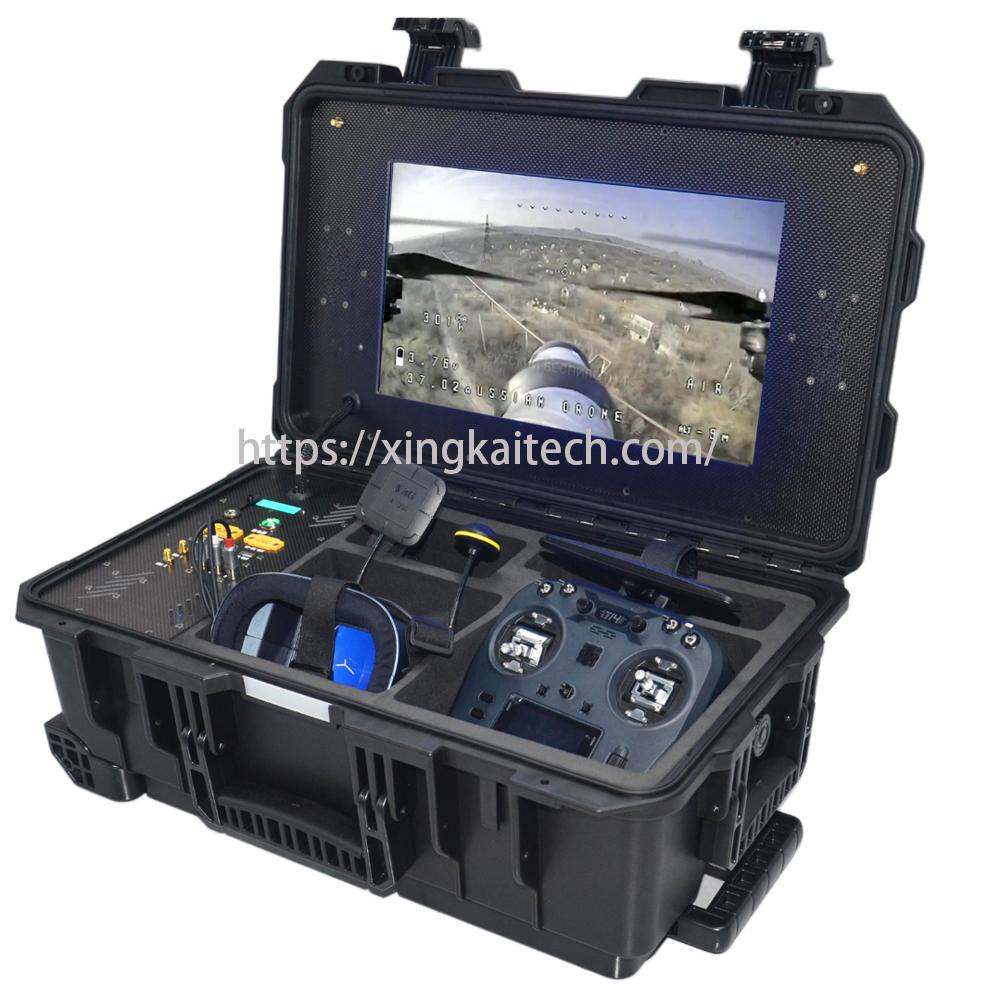

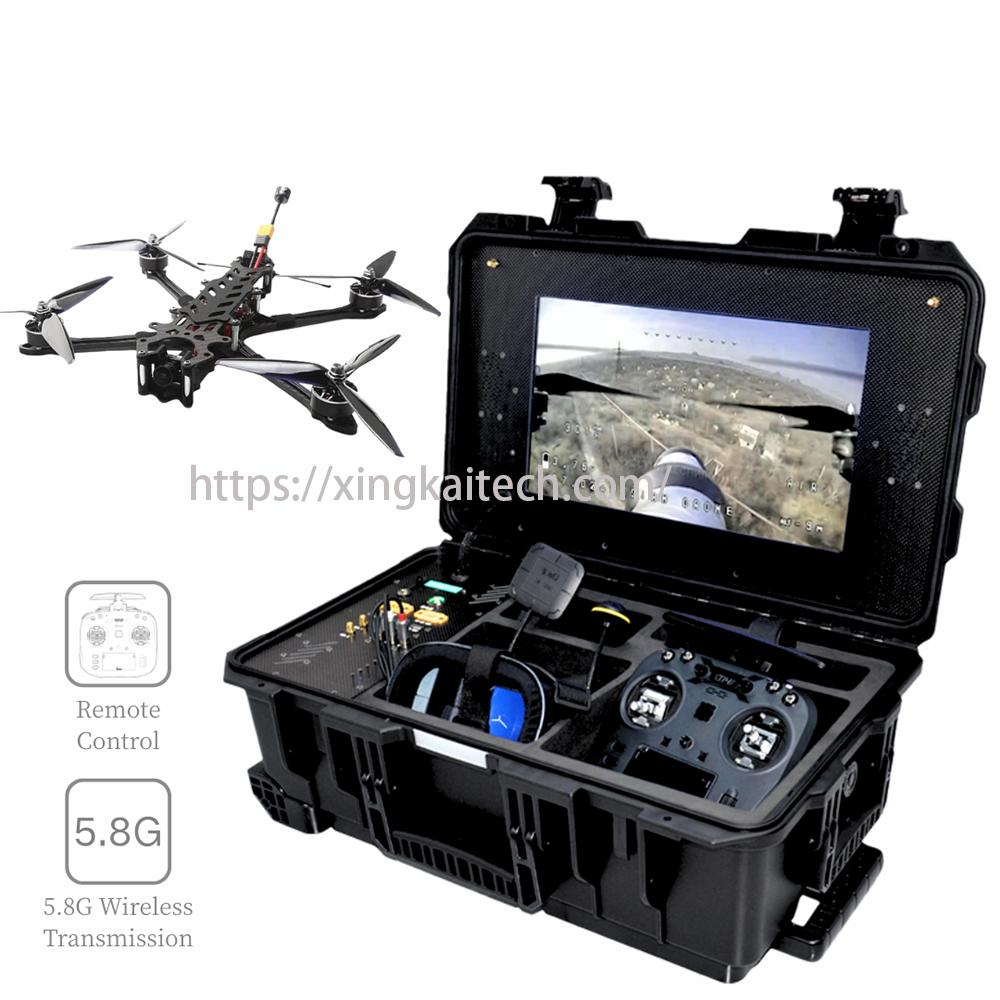

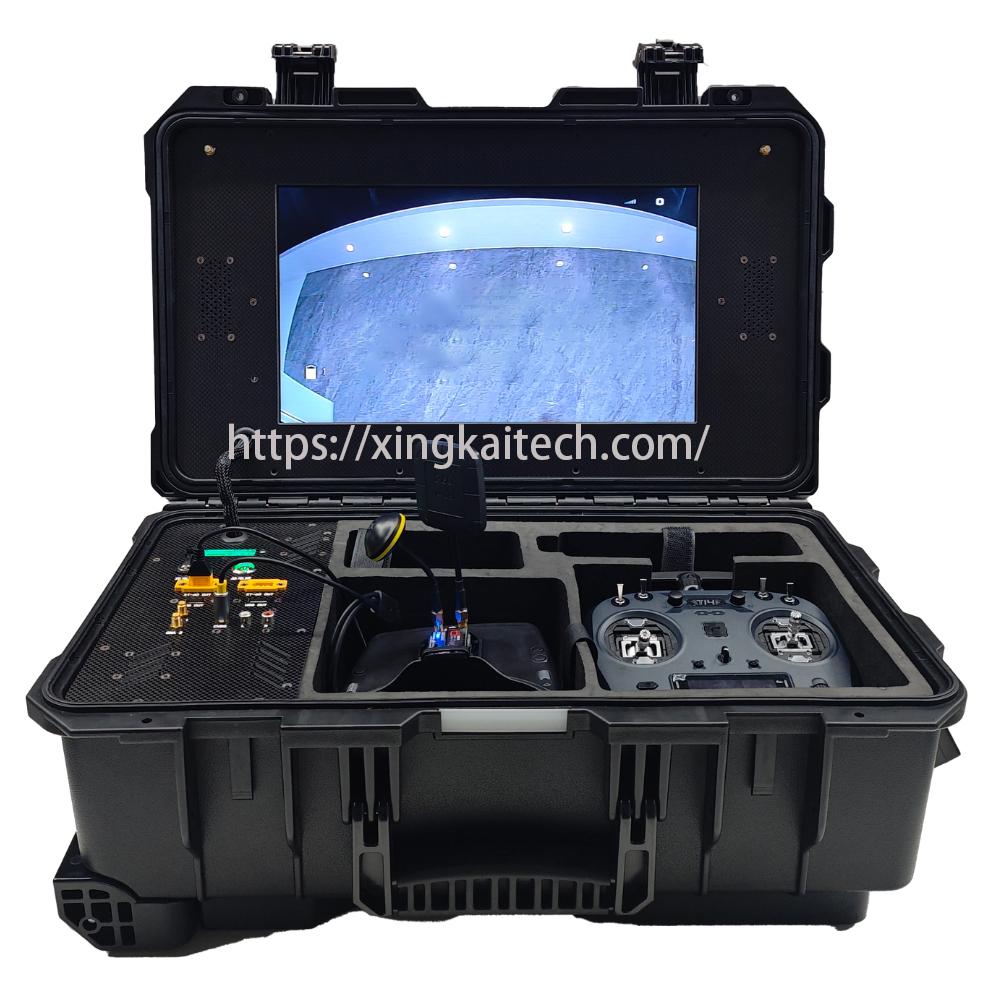

XK-GCS01 wilcarry Fpy accessories and Fpv display inegrated in a device, easy to carry, in practical use, easy to fransport, the intemal placement oftheremote control, vR glasses, cables, batteries, antenas and other accessories, can be yR gasse in the scren castimg screen to the big scren display, easy tmonitor and control the FPV flight, but also in emergencies on the drone battery charging and so on!
2. Product Specification
FPV control terminal box

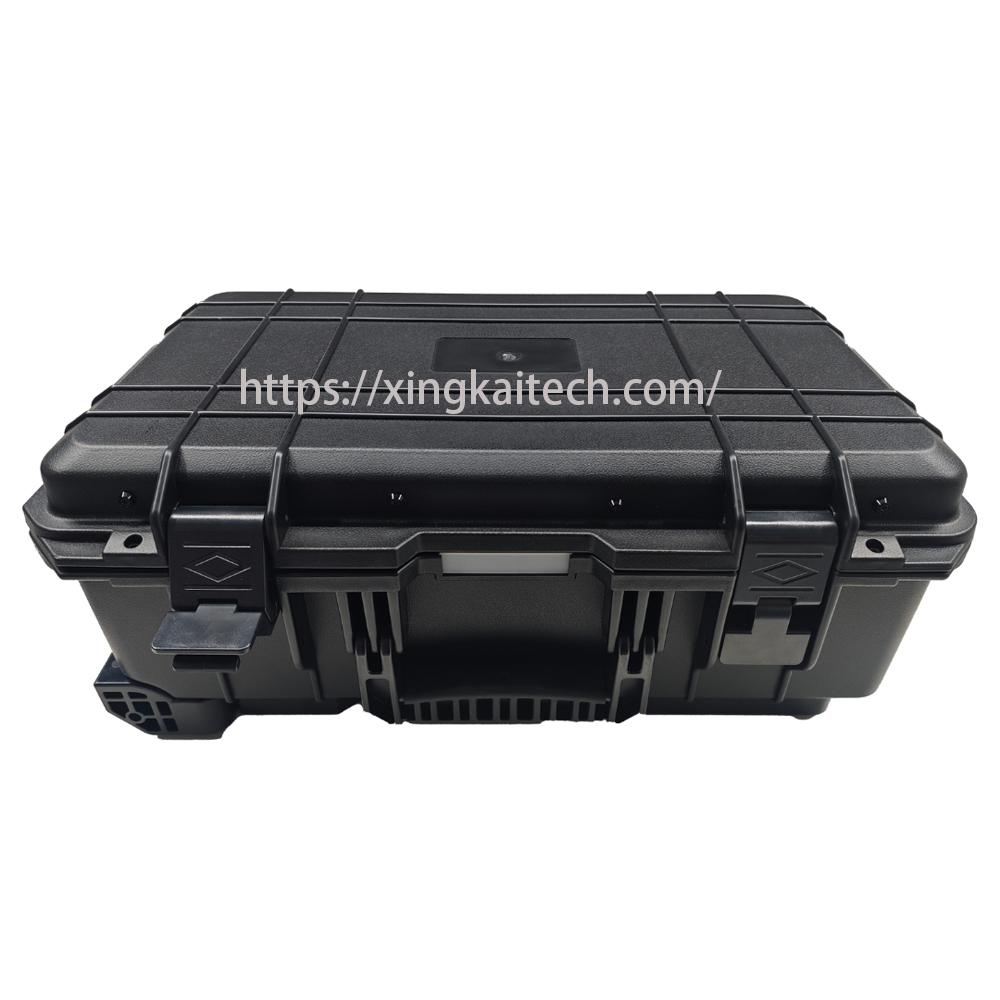

Case Model Three-proof safety box
Size L 62.9CM+W 49.7CM*H 35.3CM
Shell material Polypropylene composite material
Protection Grade IP67 dustproof and waterproof
Operating Temperature -10ºC to 60ºC
Colour Type Matte Black
Portable Features Ready to use with open lid, 3-way transport with
closed lid, external carry handle
Battery & Battery Life Intelligent battery management system,2 hours of
battery life (customisable)

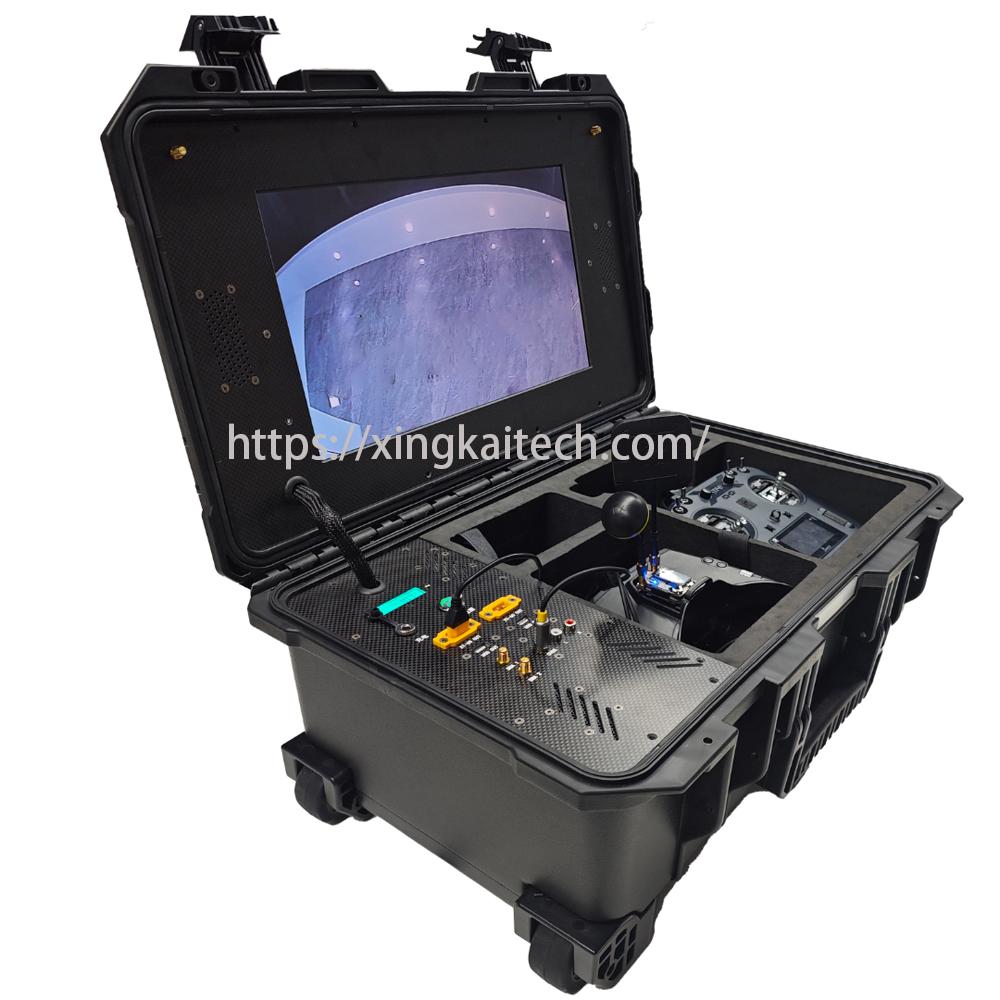

Operation Panel
Panel Material 3K carbon fibre+
Interfaces VGAx1.Headphone*1,TX60/90
Feeder and Antenna Connector SMA 2x
Human Machine Interaction 15.6 inch high brightness screen
Switching Parameters Total power supply
Other Devices Communication equipment indicator, power meter ,Cooling fan
Label indication Engraving
Main Display
Size 17.3 inches
Resolution 1920*1080
Screen ratio 0.672916667
Backlight Type LED
Maximum Brightness 1040nit (Brightness auto adjust)
Input Interface HDMI (default connection to industrial control host)
Reserve equipment installation space
Interface support
Power supply 12v
Antenna SMA 2+
Battery & Power Supply
Display contents Current voltage,current current, current remaining
capacity, power, etc.
Management system protection Overcurrent protection,overvoltage protection,low
voltage protection,overcapacity protection,
overpower protection.
Charging method DC input 19V-24V.
Endurance time 2 hours
