Material:stainless steel 316L bezel+anti-fog glass+pvc
Install diameter:Φ85mm or 3-3/8"
Speedometer indication range:0~999km/h MPH knots
Fuel level gauge indication range:0~100%
Water level gauge indication range:0~100%
Oil pressure gauge indication range:0~10Bar (0~145Psi)
Water temp gauge indication range:40~120℃ (104~248℉)
Voltmeter indication range:8~16vdc
Total mileage indication range:0~99999.9km miles knots
Hourmeter indication range:0~99999.9hours
Tripmeter indication range:0~999.9km/h MPH knots
Working voltage:9~32vdc
Operating current:≤150mA
Connection type:row insert

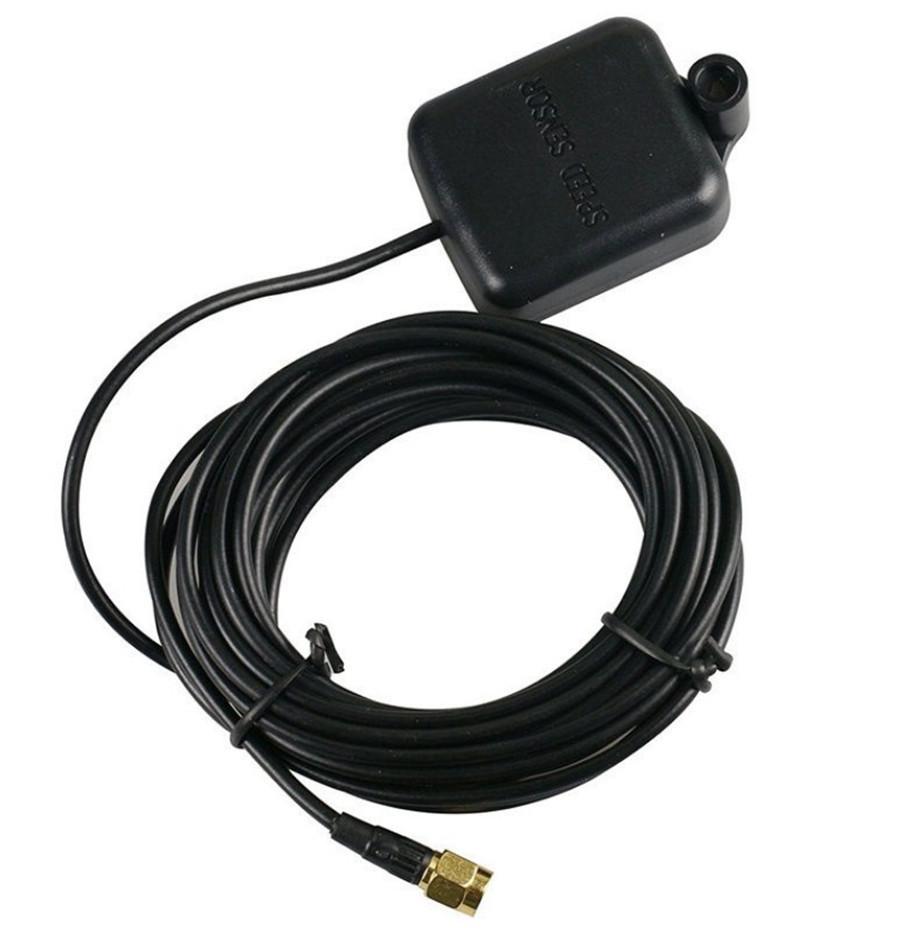

Input signal:gps antenna

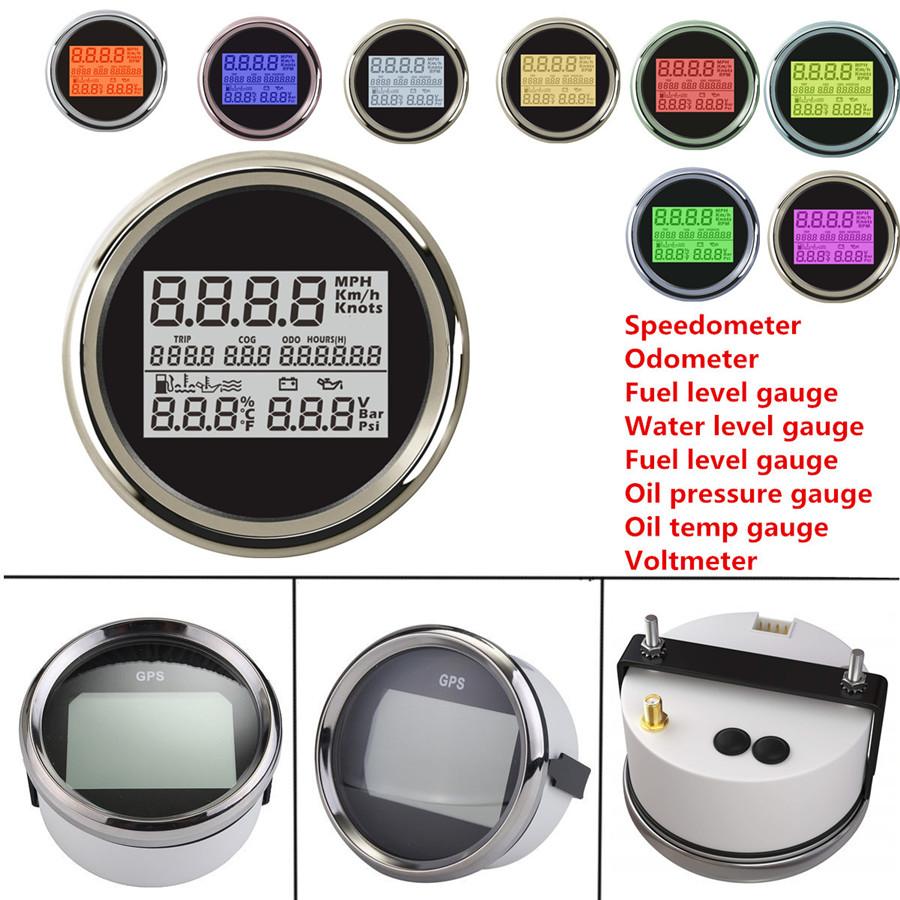

Backlight color:red、green、blue、white、yellow、olivine、orange、purple,totally 8 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back "set" button
Operating temperature:-30℃~+75℃
Storage temperature:-40℃~+85℃
Protection grade:IP67,back cover is IP5
Item color:black,white
Item condition:new
Place of origin:China
Pls note:for this speedometer,we suggest buyers to connect gps antenna firstly and then connect power,can not connect power firstly and then connect gps antenna,otherwise it will be easy to make gps mould damaged
It is a 3-in-1 multifunction gauge,so it means that this gauge only display 3 kinds function.it means except speedometer odometer you also can select 2 kinds other function from the following functions ：fuel level gauge,water level gauge,water temp gauge,oil temp gauge,,volt meter and oil pressure gauge.pls note:only can select 2 kinds,not all,but you can change them by yourself
