Main IC using original "precision" imported components. With over charge, over discharge, over current, short circuit protection function, for a variety of different shapes of 3.7V capacity lithium batteries. Sophisticated design, fine workmanship, comprehensive test. Compact size, suitable for many requirements of high integration, low cost occasions, can meet the performance requirements of many aspects, to ensure the absolute safety of the battery group.
Main function:
Over charging protection, over discharge protection, short circuit protection, over current protection function.
Technical parameter:
Overcharge Detection Voltage: 4.25-4.35V0.05V
Over Discharge Detection Voltage: 2.3-3.0V0.05V
Maximum Working Current: 3A
Transient Current: 5A
Operating Temperature: -40-50Celsius
Internal Resistance: Less than 45m omega

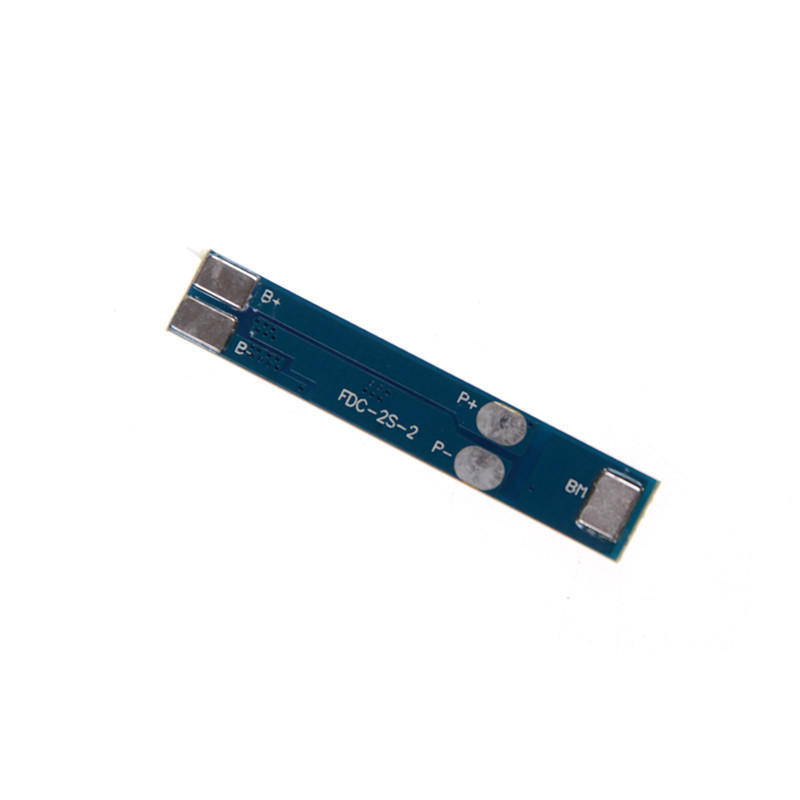

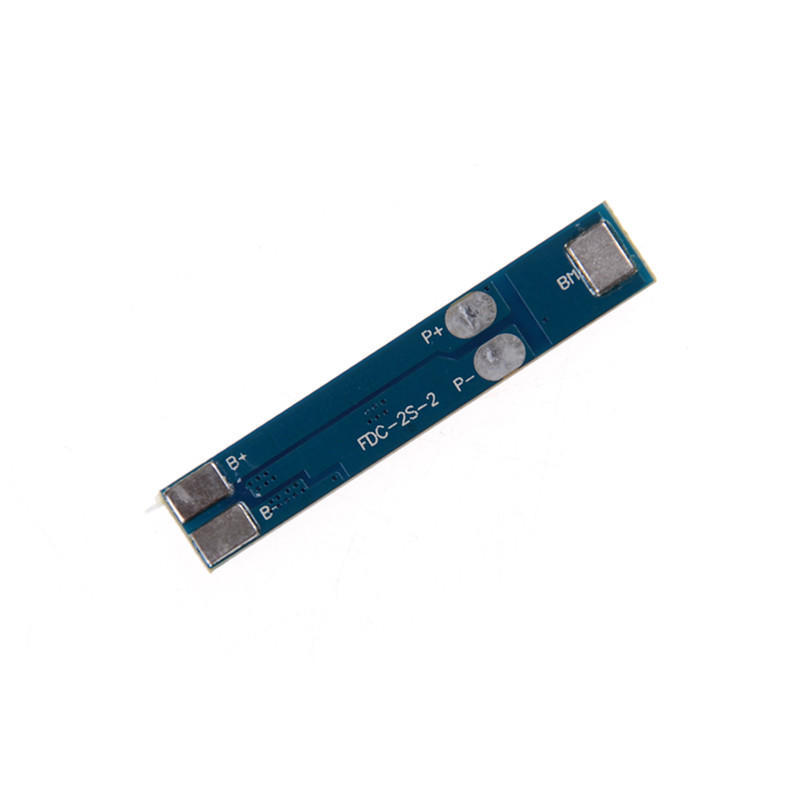

Connection description:
Bplus B-: The interface of battery core
Pplus P-: The connector of battery board
MB: The connection point between the batteries
Bplus: Battery Vplus Positive
B-: Battery V- Negative
Pplus: Output / Charging Vplus
P-: Output / Charging V-
Include:1 pc
