First, drill a hole 85mm in diameter and 62mm deep, then insert the gauge and secure it in place.
There are three wires connected (power, ground, and backlight). Our speedometer is directly connected to the GPS sensor, so no other sensor cables are required. There is no specific location for installing the sensor, but we recommend installing it on or next to the dashboard. Also, considering the influence of bad weather, we recommend not installing it on the roof of the car.
The first reception takes about 30 seconds, but subsequent receptions take about 3 seconds. If it's sunny, reception will probably be quicker. If the signal you want to use disappears, please reconnect the wire and reset.
You can choose to display the current speed (SOG), ODO (cannot be reset), trip meter, or COG. If you need other colors, I recommend my products (ASIN: B07KR1M7TJ, B07KRTM925, B07KJGBJXK).
Backlight: Red, Green, Blue, White, Yellow, Orange, Purple, Light Green, total of eight colors available; Operating voltage: DC 9-32VDC (12VDC/24VDC); 100% waterproof and anti-fog protection
Product Features:
- Suitable for all vehicles, including motorcycles and trucks.
- Signal is received directly from the satellite signal receiver (GPS speed sensor)
- Our gauges have the advantages of high accuracy, quick positioning capability and short insertion time.
- Protection grade is IP67, the whole body is completely waterproof
- The full range of stepping gauges are used in step auto, and their most outstanding features are low power consumption, long life, and high accuracy.
- Specially made glass provides excellent anti-fog properties
- Wide voltage range: 9-32V, max voltage 36V (min:1V)
- specification:
- Mounting dimension: 85mm (3-3/8")
- Indication range: 0-200km/h
- Operating temperature: -40℃~+85℃
- Working voltage: 12V/24V
- Working temperature: -30℃~+75℃
- Working current: ≤100mA
-Backlight: Red, green, blue, white, yellow, orange, purple, light green, total of eight colors available
- function:
- The needle reflects the speed value immediately.
- LED screen exhibits: TRIP/COG and ODO
- If the power is turned off, TRIP---TRIP01 (default) will set the one-way mileage to zero, while TRIP02 will save the one-way mileage.
- If you don't need that data, just press and hold the "Set" button for 3-5 seconds.
- COG - Direction of movement
- ODO - All mileage is automatically recorded and never reset
- Operation mode: LCD display, stepper motor
- Notes:
-We recommend you connect the black GPS antenna or sensor first and then connect the power, otherwise it may destroy the GPS.
-connection:
-Blue wire--negative/ground, red wire--(9-32VDC) voltage, orange wire (backlight)--power positive
-After connecting, the first time you connect from a signal, it takes about 30 seconds, but subsequent connections take less than 3 seconds. The better the visibility, the easier it is to get a signal.
- If the signal is temporarily cut off, reconnect all wires and restart again.
This speedometer directly connects to the GPS sensor, no extra sensor cables are needed, and the sensor can be mounted anywhere above or below the dashboard.

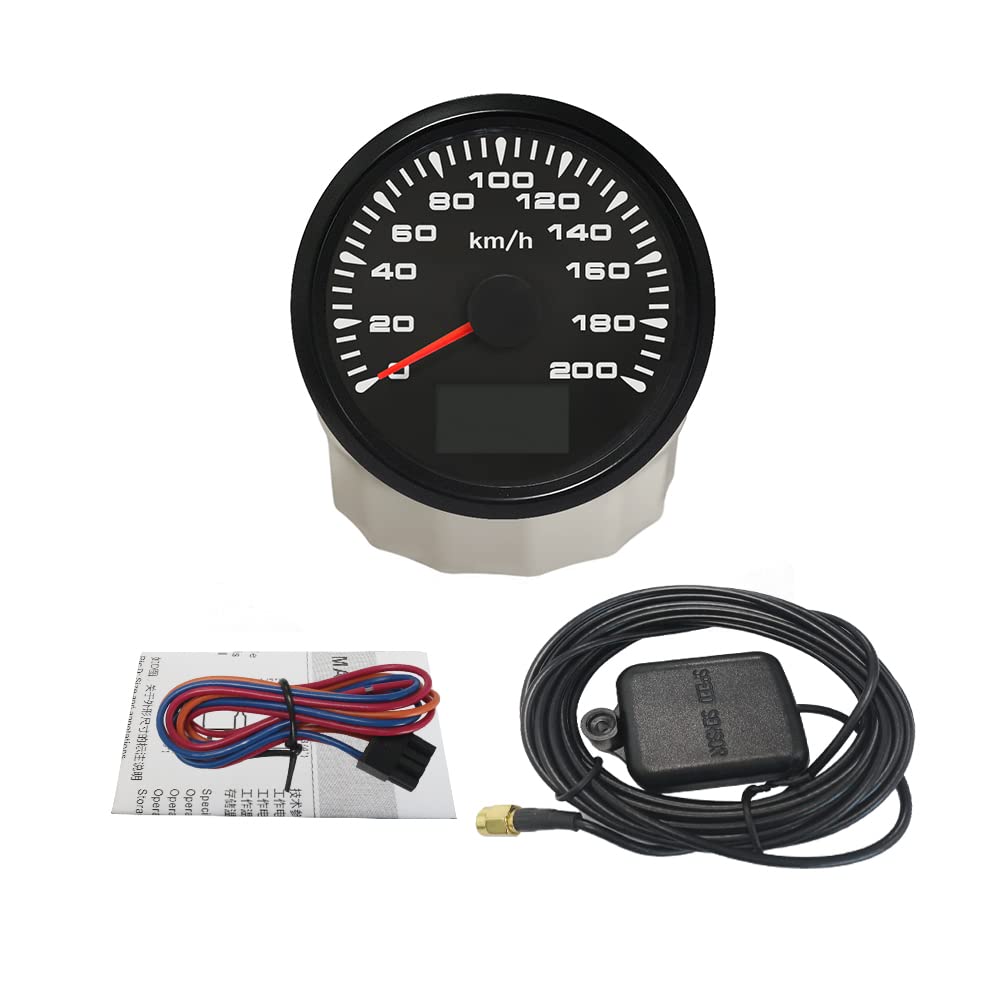

-Package includes:
- 1x GPS Speedometer
- 1x GPS speed sensor
- 1X Multi-Plug Socket
- 1X Japanese instruction manual
