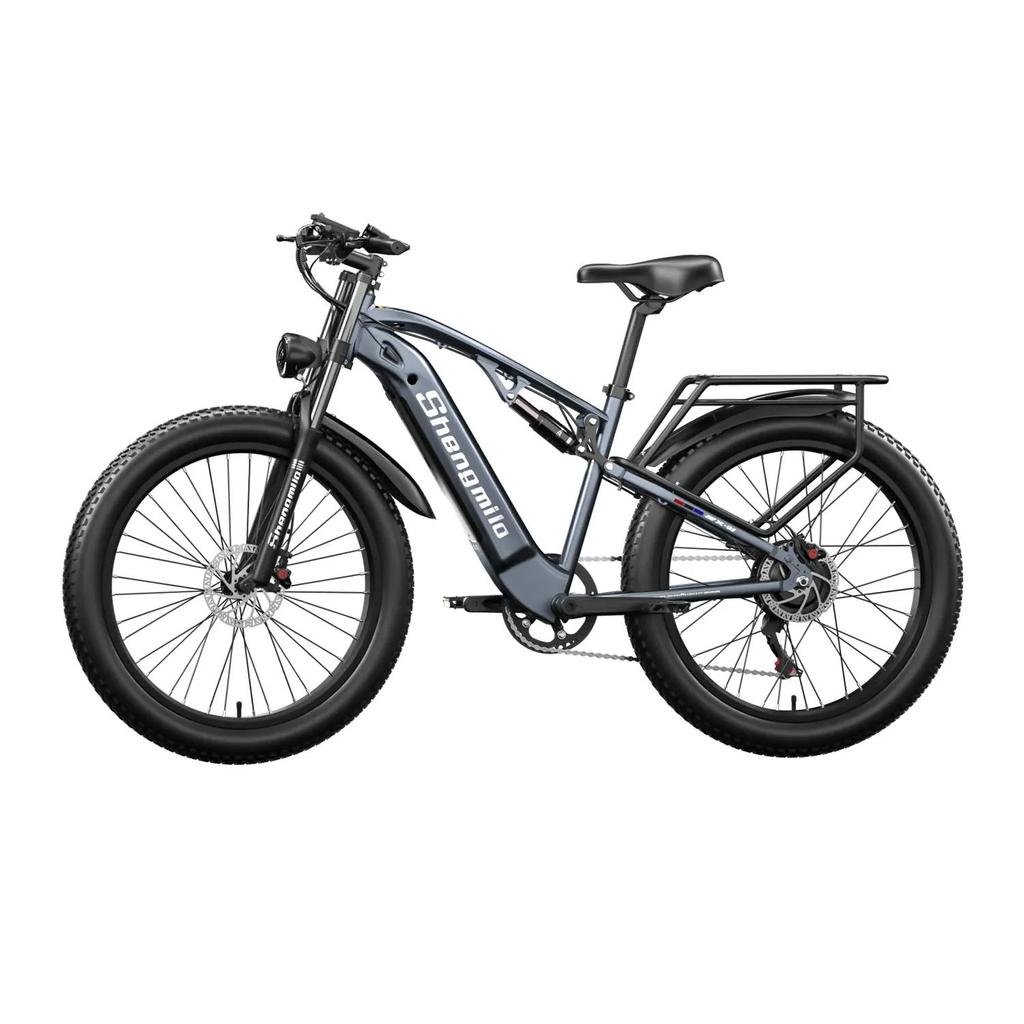

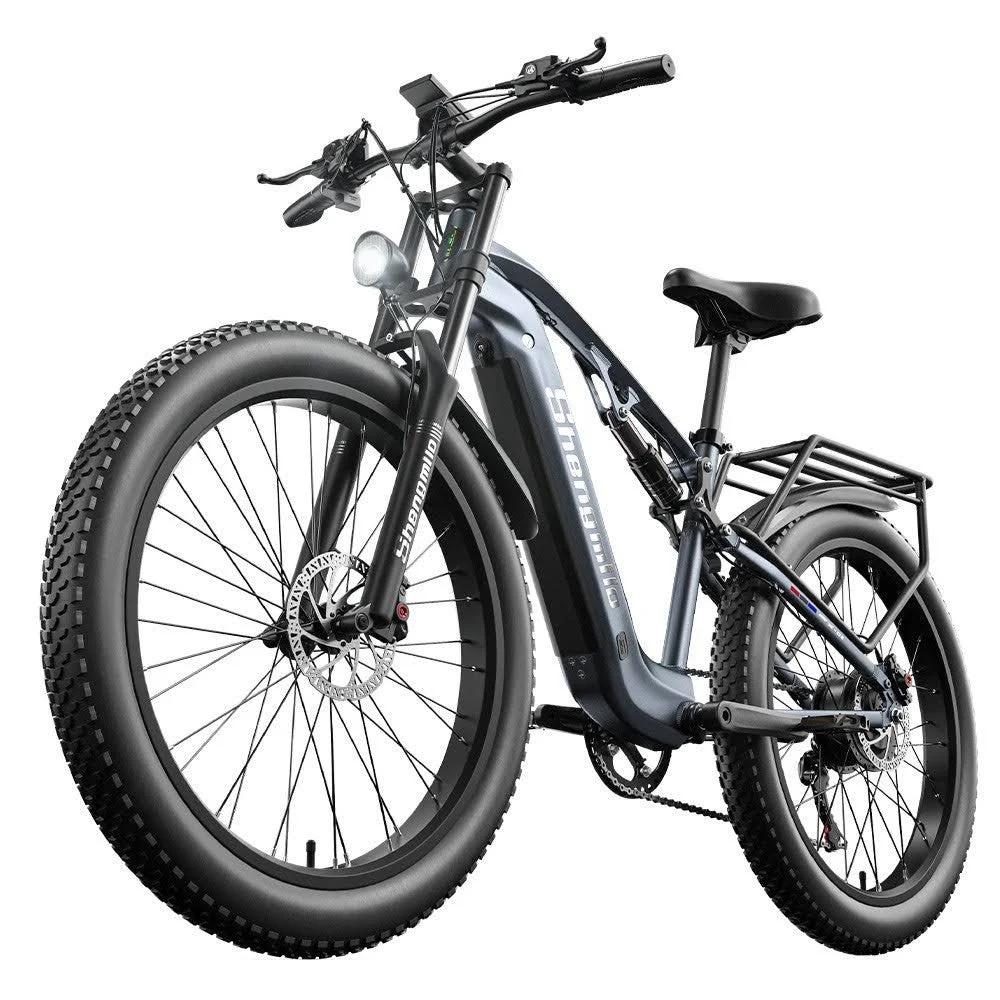

Shengmilo MX05 City Road Electric Bike with Rear Rack, 500W(1000W Peak), 48V17.5Ah, 42km/h, Shimano 7-Speed, Disc Brakes, 26" High-speed Tires E-Bike

Joom: Safely charging your e-bike or e-scooter

• Don’t leave your battery unattended while charging, when you're out or while you're asleep

• Don’t cover chargers or battery packs when charging

• Don’t overload sockets or use unsuitable extension chords

• Don’t charge or store batteries in direct sunlight or in areas with temperatures above 45⁰C

• Don’t charge batteries next to combustible materials or hazardous substances

• Always unplug your charger once you have finished charging

• Always make sure to only use the proper proprietary charger

• Always ask a professional when converting your e-bike or e-scooter

• Always check your battery (and charger) for visible damage

-----

🚲Shengmilo-MX05-E-Bike🚲

A. Core Power Motor type: Rear hub brushless motor Voltage: 48V Rated power: 500W Instantaneous maximum power: 1000W Max output torque: 80 N·m Max speed: 42km/h(Default speed limit: 25km/h) Performance Climbing ability: ≤35° slope Assistance mileage: 80-90km Pure electric mileage: 40-50km

B. Energy System Battery Type: Samsung Lithium Battery Voltage: 48V Battery pack capacity: 17.5Ah Standard power consumption: 0.84kW·h Battery protect system: Battery protective board（BMS） Charging time: 7-8h

C. Riding Control Brake system: Mechanical Disc Brakes Derailleur: Shimano 7-Speed Instrument type: Color Display Instrument size: 3.5in Instrument functions: Speed, prower, mileage, speed mode etc.

D. Riding Components Frame material: Aluminum alloy Wheel diameter: 70cm Tire size: 26×3in Tire type: All-terrain tires Disc brake outer diameter: 180mm(Front) & 220mm(Rear) Handlebar size: 114cm Minimum seat height: 83cm Maximum seat height :100cm

E. Comfort & Safety Shock absorber system: Front: Dual shoulder fork Rear: Damping shock absorber Light System: Headlight type: LED Turn light: / Taillight: / Max Load: 150kg

F. Other parameters Wheelbase: 117cm Chain stay length: 48cm Standover height: 45cm Head tube length: 24cm THandlebar length: 68cm Packing size：1630*280*790mm Product G.W：38kg Package includes: Bare bike+Manual+Charger+Toolkit
