Description:
- 【Great Upgrade for Your RC Car】: The 21g gear for 1/12 scale models is suitable for MN82, MN99S, MN168, MN78, and , RC crawlers and trucks
- 【Gear and Waterproof Design】: Engineered with sturdy gear that can withstand higher loads and resist stripping. The waterproof construction allows you to confidently tackle wet and muddy terrains without risking damage
- 【High Torque Digital Performance】: The digital servo delivers impressive torque up to 4.20 kgf·cm at 6.0V. Enjoy quick response times and low operational noise for an enhanced driving experience
- 【Detailed Specifications】: This 21G servo operates on a standard v of 4.8V to 6.0V DC. It features a compact size of 2.96 cmx1.32 cmx4 cm/1.17 inchx0.52 inchx1.57 inch for easy fitting and boasts a wide 180° maximum operating angle
- 【What You Get】: Each package contains a complete 21G Gear Digital Servo, ready to be installed in your RC vehicle
Specification:
- Material: ABS Plastic
- Operating V: 4.8-6.0V DC
- Maximum Torque: 4.8V ≥ 3.80kgf·cm; 6.0V ≥ 4.20kgf·cm
- No Load Speed: 4.8V ≤ 0.10 sec/60°; 6.0V ≤ 0.12 sec/60°
- Stall Current: 4.8V ≤ 1500mA; 6.0V ≤ 1800mA
- Current Consumption (No Load): 4.8V ≤ 200mA; 6.0V ≤ 210mA
- Maximum Operating Stroke Angle: 180° ± 2° (500-2000μs)

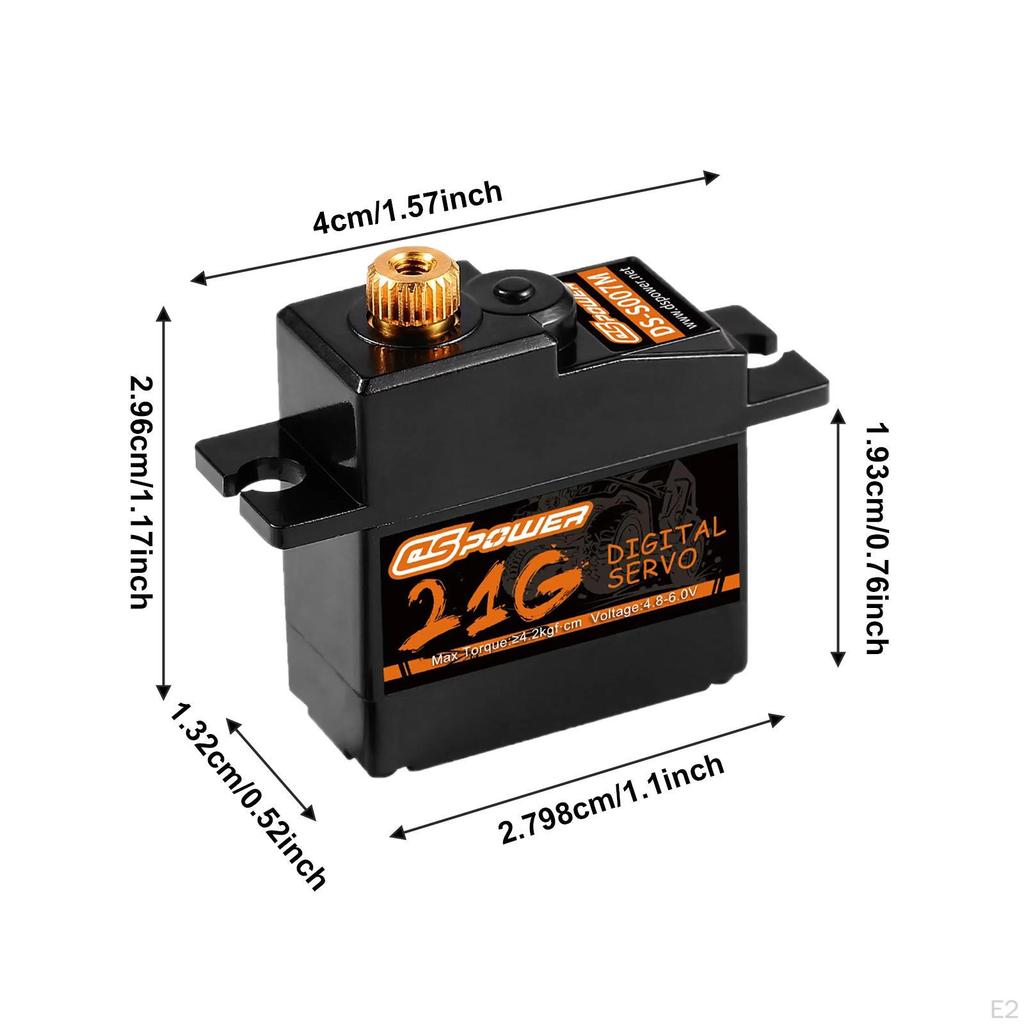

Size Chart:
2.96 cmx1.32 cmx4 cm/1.17 inchx0.52 inchx1.57 inch
Package Includes:
1 21g Gear Digital Servo
Note:
Please allow slightly errors 1-2cm/0.39-0.79inch differences due to manual measurement.
