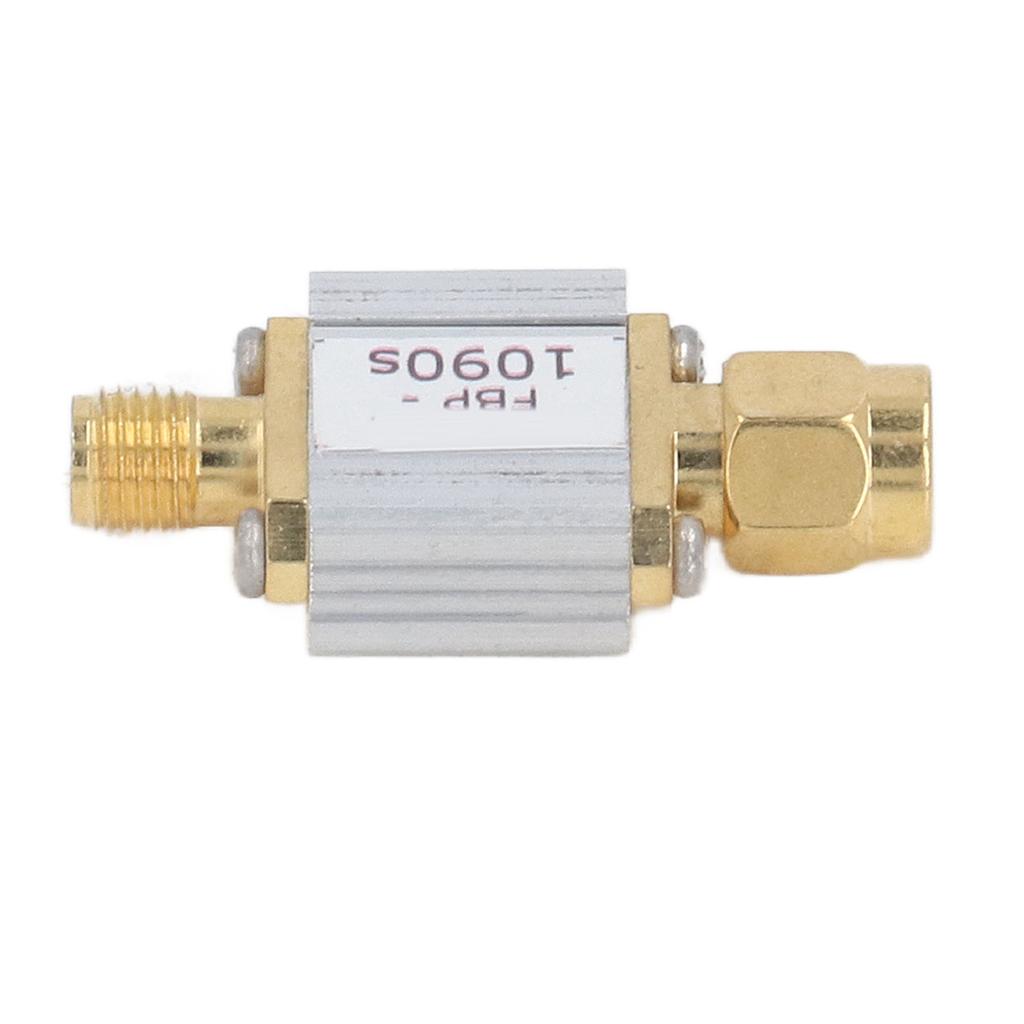

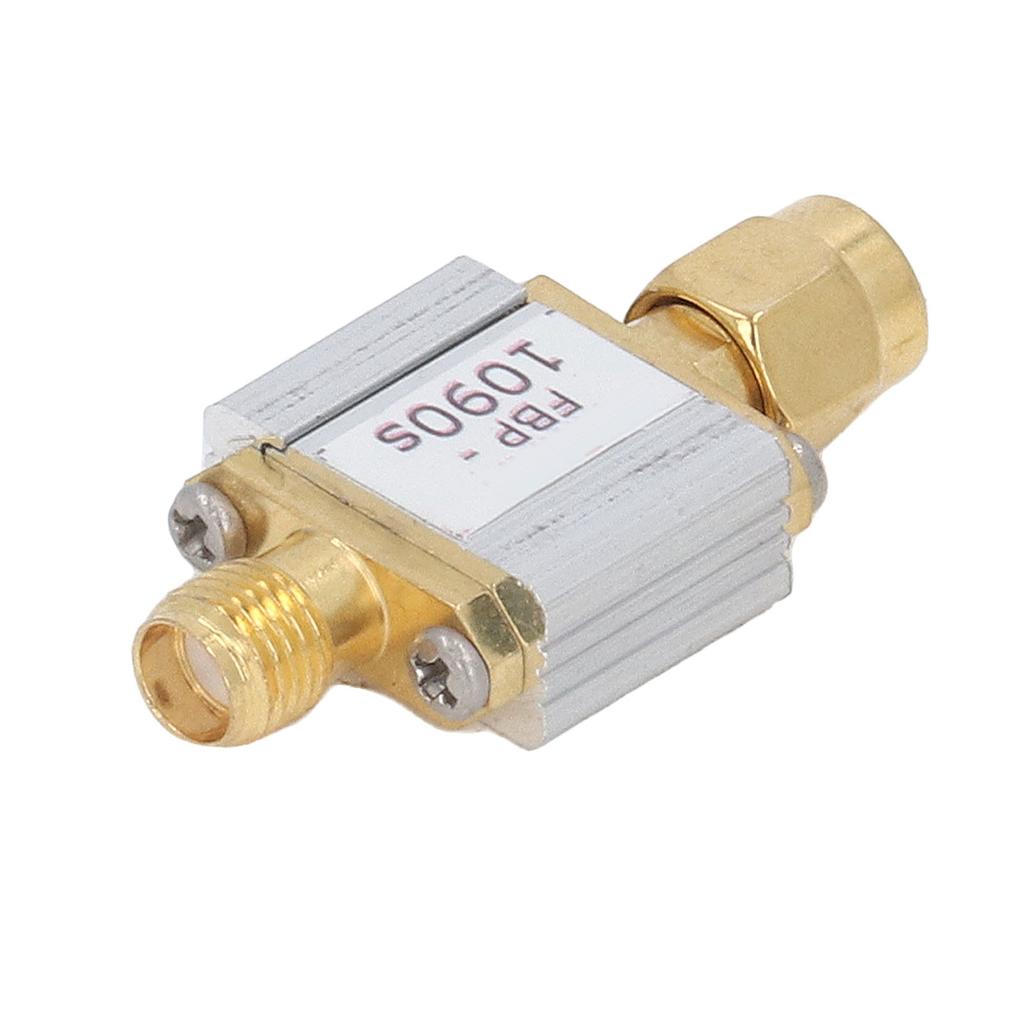

Bandpass Filter ADS B 1090MHz Centre Frequency 30MHz Bandwidth SMA Interface Accessory

Feature: 1. 30MHz Bandwidth: The filter can ensure the passband bandwidth of 30MHz, and the cutoff characteristics are steep. 2. Reliable in Use: 1090MHz ADS B receiver for 1090MHz can effectively eliminate the out of band signal, reduce noise and increase dynamic range. 3. High Efficiency: Largely improved ADS B range and decoding enables stable and efficient working performance, very reliable. 4. Great Filtering: Unique triple filter design ensures that the LNA are not overloaded by strong out of band signals. 5. Easy to Install: Light in weight and compact in size as well, the convenient installation can be quickly completed. Specification: Item Type: Bandpass Filter Model: FBP 1090s Impedance: 50 ohms Centre Frequency: 1090MHz Passband (1 dB bandwidth): 11 MHz 3dB Broadband: <80MHz 40dB Bandwidth: 25MHz Band Insertion Loss : 1.7 2.2 dB Maximum Load Power: 100 mW (20 dBm) Interface: SMA M, SMA F. Package List: 1 x Bandpass Filter
