Feature:
1. High Sensitivity GNSS Receiver Chip: Equipped with an accurate grade high sensitivity GNSS receiver chip, this GNSS receiver GPS land meter provides accurate location measurements for various applications.
2. Built In Barometric Altimeter: The handheld land area meter features a built in barometric altimeter for accurate elevation measurement, supporting smart slope and mountain slope measurements for enhanced accuracy in height measurement.
3. Versatile Measurement Modes: The land area meter supports four measurement modes, including area measurement (ordinary area, length width area, fixed width area, fixed point area), distance measurement (ordinary distance, fixed point distance, ordinary slope distance, fixed point slope distance), aerial measurement (circling aerial, back and forth aerial), and slope measurement (ordinary slope, smart slope, mountain slope).
4. High Accuracy: With high accuracy in area measurement and excellent satellite signal reception, this land survey measuring meter ensures accurate measurements in various environments, even in areas with poor mobile signal coverage.
5. User Friendly Design: Featuring a clear 2.4 inch display, intuitive large buttons, real time English voice prompts, and high volume alerts, the handheld GPS land meter offers a user friendly and straightforward operating experience for users of all levels.
Specification:
Item Type: Land Area Meter
Material: ABS
Function: S4
Positioning Accuracy: Approx. 2.5m 8.2ft
Initial Pressure Calibration: Support
Normal Area Measurement: Support
Mountain Area Measurement: Support
Intelligent Slope Measurement: Support
Fixed Point Measurement: Support
Fixed Width Area Measurement: Support
Normal Distance Measurement: Support
Manual Distance Measurement: Support
Height Display: Support
Height Measurement: Support
Trajectory Display: Support
Unit Setting: Support
Time Display: Support
Data Statistics: Support
History Records: Support
Illumination, Currency Detection: Support
Dry Battery: Support
Li Ion Battery: Support
Data Storage: 200
Voice Broadcast: Support
Data Export: Support
Receiver Chip: High Sensitivity GNSS Receiver Chip
Receiver Antenna: Passive Large Size Flat Antenna
Quick Start: Hot Start 1 Second, Cold Start 30 Seconds
Area Accuracy: + 0.005 acres (0.16 0.5 acres), + 1percent (over 0.5 acres) (when HDOP is less than 1.0)
Distance Accuracy: + 1 Meter (within 100 Meters When HDOP is Less Than 1.0)
Features: Latitude and Longitude Display, Altitude Display, Area Measurement, Distance Measurement, Land Price Calculation
Data Statistics: Area Statistics, Distance Statistics
Area Records: 200
Distance Records: 200
Trajectory Display: Real Time Display of Trajectory During Measurement, Can also be viewed in statistical records.
Pressure Calibration: Approximately 1 meter (for pressure measurement, absolute height value needs calibration) (only applicable to S4) Approximately 10 meters (for GPS measurement, HDOP within 1.0) (only applicable to S4)
HDOP Setting: Custom HDOP Setting
Screen Display: Color Screen (2.4 Inches)
Sound Prompt: Voice Broadcast
Working Temperature: 20 celsius 70 celsius
Storage temperature: 30 celsius 80 celsius
Data Interface: USB Interface, Can be charged through this interface
Battery: 3.7V Li Ion Battery 1800mah x 1 (Included).

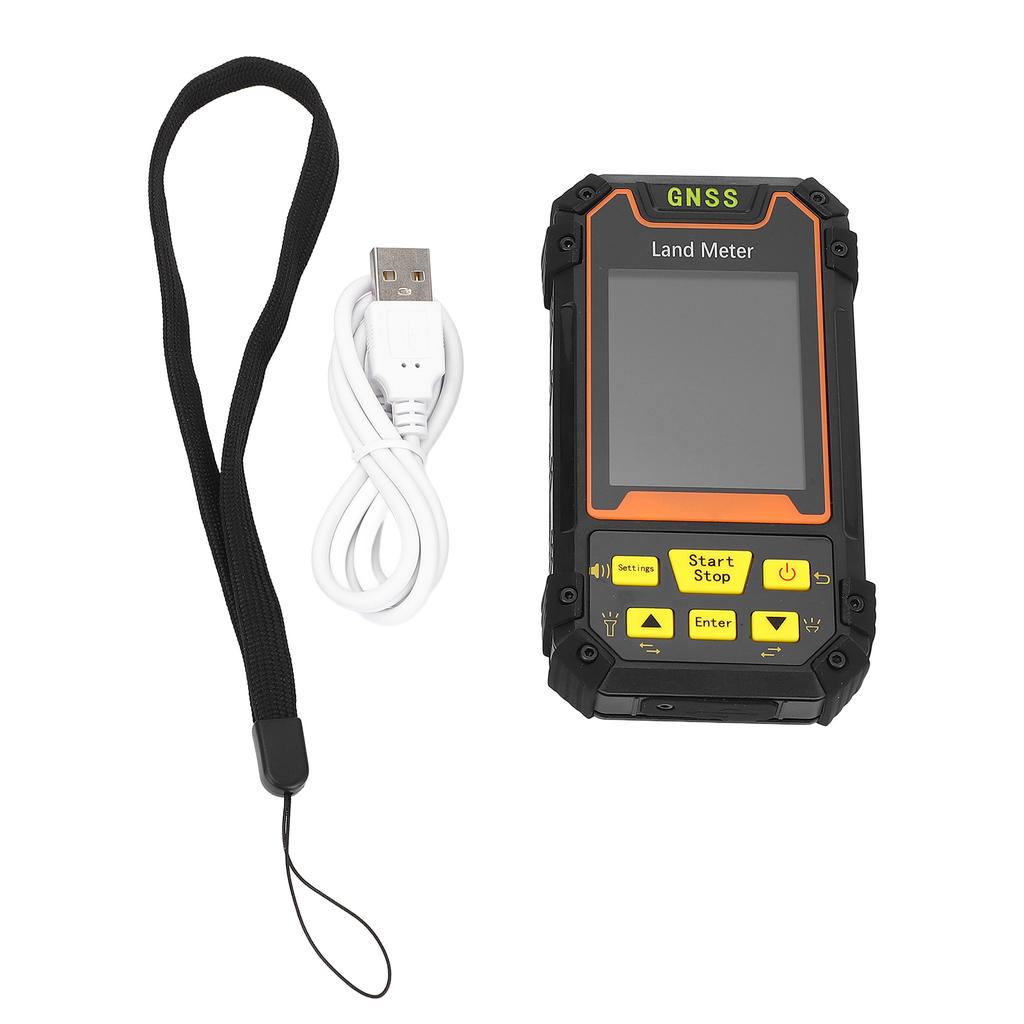

Package List:
1 x Land Surveyor
1 x Manual
1 x USB Cable
1 x Lanyard
