Assembly kit for a fireplace with a water jacket
For fireplaces with a built-in air inlet in the fireplace, and a chimney inlet of fi 200.
Catalog number: ##ZESTAW/MONTAZOWY/MSK/PLASZCZ##
The set includes:
1 pc fireplace controller MSK fi 125 with electronic damper
1 pc thermal safety valve
1 pc universal expansion vessel
1 pc anti-condensation chimney flange

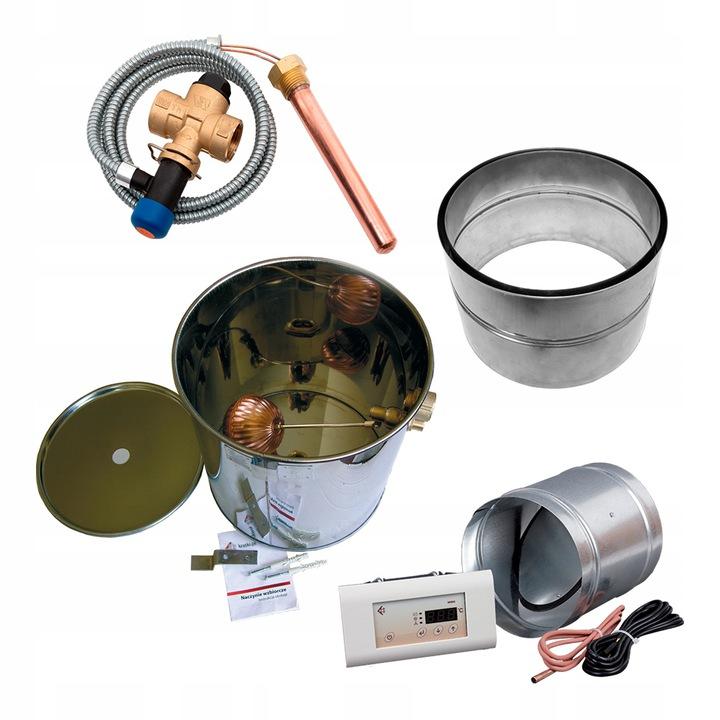

SET ELEMENTS
MSK CONTROLLER fi 125
A device that automatically regulates the supply of cold air to the fireplace from outside the building, eliminating the need for manual adjustment. This enables automated combustion regulation.
Set:
microprocessor controller
temperature sensor with 2-meter silicone cable
electronic damper with automatic air supply regulation
ADVANTAGES
control of up to two central heating pumps and one independently adjustable device
precise air dosing for combustion
protection against fireplace overheating
warning alarm
SAFETY VALVE
Model STS 20 S WATTS 3/4 95°C
This thermostatic valve protects water-jacket fireplaces from the risk of water boiling in the central heating system.
The thermal discharge safety device is required for variable flame boilers and solid fuel heating installations. The STS20S discharge safety device is a pressure-independent valve activated by the temperature of the medium at the heat source outlet. At 97°C (+/- 2°C), the discharge of domestic water from the heater opens. This prevents the temperature from rising above 110°C (maximum opening). The thermal discharge safety device is manufactured in accordance with DIN 3440.
Description:
Min. operating temperature: -10°C
Opening temperature: 97°C
Max. operating temperature: 110°C
Max. flow: 6.5 m³/h
body and cover made of brass [58% Cu, 3% PbJ CW617N in accordance with PN-EN 12165:2011 E]
Viton seal
stainless steel spring
manual discharge button made of plastic
copper capillary tube, 1300 mm in sheath
EXPANSION VESSEL WITH AUTOMATIC REFILL VALVE
This is a hydraulic protection for water-jacket fireplaces.
Its task is to balance changes in water volume caused by temperature fluctuations. The tank is connected to the piping system and receives water from the heating system when its volume increases due to rising temperature.
The vessel is made of stainless steel sheet.
Description:
copper float with valve – for automatic refilling of the water system powered by a water-jacket fireplace or fireplace with a water heat exchanger
brass fittings – ensuring tight connection of the expansion and overflow pipes
diameter: 320 mm
height: 325 mm
material: stainless steel sheet
capacity: 20 l
water inlet connection – 3/4 inch
other connections (expansion and overflow pipes) – 1 inch
ANTI-CONDENSATION FLANGE
Used for steel pipes fi 200
The flange has a double-walled design and seals the exit from the fireplace flue to the chimney. This way, condensate formed due to temperature changes in the chimney flows into the fireplace, where it is heated and evaporated. Water dripping from the chimney does not escape outside the chimney system, preventing corrosion and avoiding the appearance of leaks in fireplace welds.
NOTE! The flange fits only 2 mm sheet metal pipes.
