Feature:
1. High Efficiency Solar Panel: Equipped with a monocrystalline silicon solar panel achieving a 24.3percent conversion rate. With tempered glass material, IP66 water proof, provides robust protecting against harsh environments.
2. Exceptional Communicating Technology: Utilizing the for LoRa modulation with a unique spread spectrum method, this device offers remarkable anti interference qualities and long range communicating capabilities up to 5 kilometers.
3. Optimized Energy Management: The solar charging panel efficiently collects and converts solar energy under various lighting conditions (battery not included). Combined with an optimized power management system, it smartly allocates and stores energy while charging.
4. Low Power Consumption: The RAK4631 module features exceptional low power characteristics. During non transmission periods, the solar node repeater automatically enters deep sleep mode, reducing power consumption to nearly 0.
5. Flexible Network Installation: Fit for LORA communicating motherboards, this repeater enables the creation of independent communicating networks outdoors, supporting emergency rescues and point to point, point to multipoint, relay networks, and AES encryption.
6. Compact and Easy Installation: Featuring a compact design for effortless installation and equipped with water proof silicone stickers. After securing the battery cover screws, apply the sticker, making it suitable for both standard and non standard wireless data transmission and device control applications.
Specification:

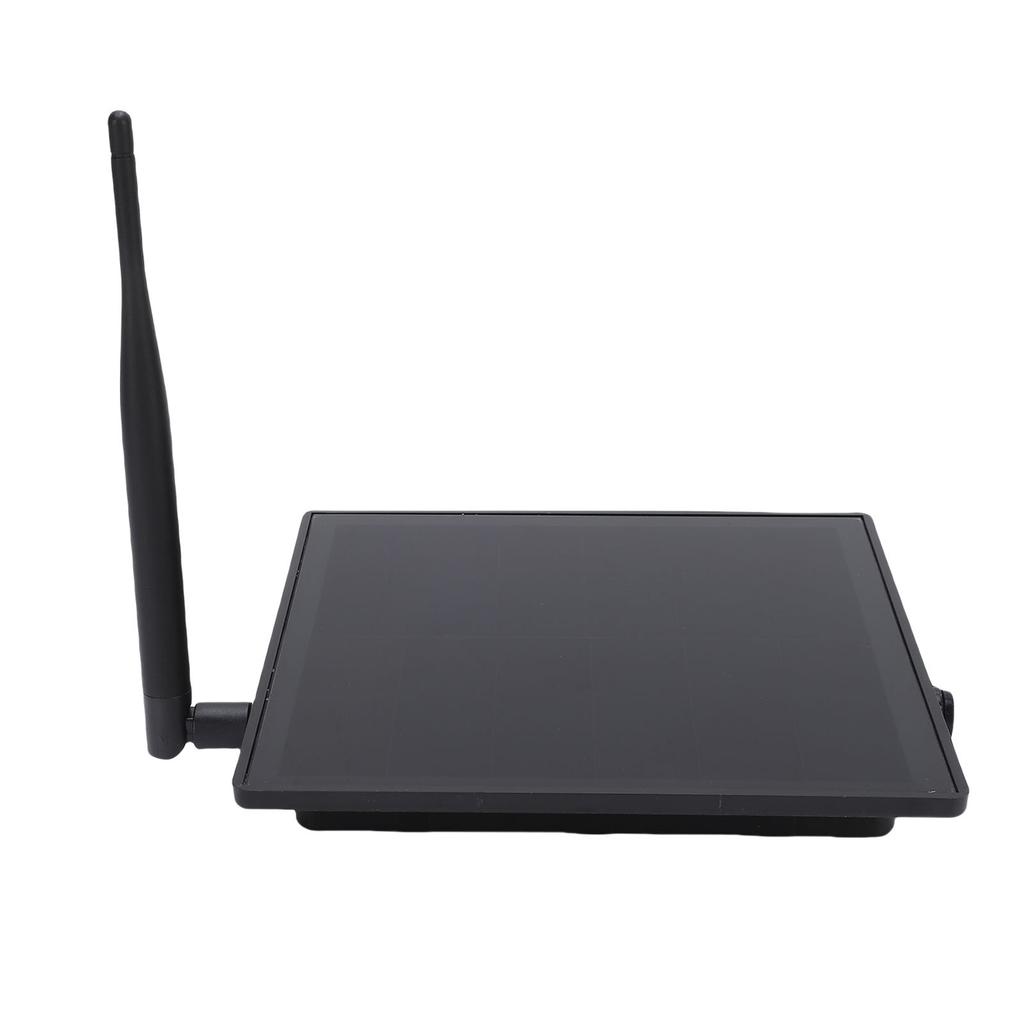

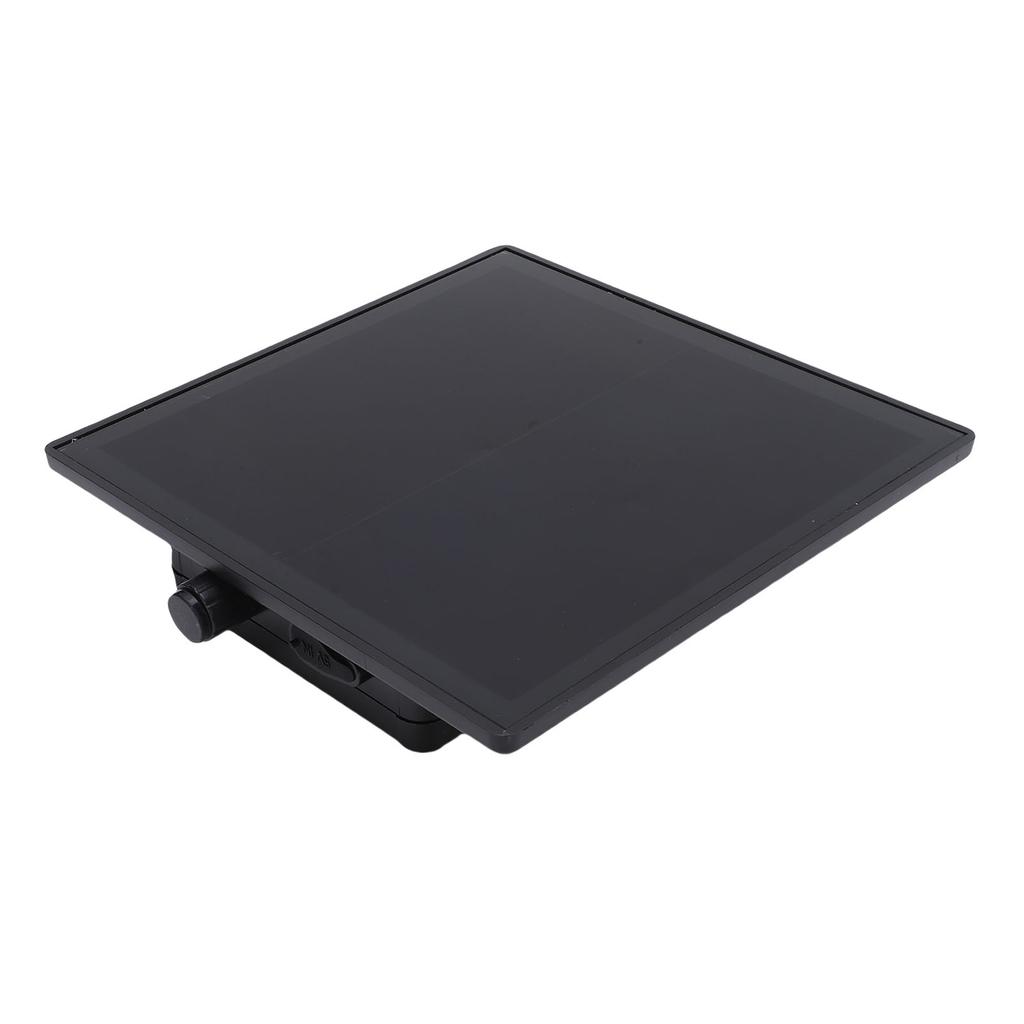

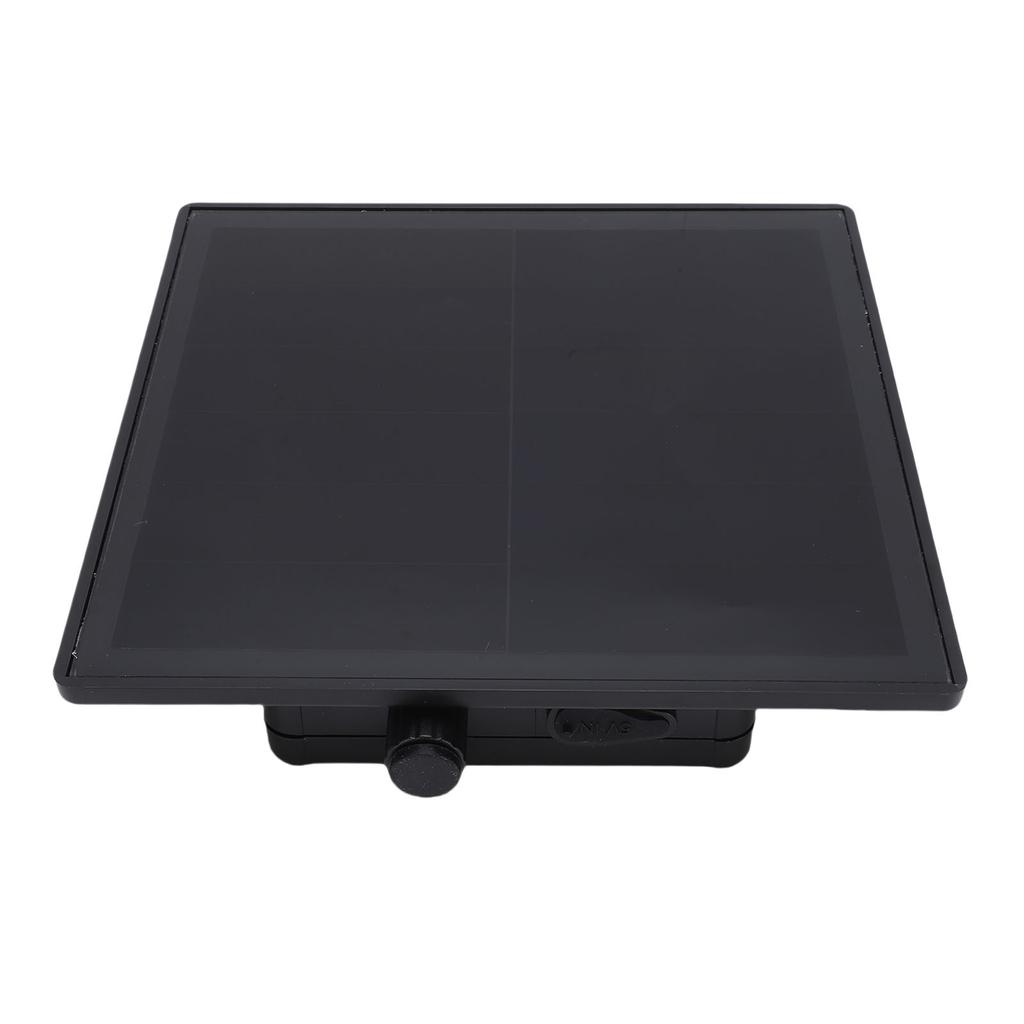

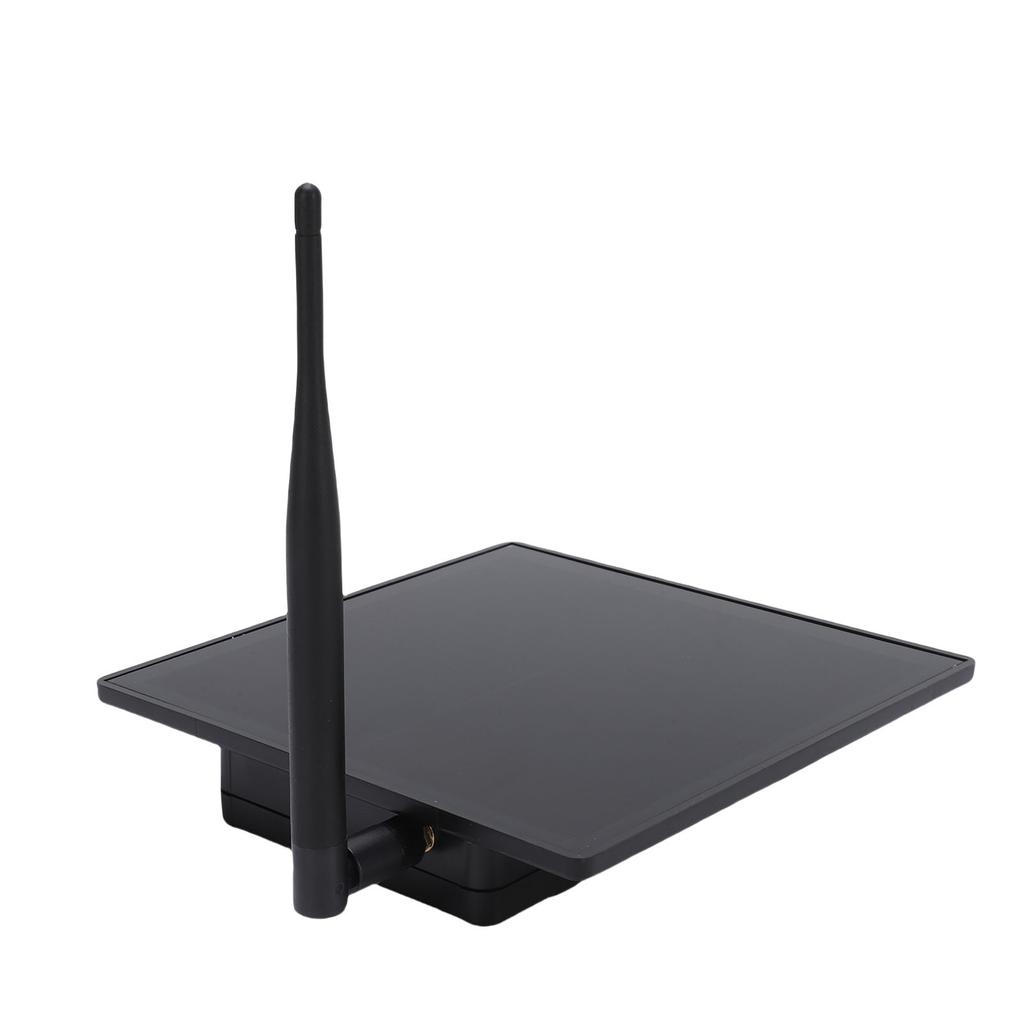

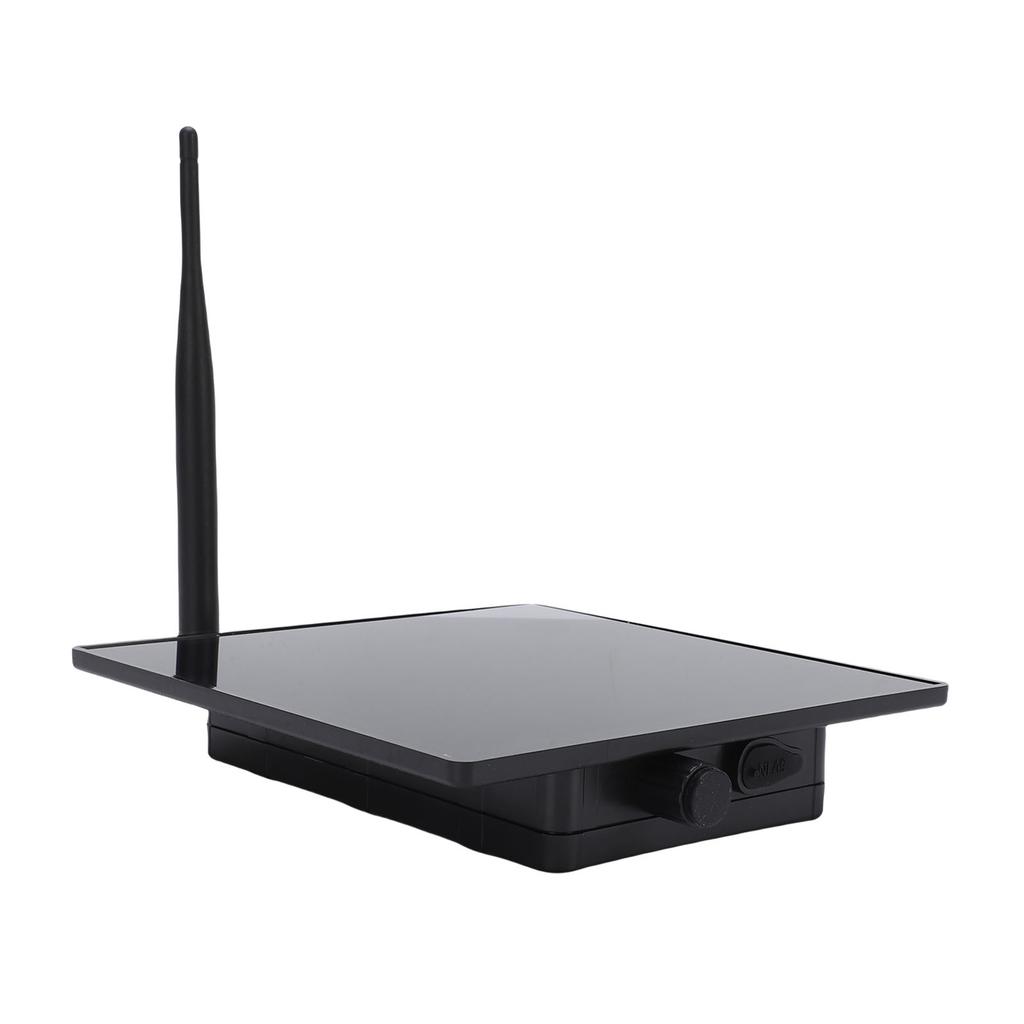

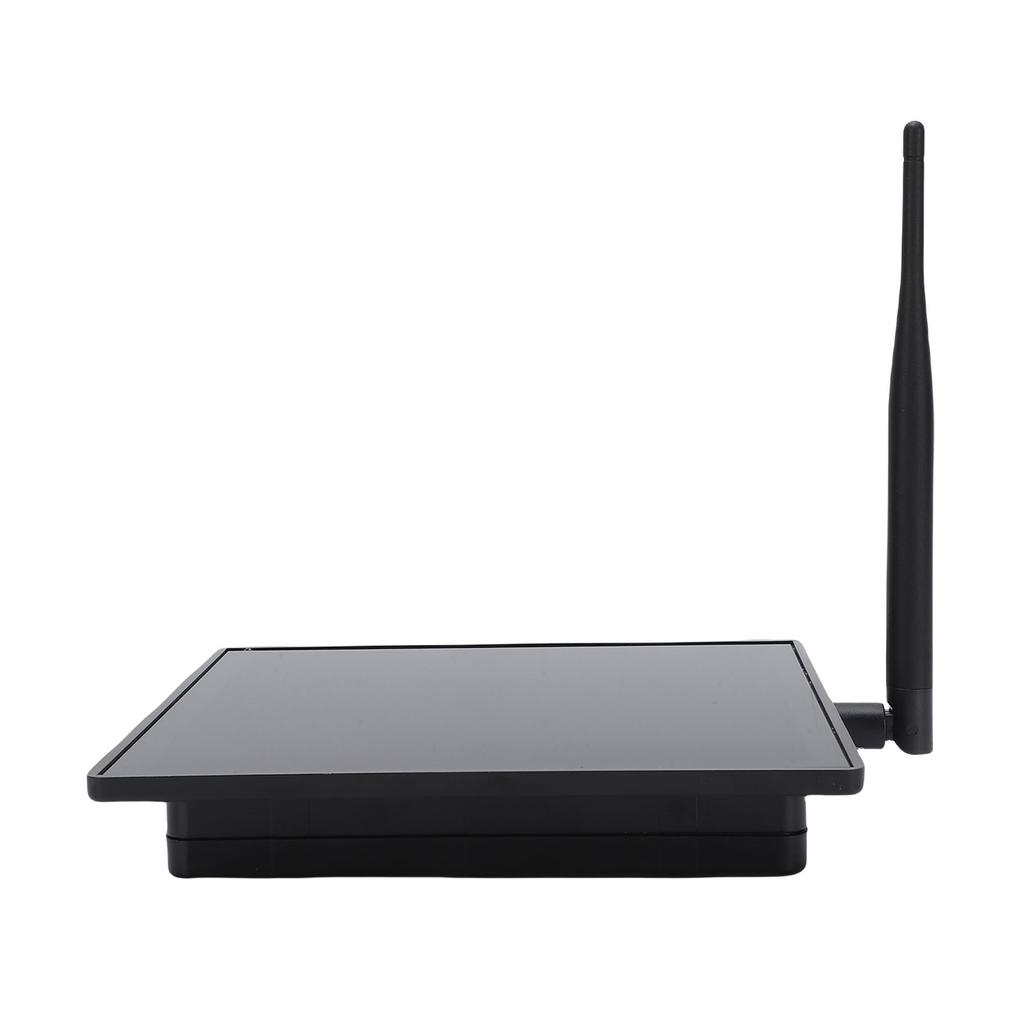

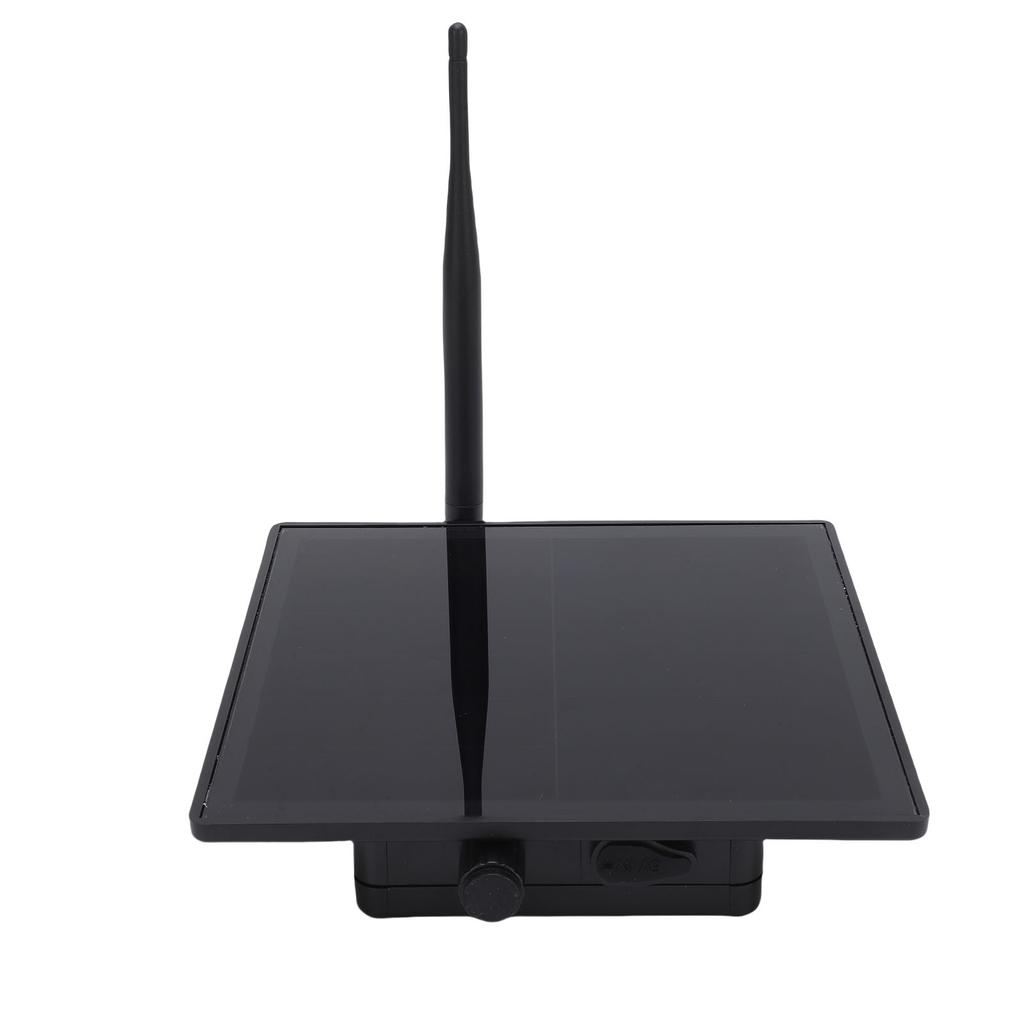

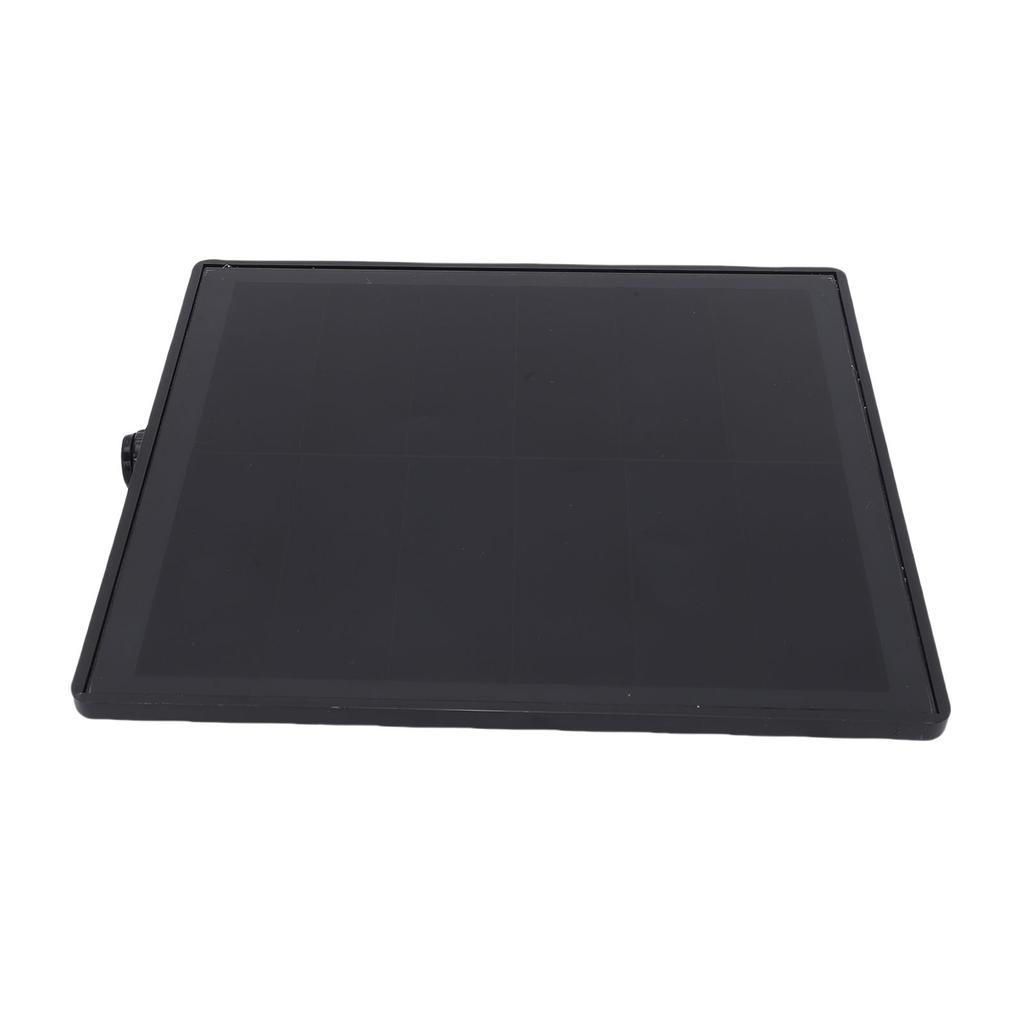

Item Type: Solar Repeater Radio Node for Lora
Material: Monocrystalline silicon, tempered glass
Weight: Approx. 760.00g 26.81oz
Solar Panel:
Battery Cell: IBC
Conversion Rate: 24.30percent
Power: 5W (full power)
Battery (not included):
Type: Li battery
Quantity: Maximum 4 batteries
Capacity: 2600mAh (full)
Battery Multiplier: 1C
Storage Temperature: 5 to 35 degrees C
Charging Temperature: 0 to 45 degrees C
Discharge Temperature: 20 to 65 degrees C
Charging:
USB Charging:
Charging Interface: Type C
Charging Indicator: None
Charging Time: 15 to 18 hours
Solar Charging:
Green Light: Battery is charging
Blue Light: Battery is fully charged
Flashing Green and Blue Lights: Battery not installed or poor contacting
Charging Time: 30 to 36 hours (average sunlight level around 50,000LX)
Water Proof Level: IP66
Product Size: Approx. 37.5x17.7x3.5cm 14.76x6.97x1.38in
Frequency: 2.4G, 860 to 960MHz
LoRa Parameters:
Function: BLE+Lora
Module: WisBlock RAK19007+RAK4631
Chip: nRF52840+SX1262
Power Consumption: 20mAh
Frequency Range: EU868
Power Supply: Solar or Type C (solar panel needs to be installed with your own battery before it can be used)
Applications:
Smart Farm: Real time detecting of soil humidity, temperature, light intensity, etc.
Industrial Detecting: Detecting equipment status, environmental temperature, humidity, harmful gas concentration, etc.
Smart Home: Detecting home environment parameters, controlling smart devices, etc..

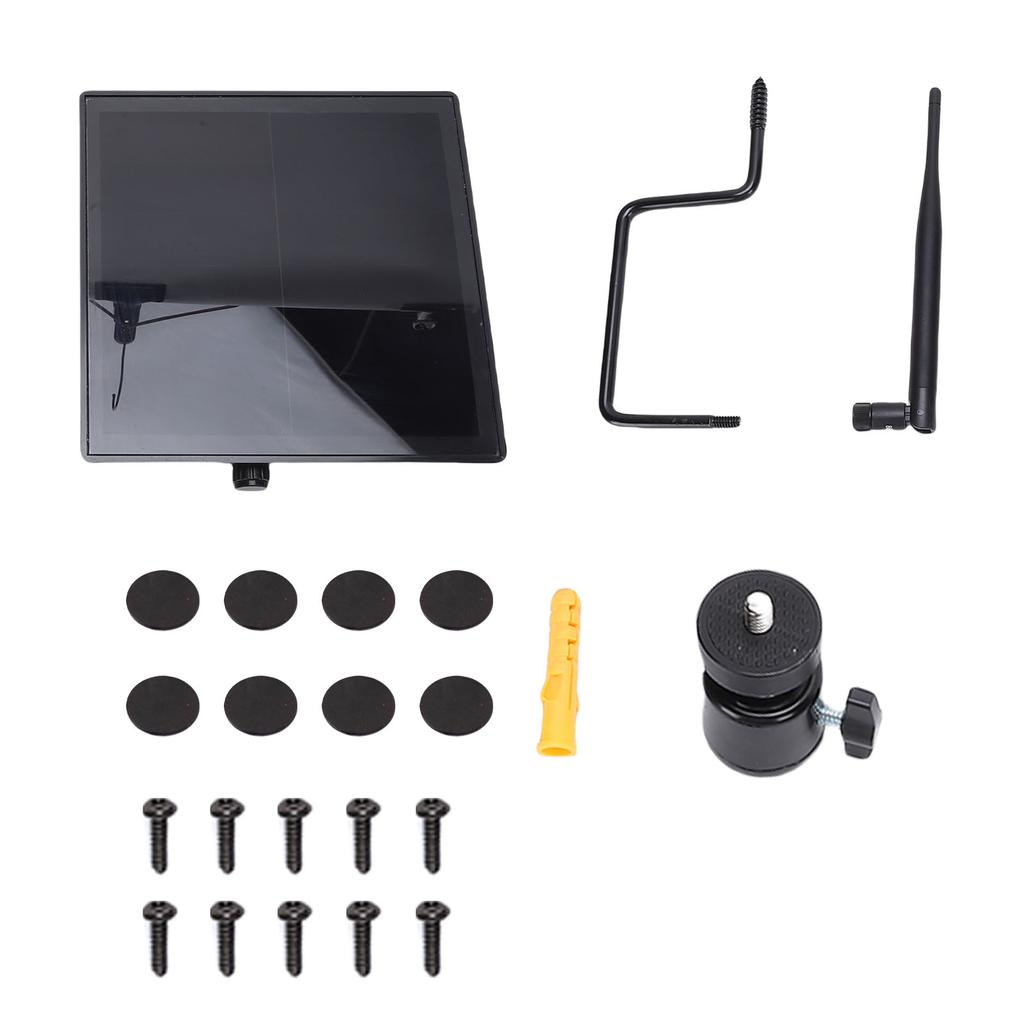

Package List:
1 x Solar Panel
1 x Accessory
1 x Mounting Bracket
1 x Mounting Accessory
1 x Plastic Expansion Tube
10 x Screws
1 x Instruction Manual
1 Sheet x Water Proof Silicone Stickers (8 Pcs)
