Features:
Crankshaft position sensor signal simulation output: including 9 types of gear missing teeth signal: 58+2, 58+1, 57+2, 57+1, 37+1, 36+2, 35+1, 34+2, 22+1.
One type of standard 60+0 signal simulation output.
Magnetoelectric signal or Hall signal output. Output amplitude/peake volt equals to power supply input, can be adjusted by adding potentiometer.
Use 60+0 signal to simulate vehicle speed sensor signal output.
Use 60+0 signal to drive odometer or test odometer.
ABS sensor, optical sensor signal simulation.
Output Parameters

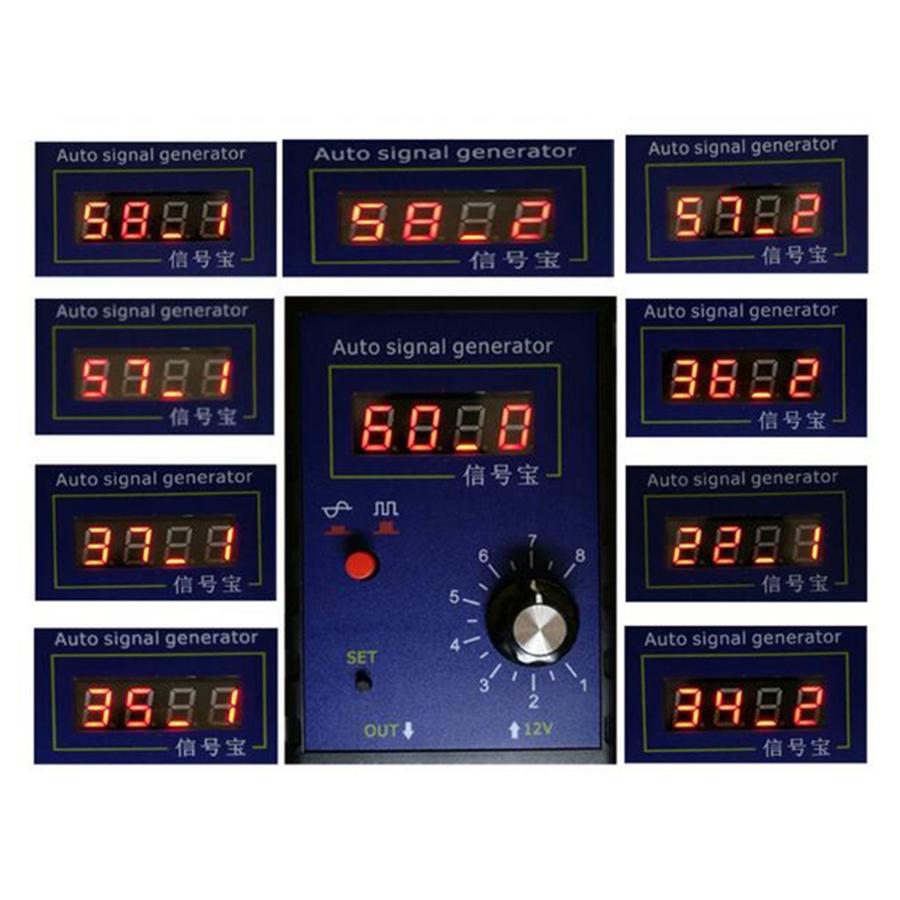

All types of signal have been embedded inside the signal generator, and can be displayed in LED screen for selection reference, no need to download software.
One button switch between magnetoelectric signal and Hall signal, convenient to use.

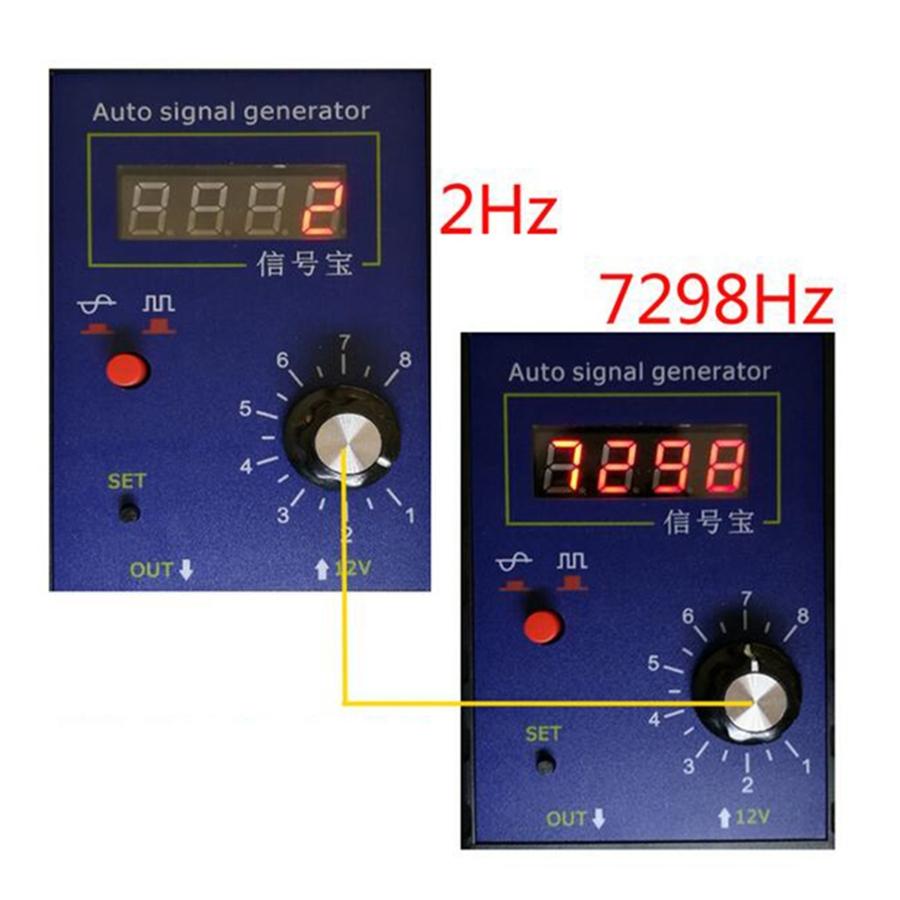

9 ranges of frequency selection, accurate frequency output.
01 refers to 2Hz-1KHz frequency range.
02 refers to 2Hz-2KHz frequency range.
03 refers to 2Hz-3KHz frequency range.
04 refers to 2Hz-4KHz frequency range.
05 refers to 2Hz-5KHz frequency range.
06 refers to 2Hz-6KHz frequency range.
07 refers to 2Hz-7KHz frequency range.
08 refers to 2Hz-8KHz frequency range.
09 refers to 2Hz-100Hz frequency range.
Specifications:
Colour: Black
Material: ABS + electronic components

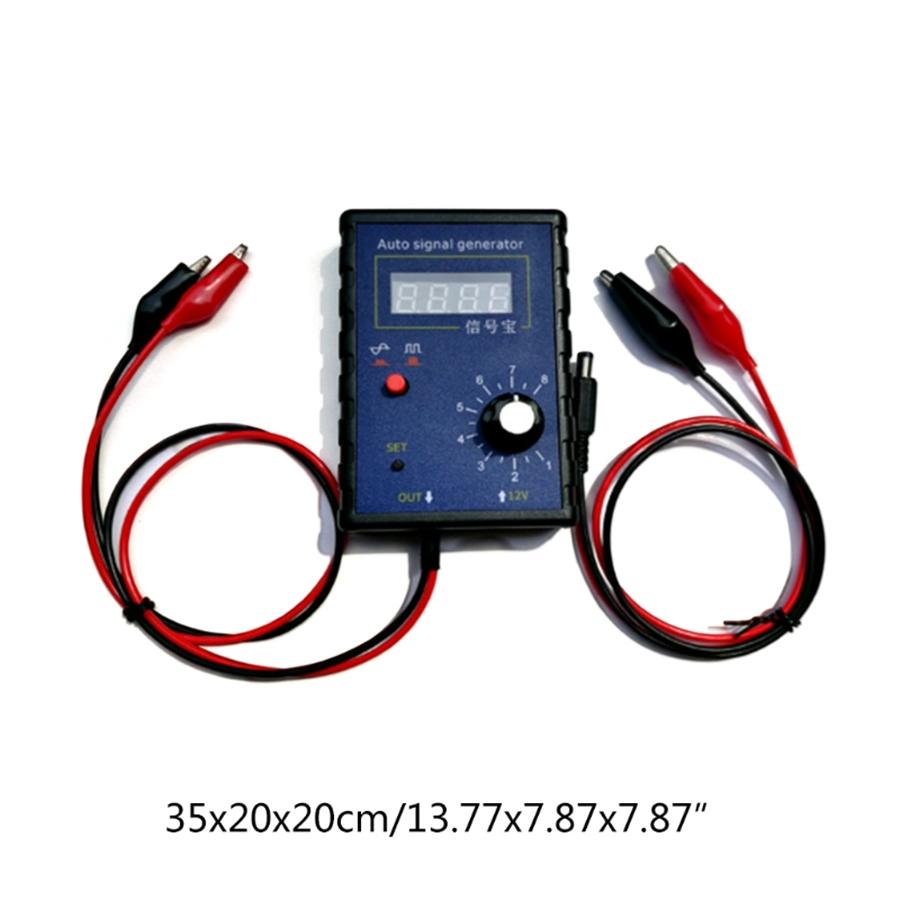

size：As shown in the picture
Quantity:1 pc
Note:
No retail package.
Transition: 1cm=10mm=0.39inch.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package includes:

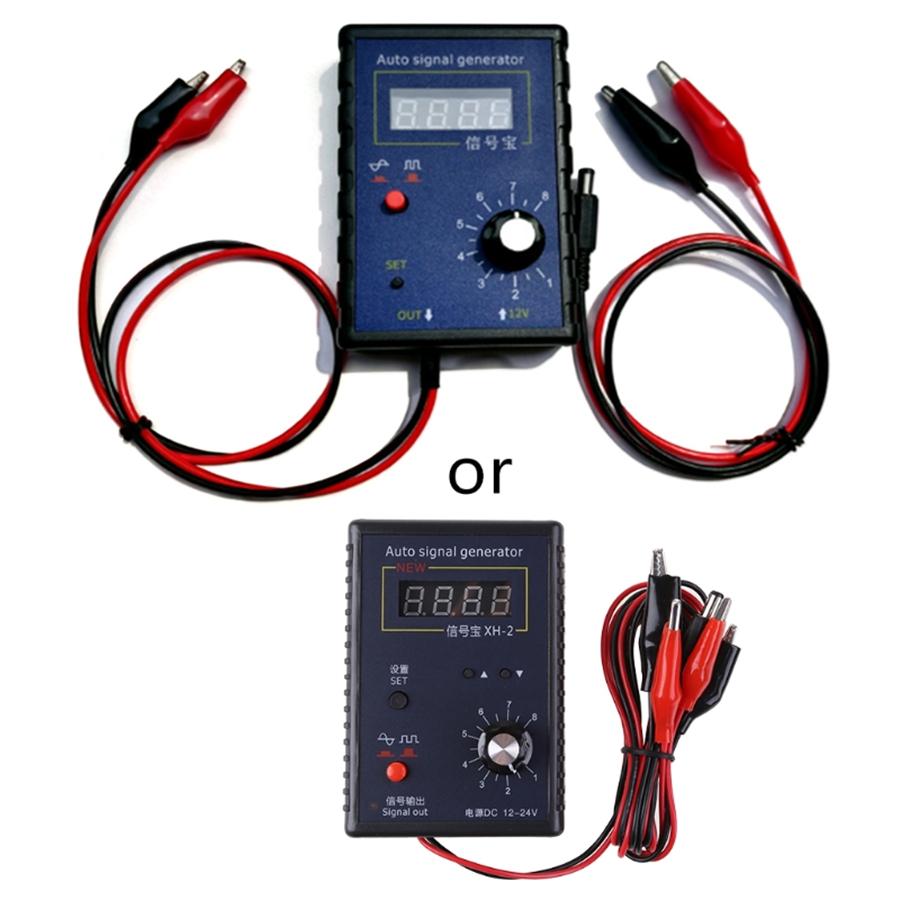

1 x 1 x auto vehicle signal generator
1 x Testing Clip(other accessories demo in the picture is not included.)
