Feature:
1. The simple and clear connection of the wiring harness makes the appearance more beautiful.
2. Suitable for two‑wheel electric motorcycles, electric tricycles and other high‑power.
3. 3‑mode controller (more stable, higher efficiency, lower current consumption, longer life).
4. The brushless controller adopts a full‑cast aluminum shell, which has strong heat dissipation, dust and water resistance, and high stability. It provides better protection for the internal circuit and makes it more durable.
5. Universal 36V‑48V, can support two voltages at the same time.
Specification:
Condition: brand newItem type: Brushless Controller InstrumentMaterial: aluminiumColor: As Picture ShownController shell size: Approx. 14x8.5x4cm 5.5x3.3x1.6inWeight: Approx. 755gPower: 500W
Lower Volts: DC30 42V
Current limiting: 28A
DegreeBrake: low
Adapted motor phase angle: 60 degrees 120 degrees (automatic identification and adaptation)
Shell material: cast aluminum
36V 48V universalSuitable for high power, two wheel electric motorcycles, electric tricycles, etc.
The instrument display content includes: single running mileage and running time, real time vehicle speed, battery power and voltage, gear indicator cruising indicator, naught
non naught start status, etc.
Controller functions include: 1:1 power supply for car lights, power electronic brake, intelligent identification, low brake power off, internal speed measurement port, anti theft lock motor tail light and front light signal port (cooperating with control panel)
The instrument control parameters include: backlight brightness, for metric mile system, battery voltage level, automatic sleep time without action, number of gears 3, car wheel diameter, speed magnet, speed limit value, naught non naught start selection, electric Power assisted mixed mode selection, power assisted strength, sensitivity, number of power assisted magnets, low maximum current, pressure protection value, automatic cruising, mileage clear, vehicle speed display ratio, with without naught
gear, etc.
.
Package List:

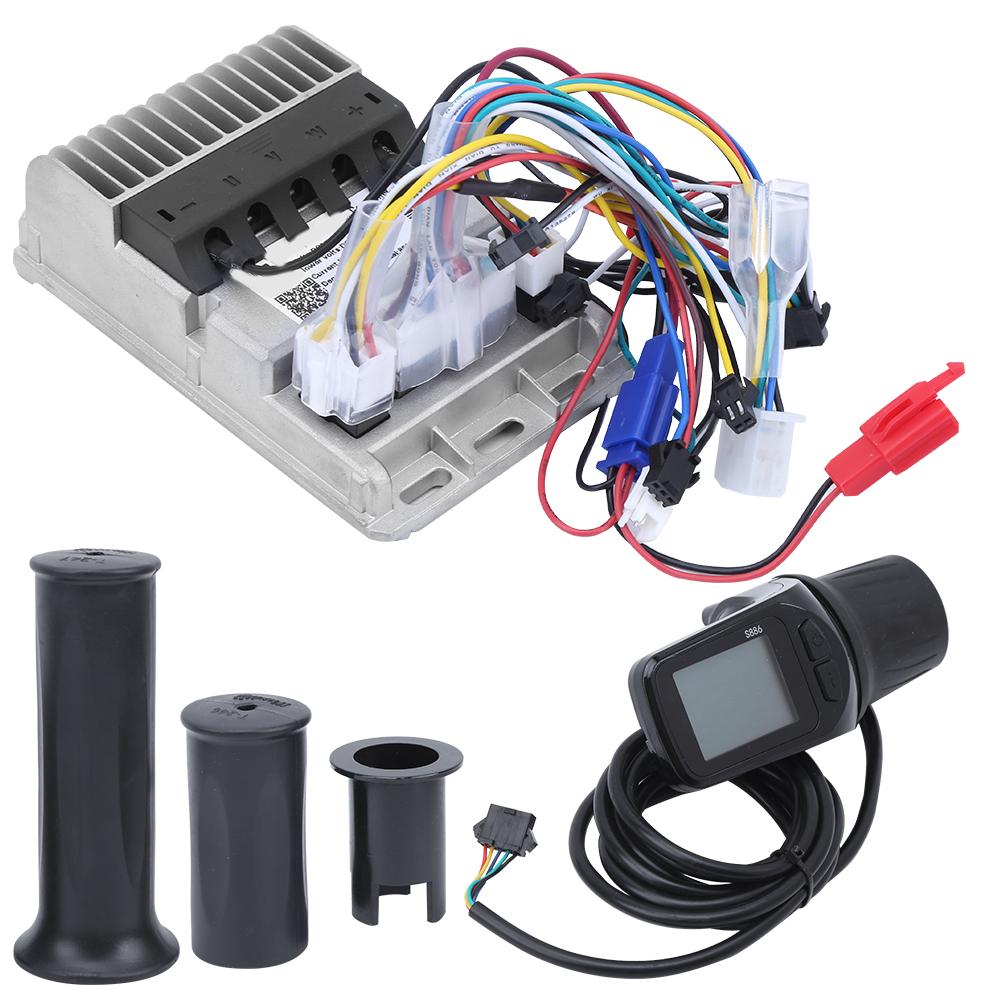

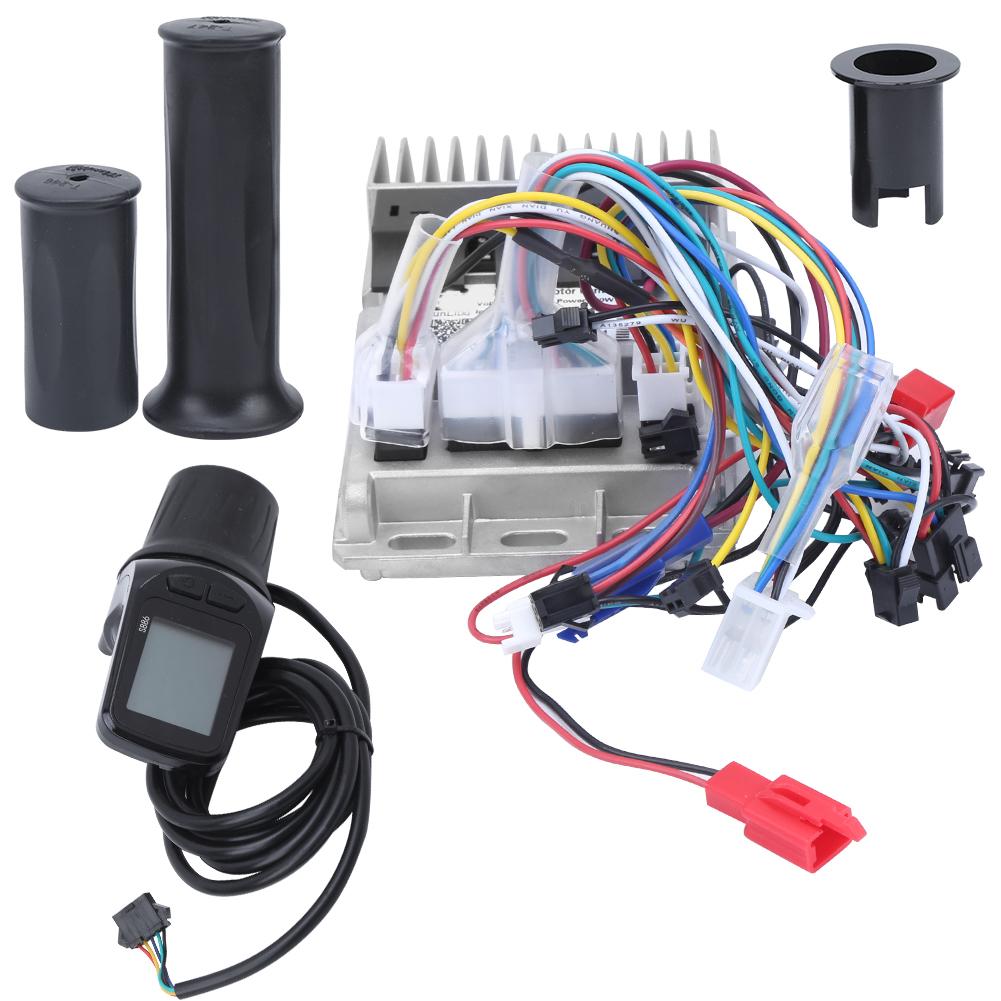

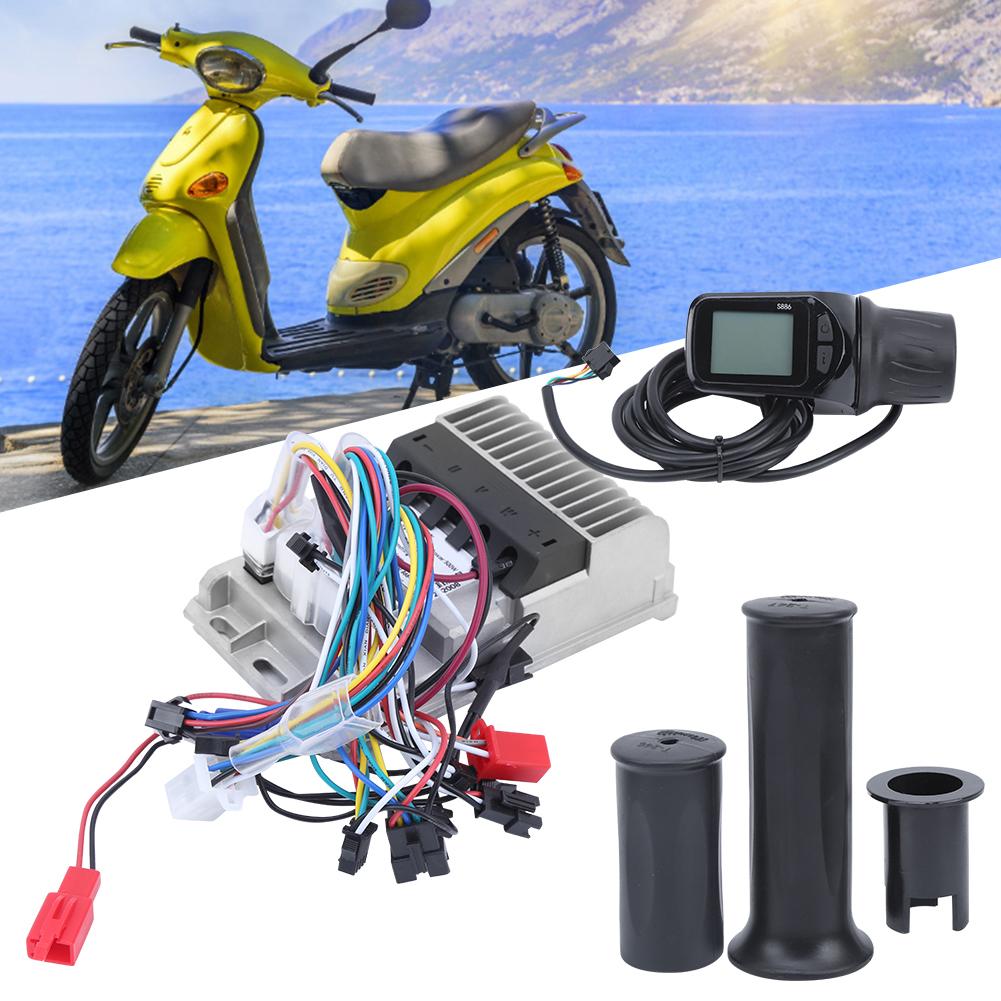

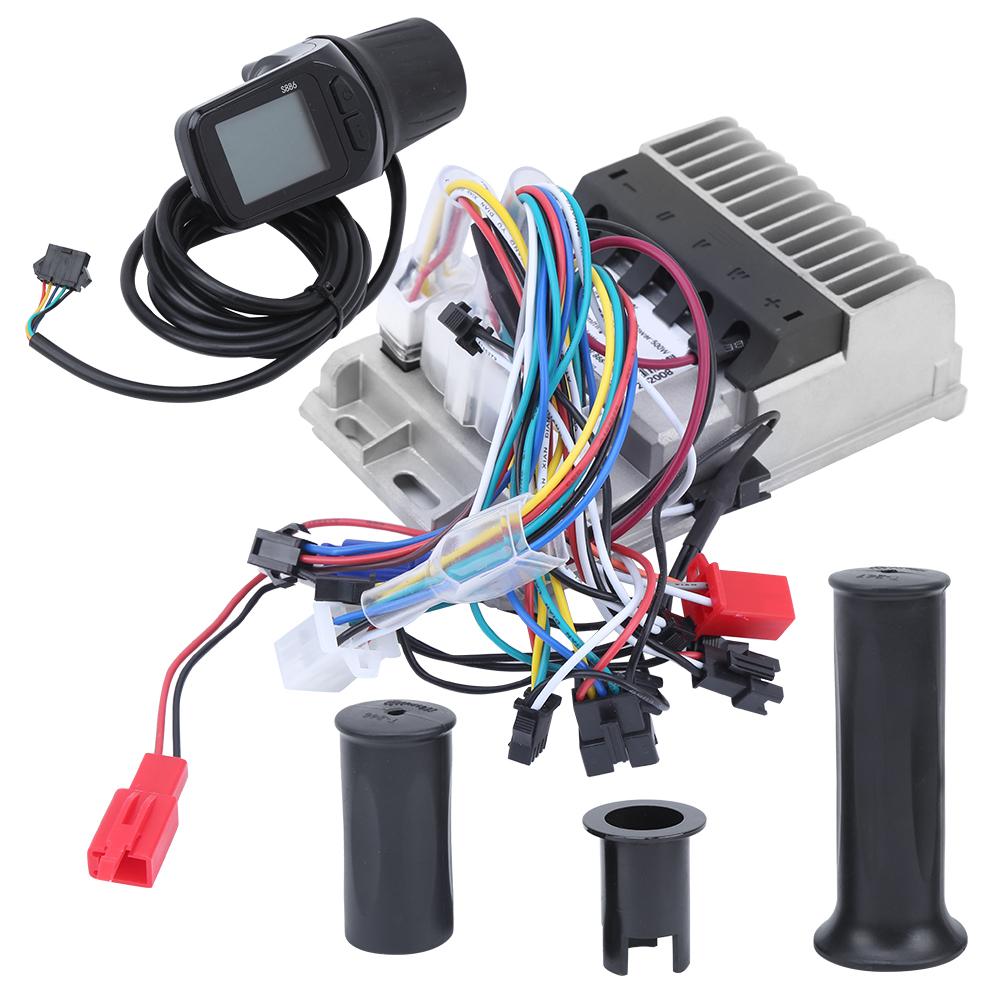

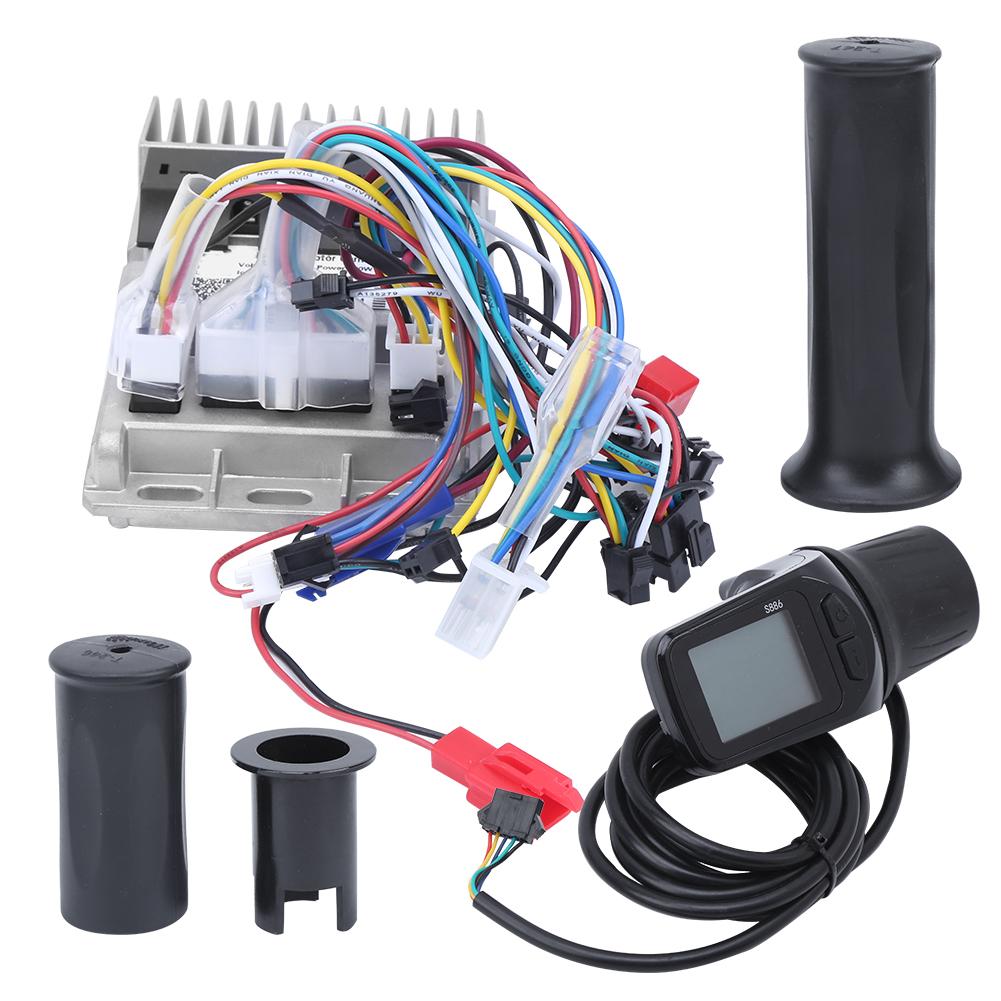

1 x Brushless Controller 1 x Instrument1 Pair x Throttle grip1 x Clip
