Feature:
1. [Protection Function] Servo has anti blocking and anti burning protection function, equipped with full CNC accuracy gears, more wear resistant, not easy to break sweeping teeth.
2. [Kit Configuration] Servo kit includes servo kit, spare gear and shaft pin, 15t metal servo arm inside, rich items and convenient to use.
3. [High Speed] 120KG high torsion digital waterproof servo with brushless motor, much faster compared with ordinary servo.
4. [IPX8 Waterproof] Servo is fully waterproof design with waterproof function, waterproof grade IPX8, the servo can be completely submerged in water.
5. [Widely Used] Servo can be used to change the torsion, speed and angle of remote control toys, robots, robotic arms and other remote control toys.
Specification:

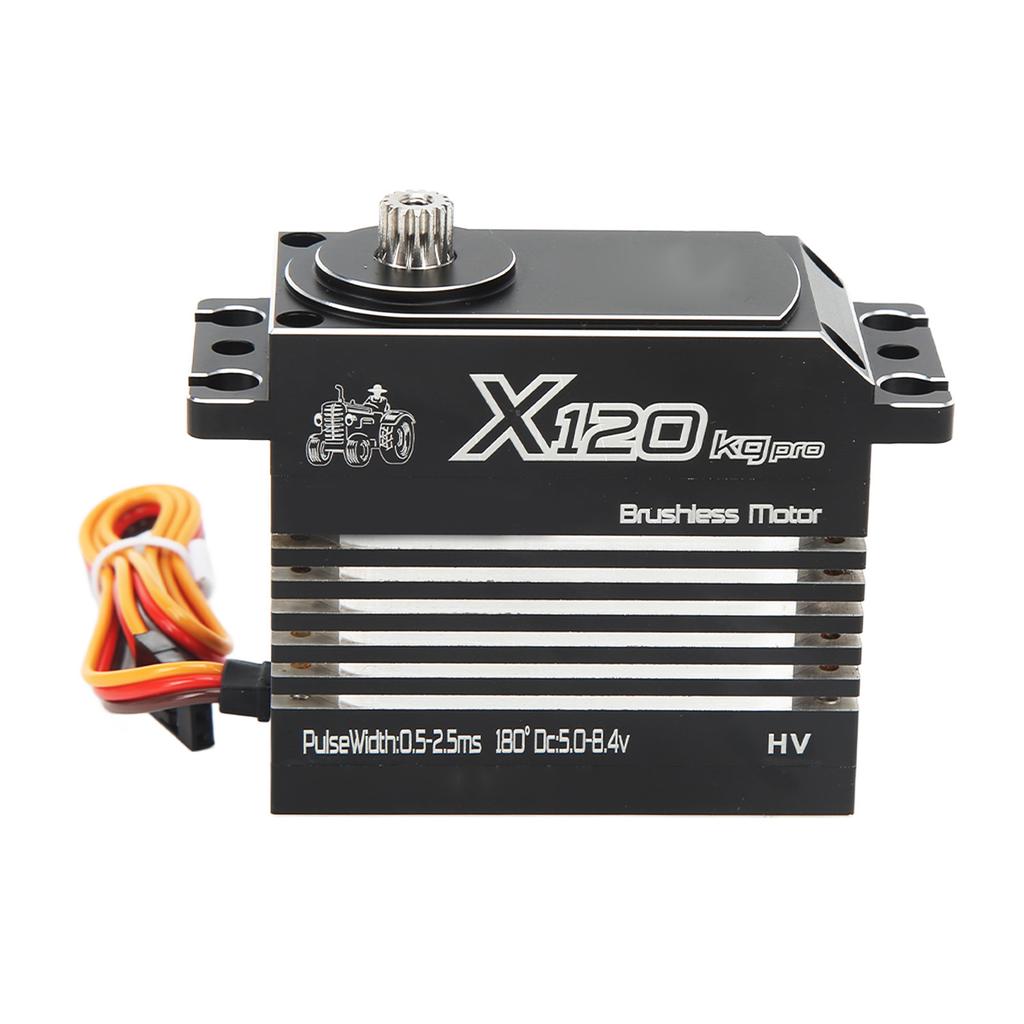

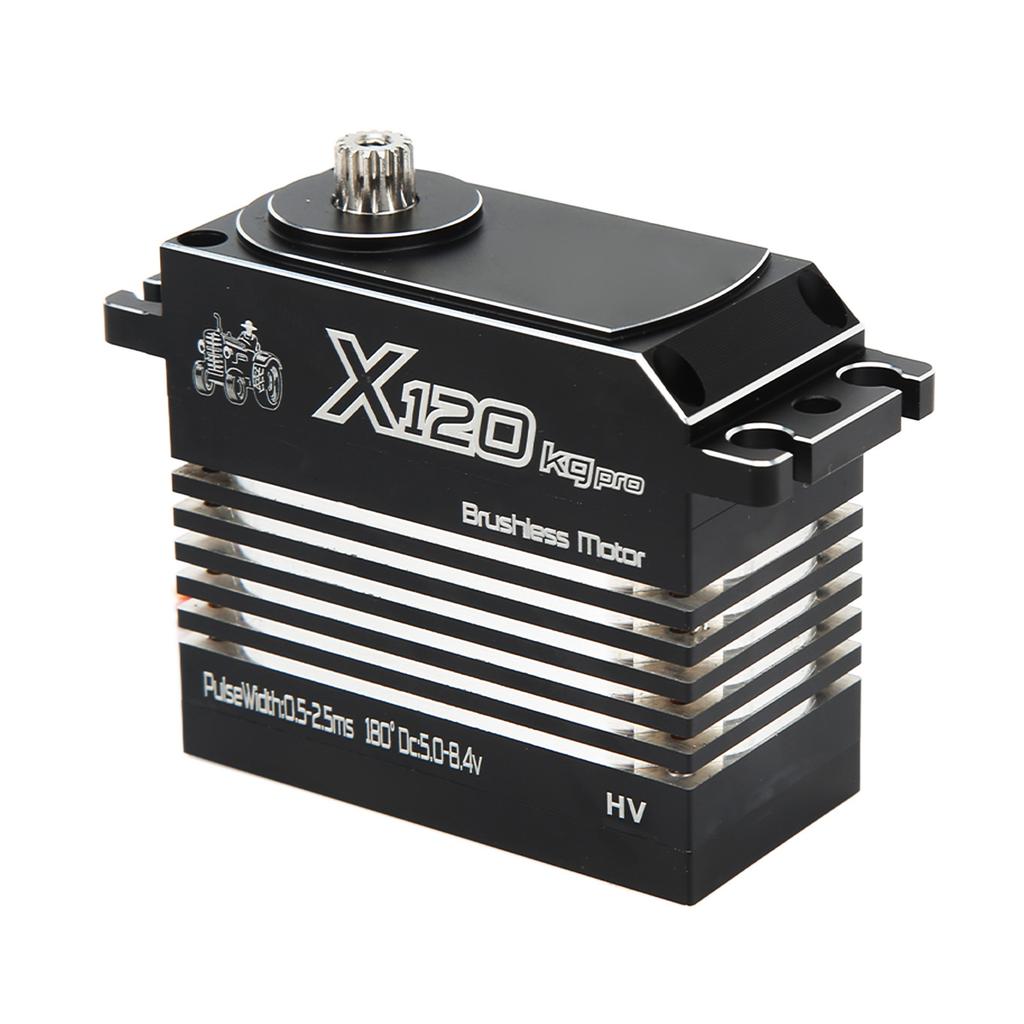

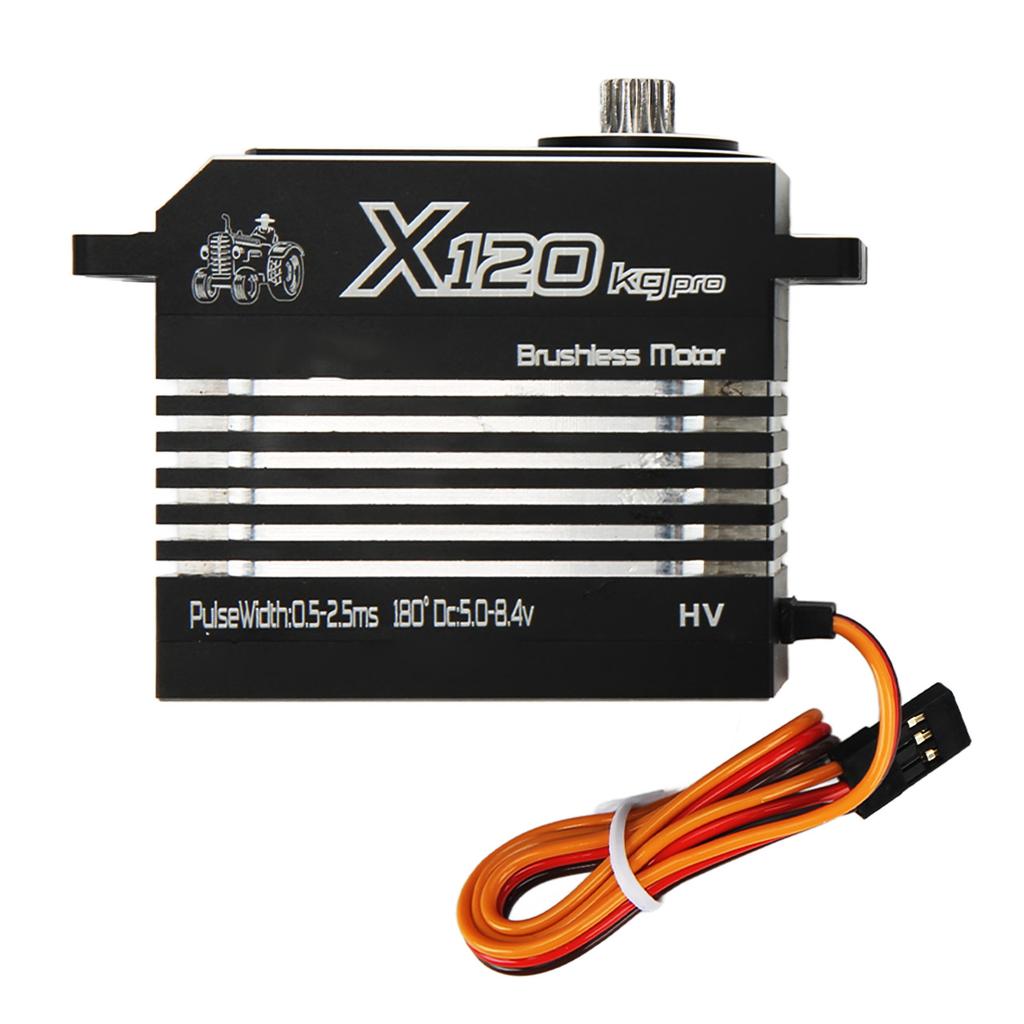

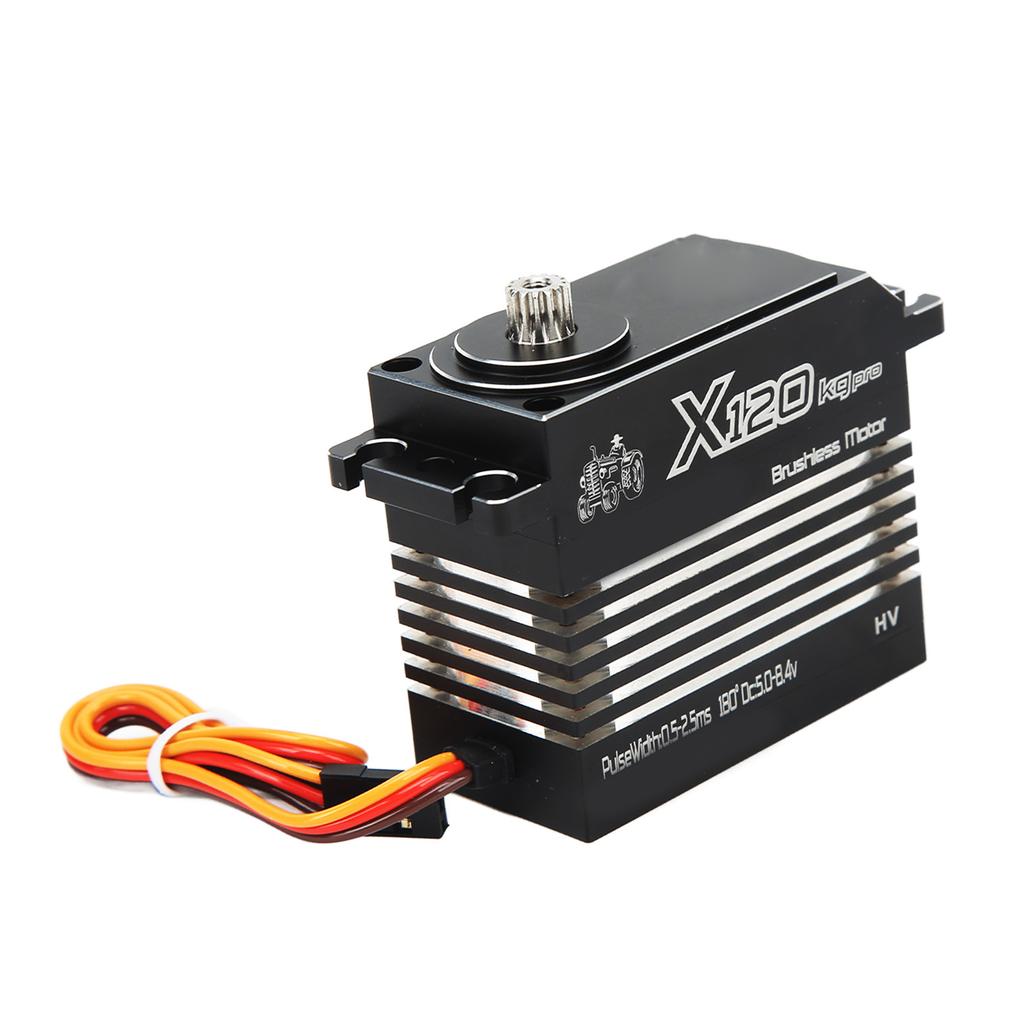

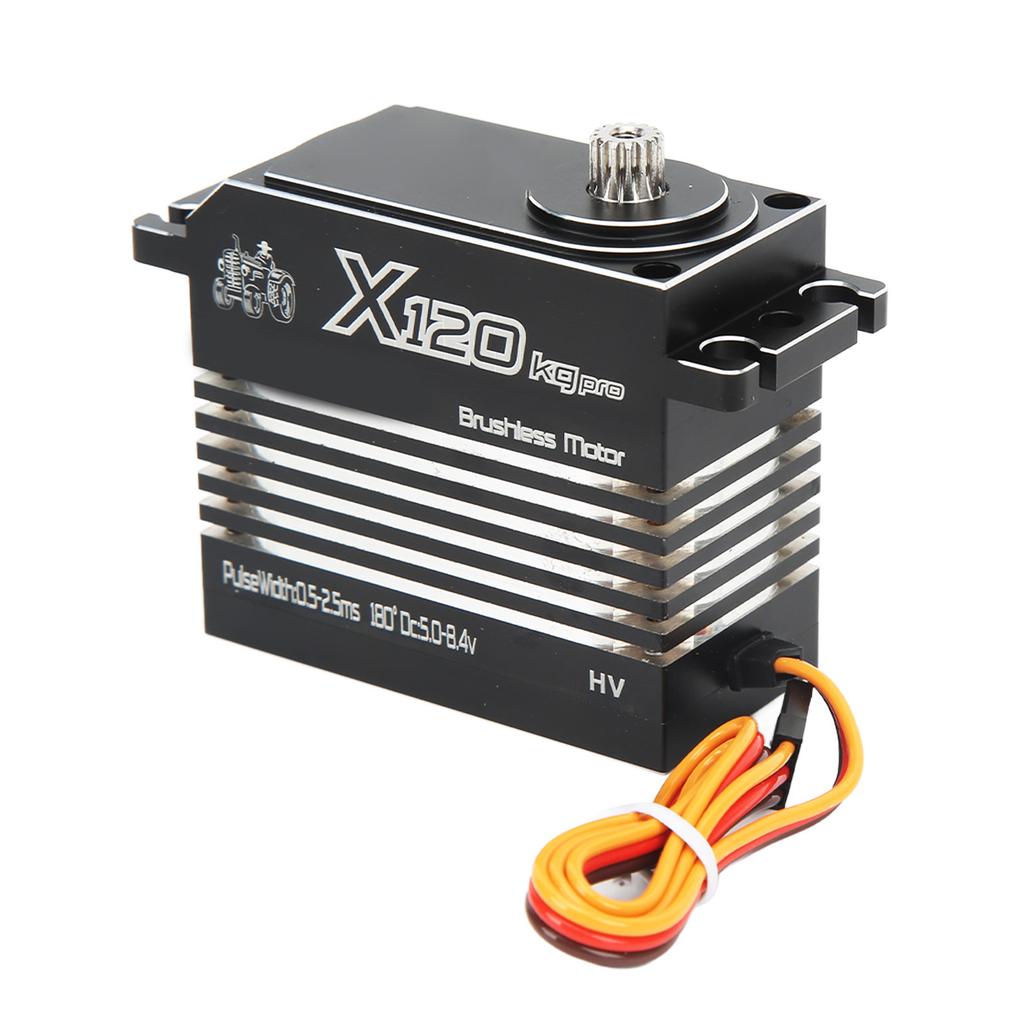

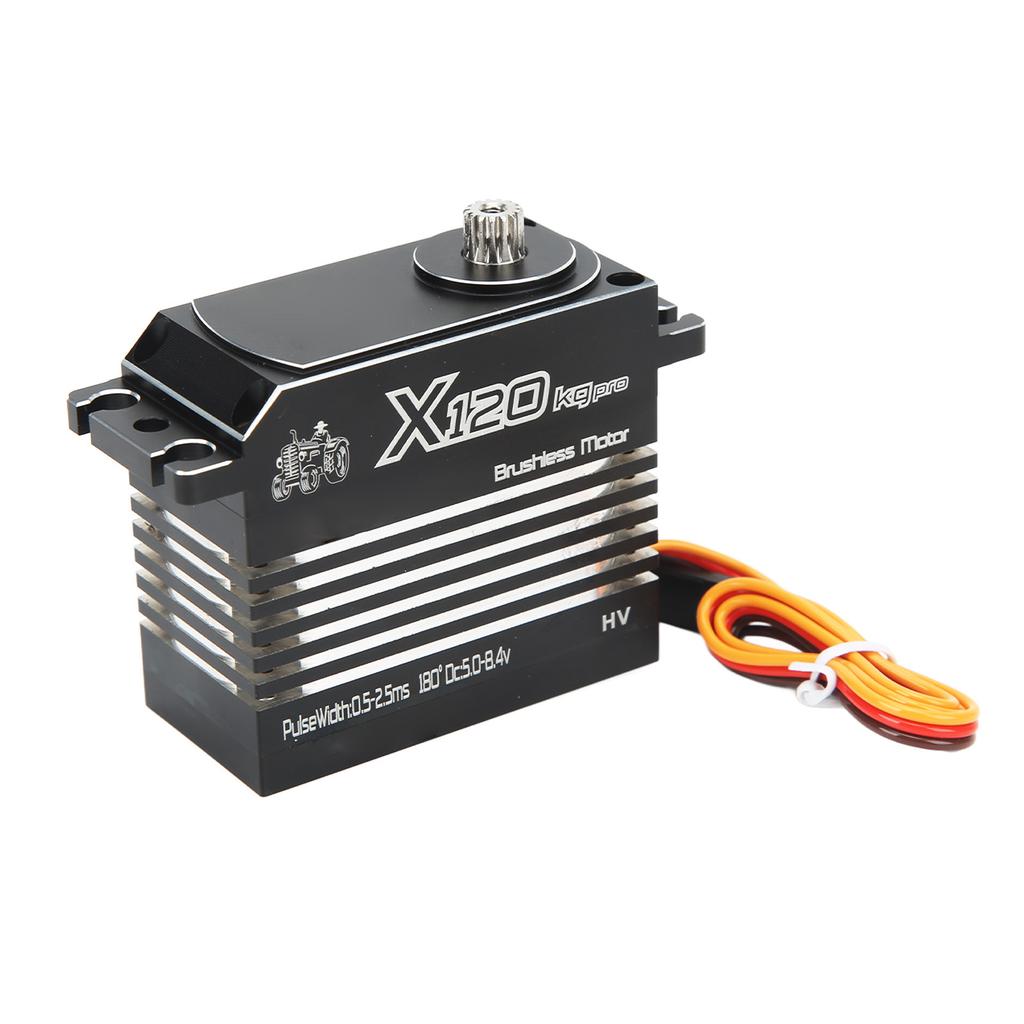

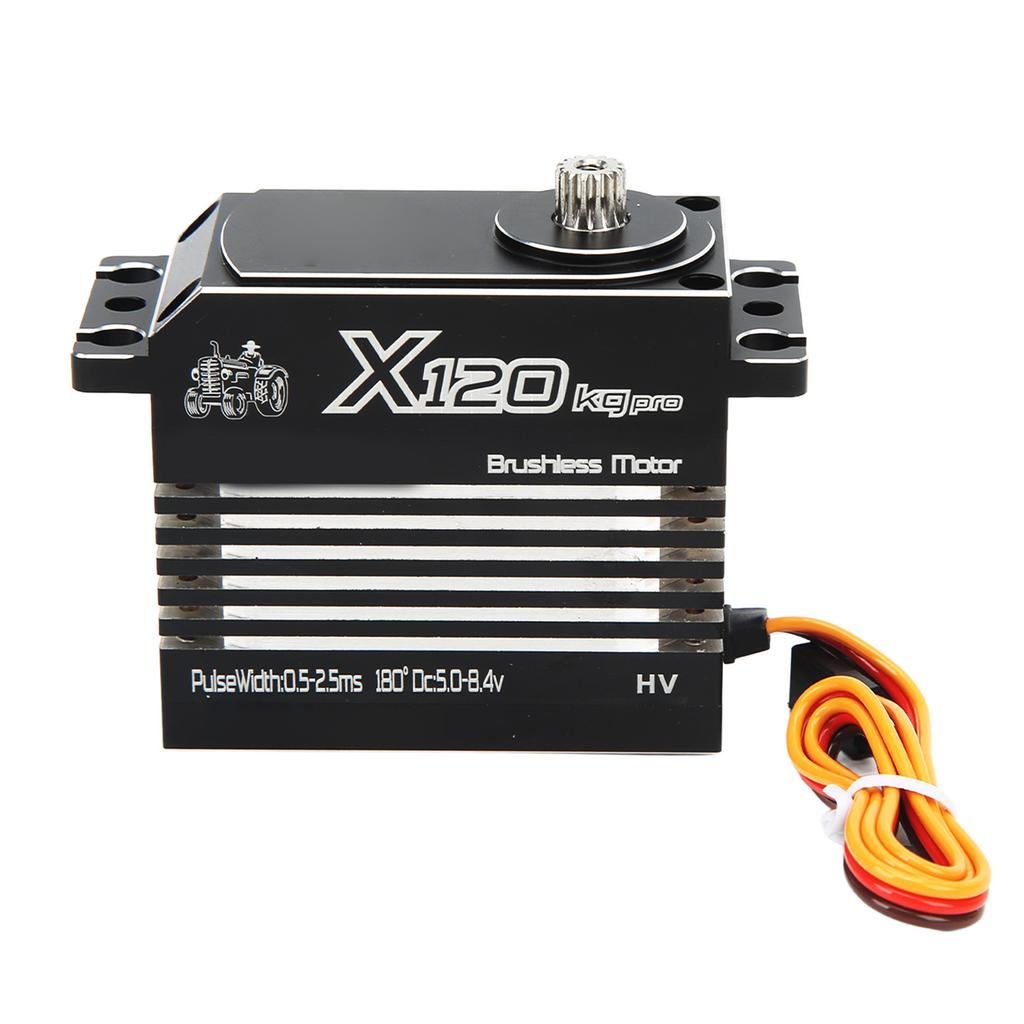

Item Type: 120kg Servo
Shell Material: Aluminum Alloy
Color: Black
Product Size: Approx. 60x30x54mm 2.4x1.2x2.1in (Without Cable, Mounting Wings on Both Sides and Top Gear)
Operating Voltage: DC 5V to 8.4V
Rotation Angle: 180 Degrees
Number of Teeth: 15T
Deadband: 3Microsecond
Pulse Width: 500 2500Microsecond
Operating Frequency: 1520Microsecond 330Hz
Motor: High Performance Brushless Motor
Gear: Full Steel Teeth
Potentiometer: High Performance Potentiometer
Experimental Data:
Speed (6V): 0.135sec 60 Degrees
Speed (7.4V): 0.11 sec 60 Degrees
Speed (8.4V): 0.1 sec 60 Degrees
Blocking Torsion (6V): 90kg 198.4lb cm
Plugging Torsion (7.4V): 110kg 242.5lb cm
Plugging Torsion (8.4V): 120kg 264.6lb cm
Connection Line: JR Line 300mm 11.8in
Applicable: 1 5 1 6 RC Car, Robot, Boat, Helicopter, etc..
Package List:
1 x Servo2 x Servo Arm4 x Rubber Pad2 x Spare Gear2 x Pins6 x Screws
Note:
All data are measured manually, and there are certain errors in the measurement results.
