Features
- 4 pcs AA batteries, over 15 hours of work time (single line mode).

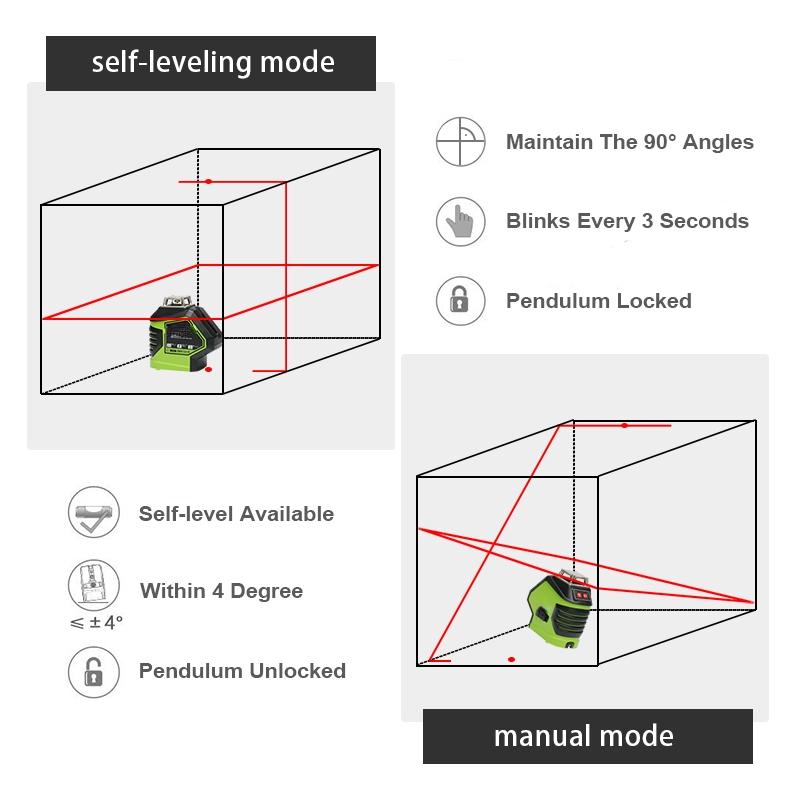

- Pendulum/ transit lock design, it can be adjusted and used more flexibly.

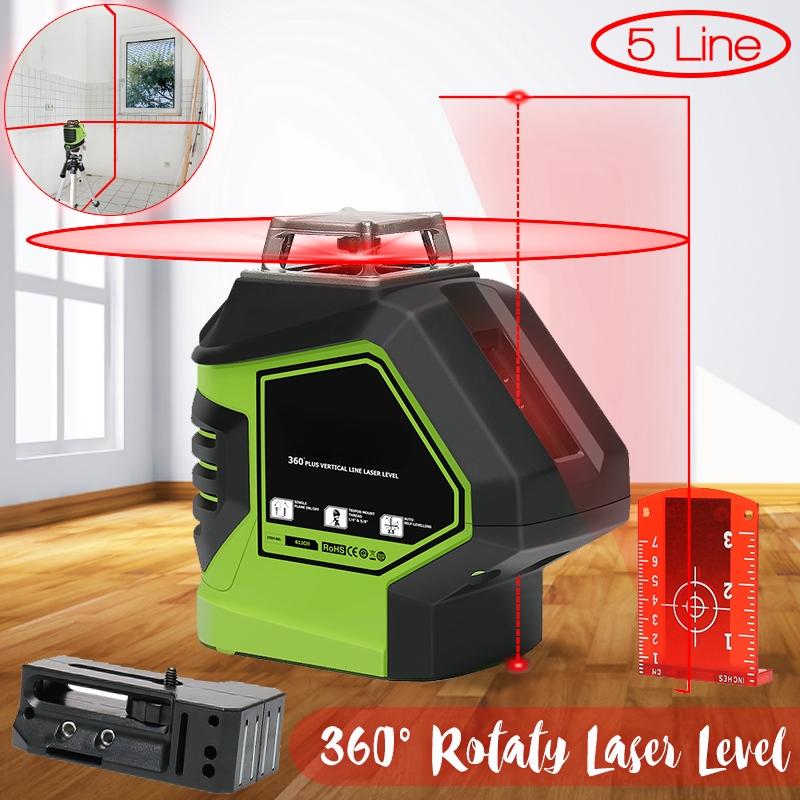

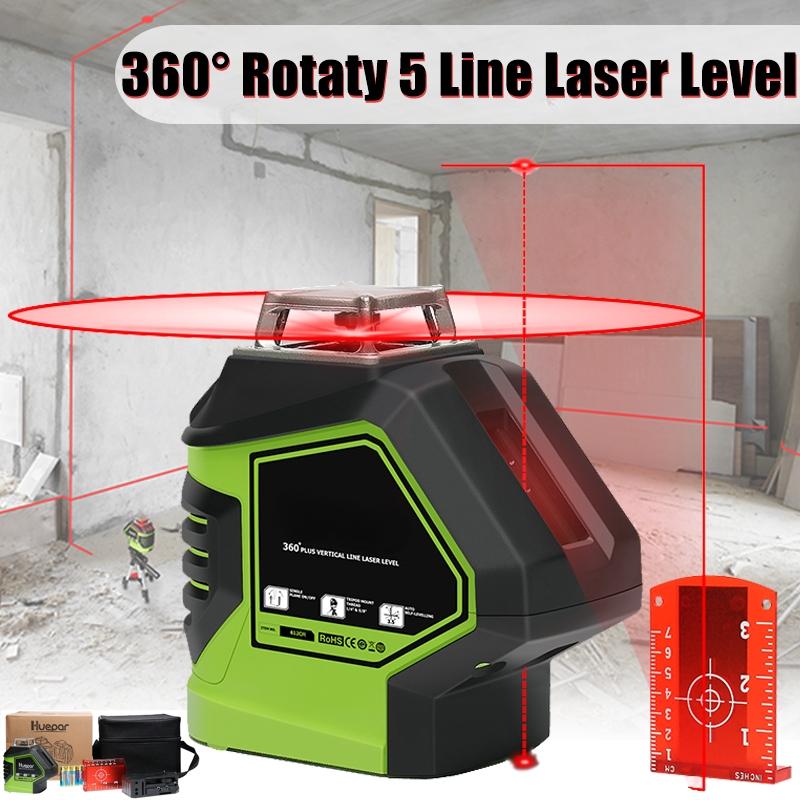

- 360° horizontal laser line, more convenient to use, same plane operation, no need to repeat positioning.
- The instrument has a convex shape, the vertical laser spot is directly visible in the front, and the marking is more convenient.
- Easy and fast maintenance, no complicated tools and disassembled instruments.
- With multi-function accessories, increase the practicality of the instrument and improve work efficiency.
- Vertical laser line directly across the zenith.
- Double threaded connection, size tripod available.
- Available both indoors and outdoors.
- Waterproof and dustproof, IP54.
Specifications
1.Vertical line accuracy: ±3mm/10m
2.Plumb dot accuracy: ±3mm/10m
3.Leveling/Compensation range: ±4°
4.Leveling way: gravity pendulum automatic leveling
5.Laser line width: 2mm/10m; Point diameter: <10mm/10m
6.Protection level: IP54

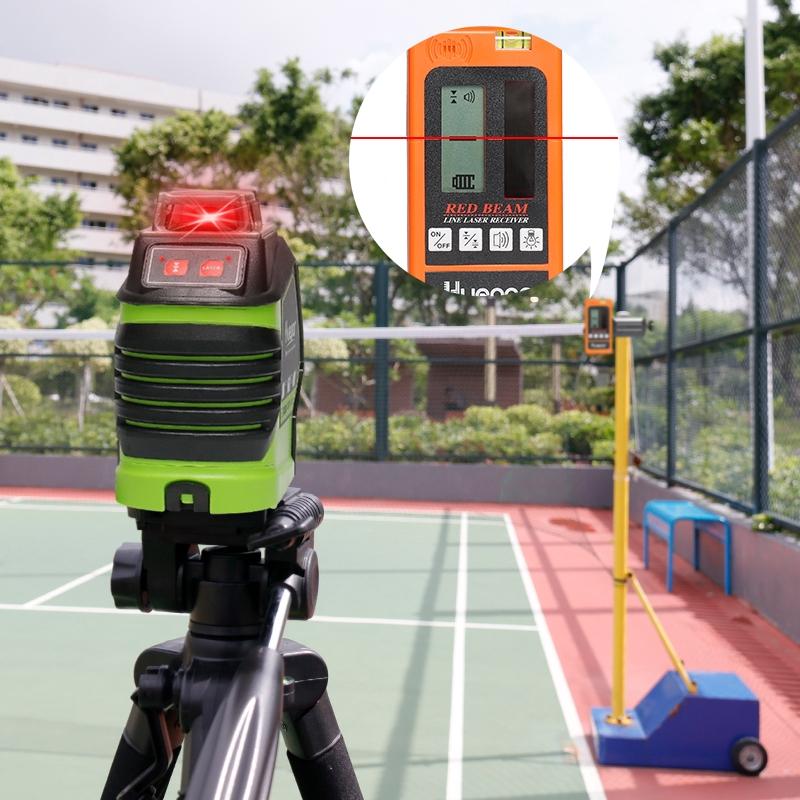

7.Working range (radius): 20m, >50m (using receiver)
8.Laser diode: 635nm / CLASS 2
9.Working temperature: -10℃~ +45℃
10.Power: 4 pcs AA batteries
11.Working time: 8 hours or more (full light mode)
12.Size: length, width and height: 119x62x115 mm

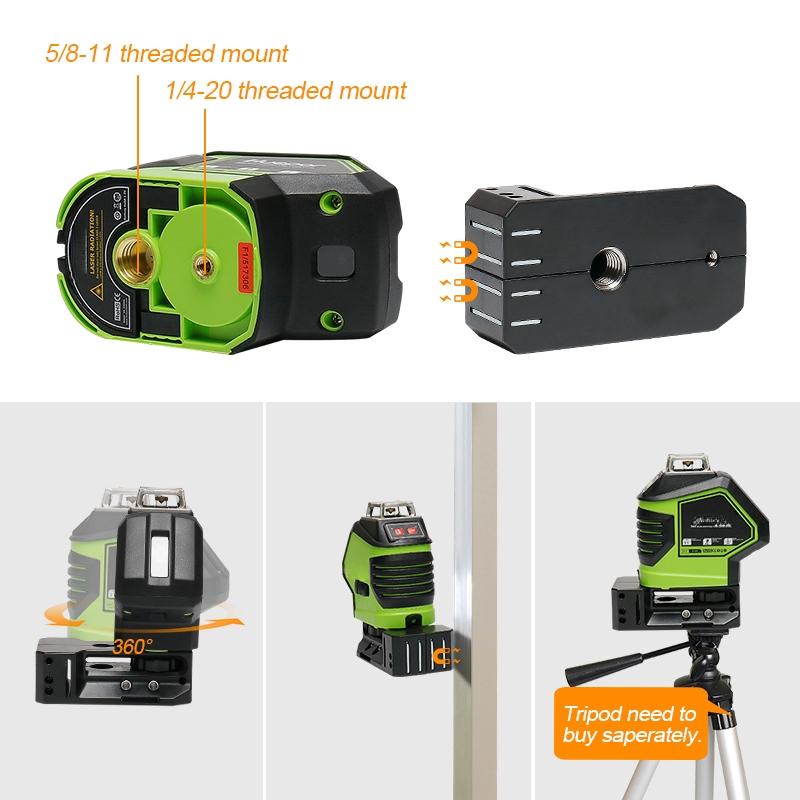

13.Connecting thread: 5/8”and 1/4”
14.Model: 621CR
Package includes:
1x Laser level
1x Easy-to-Adjust magnetic base
4x AA Batteries
1x Carry Bag
1x Target plate card
