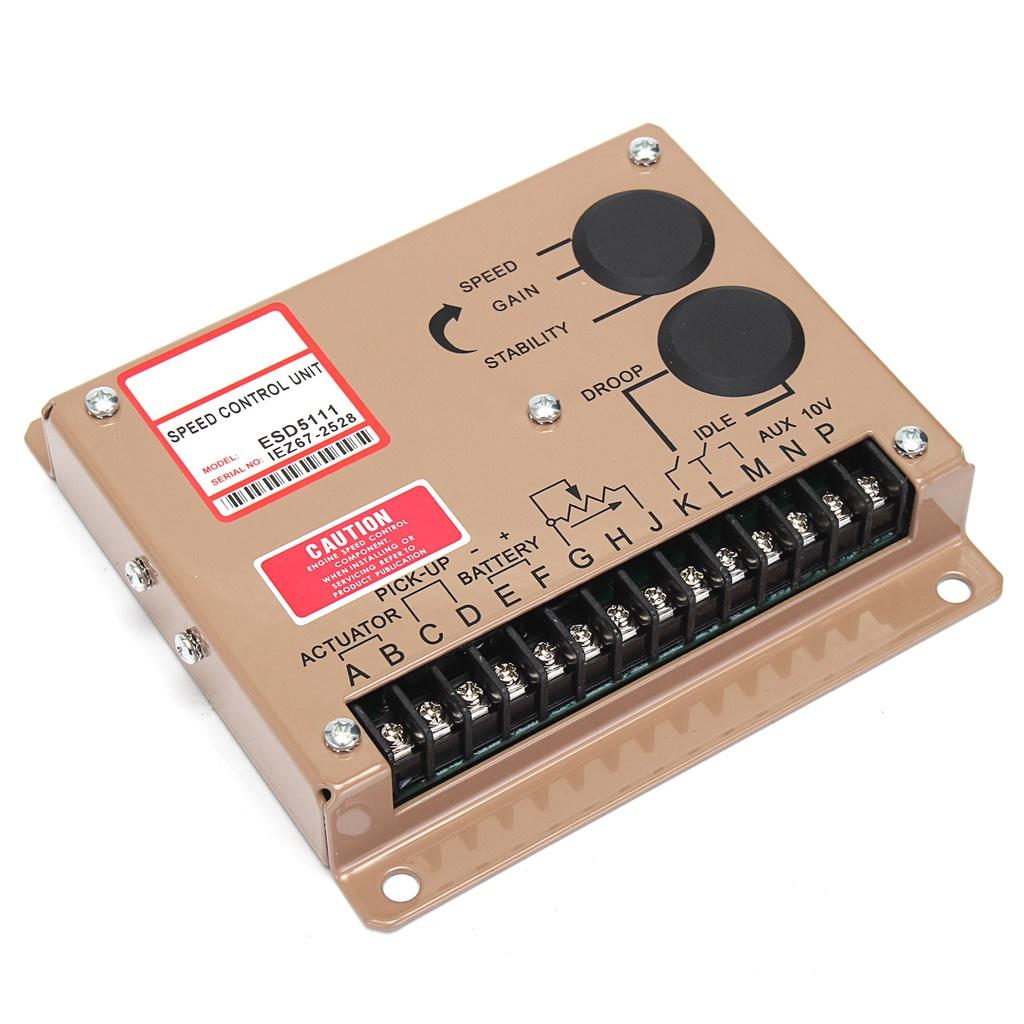

Name: Speed Controller
Specifications:
Speed Range: 1kHz-7.5kHz
Thermal Stability: Max ±1%
IDLE Adjustment: 160 ± 20Hz ~ 95% Rated Speed
External Speed Adjustment: ± 200Hz (External 1KΩ) AUX.
Input Sensitivity: 148Hz / 1V, ± 10Hz, Impedance 1MΩ Start Fuel
Adjust: 160 ± 20Hz ~ 70% of Rated Speed RAMP
Time Adjustment: 1.5-20Sec 10V
Output Current: Maximum 20mA Environment
Operating Temperature Range: -40℃ ~ 85℃
Operating Humidity Range: Max 95%
Save Temperature: -55℃ ~ 90℃
Shock: 20-100HZ 500mm/s
Voltage: 12V DC Battery Systems
Ground Polarity: Negative Electrode
Power Consumption: 50mA
Actuator Continuous Current: minimum 2.5A, maximum 10A
Speed Sensor Signal: 0.5-120 RMS
Features:
-DROOP. Adjustment: The minimum position is 15Hz ± 6Hz / Amps load current change. Maximum position 400Hz ± 75Hz / per amp load current change.
-The speed controller is a closed-loop control of the entire electronic design, it's instantaneous load changes quickly and with precision control in response to engine speed when connected to the match and the implementation of e-speed magnetic sensor signals can be Control of a wide range of engines.
-It is designed to be highly reliable, the engine can withstand the surrounding area within the range of electromagnetic interference.
Note:
-Extreme heat should be avoided.
-Engine speed control component.When installing or servicing refer to product publication.
-Due to the manual measurement,there might be some error.

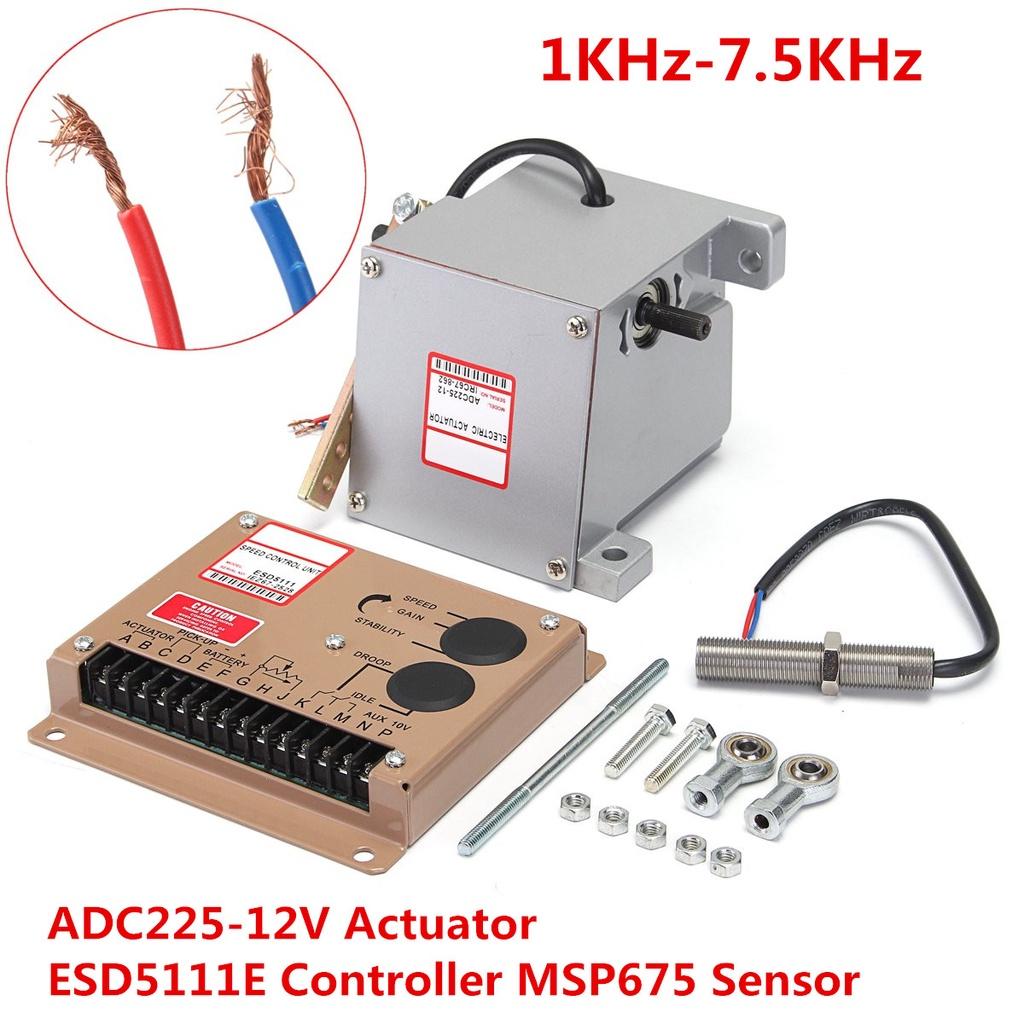

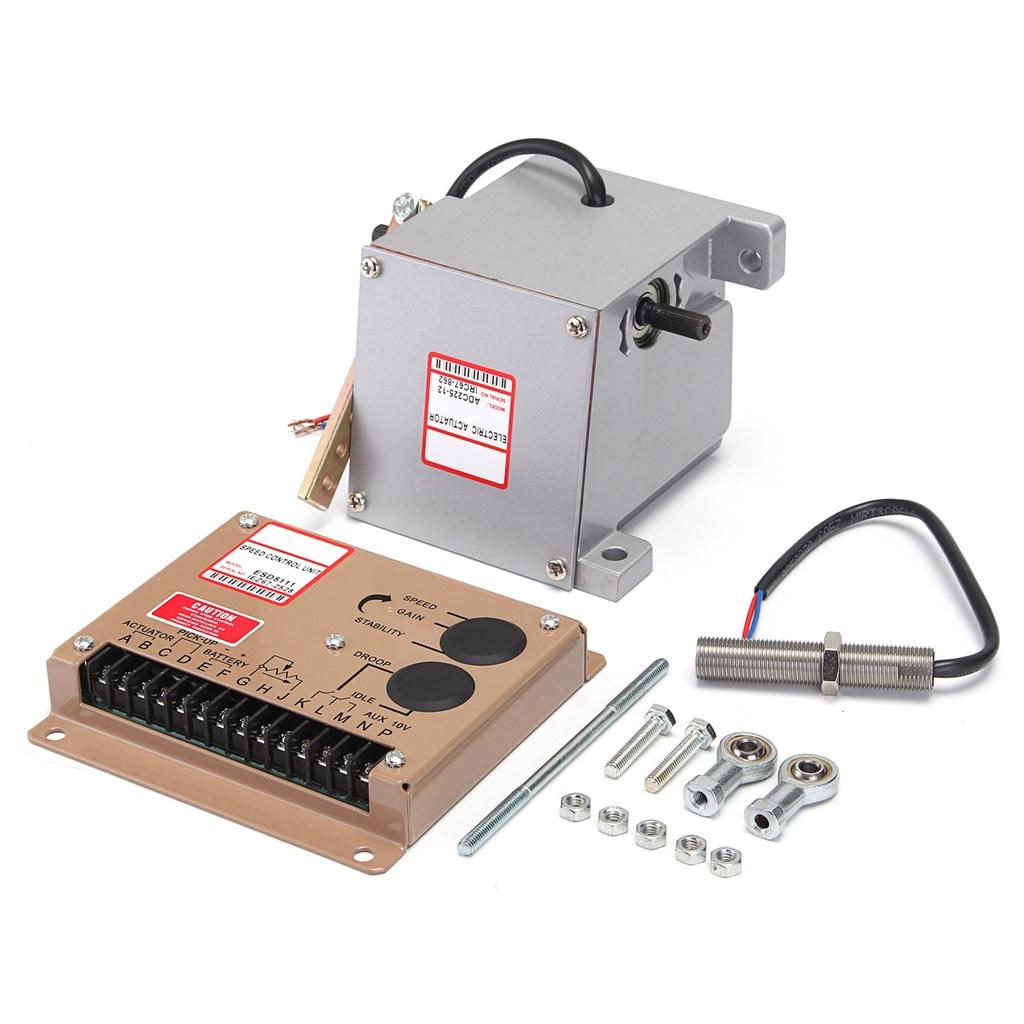

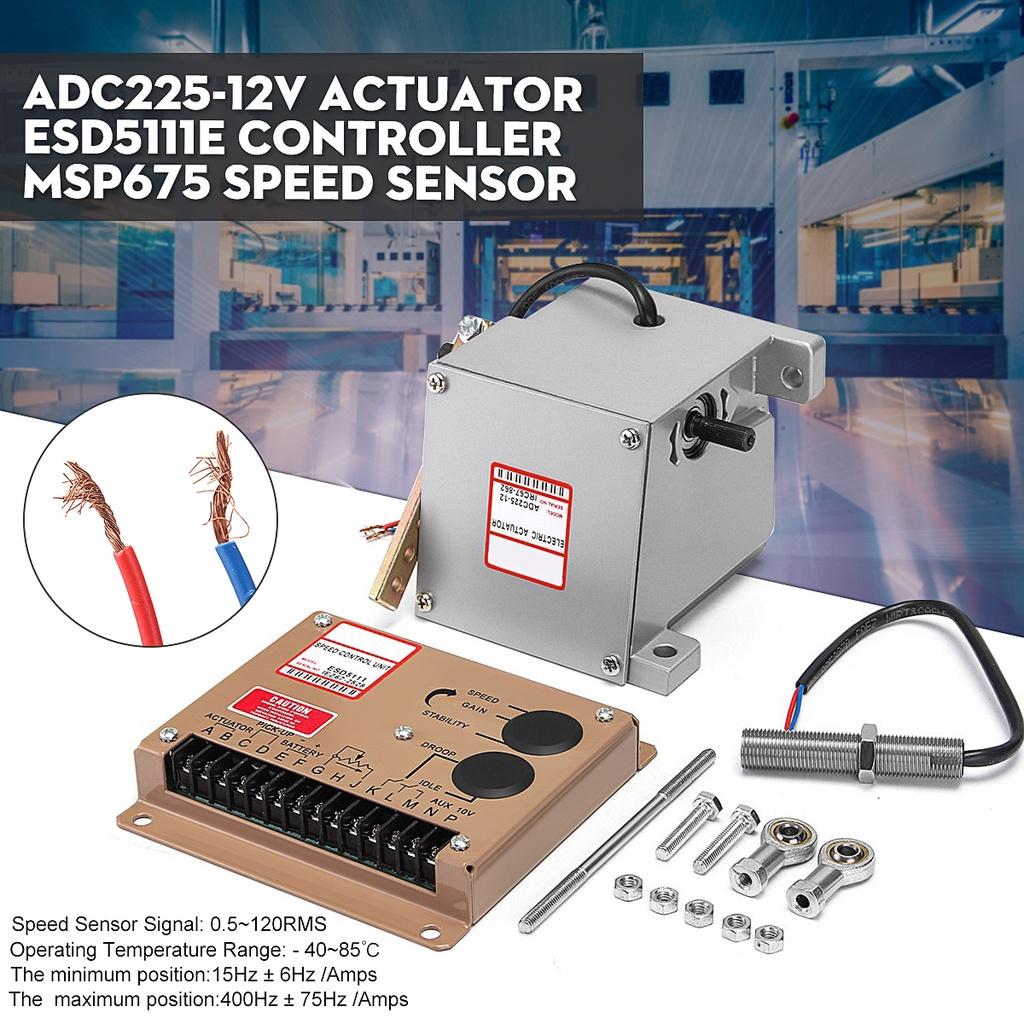

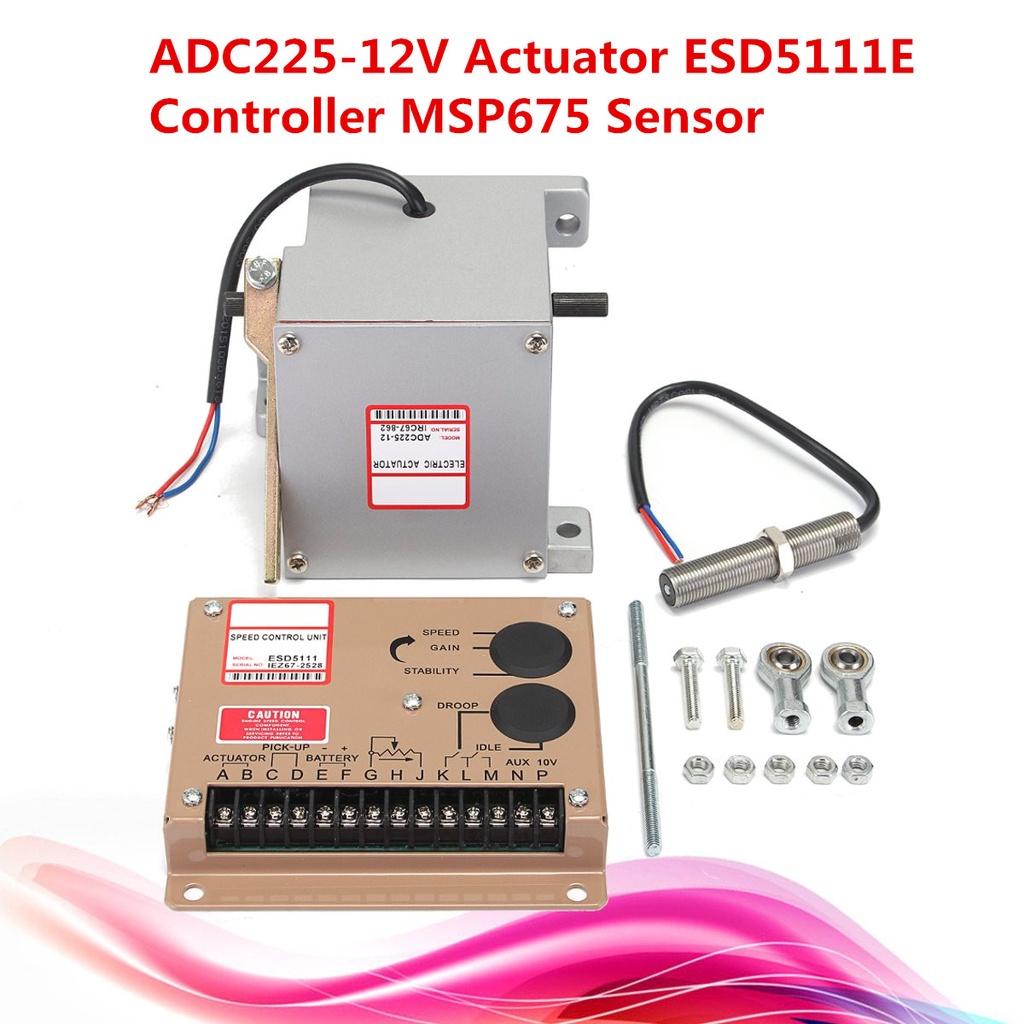

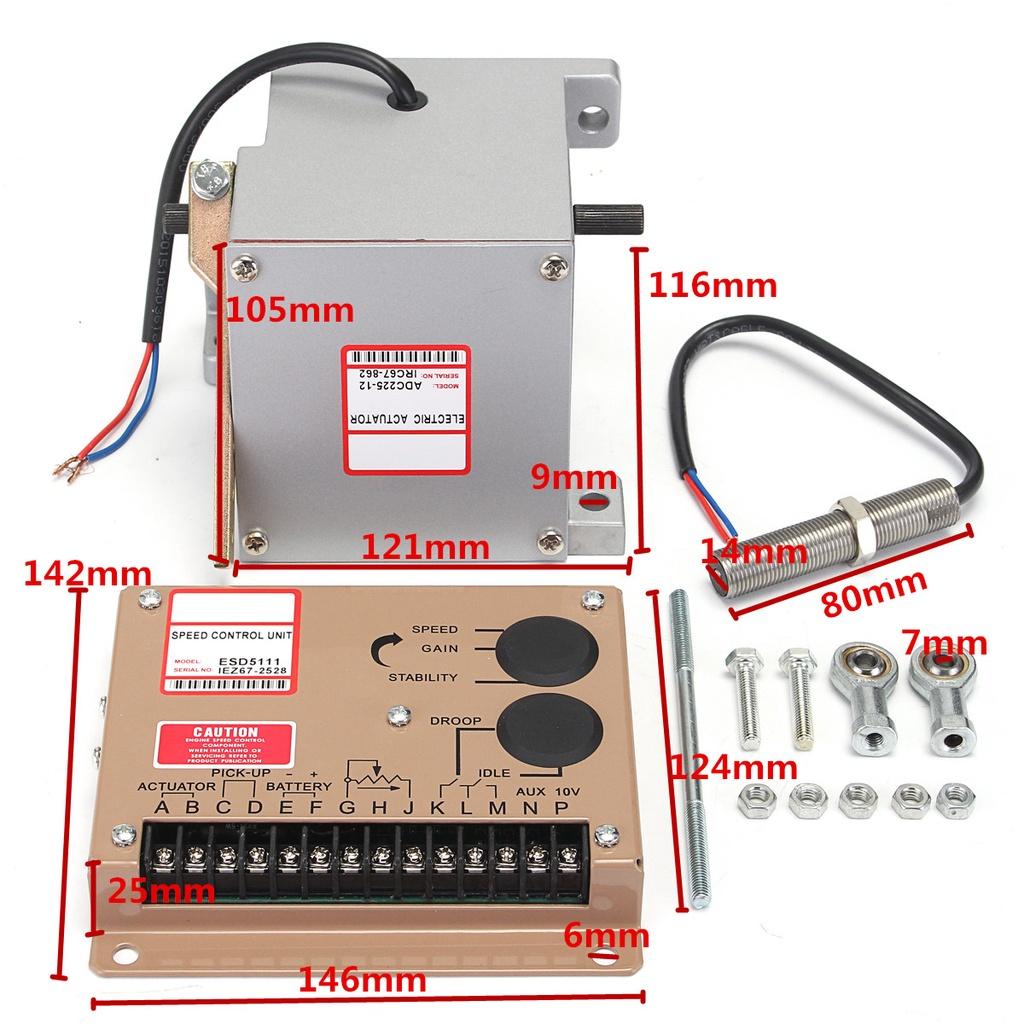

Package Includes:
1 x Speed Controller
1 x Speed Sensor
1 x Brake
17 x Accessories
1 x Manual
