Product Introduction

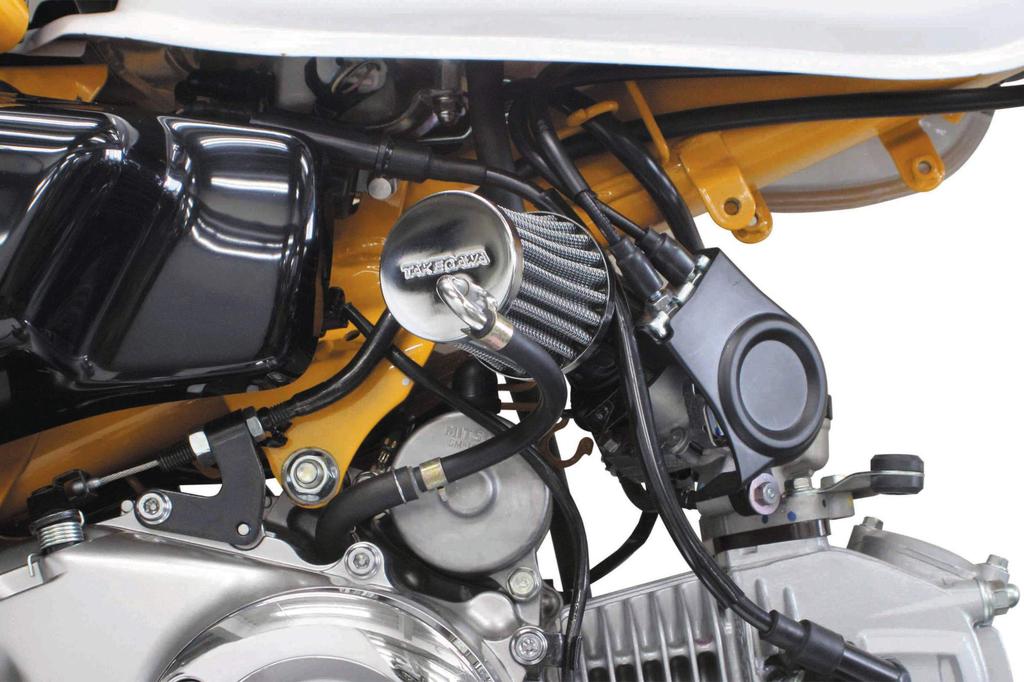

This air filter kit can be installed directly on the stock throttle body by removing the stock air cleaner box.
*For vehicles with a down-mounted muffler only
By installing this product on a Takegawa down-mounted muffler on a stock engine vehicle, you can achieve even greater power output at high RPMs than if you replaced the muffler.
The kit includes a connecting tube specifically designed for the stock throttle body, optimized for optimal length and positioning based on test data to minimize impact on intake efficiency.
The air filter itself features a blow-by union, allowing it to be connected to a blow-by hose using the included union and hose.
The kit includes a sensor bracket for securing the sensor installed on the stock air cleaner box.
It can be installed simultaneously with the Takegawa right side cover and oil catch tank kit.
■ Allows installation of a Takegawa oil cooler kit, which secures the oil cooler to the frame.
By installing this product, you can remove the stock air cleaner box, allowing installation of a Takegawa oil cooler kit, which secures the oil cooler to the frame.
To install this oil cooler kit, an oil outlet is required, so you must also install the Takegawa S-Stage Bore-Up Kit 181cc or the Takegawa Special Clutch Cover.
For vehicles equipped with the S-Stage, use the oil outlet on the cylinder. For vehicles equipped with the Special Clutch Cover, use the oil outlet on the cover.
The configuration and part number of the Takegawa oil cooler kit vary depending on the oil outlet.
For the oil cooler kit lineup, please refer to the Takegawa website catalog (oil cooler page).
Precautions for Use
Cannot be installed simultaneously with the stock muffler or our company's up muffler (sport muffler/RS sport muffler).
For vehicles equipped with a down muffler only.
When installing this kit together with various engine parts manufactured by Takegawa, settings must be made using the FI-CON TYPE-e or TYPE-X.
For information on combining various engine parts with the air filter kit and separately purchased parts, please refer to the instruction manual for this product number on the Takegawa website.
Compatible models: Monkey 125 (JB02-1000001~), Monkey 125 (Thailand model) (MLHJB02)
For vehicles equipped with a down muffler
Can be installed simultaneously with SP Takegawa R. side covers and oil catch tank kits.
Cannot be installed simultaneously with the stock muffler or SP Takegawa up muffler (sport muffler/RS sport muffler).
