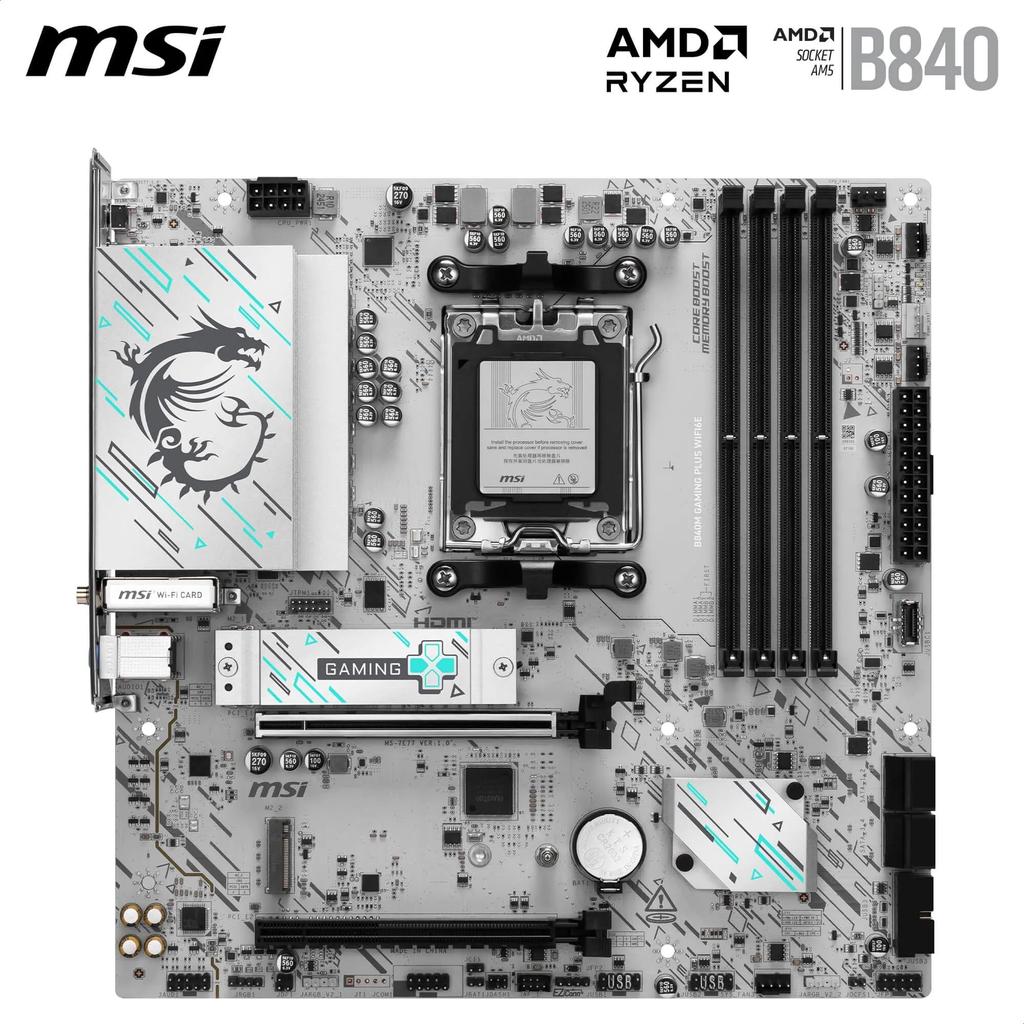

This Micro-ATX gaming motherboard is equipped with the AMD B840 chipset and is compatible with the AMD Ryzen 9000/8000/7000 series. The white PCB and heatsinks create a clean, simple design. Form Factor: Micro-ATX (244 x 244mm)
Chipset: AMD B840
CPU Socket: AM5, AMD Ryzen 9000/8000/7000 Series Processors
Memory Socket: 4x DDR5 UDIMM up to 256GB
Memory Support: DDR5 8000 (OC)-4800, AMD EXPO Compliant
Expansion Slots: 1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x4 slot (x16)
Storage: 2x M.2 (PCIe 4.0 x4 compatible), 4x SATA3
Video Output: 1x HDMI (2.1)

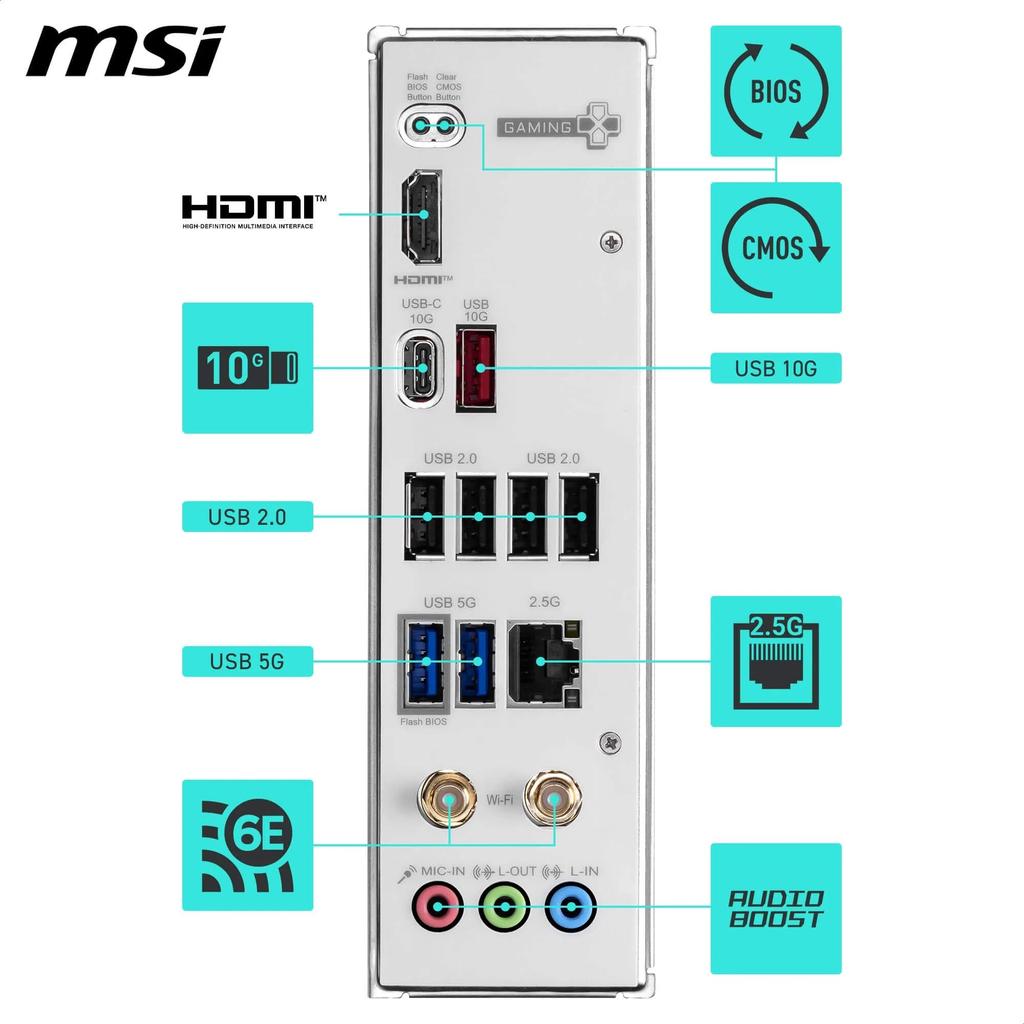

USB (Rear): 1x USB 10Gbps Type-C, 1x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 Type-A
USB (Front): 1x USB 5Gbps Type-C, 2x USB 5Gbps Type-A, 4x USB 2.0
●Sound: 7.1ch HD Audio Codec (Realtek ALC897)
●Network: 2.5Gbps Wired LAN, Wi-Fi 6E Wireless LAN, Bluetooth 5.3
●Supported OS: Windows 11 64-bit

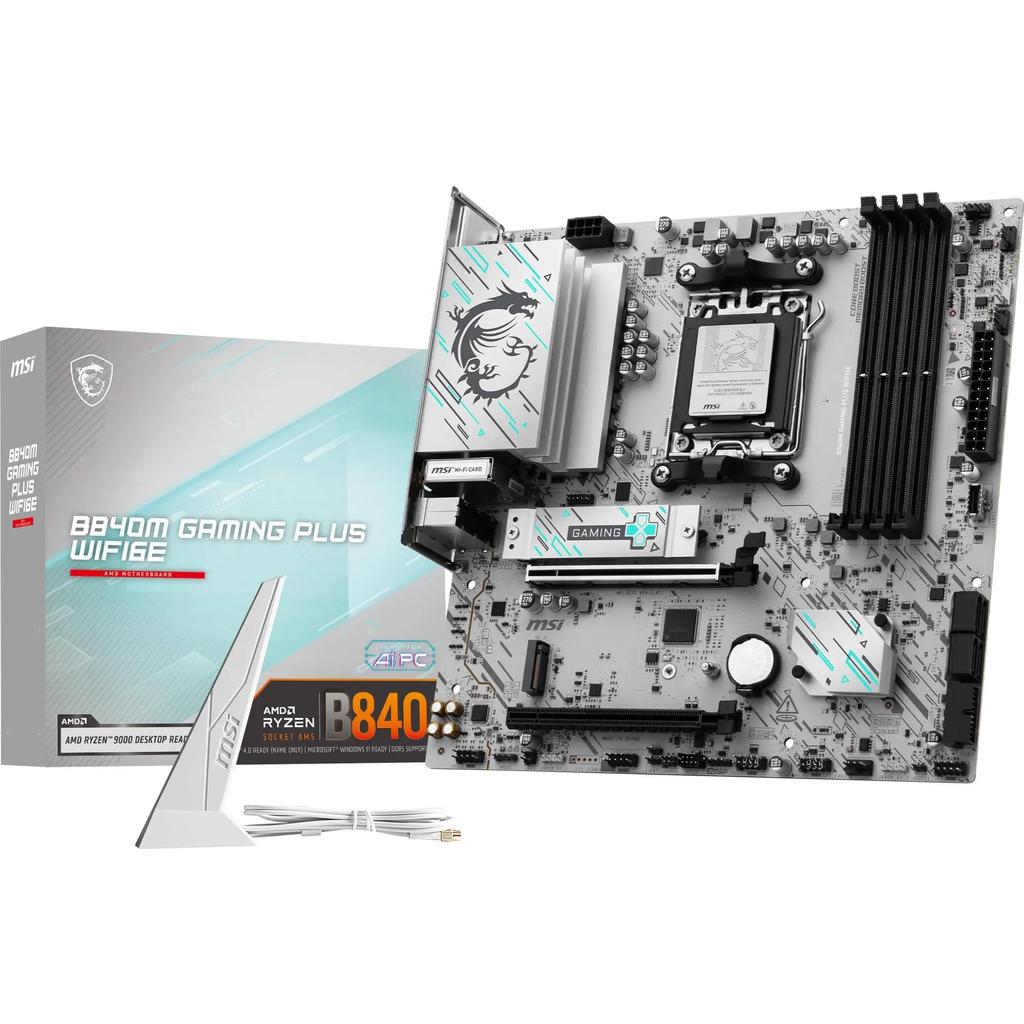

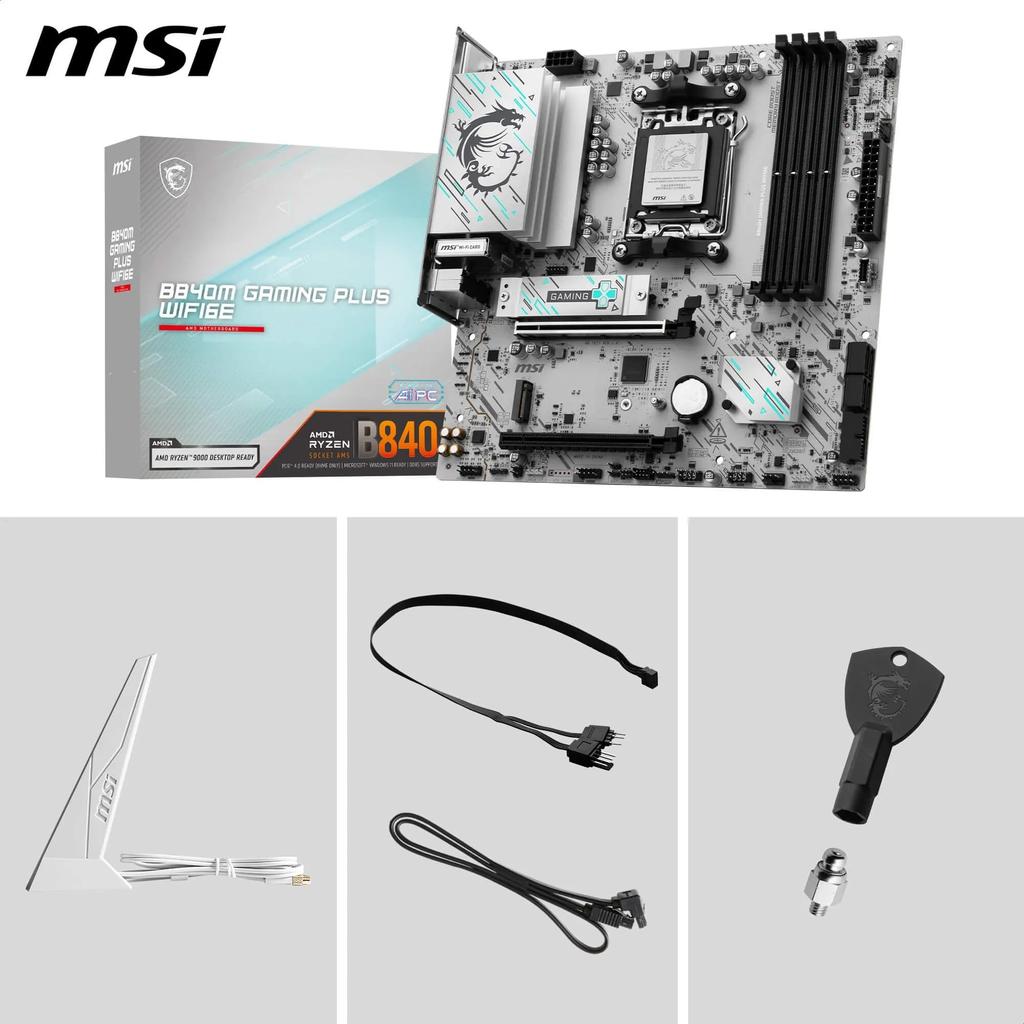

●Accessories: Quick Installation Guide, EZ Wi-Fi Antenna, EZ M.2 Clips II, EZ M.2 Clips II Remover, SATA Cable, 1 to 2 EZ Conn-Cable (V1)
MB6805 Official Japan Distributor Product, 3-Year Warranty
The white PCB and heatsink create a minimalist, unified look. It maintains expandability despite its Micro-ATX form factor.

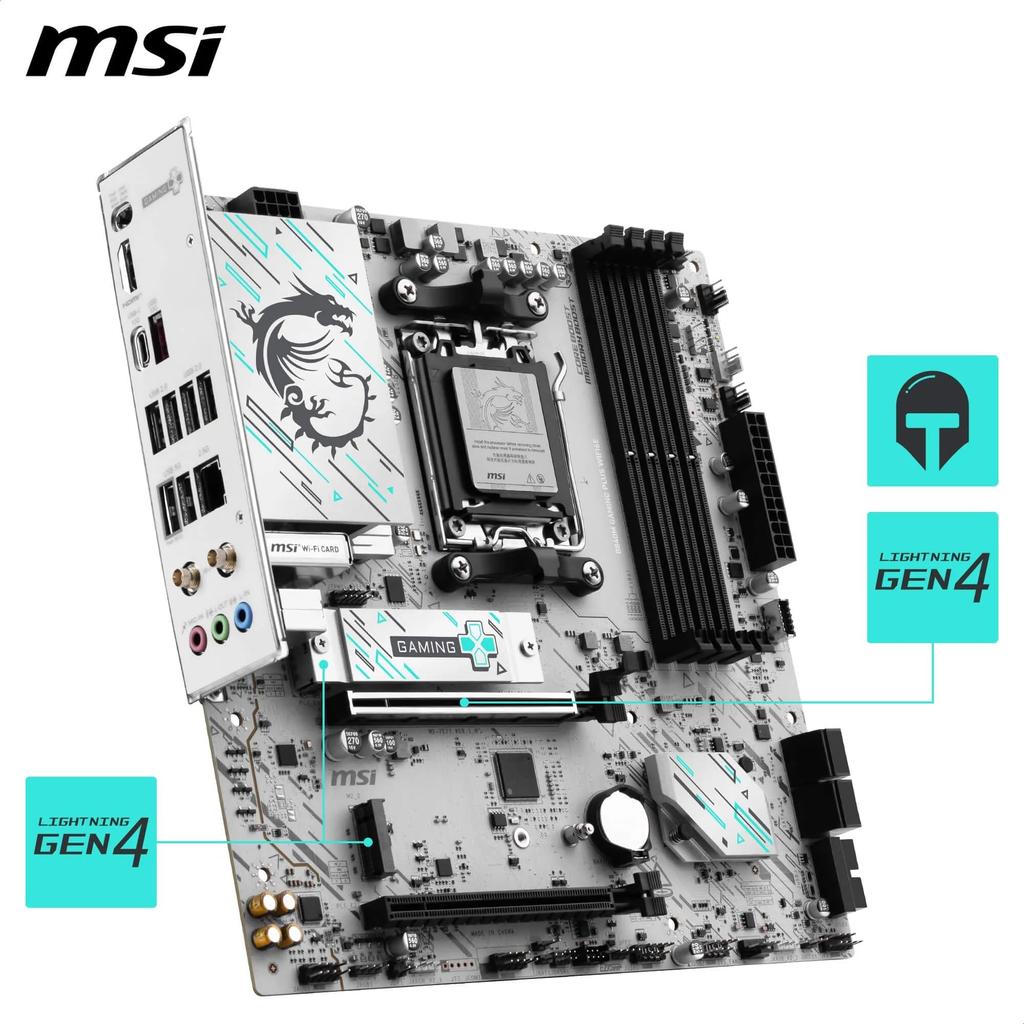

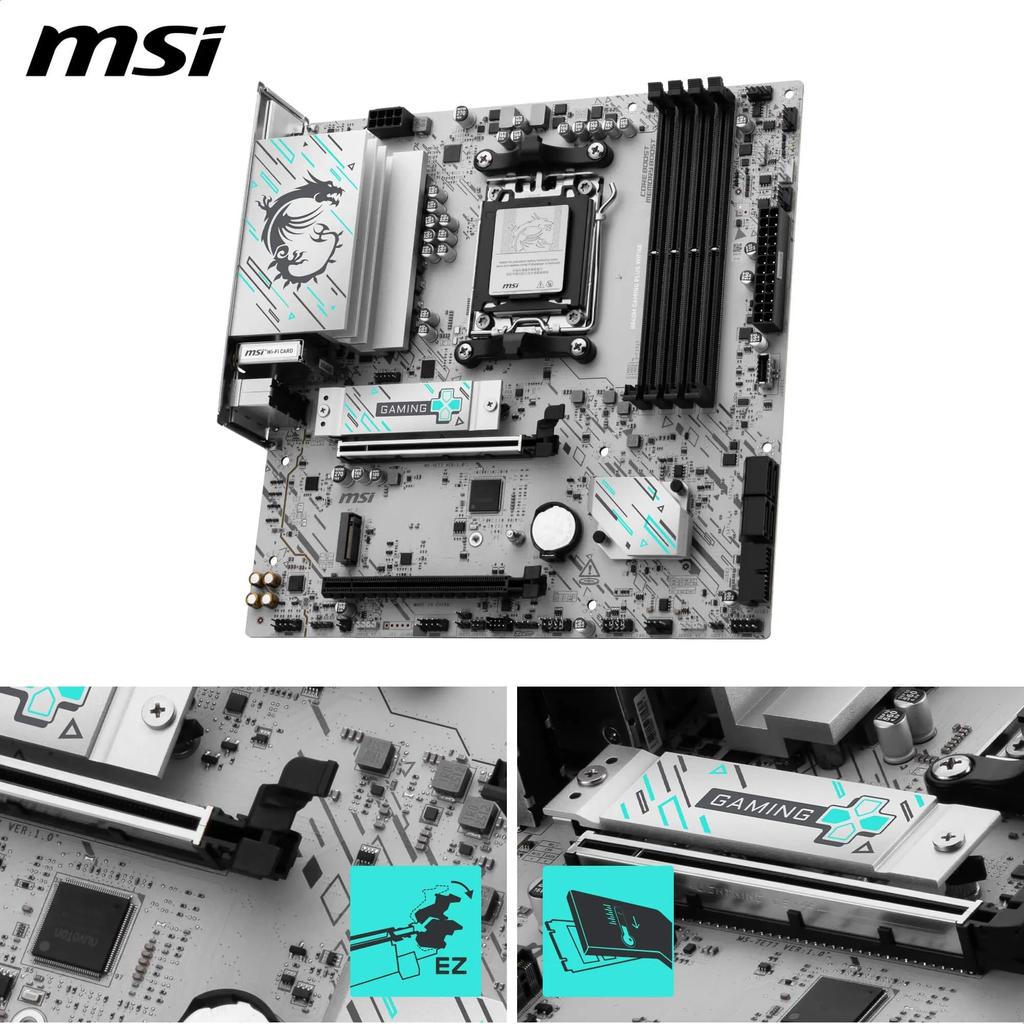

Equipped with two PCIe Gen4 x4 M.2 slots, it provides excellent storage performance with high-speed read/write speeds, significantly reducing game loading and work time.

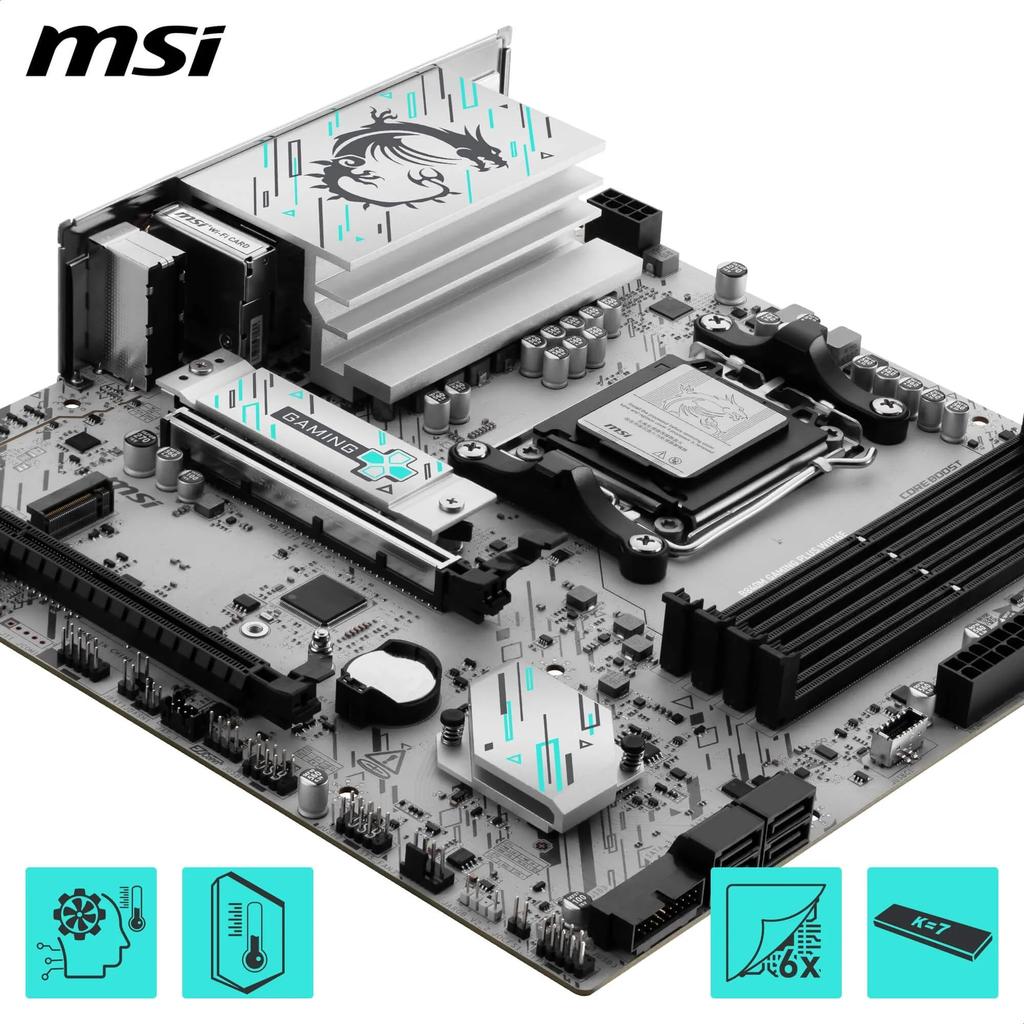

The combination of an extended heatsink, 7 W/mK MOSFET thermal pad, additional choke pad, and EZ M.2 Shield Frozr efficiently handles heat under heavy loads.
Equipped with wired 2.5GbE LAN and Wi-Fi 6E connectivity, it provides a low-latency network environment, allowing you to enjoy online gaming and video streaming with ease.
