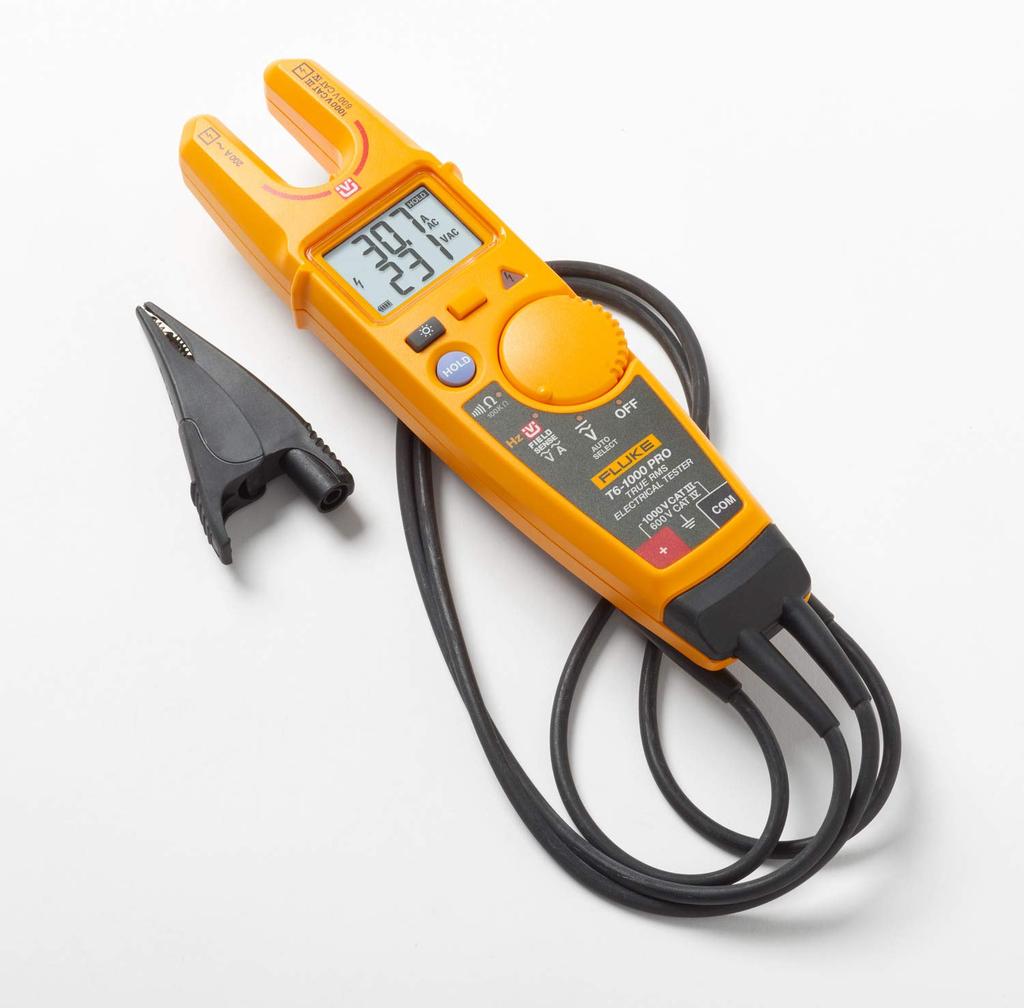

Fluke Electrical Tester [Official Japanese Product] T6-1000 PRO

Fluke T6 PRO Electrical Tester "Displays voltage and current on a single screen"

The T6-1000 PRO Electrical Tester features an open-head fork that allows you to measure voltage and current up to 1000V AC and 200A AC without contacting live test leads.

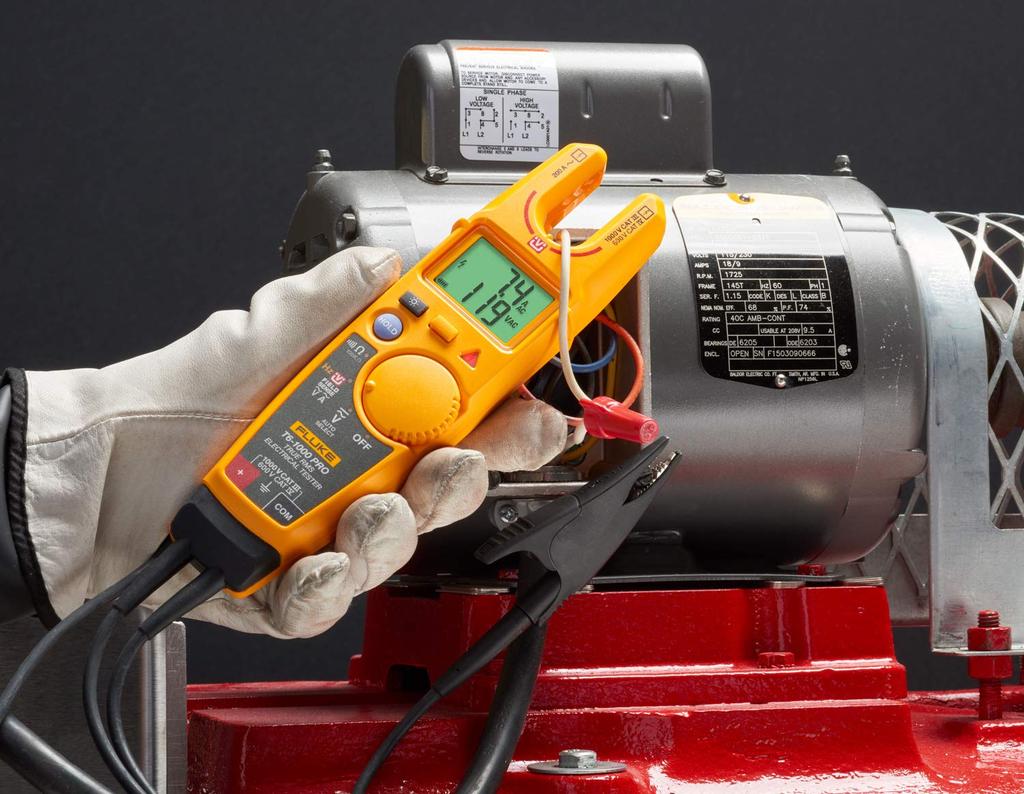

Use the included heavy-duty alligator clip to ground the black lead and thread the wire through the open-head fork to simultaneously check voltage and current.

Compatible with wires up to 200A and 1000V AC, AWG 4/0 (120 mm2).

Key Features

Simultaneous Voltage and Current Display - Save time by viewing voltage and current measurements simultaneously when troubleshooting motors, pumps, and other equipment.

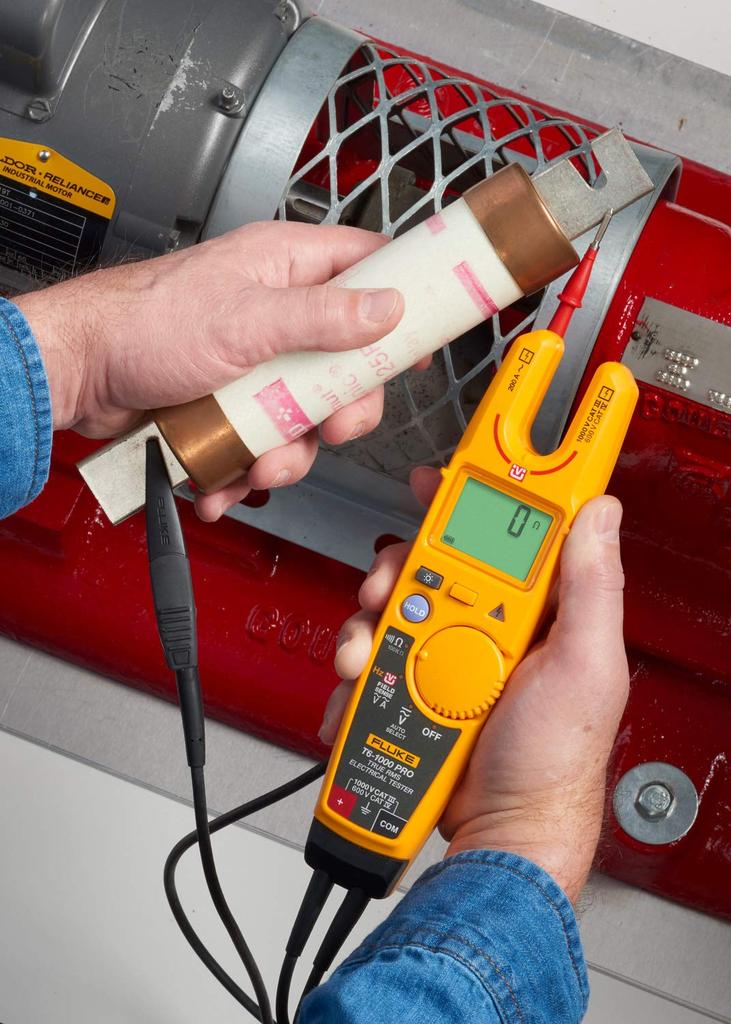

Visual Continuity - When continuity is confirmed, the screen automatically turns green while the beeper is enabled. Ideal for when noise, hearing protection, or low-light conditions make it difficult to hear the beeper. Visual Continuity takes the guesswork out of verifying continuity.

True-rms - Accurately measure voltage and current, even when measuring complex signals.

FieldSense technology enables AC voltage, current, and frequency measurements without making electrical contact with live parts.

□Other Features□ ・1 to 1000V AC or DC ・0.1 to 200A AC ・Resistance: 1 Ω to 100kΩ ・Frequency measurement with open head fork: 45 Hz to 66 Hz ・Compatible with wires up to AWG 4/0 (opening: 17.8 mm) ・HOLD button temporarily holds the display for improved readability ・Easy-to-read backlit display ・Optional TPAK magnetic meter hanging kit for easy operation ・Standard 2-year warranty, extended to 4 years with product registration within 45 days of purchase.*

*Register your product online within 45 days of purchase to extend your warranty to 4 years.

Measurement Specifications [FieldSense AC Voltage] Range: 1000V | Resolution: 1V | Accuracy: ±(3% + 3 counts) 45 Hz to 66 Hz [※2][※3] [FieldSense AC Current] Range: 200.0A | Resolution: 0.1A | Accuracy: ±(3% + 3 counts) 45 Hz to 66 Hz [FieldSense Frequency (Hz)] Range: 45Hz to 66Hz | Resolution: 1Hz | Accuracy: +(1% + 2 counts) [※3] [AC Voltage] Range: 1000V | Resolution: 1V | Accuracy: ±(1.5% + 2 counts) 45 Hz to 66 Hz [DC Voltage] Range: 1000V | Resolution: 1V | Accuracy: +(1% + 2 counts) [Resistance] Range: 2000Ω | Resolution: 1Ω | Accuracy: +(1% + 2 counts) ______ Range: 20.00 kΩ | Resolution: 0.01 kΩ | Accuracy: + (1% + 2 counts) ______ Range: 100.0 kΩ | Resolution: 0.1 kΩ | Accuracy: + (1% + 2 counts) [Safety] 1000 V CAT III, 600 V CAT IV

General Accuracy: ± ([% of reading] + [least significant digit]). Accuracy is specified for one year after calibration, at an operating temperature of 18°C ​​to 28°C, and at 90% relative humidity. AC voltage measurements are AC-coupled RMS responding. 2 Accuracy [2]: When no external connection is present, the error per sensitivity increases by 3%. When using an external ground connection, you must work in an insulated state, such as by wearing insulated gloves or using an insulated ladder. *3 Accuracy [3]: FieldSense specifications apply from 16 V to 100% of range.

General Specifications Calibration: 1 year Dimensions: 61.1 mm x 259.3 mm x 43.8 mm Fork Opening: 17.8 mm Weight: 0.35 kg (0.78 lb) Temperature: Operating: -10°C to +50°C, Storage: -30°C to +60°C Altitude: Operating: 2,000 m, Storage: 10,000 m Relative Humidity: 0% to 90%, 5°C to 30°C | 0% to 75%, 30°C to 40°C | 0% to 45%, 40°C to 50°C Battery Type and Life: Two AA batteries (IEC LR6); Continuous operating time: 360 hours (typical), 200 hours (with FieldSense) Temperature Coefficient: 0.1% x (specified accuracy)/°C (<18°C or >28°C) [Safety] IEC/61010-1: Pollution Degree 2 [Electromagnetic Environment] IEC 61326-1: Portable The T6-1000 PRO Electrical Tester features an open-head fork and can measure voltages and currents up to 1000V AC and 200A AC without contacting live parts with the test leads.
