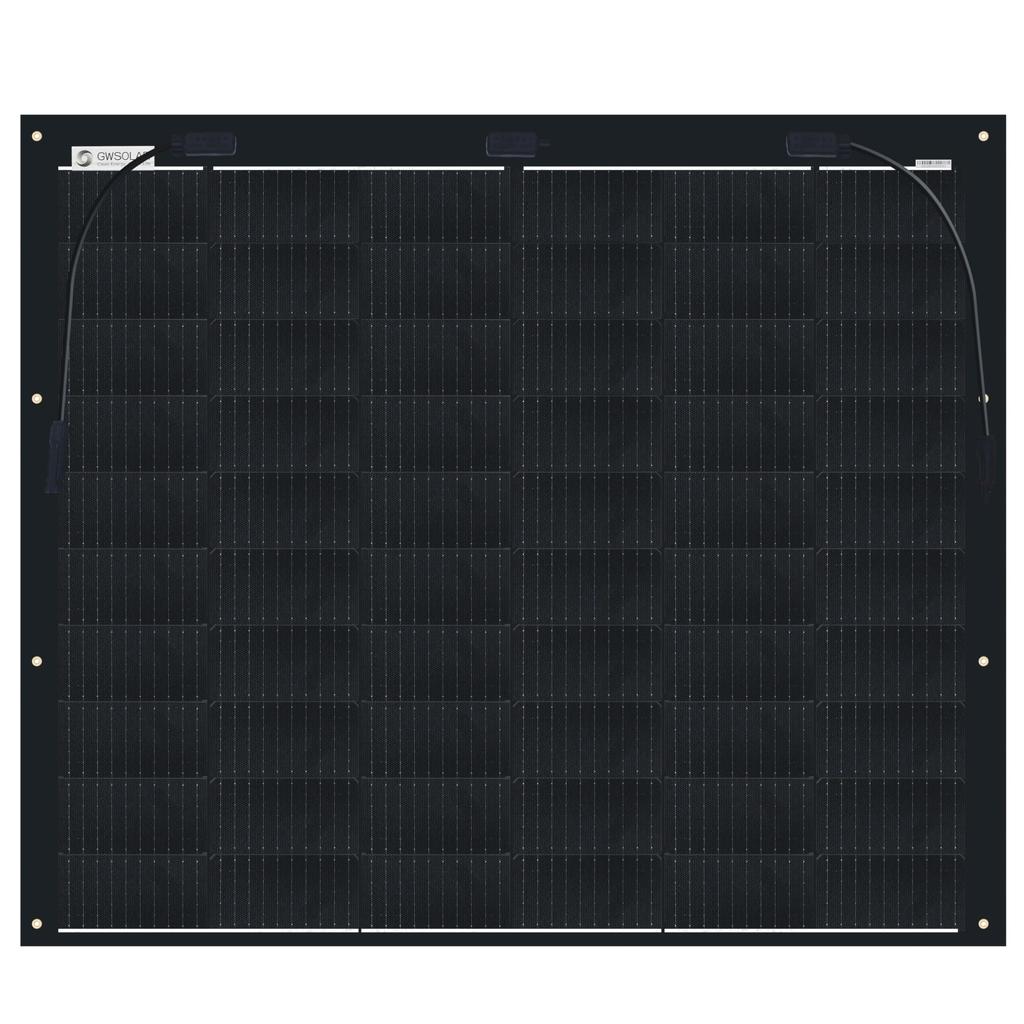

[Features] Lightweight, flexible 210W solar panel, three bypass diodes to prevent hot spots, MPPT 12V/24V system charging, microinverter connection compatible

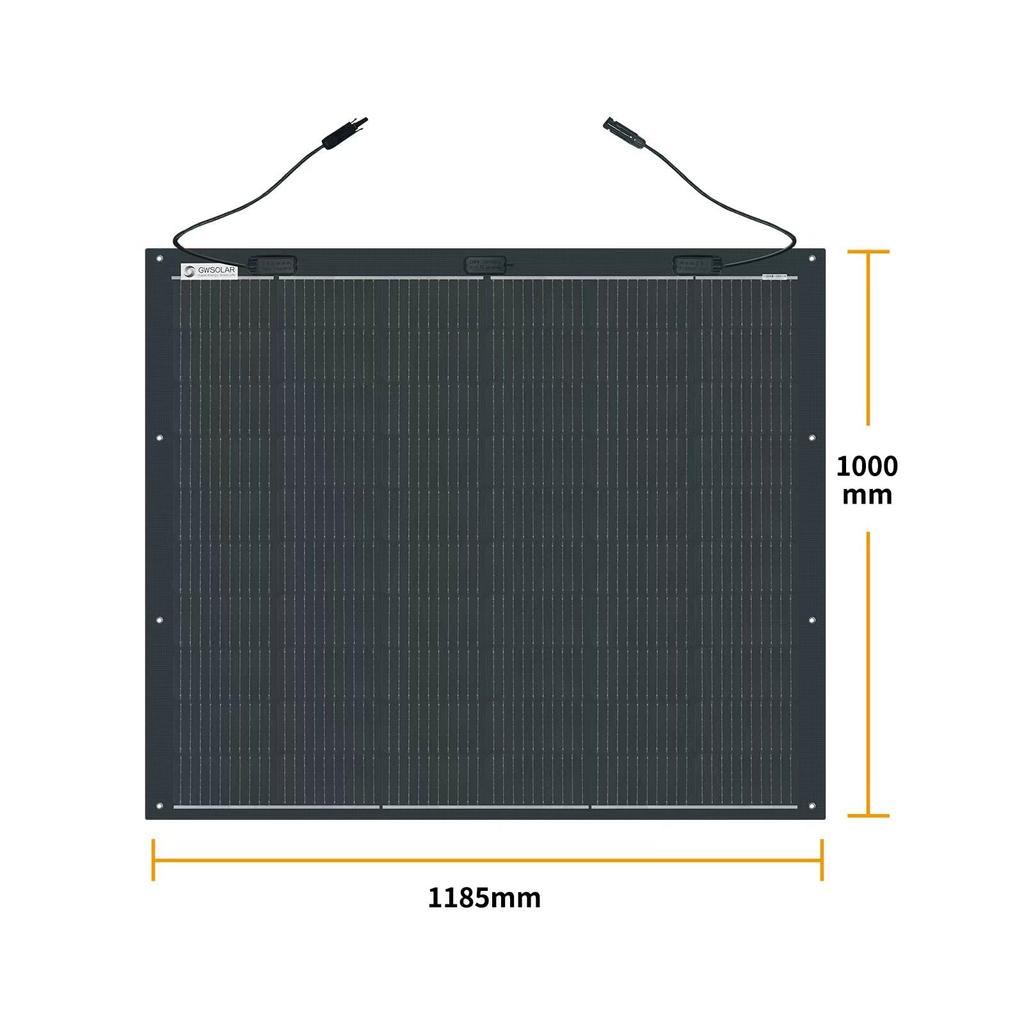

Specifications: Model: GW-210FXA; Maximum Output: 210W (Output Tolerance: +-5%); Maximum Output Operating Voltage: 34.1V; Maximum Output Operating Current: 6.16A; Open Circuit Voltage: 41.2V; Short Circuit Current: 6.55A; Dimensions: 1000 x 1185 x 21mm (including junction box); Weight: Approx. 3.7kg; Cable Length: Approx. 500mm
Uses: 1. Widely usable for camping, boating, cars, outdoors, and at home. 2. Off-grid applications, useful for saving electricity. Disaster preparedness supplies: Solar power generation as a backup in case of a power outage. 3. Outdoor use: Even in places where there is no power source, such as sports events and camping, you don't have to worry about power if you have a portable and efficient panel.
Uses: 1) Commercial 12V system power storage 2) Home DIY power generation: Compatible with 12V power storage, can charge solar panels in a sunny garden or balcony, helping to save energy.
② As a disaster prevention item: Solar power generation as a backup in case of a power outage. ③ For outdoor use: Even in places where there is no power source, such as sports events or camping, you don't have to worry about power if you have a portable and efficient power generation panel. Please note that we cannot generally provide support for installation or installation methods.
* Conversion efficiency is calculated using the values specified in JIS C 8918 at AM1.5, irradiance of 1000W/m², and module temperature of 25°C, using the formula in JIS C 8960 2012. (*Source: JIS C 8960 2012: Japanese Industrial Standards, page 9,309, effective conversion efficiency) "In-house research, 2017"
GWSOLAR [210W Flexible Solar Panel] Ultra-lightweight, 3.7kg flexible solar panel [MPPT controller for charging 12V/24V systems: Voltage 34.1V/Current 6.16A] Car camping, rooftop, outdoor, disaster preparedness, camper, disaster preparedness, power outage preparedness, camping, boat, car emergency use. GW Solar (Model Number: GW-210FXA) [Features] Lightweight, flexible 210W solar panel, triple bypass diodes for hotspot prevention, MPPT 12V/24V system charging, microinverter connection compatible. [Specifications] Model Number: GW-210FXA, Maximum Output: 210W (Output Tolerance: +-5%), Maximum Output Operating Voltage: 34.1V, Maximum Output Operating Current: 6.16A A・Open voltage: 41.2V・Short circuit current: 6.55A・External dimensions: 1000 x 1185 x 21mm (including junction box)・Weight: Approximately 3.7kg・Cable length: Approximately 500mmUses:①Can be used widely for camping, boats, cars, outdoors, at home, etc.②Can be used for off-grid applications and helps save energyAs a disaster prevention item: Solar power generation as a backup in case of a power outage.③For outdoor use:
Even at places where there is no power source, such as sports events and camping, you don't have to worry about power supply if you have a portable and highly efficient power generating panel.
